HVAC technicians use an AC manifold gauge set to measure pressure and temperature in air conditioning systems accurately. The set consists of three gauges, each with its purpose: the high-pressure gauge measures the pressure on the high side of the system, the low-pressure gauge measures the pressure on the low side, and the compound gauge combines these readings to give an overall view of the system's performance.
How Mechanicaddicts Chooses the AC Manifold Gauge Set
Many options are available to choose the correct AC manifold gauge set. However, if you want to ensure that you invest in a high-quality and reliable product, it can be overwhelming to sift through all the choices. That's where Mechanicaddicts steps in.
At Mechanicaddicts, our team of expert reviewers has thoroughly evaluated and reviewed different AC manifold gauge sets to provide you with the top options on the market. We understand that having a reliable and accurate gauge set is crucial for a mechanic or DIY enthusiast's work.
Why We Like These Manifold Gauges

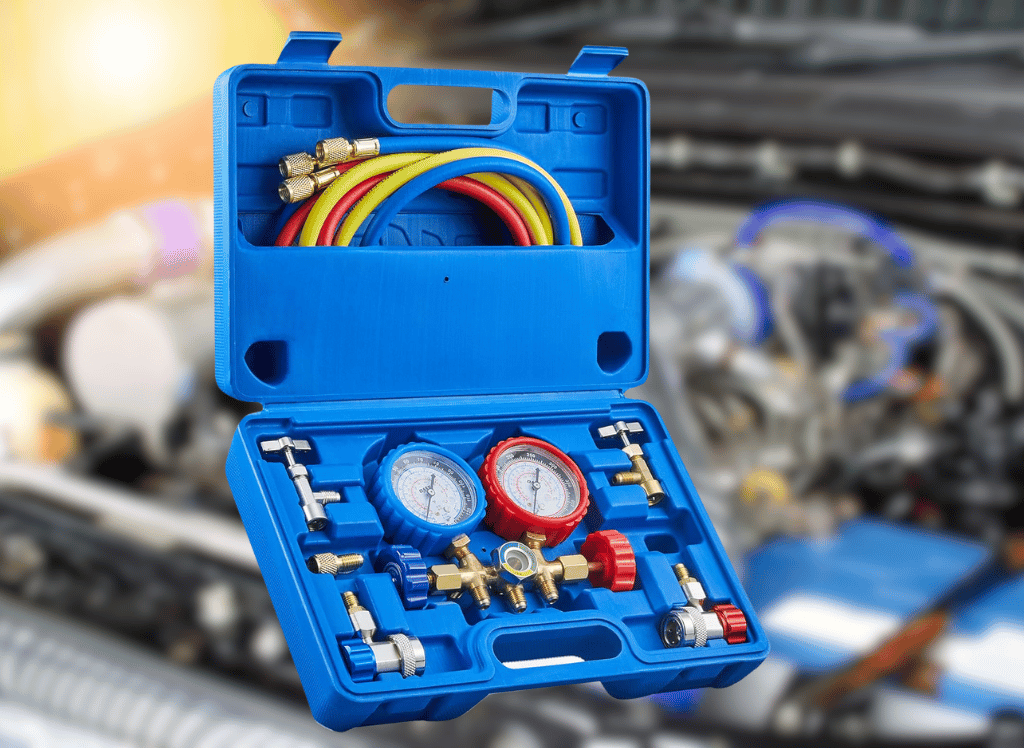

The Orion Motor Tech AC Gauge Set is a comprehensive tool kit for professional automotive HVAC maintenance. This complete set includes a 3-way gauge, color-coded hoses, adjustable quick couplers, and various adapters to ensure hassle-free setup and easy operation.
The hybrid anti-shock gauges feature an oil-filled core for resistance against wear and shock and a moisture indicator for real-time monitoring of coolant conditions. With ±1.6% accuracy provided by calibration screws and superior design, these gauges are a reliable choice for precision readings. The color-coded hoses are made of durable PVC material with four reinforced layers, capable of handling daily pressure up to 600 psi.
This versatile set is compatible with multiple refrigerants, including R134a, R12, R22, and R502. Whether for DIY enthusiasts or professional technicians, this gauge set allows for essential tasks such as pressure measurement, evacuation and refilling of coolant, and more. It has a heavy-duty blow-molded carrying case for convenient storage and transport between jobs. The Orion Motor Tech AC Gauge Set is indispensable to any automotive maintenance toolkit.
About This Set:
- Complete Toolkit: Includes everything needed for automotive AC maintenance—gauges, hoses, couplers, and more.
- Hybrid Gauges offer the best of both dry and liquid-filled designs,. They have a moisture indicator and ±1.6% accuracy.
- Color-Coded Hoses: Designed for ease of use, supporting up to 600 psi daily pressure.
- Versatile Use: Compatible with R134a, R12, R22, and R502 refrigerants, suitable for DIY and professional tasks.
- Durable Design: Features reinforced hose layers and an oil-filled gauge core for enhanced durability and shock resistance.
- Convenient Storage: Comes with a heavy-duty carrying case for easy storage and transport.
- Precision Maintenance Tools: Allows accurate pressure measurement, coolant evacuation, and refilling tasks.
Why We Like These Manifold Gauges

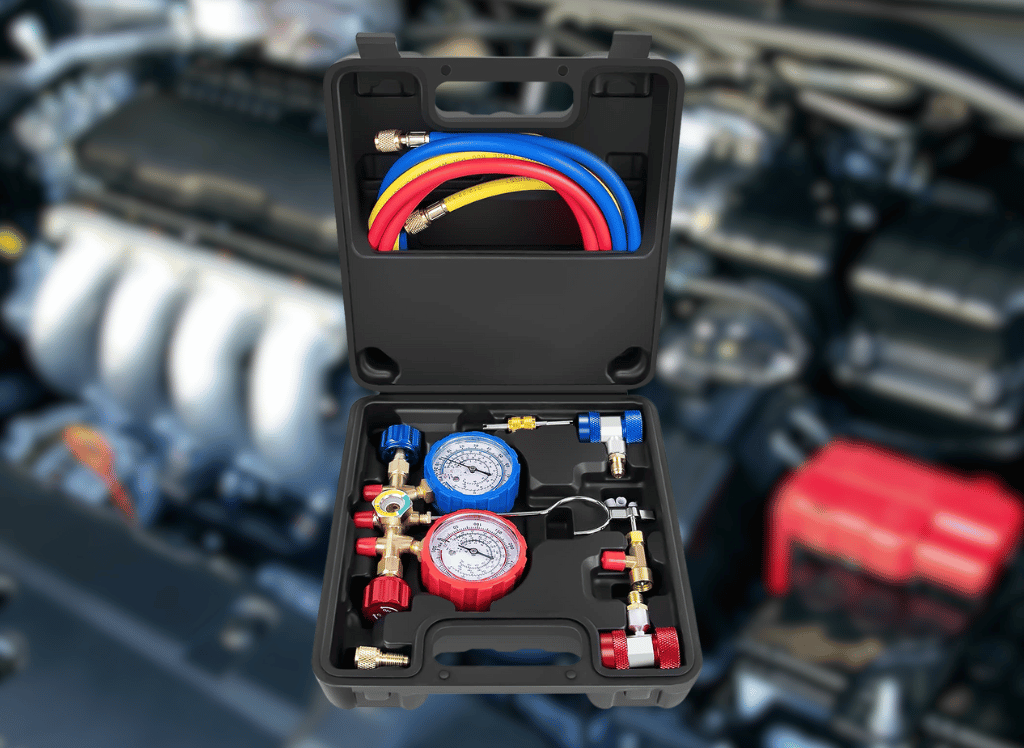

The Aurelio Tech 3 Way AC Manifold Gauge Set is essential for any professional A/C technician or DIY enthusiast. This professional-grade diagnostic manifold gauge set is designed to accurately measure pressure levels and diagnose issues in air conditioning systems using R134A, R12, R22, and R502 refrigerants.
Crafted from high-quality materials, including solid brass, aluminum, PVC, and plastic, this gauge set is built to withstand heavy use and provide reliable results. The blue gauge measures low-pressure levels up to 350 PSI, while the red gauge measures high-pressure levels up to 500 PSI. ]With a burst pressure of 3000 PSI and a maximum working pressure of 600 PSI, this gauge set can handle even the most challenging jobs.
About This Set:
- Accurate Measurements: The blue gauge indicates low pressure (0-350 PSI), and the red gauge indicates high pressure (0-500 PSI).
- Durability: Constructed with solid brass, aluminum, PVC, and plastic for lasting use.
- Versatility: It is suitable for R134A, R12, R22, and R502 refrigerants and ideal for professional and DIY use.
- Ease of Use: The unit includes three color-coded Freon charging hoses (5ft) to quickly identify high and low pressure.
- Comprehensive Set: The package includes gauges, hoses, adjustable couplers, an ACME adapter, a can tap, a case, and a manual for complete diagnostic and service.
- Safety: Engineered with a 3000 PSI burst pressure and 600 PSI maximum working pressure to ensure safe operation.
- Unit of Measure: Gauge readings in Fahrenheit (°F) for intuitive use.
Why We Like These Manifold Gauges

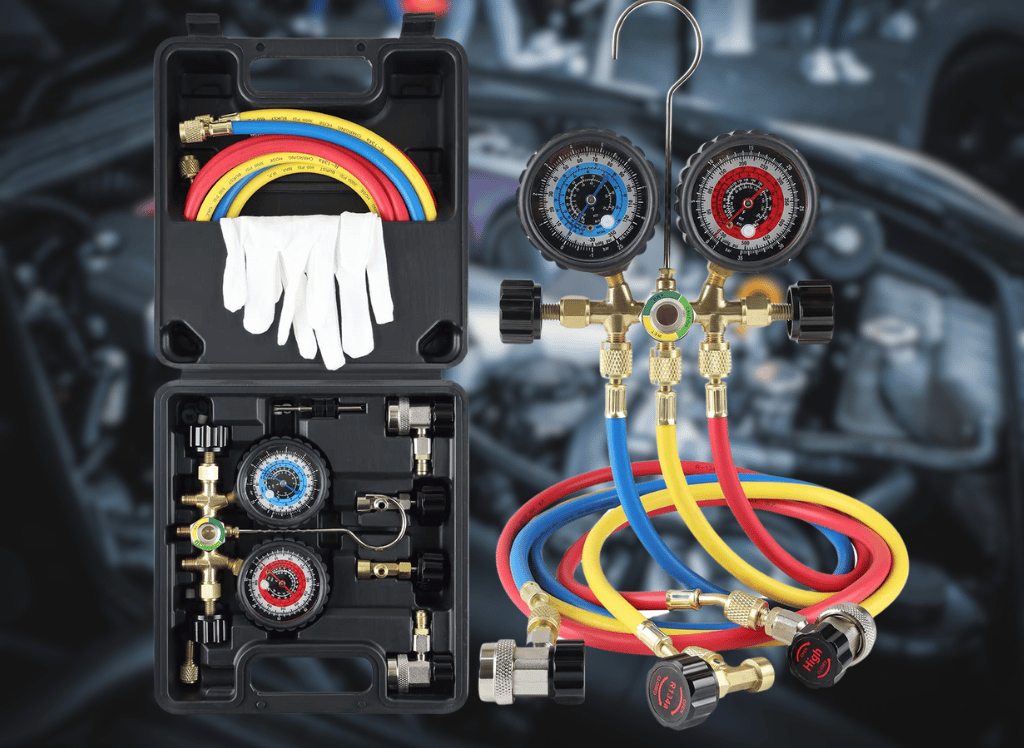

Lichamp AC Gauges is a high-quality, multifunctional automotive air conditioning diagnostic manifold gauge set. Designed with precision and durability, this 3-way gauge set is compatible with various refrigerants such as R 134A, R12, R22, and R502. Whether you need to charge freon, perform evacuation or diagnostic checks, or recover refrigerant, this gauge set is perfect.
Featuring extra large and easy-to-read dials with Fahrenheit degree units, you can quickly and accurately monitor pressure levels. The red gauge is rated for a maximum pressure of 500psi, while the blue gauge has a maximum pressure rating of 350psi. The sight glass design also allows easy monitoring of liquid refrigerant flow during charging.
This set includes four extra-long, high-impact hoses with precise valve core depressors and a convenient 45-degree bend on one end for easy access. The hoses are rated for a maximum working pressure of 600psi and a burst pressure of 3000psi, ensuring reliable performance even under heavy use.
About This Set:
- Multifunctional Design: It is compatible with R 134A, R12, R22, and R502 refrigerants and can perform various diagnostic tasks.
- Easy-to-Read Dials: Large, colored dials with Fahrenheit units for quick pressure readings.
- High-Quality Hoses: Includes four long 5FT hoses, rated 600psi max working pressure and 3000psi burst pressure.
- Durable Construction: Upgraded gauge shell and all-metal parts made of durable brass and aluminum.
- Comprehensive Kit: This kit includes a 3-way gauge, three hoses, adjustable adapters, can taps, an ACME adapter, a valve core remover, and gloves for complete AC charging tasks.
- Sight Glass Feature: Allows monitoring of liquid refrigerant flow during charging for efficient operation.
Why We Like These Manifold Gauges

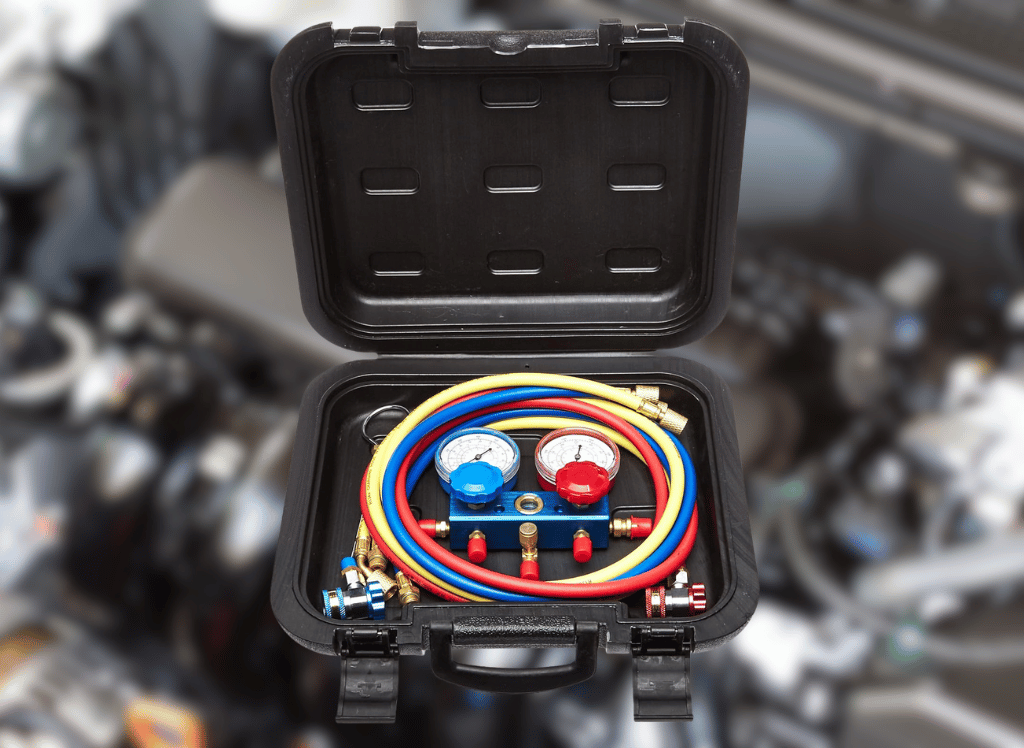

The Robinair (49134A) R134 Aluminum Manifold is a comprehensive set designed for efficient and accurate servicing of R-134A refrigerant systems. Made from high-quality aluminum material, this manifold is built to withstand heavy usage, making it a reliable tool for any HVAC technician or automotive mechanic.
At 14.8 x 3.8 x 12.5 inches and weighing only 6.3 pounds, this set is compact and lightweight, making it easy to transport and store. The manifold features internal passages that connect all three lower fittings, allowing for seamless pressure and vacuum readings. The separate passages from the low-side and high-side fittings also provide accurate readings even with the handwheels closed.
The handwheels and gauges are conveniently color-coded, with the blue compound gauge on the left for low-side readings and the red pressure gauge on the right for high-side readings. This makes identifying and using the correct gauge for each specific task easy.
This kit includes a blue anodized aluminum manifold, brass fittings, color-coded gauges, 60-inch (5-foot) long hoses, and color-coded 90-degree manual couplers. These components come neatly organized in a blow-molded case, providing easy storage and organization.
About This Set:
- Durability: Made from high-quality aluminum, designed for heavy usage in professional settings.
- Compact Design: Measures 14.8 x 3.8 x 12.5 inches and weighs 6.3 pounds, enhancing portability and ease of storage.
- Accurate Readings: This device features internal passages for seamless pressure and vacuum readings, with separate passages for the low-side and high-side to ensure accuracy.
- Ease of Use: The handwheels and gauges are color-coded for quick identification, with blue for low-side and red for high-side readings.
- Comprehensive Set: This set includes all necessary components—anodized aluminum manifold, brass fittings, color-coded gauges, 60-inch hoses, and manual couplers—all stored in a durable blow-molded case.
- Versatility: Suitable for both novice and experienced technicians handling R-134A refrigerant systems, from routine maintenance to leak detection.
Frequently Asked Questions About AC Manifold Gauge Set
What Is an AC Manifold Gauge Set?
An AC manifold or refrigerant gauge set is a specialized tool used to diagnose and service air conditioning systems. It consists of three gauges—high pressure, low pressure, and compound—that display the pressure readings of the refrigerant in the AC system. The set also includes various hoses and valves to connect to the AC system for accurate readings.
How Does an AC Manifold Gauge Set Work?
The high-pressure gauge measures the refrigerant's pressure on the high side of the system, while the low-pressure gauge measures the pressure on the low side. The compound gauge displays both readings simultaneously. By comparing the readings on the gauges, technicians can determine if there is a leak, blockage, or other issue with the AC system.
Can I Use an AC Manifold Gauge Set for Any Refrigerant?
No, it is essential to use an AC manifold gauge set specifically designed for the type of refrigerant used in your AC system. Following the manufacturer's instructions and safety precautions when using the gauge set is also essential.
How Do I Know if My AC System Needs To Be Recharged With Refrigerant?
If your AC system is not blowing cold air or is taking longer than usual to cool, it may need to be recharged with refrigerant. Using an AC manifold gauge set, you can check the pressure readings and determine if the refrigerant levels are low.
However, it is essential to check for leaks in the system before recharging with refrigerant. It is best to consult a professional HVAC technician for proper diagnosis and servicing of your AC system.
Final Thoughts About AC Manifold Gauge Set
In conclusion, an A/C manifold gauge set is necessary for any HVAC or automotive technician. Its versatile and multifunctional design allows for accurate readings and efficient troubleshooting of air conditioning systems.
Not only does an A/C manifold gauge set provide precise measurements of high and low pressures, but it also allows for temperature and vacuum readings. This makes it essential to diagnose and repair A/C system issues and complete the job.
