ARCCAPTAIN MIG 200 Multi-Process MIG Welder: Complete Buying & Usage Guide

ARCCAPTAIN MIG 200 Multi-Process Welder: 200A 6-in-1 dual-voltage (110/220V) gas MIG, flux core, stick, lift TIG & spot with synergic LED control.

Todd Bandel

28 Sep 2026 • 16 min read

If you're shopping for a multi-process MIG welder that won't drain your savings but still handles real projects, the ARCCAPTAIN MIG200 deserves a serious look. This guide covers everything from specs and setup to real-world performance and accessories, so you can decide whether this machine belongs in your shop.

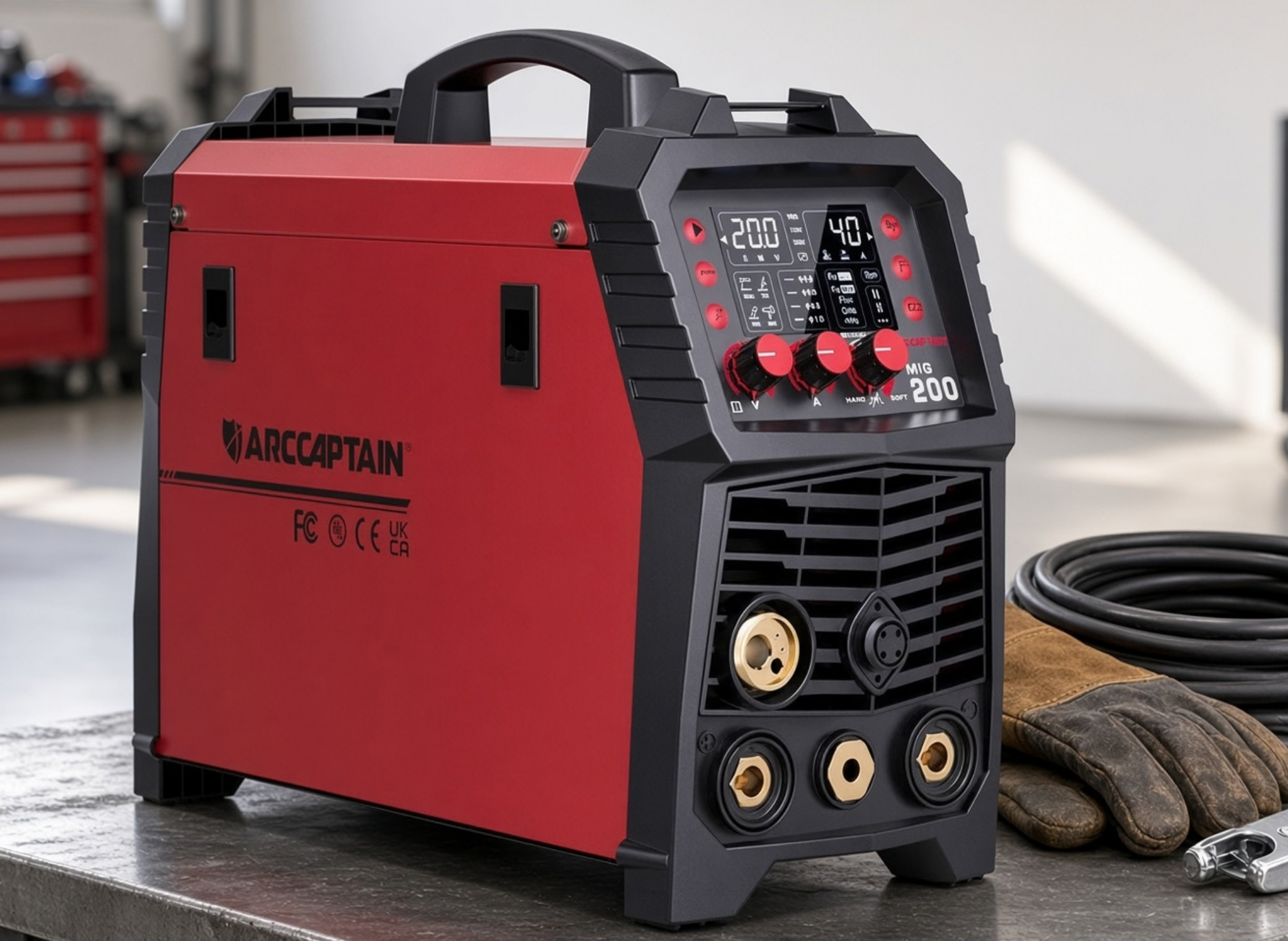

Quick Overview: What Is the ARCCAPTAIN MIG200?

The ARCCAPTAIN MIG200 is a 200-amp inverter multi-process welder built for DIY enthusiasts, garage auto repair, and light professional use. It runs on dual-voltage input (110V and 220V), which means you can plug it into a standard household outlet or a dedicated 220V circuit depending on the job.

This is a 6-in-1 multi-process welding machine. It covers gas MIG with solid wire and shielding gas, gasless flux-core MIG, MMA/stick welding, lift TIG for steel and stainless steel, spot welding, and spool gun support for aluminum wire. That's so much more versatility than what you'd expect at this price tier.

The machine is a compact inverter MIG welder featuring synergistic MIG functionality and a large 4.3-inch LED digital display, positioned as a budget-friendly alternative to machines that often cost 700–800 or more. It frequently appears on "best multi-process welder under $500" lists, and for good reason.

Typical pricing sits around $370.99 on the ARCCAPTAIN website and Amazon, though promotions can push it lower. Headline specs include 30–200A MIG output on 220V, a rated duty cycle of 60% at 200A, and support for solid wire, flux core wire, and aluminum wire via a compatible spool gun. At just 28.2 lbs, it's genuinely portable.

ARCCAPTAIN 200A MIG Welder 110V 220V 6 in 1 Aluminum Welding Machine MIG200

Large Display, Gasless Flux Core MIG, Spool Gun / Lift TIG Support, Stick, Spot welding, Professional, Garage Auto Repair

Amazon

Main Features of the ARCCAPTAIN MIG200 Multi-Process MIG

The ARCCAPTAIN MIG200 multi-process MIG packs a surprising number of features into a machine at this price point. Here's what stands out:

6 welding processes: Gas MIG welding, flux core (gasless) MIG, MMA/stick welding, lift TIG, spot welding, and spool gun compatibility for aluminum
4.3-inch LED display: A user-friendly large LED display shows voltage, amperage, and wire feed speed with simple control knob adjustments
Inverter IGBT technology: Delivers approximately 85% welding efficiency and stable arc performance with less power waste than a basic transformer MIG welder
Dual voltage operation: Works on 110/120V and 220/230/240V AC at 50/60 Hz, with an included adapter for switching between input voltage options
Built-in synergistic programs: Preset configurations for different wire diameters, material types, and gas types simplify MIG weld settings for beginners
Wide wire compatibility: Accepts 0.023" through 0.045" wire sizes, including solid wire (.023"–.035"), flux wire (.023"–.035"), and aluminum wire (.035"–.045") via spool gun
Memory function: The Arccaptain MIG200 can store up to 10 preset configurations, so you can recall your favorite settings instantly

Technical Specifications & Power Capabilities

Here's what you're working with under the hood. These numbers come directly from the product spec sheets and real-world testing.

Input power: AC 110/120V ±15% or AC 220/240V ±15%, 50/60 Hz - automatic dual-voltage switching
MIG output range: ~30–160A at 110V; ~30–200A at 220V
MMA/Stick output range: ~20–135A at 110V; ~20–180A at 220V
Lift TIG output range: ~20–135A at 110V; ~20–200A at 220V
Wire feed speed: Ranges from 79 to 590 IPM depending on voltage and welding current
Duty cycle: 60% at 200A on 220V input - roughly 6 minutes of welding followed by 4 minutes of cooling in a 10-minute cycle
Weight: 28.2 lbs (12.8 kg) - light enough to carry between the garage, driveway, and truck bed
Dimensions: Approximately 20.9" × 8.5" × 16.1"
Recommended material thickness: ~20 gauge sheet up to approximately 3/8" steel, depending on process and input voltage
Supported wire diameters: .023", .030", .035" solid/flux core; .035" and .045" aluminum via spool gun
Stick welding electrodes: Ø1.6–4.0 mm (approximately 1/16"–5/32")
Protection rating: IP21S, indicating suitability for indoor use and splash protection
Efficiency: Approximately 85%
Open-circuit voltage: ~64V

The machine is portable and designed for DIY, repair, and light professional work. If you're running 220V, you'll hit the full 200A output. On 110V, expect reduced power compared to the 220V figures — plan for thinner materials at that amperage level.

Multi-Process Welding: What You Can Actually Do With It

Specs tell part of the story. Here's what each process actually looks like in practice.

Gas MIG welding: Load .030" ER70S-6 MIG wire, hook up a C25 shielding gas cylinder (75% argon / 25% CO₂), select Gas MIG mode, and the welder welds nicely on mild steel and stainless. At ~110–140A on 220V, you'll get clean weld bead profiles with minimal spatter on auto body panels, exhaust brackets, and frame reinforcements.

Flux-core MIG: Switch to gasless mode and run flux-core wire like E71T-GS or E71T-11 for outdoor work where wind would blow away shielding gas. Ideal for farm gates, rusty trailer frames, and fence repairs. Spatter is higher, but you can weld in conditions that would ruin a gas MIG setup.

Stick (MMA) welding: Burn common stick welding electrodes - 6011, 6013, 7018. On 110V, stick with 3/32" or 1/8" rods. For 7018 on thick steel, 220V is strongly preferred. Stick mode shines on dirty metal, painted surfaces, and structural repairs where MIG prep would be impractical.

Lift TIG: DC lift TIG works on steel and stainless, but not aluminum (no AC TIG). It's suited for precise, clean welds on thin stainless handrails, custom fab parts, and food-grade fabrications where spatter from MIG welding is undesirable.

Spot welding: Controlled heat input for thin sheet and automotive applications. Patch panels, bodywork, and tack welds on 20-gauge sheet metal where burn-through is the main risk.

Aluminum with spool gun: Light-to-medium aluminum work (1/8"–1/4") using a compatible spool gun. Trailer deck repairs, small ramps, and brackets with ER4043 or ER5356 aluminum wire. The MIG200 supports MIG, stick, lift TIG, and aluminum welding all from one box.

Synergic Smart Control & User Interface

The synergic smart control is arguably the ARCCAPTAIN MIG200's most beginner-friendly feature. It's what separates this machine from a basic MIG welder that leaves you guessing at settings.

In synergic MIG mode, the welding machine includes smart synergic control that adjusts settings automatically. You select your wire size, material thickness, and gas type; the machine calculates a really good starting point for voltage and wire feed speed. From there, you tweak to taste. For someone new to MIG welding, this eliminates the frustration of chasing the right settings blind.

The display layout is straightforward: process selector, wire diameter, material type, and gas selection are all accessible through knob-based navigation with minimal menus. It's designed so DIY enthusiasts can go from box to first weld in under 30 minutes.

For experienced users, manual mode unlocks full independent control over voltage, wire feed speed, inductance, burn-back, pre-flow/post-flow, arc force, hot start, and anti-stick parameters. These are many more advanced features typically reserved for machines costing significantly more.

The productivity of the Arccaptain MIG200 is enhanced by a memory function for user settings — store up to 10 configurations and recall them without re-dialing everything. This matters when you switch between projects on different material types throughout the week.

Think of the synergic system as your MIG setup chart sticker built directly into the machine's brain, except it updates itself based on what you tell it.

Build Quality, Reliability & Safety Testing

Build quality directly affects how long a welder lasts and how confidently you can push it. This is where the ARCCAPTAIN welder earns its keep.

ARCCAPTAIN states that every MIG200 undergoes various authoritative laboratory tests — more than 300 safety and performance checks, including operation in extremely harsh environments like high-temperature, low-temperature, and dusty conditions. These authoritative laboratory tests help ensure machines perform consistently after leaving the factory.

The built-in safety features protect against over-current, over-voltage, overload, and overheating, with clear fault indicators on the display. There's also a VRD (Voltage Reduction Device) for safety during idle.

Physical construction includes a robust metal case with reinforced corners and an integrated handle for frequent movement. The MIG200 has a fan-on-demand cooling system that activates when necessary rather than running constantly, which reduces noise and extends component life while supporting the 60% duty cycle.

The IP21S protection rating indicates suitability for indoor use and light splash environments — your garage, shop, or covered outdoor workspace. Insulation class H and compliance with IEC 60974-1-2019 round out the safety credentials. The machine meets certain electrical safety codes for residential and light commercial use.

Using the MIG200 for MIG & Flux Core Welding

MIG and flux core are the most common ways owners use the ARCCAPTAIN MIG200 day-to-day, and that's where this machine really earns its reputation as a decent welder.

Gas MIG setup: Connect your gas hose and gas regulator to a C25 cylinder. Select Gas MIG mode. Choose your wire size (e.g., .030" solid wire). Let synergic settings provide a starting point, then fine-tune. On 1/8" mild steel at ~17–18V with softer inductance, most users report smooth arc behavior and a clean weld bead with minimal cleanup, a noticeable improvement over stick welding on the same material.

Switching to flux core: Change polarity inside the door cover (typically DC- for flux core), load the flux core wire, swap to the appropriate knurled groove or U-groove on the wire drive rolls (groove sized for your wire), and select the gasless/flux core program. No gas regulator needed; just start welding.

Practical projects: Muffler and exhaust repairs, lawn mower deck brackets, 1/8"–1/4" angle iron frames, small fabrication jigs, and gate reinforcements. Users find you can control weld bead profile well with modest voltage and inductance adjustments.

To reduce spatter on fillet welds and lap joints, bump up inductance slightly and dial back wire feed speed until the arc sounds consistent — a steady crackling, not popping. Keep a few extra MIG consumables on hand (contact tips and nozzles) since flux core runs through them faster.

Lift TIG & Stick Modes: When to Use Them

Lift TIG and stick welding expand the MIG200 into a true multi-process welding machine, giving you backup processes for situations where MIG isn't the right tool.

Lift TIG: You'll need a WP-17V 35-50 style TIG torch (often sold separately), argon cylinder, and appropriate collets/cups. Note that the ARCCAPTAIN MIG200 does not support a TIG foot pedal — welding current is set on the front panel. Ideal use cases include thin stainless handrails, decorative brackets, small food-grade fabrications, and any precision work where MIG spatter is unacceptable. It's DC only, so aluminum TIG is not the welder's territory here.

Stick (MMA): Stick welding handles outdoor work, dirty steel, and thick steel sections. Run 3/32"–1/8" electrodes for plate repairs, farm implements, and structural fixes. The MIG200 includes hot start, arc force, and anti-stick features that make arc starts more reliable and reduce electrode freezing, a noticeable improvement over budget buzz boxes. On 220V, you can start thick steel with 7018 rods confidently.

While MIG will be your daily go-to, stick and lift TIG cover the gaps. It's not the welder for every situation, but the versatility genuinely reduces the need for multiple machines.

Aluminum Welding with a Spool Gun

The ARCCAPTAIN MIG200 extends beyond steel with spool gun compatibility for aluminum welding.

The spool gun is not always included in the base package; check whether your purchase includes it or look for the Aluminum Kit or bundled deals. A spool gun keeps the wire spool mounted directly on the torch, reducing feeding issues with soft aluminum wire that would otherwise bird-nest in a standard MIG gun cable.

Typical applications include light aluminum trailer repairs, utility ramps, boat accessories, and custom brackets for automotive or marine projects. Setup is straightforward: plug in the spool gun, select the Aluminum/Spool Gun program, load .035" or .045" ER4043 or ER5356 aluminum wire, use pure argon gas, and fine-tune amperage and travel speed.

Limitations are real: without AC TIG capability, thicker aluminum structural work beyond roughly 1/4" is better handled by specialized equipment. You may also run into travel speed issues if you push beyond what the amperage can support. But for light-to-medium aluminum fabrication, a professional welder working with dedicated equipment isn't always necessary.

Who the ARCCAPTAIN MIG200 Is Best For

The MIG200 sits squarely between entry-level MIG machines and pro-level shop equipment. It's a bridge machine, capable enough for real work, accessible enough for beginners.

DIY hobby users: Home projects, small fabrication, gym equipment, yard equipment repairs. For diy hobby use, the synergistic control flattens the learning curve dramatically
Garage auto repair: Exhaust fixes, body patches, brackets, tow points, and spot welding on thin automotive sheet metal
Farm and property owners: Gate repairs, trailer maintenance, and utility implements where you need both MIG and stick options depending on conditions
Entry-level professionals and side-hustle fabricators: The machine works fine for small-run production, but it's not intended as a continuous-duty industrial production welder

The user-friendly controls help absolute beginners progress toward professional-looking results within weeks. This is a diy enthusiasts machine that punches above its weight class, though if you need heavy continuous welding on thick plate for hours, step up to an industrial unit.

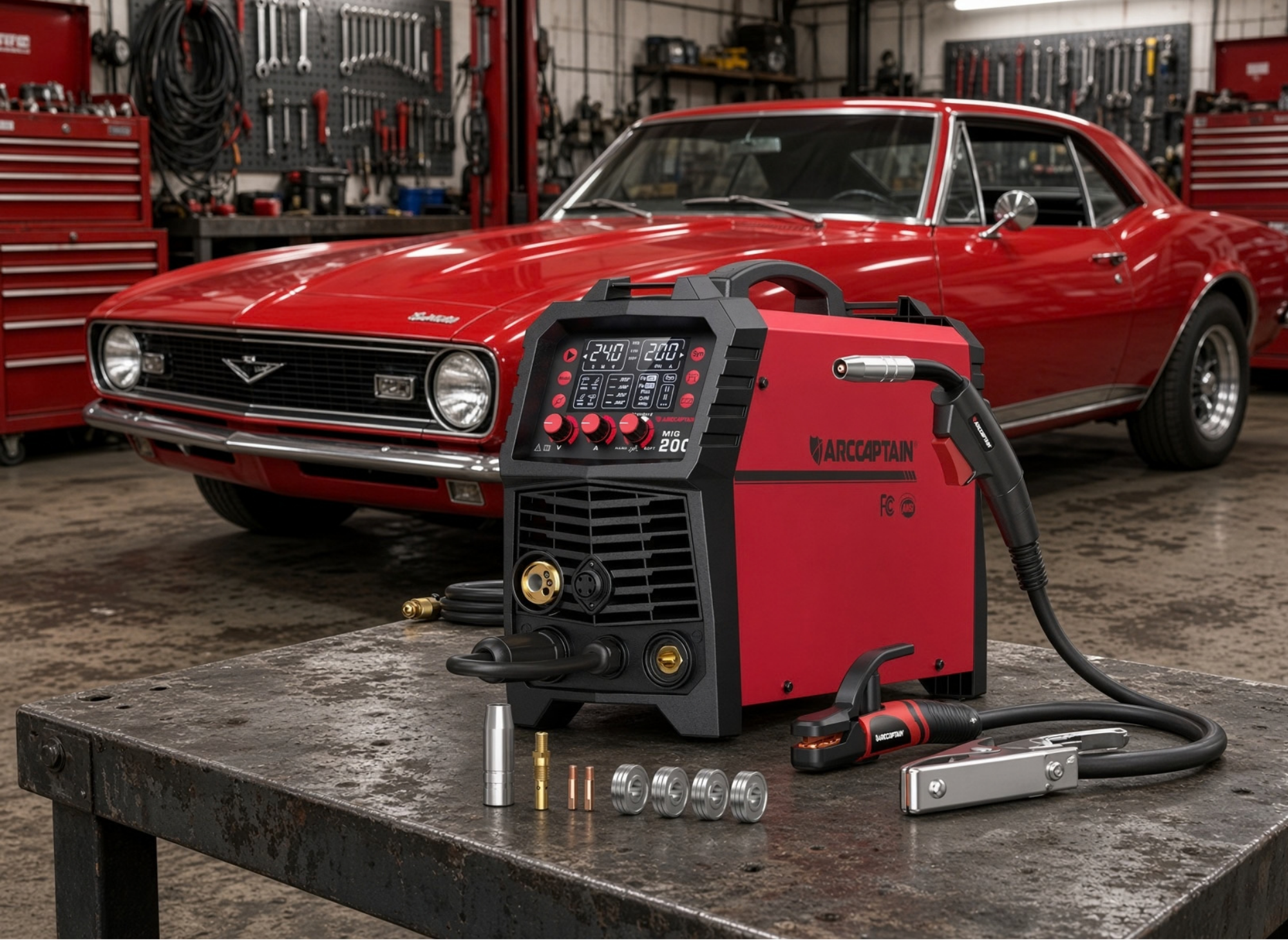

Unboxing, Setup & Included Accessories

Opening the box is surprisingly organized. The MIG200 ships in a compact carton with foam protection around key components and the MIG gun placed inside the wire compartment.

What's in the box:

MIG200 power source
10-foot MIG torch (the welder includes a 10-foot MIG torch for flexibility around your workspace)
Ground clamp with cable
Electrode holder for stick welding
Gas hose
220V to 110V adapter
Wire drive rolls (V groove, U groove, and knurled groove for different wire types)
Spare contact tips (.030" and .035")
MIG nozzle and diffuser
User manual

Initial setup steps: Choose the correct drive roller groove size for your wire type (V groove for solid wire, knurled groove for flux core). Install and tension the welding wire. Set polarity (DC+ for gas MIG, DC- for most flux core). Connect the gas hose and gas regulator if using solid wire. Perform a short test bead on scrap.

Setup is straightforward with easy wire loading. Most users report going from unboxing to first weld in under an hour, even with limited previous MIG welding experience. The large LED display walks you through process selection, and synergic mode simplifies voltage and wire-speed setup from the first arc.

Real-World Performance & Typical Projects

This section reads like a field report because that's what matters, not just what the spec sheet says, but how the MIG200 behaves when metal meets arc.

Common jobs users tackle: Repairing rusted muffler brackets, reinforcing squat rack J-hooks, retacking trailer grating, fabricating home gym attachments, and fixing farm gate hinges. The machine handles the everyday work that fills a home fabricator's weekend.

On 1/8"–3/16" mild steel with .030" MIG wire and C25 gas, arc smoothness is immediately noticeable. Weld bead profile stays consistent when settings are dialed in, and spatter is manageable, certainly less than you'd get running flux core on the same joint.

In stick mode, you can burn several rods consecutively without tripping the duty cycle at moderate amperage. Power compared to low-end buzz boxes is noticeably better, with smoother arc starts and less electrode sticking. You won't hit duty cycle limits unless you're pushing full amperage for extended runs.

The 28.2-lb weight makes the MIG200 genuinely portable, easy to carry between the garage, driveway, and on-site repair jobs. There are only minor complaints from users, typically around torch lead length or ground clamp robustness, neither of which are dealbreakers.

Realistic limits: This is not designed for thick 1/2"+ plate production welding or continuous multi-shift industrial fabrication. Stay within the 20-gauge to 3/8" range, and you'll be satisfied.

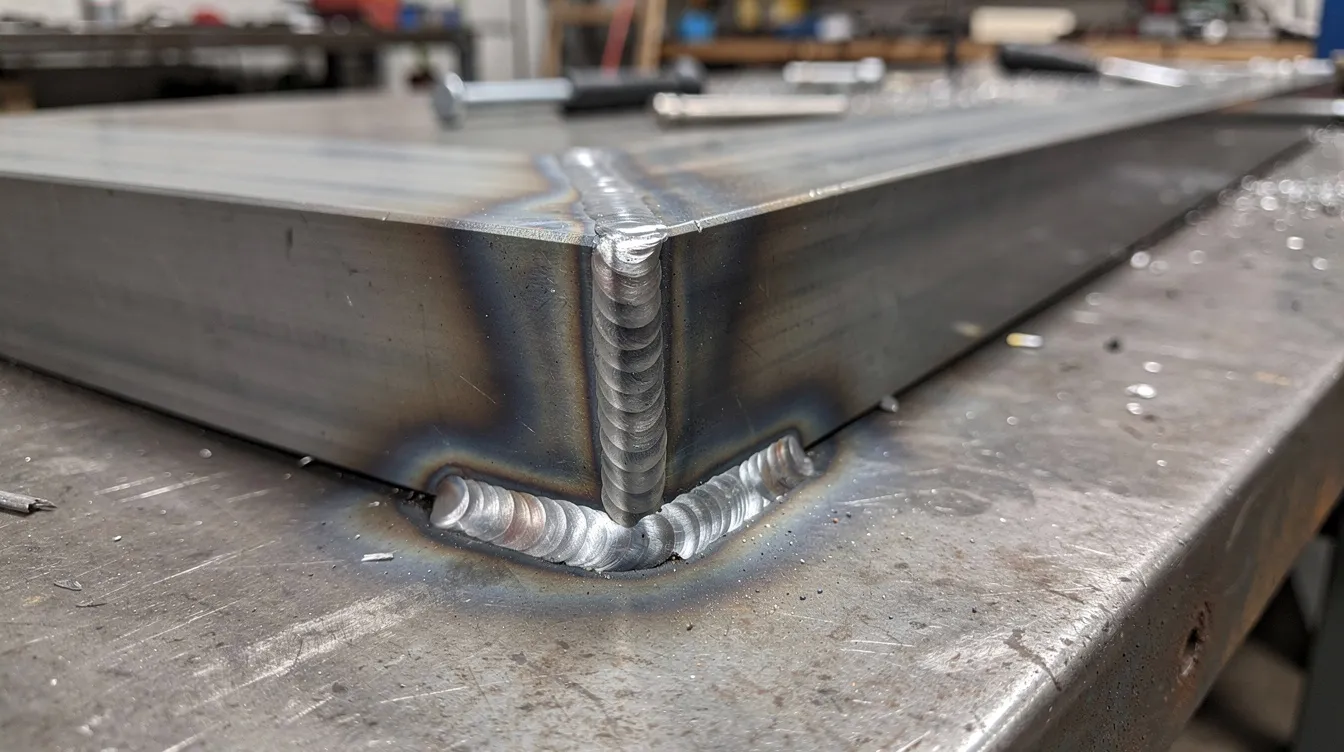

The image shows a completed welded steel bracket joint on a workbench, highlighting clean and precise weld beads achieved using a multi-process MIG welder like the Arccaptain MIG 200. The well-defined welds demonstrate excellent welding efficiency and control, indicative of a professional welder's skill. — ARCCAPTAIN-MIG-200

Package Options, Pricing & Value Comparison

The ARCCAPTAIN MIG200 is sold as a base unit and in several bundles, which significantly affects your total investment.

Common package options on ARCCAPTAIN.com and Amazon:

MIG200 Multi-Process Welder (base unit)
Basic MIG Bundle (adds consumables)
Aluminum Welding Kit (adds spool gun + aluminum wire)
MegaSaver or similar bundles (maximum accessory inclusion)

The Arccaptain MIG200 costs $370.99 for the base unit during typical sales; translation missing en.products.product.price.regular_price may show a higher price on some listings. Bundles run higher depending on included accessories.

It is considered the best multi-process welder under $500 for good reason. Comparable machines from other brands sell for over $800 for similar amperage and process flexibility. The MIG200 offers features typically found in welders 2-3 times its price: synergic control, 6 processes, 200A output, and a memory function are advanced features typically reserved for premium equipment.

ARCCAPTAIN is an international company that runs seasonal promotions and limited-time discount codes. Factor in the total system cost when comparing: helmet, gas cylinder, spool gun (if needed), and consumables all add up. Many buyers under-budget by forgetting the gas regulator or safety gear.

Warranty, Support & Shipping Information

Support and logistics matter as much as specs for many buyers, especially when purchasing from an online-first brand.

Warranty: The Arccaptain MIG200 comes with a 2-year warranty on the power source, covering manufacturing defects from the delivery date. It includes a 2-year warranty for added value and peace of mind
Return policy: Items must be unused, in original packaging, with proof of purchase
Customer support: Available 7 days a week via email, phone, or WhatsApp. The support team is responsive to customer inquiries based on user feedback
Shipping: Free fast shipping within the US on orders over $100. Orders typically ship within 5-10 business days, with tracking via UPS, USPS, or Amazon Logistics
Exceptions: No shipping to Puerto Rico, APO/FPO, and some remote or international locations from the main store. Amazon availability may vary by country

Keep your purchase confirmation, serial number, and user manual accessible for any warranty or support inquiries. Following electrical safety codes for your workspace setup is your responsibility; the manual covers recommended circuit sizing.

Essential Accessories & Recommended Setup for Beginners

The MIG200 gets you welding, but you'll need a few things beyond what's in the box to have a complete setup. Here's what to prioritize.

Core safety gear:

Auto-darkening welding helmet with shade range suitable for MIG and stick
Welding gloves (MIG-specific or multi-process)
Flame-resistant jacket or sleeves
Proper boots and safety glasses for grinding

Consumables to stock:

Solid MIG wire and/or flux core wire in your preferred wire size (.030" is a good all-around starting choice)
Extra MIG consumables: spare contact tips, nozzles, and anti-spatter spray
Chipping hammer and wire brush for stick and flux core cleanup

For gas MIG welding:

C25 cylinder (75% argon / 25% CO₂) with a gas regulator and flowmeter
Check gas hose connections before running test welds

For lift TIG:

Compatible WP-17V TIG torch, argon cylinder, TIG filler rods, collets, and ceramic cups

For aluminum:

ARCCAPTAIN-compatible spool gun
ER4043 or ER5356 aluminum wire
Dedicated stainless brush for aluminum oxide cleaning (never use the same brush on steel and aluminum)

How the MIG200 Compares in the ARCCAPTAIN Lineup

The MIG200 sits in a strong middle position among Arc Captain welders and multi-process machines.

Compared to smaller single-process or lower-amp MIG units in the ARCCAPTAIN lineup, the MIG200 delivers higher output and additional processes: stick, lift TIG, and spot welding — that entry-level machines lack. It's a welder set up for versatility rather than specialization.

All current ARCCAPTAIN multi-process models support key processes, but they differ in maximum amperage, duty cycle, and features such as app control or parameter memory. Spool gun compatibility is standard across most modern ARCCAPTAIN MIG machines, making aluminum upgrades straightforward regardless of which model you choose.

If your work regularly exceeds 3/8" plate or demands industrial duty cycles, look at higher-capacity models or companion equipment like the CUT55 Pro plasma cutter. Choose based on your typical material thickness, how often you'll hit duty-cycle limits, and whether portability or raw output matters more for your workflow.

Buying Checklist: Is the ARCCAPTAIN MIG200 Right for You?

Use this as your final decision filter before purchasing.

The MIG200 is a strong fit if:

You need a dual-voltage 200A MIG welder for home, garage, or light shop use
You want MIG + stick welding + lift TIG + spot welding in one box
Your projects typically fall in the 20-gauge to 3/8" material thickness range
You value synergistic ease of use and don't want to spend hours dialing in settings
Budget matters; you want a welder that competes with machines at 2× its price

Consider other options if:

You require heavy industrial production welding with sustained high duty cycle
AC TIG on aluminum is essential for your work
You regularly weld very thick plate (1/2"+) where penetration and heat input are limiting
You need a dedicated, high-frequency TIG start welder

Remember to factor in your available power; a 220V outlet unlocks the MIG200's full capability. If you're limited to 110V, performance on thick steel will be constrained at that input voltage. Also weigh whether you need gas MIG, flux core, or both, and plan your gas and consumable purchases accordingly.

For diy enthusiasts, auto repair hobbyists, and light professional fabricators, the ARCCAPTAIN MIG200 multi-process welder delivers a rare combination of multi-process capability, synergistic ease of use, and a price that sits well below similar multi-process welding machines. You get a welder that starts welding real projects on day one and keeps up as your skills grow.
