Mastering Autel® ADAS System Calibration with the IA700
The Autel IA700 ADAS Frame and MS909 Tablet improve calibration accuracy, boost shop efficiency, and expand your diagnostic capabilities.
This site contains affiliate links, and we may earn a commission at no extra cost to you. All recommended products are thoroughly vetted.
Modern vehicles rely heavily on complex sensor networks to keep drivers safe on the road. As automotive technology advances, repairing these systems requires highly specialized equipment. A simple bumper repair or windshield replacement now demands absolute precision to ensure every sensor functions properly. For auto repair professionals, meeting these exacting standards can be difficult without the right tools.
The Autel IA700 ADAS Frame with MS909 Tablet offers a groundbreaking solution to this problem. This advanced calibration system combines optical positioning technology with a powerful diagnostic tablet, providing auto shops with everything they need to service modern cars accurately. The package brings efficiency to complex procedures, allowing technicians to handle jobs that previously required a trip to the dealership.
By integrating a sophisticated ADAS calibration frame with comprehensive software, this package simplifies the entire recalibration process. This blog post explores the features, benefits, and overall impact of the Autel IA700 on ADAS calibration and automotive diagnostics. You will learn how this system enhances workflow, protects your investment, and keeps your shop competitive in a rapidly evolving market.
The cost of advanced systems like the Autel IA700 is offset by the value and return on investment they provide, especially when compared to the ongoing expenses of outsourcing calibrations. In-house calibration can significantly reduce repair time cycles and turn calibration costs into a new revenue stream for your shop.

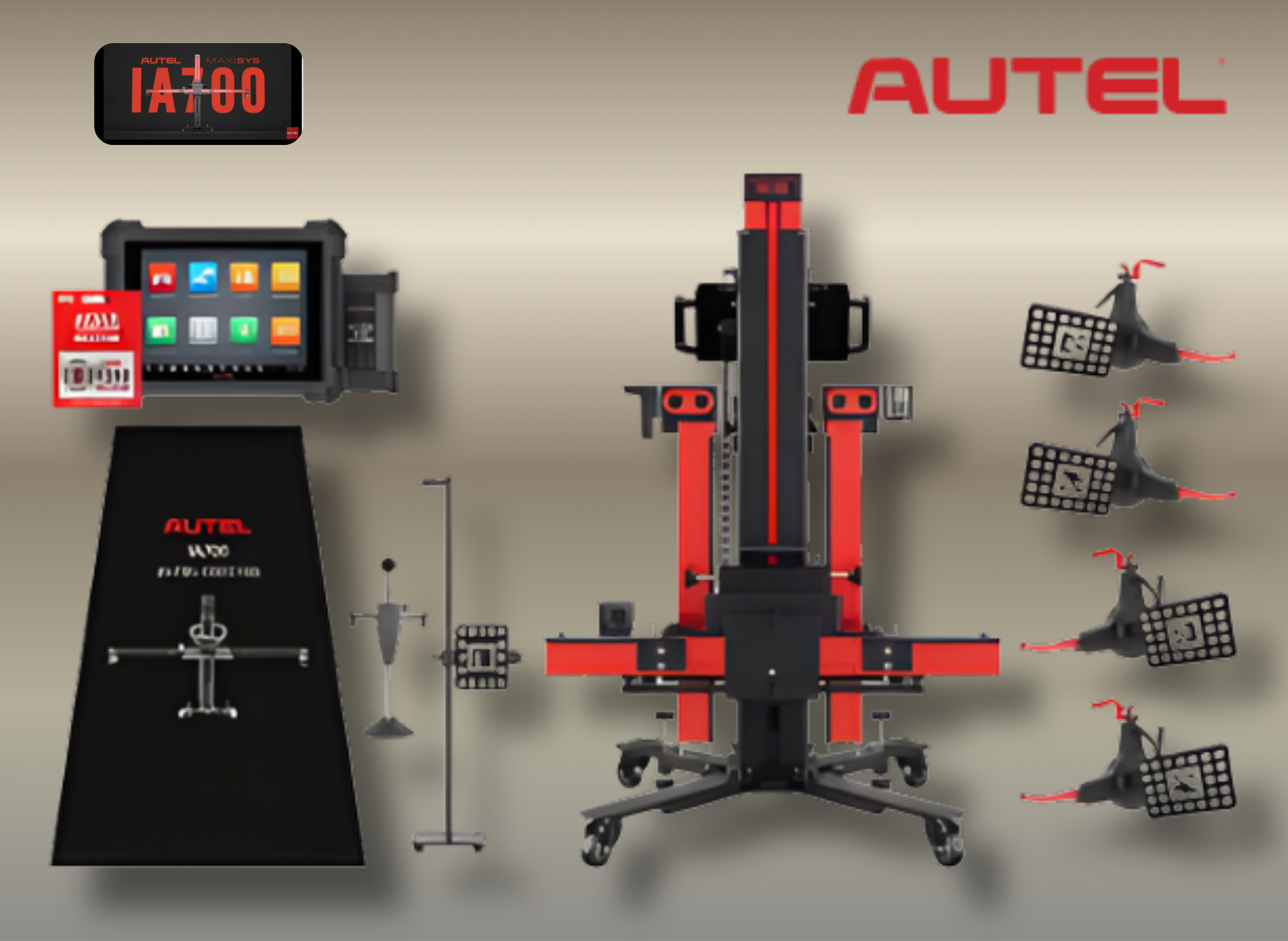

Autel® IA700 ADAS Frame with MS909 Tablet
Modular ADAS Calibration Frame with wheel alignment pre-check and optical positioning.Compatible with MA600 and IA900 systems, targets, patterns, and calibration components.
Understanding ADAS and the Need for Advanced Calibration
To appreciate the value of a high-end calibration system, it is helpful to understand the technology it supports. Advanced Driver-Assistance Systems use a network of cameras, radar, and lidar to monitor the vehicle's surroundings.
What is ADAS?
Advanced Driver-Assistance Systems include safety features designed to prevent accidents and improve the driving experience. Common examples include adaptive cruise control, lane keeping assist, and automatic emergency braking. These functions rely on sensors mounted throughout the vehicle to detect obstacles, read lane markings, and monitor traffic speed.
The importance of ADAS for vehicle safety cannot be overstated. These systems actively intervene to prevent collisions, saving lives and reducing property damage. As a result, major vehicle manufacturer guidelines now mandate the inclusion of these safety features in most new cars.
Why is Precise ADAS Calibration Crucial?
Precise calibration ensures that a vehicle's sensors correctly interpret the physical world. If a camera is misaligned by even a fraction of a degree, the system might miscalculate the distance to the car ahead. The impact of miscalibration on safety and performance is severe. A malfunctioning automatic emergency braking system could activate too late, or worse, engage unexpectedly on a clear highway.
Technicians face several challenges in calibrating modern ADAS systems. They must account for vehicle height, ensure a level surface, and use the exact required tools. Even slight variations in the shop environment can disrupt the process. This is why having a dedicated ADAS calibration system is non-negotiable for modern repair facilities.
Deep Dive into the Autel IA700 ADAS Frame
The Autel IA700 is engineered to eliminate the guesswork from sensor alignment. It replaces manual measuring tapes and plumb bobs with sophisticated optical technology.
Robotic Crossbar and Optical Positioning

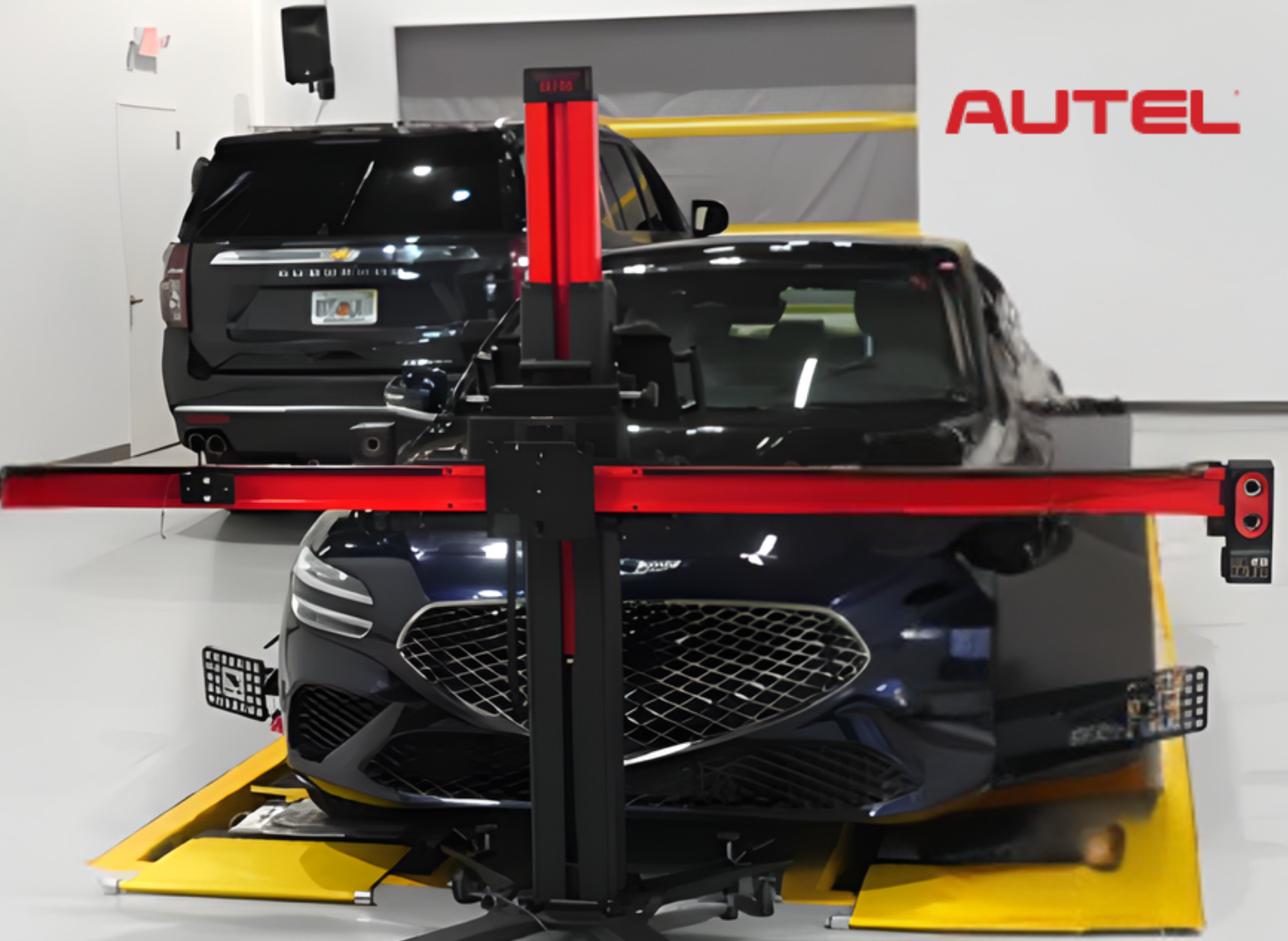

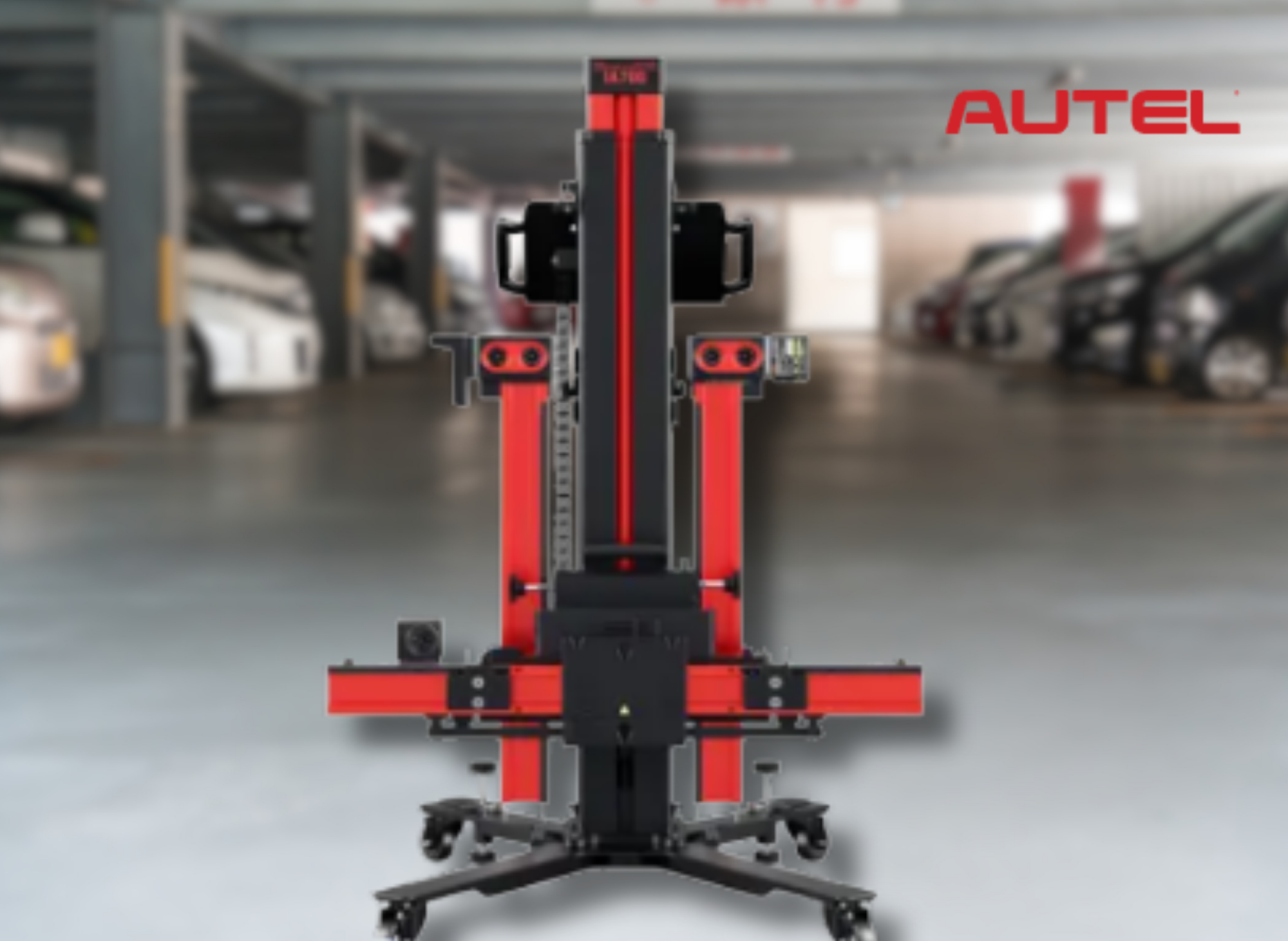

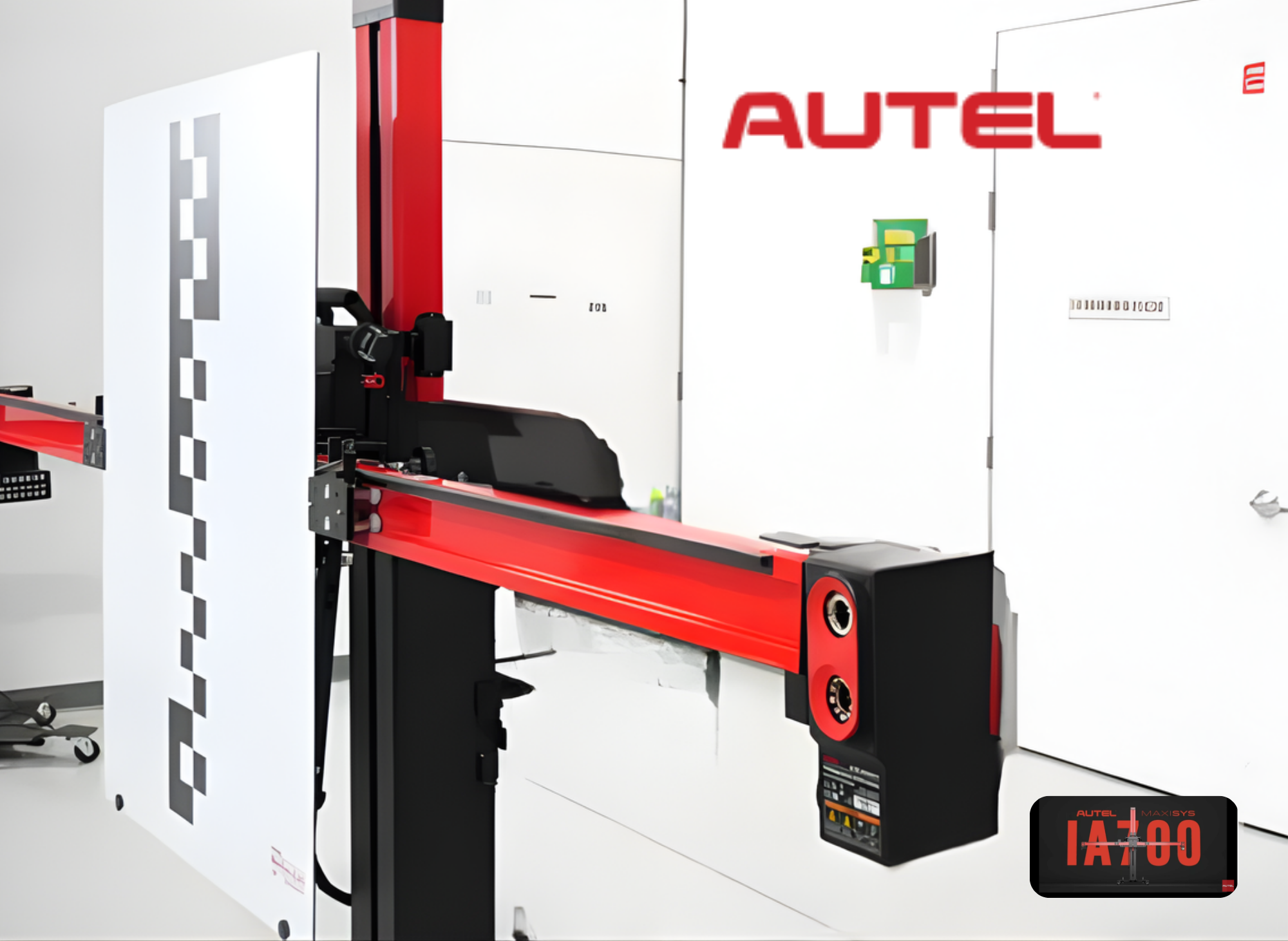

At the heart of the Autel ADAS system is a robotic crossbar equipped with advanced tracking cameras. The frame utilizes six high-resolution positioning cameras to monitor the exact placement of ADAS targets. This high-resolution positioning technology enables the robotic frame movement to adjust automatically, achieving pinpoint accuracy.
Shops often struggle with uneven floors, which can throw off manual measurements. The IA700 frame features prompting for unlevel floor compensation. It automatically calculates yaw, pitch, and roll to ensure perfect target positioning. This precision guarantees that the vehicle's sensors are calibrated correctly, regardless of minor imperfections in the shop's flooring.
Design for Efficiency and Portability
Space is a premium in any busy automotive shop. The IA700 calibration frame is designed for quick disassembly, making it easy to transport or store when not in use. This portability is a massive benefit for mobile repair services that need to perform calibrations at different locations.
For shops with limited space, the ability to pack the frame away quickly means they can utilize their service bays for other profitable jobs. The system attaches easily and disassembles without the need for complex hand tools.
Comprehensive Package Inclusions

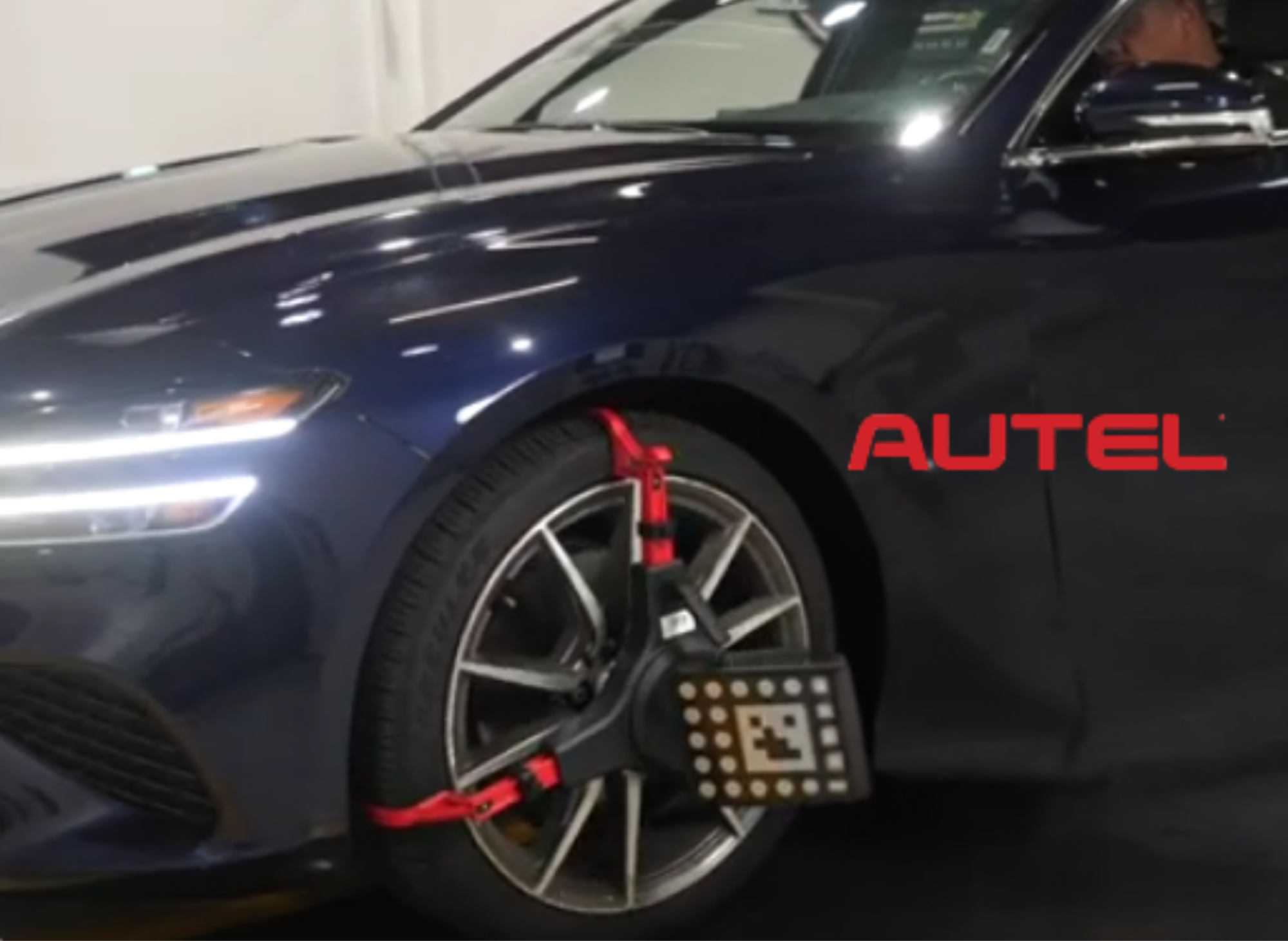

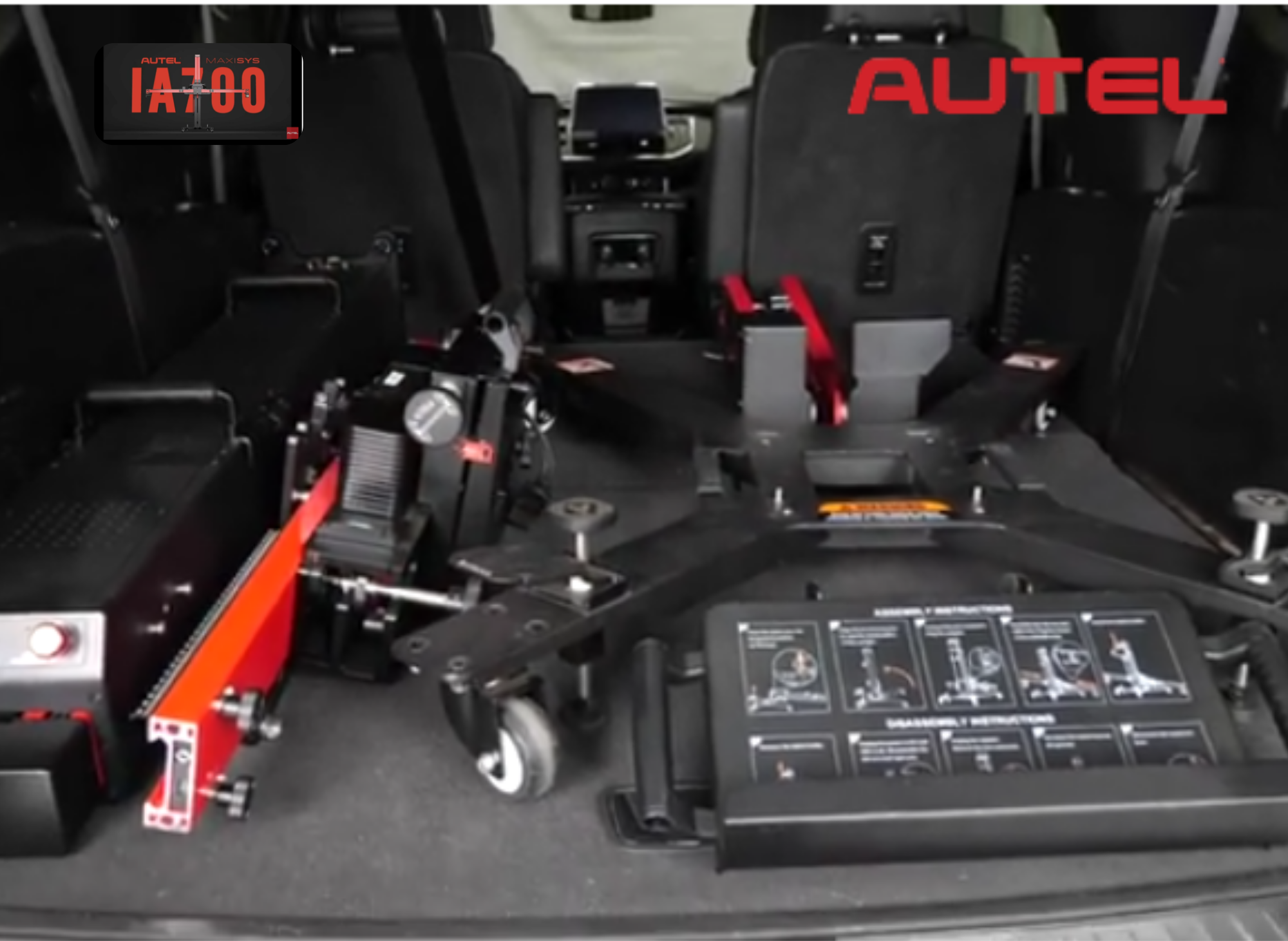

When you purchase the IA700, you receive a complete package that minimizes the need to buy extra accessories. The box includes four wheel clamps with camera targets that attach securely to the vehicle's wheels. These clamps communicate with the tracking cameras to establish the vehicle's centerline.
The package also includes a steering wheel lock to keep the wheels perfectly straight during alignment and ADAS calibration. You receive brake chocks to prevent vehicle movement, a power supply, an alignment aid, and a protective frame cover. These wheel chocks and accessories ensure you have the required tools to perform a safe and accurate calibration right out of the box.
The Power of the MaxiSYS MS909 Tablet

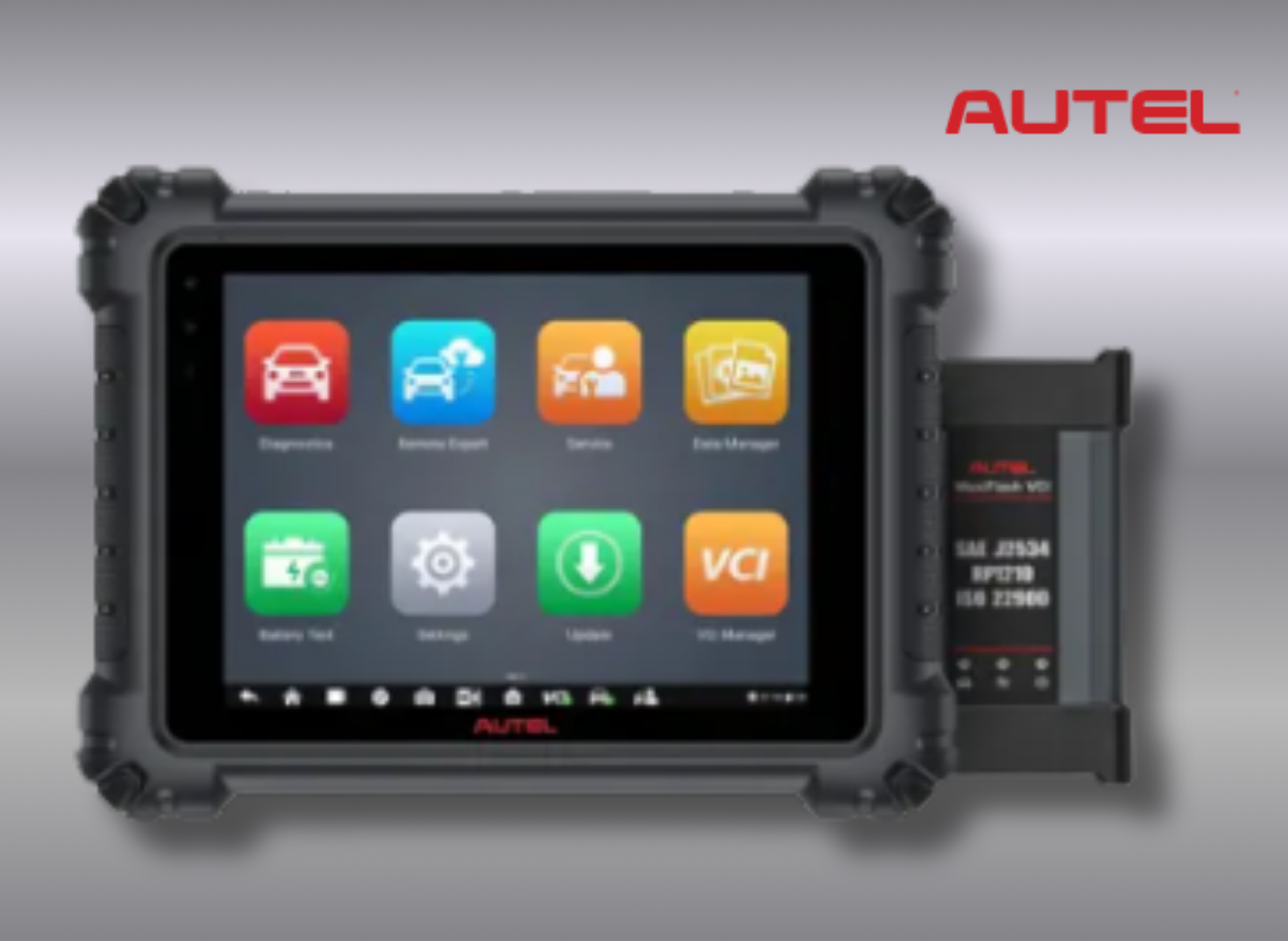

The mechanical precision of the frame is controlled by the brains of the operation: the MaxiSYS MS909 Tablet. This device acts as the central hub for the entire wheel alignment system and calibration process.
Advanced Diagnostics Capabilities
The MS909 is a premier diagnostic tool. It features a wireless VCI and J2534 pass-thru device, allowing for seamless communication with the vehicle. The tablet supports the latest vehicle protocols, ensuring you can run comprehensive diagnostics on the newest models rolling off the assembly line.
Before performing an ADAS calibration, technicians must verify that the vehicle has no underlying faults. The MS909 allows users to scan all modules on a single screen, identifying issues that might prevent a successful calibration.
ADAS Calibration Software Upgrade Card
The package includes an ADAS calibration software upgrade card. This software unlocks both static and dynamic calibration capabilities. It provides extensive vehicle coverage for most U.S., Asian, and European vehicles.

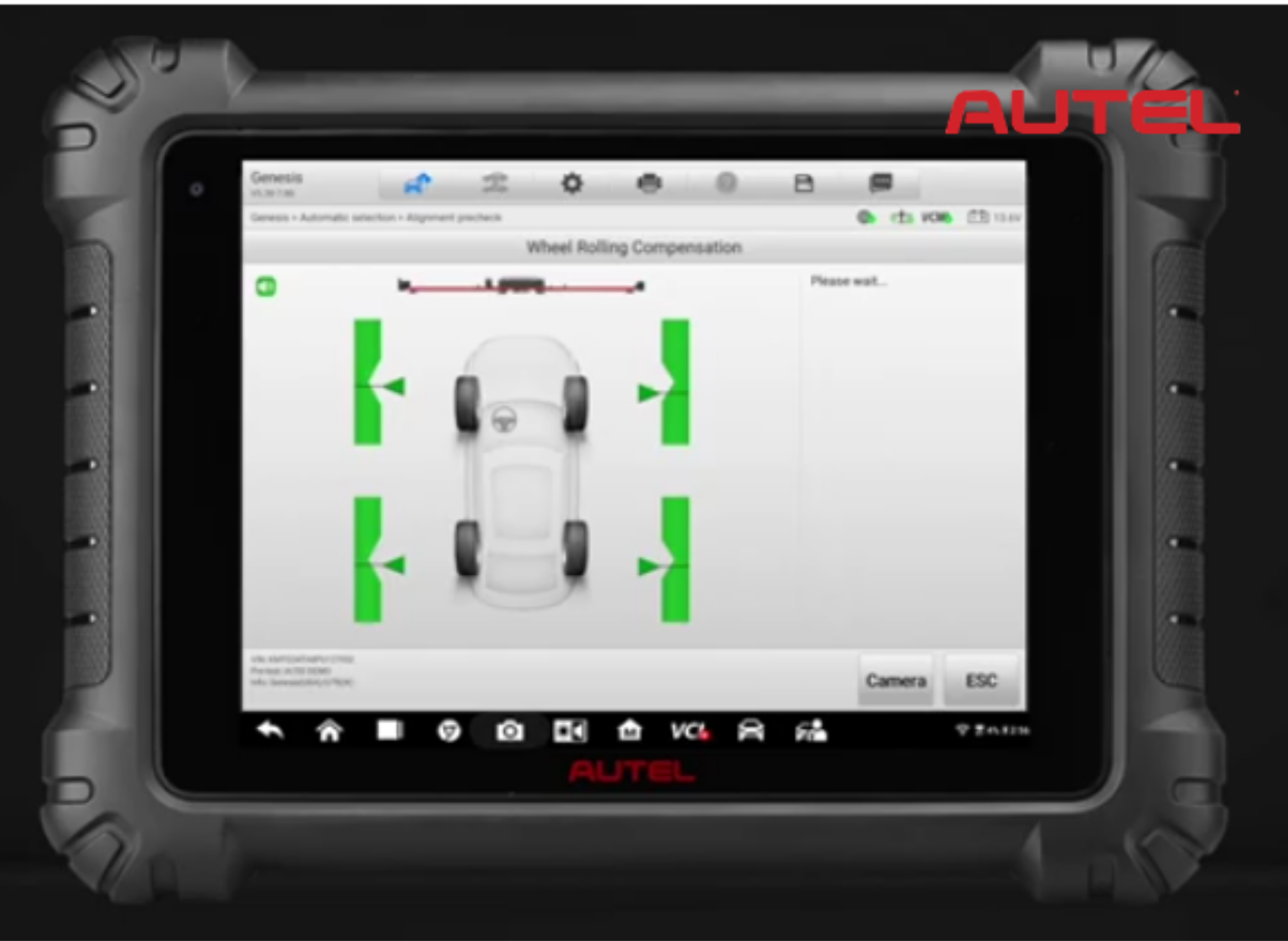

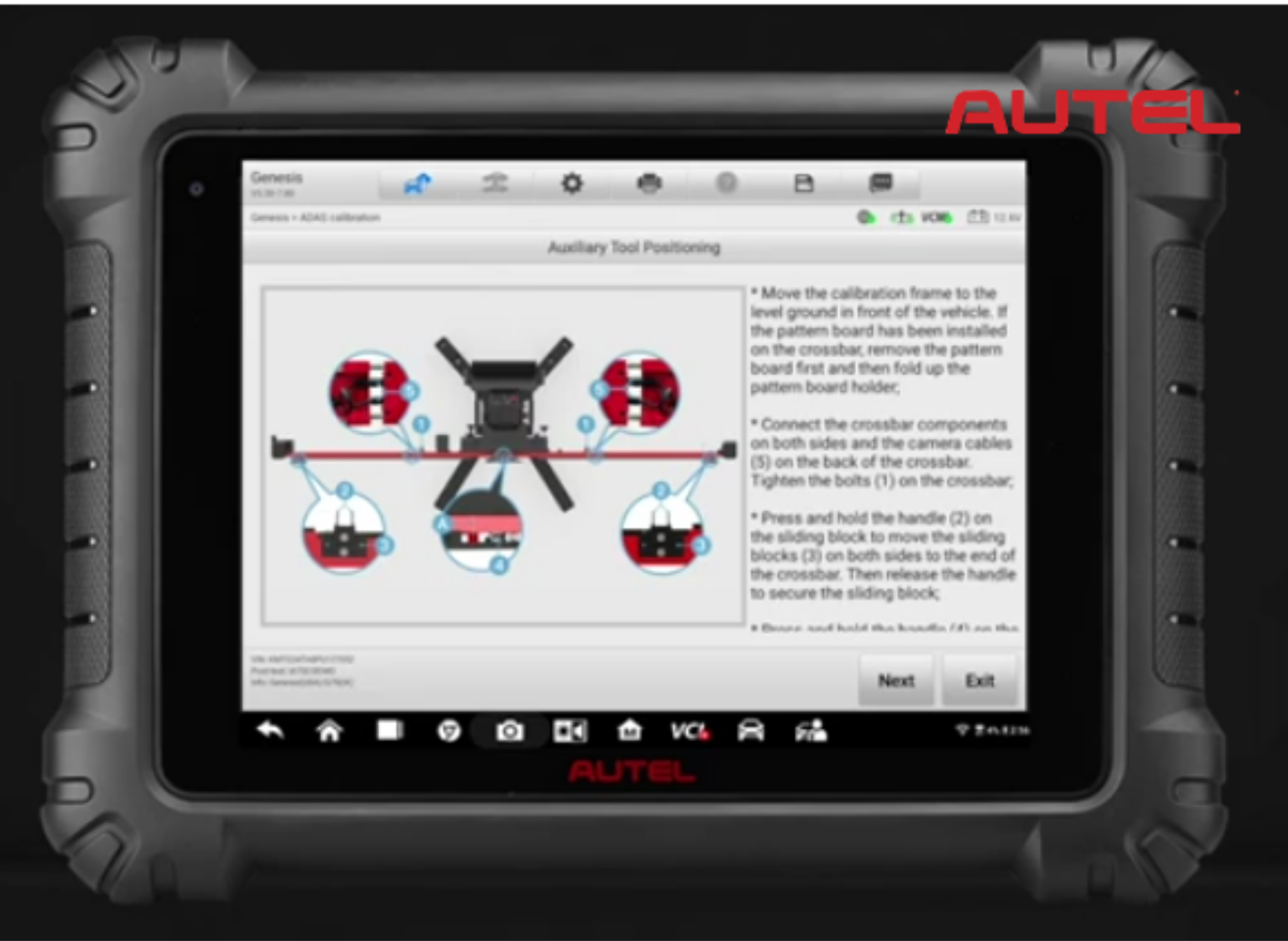

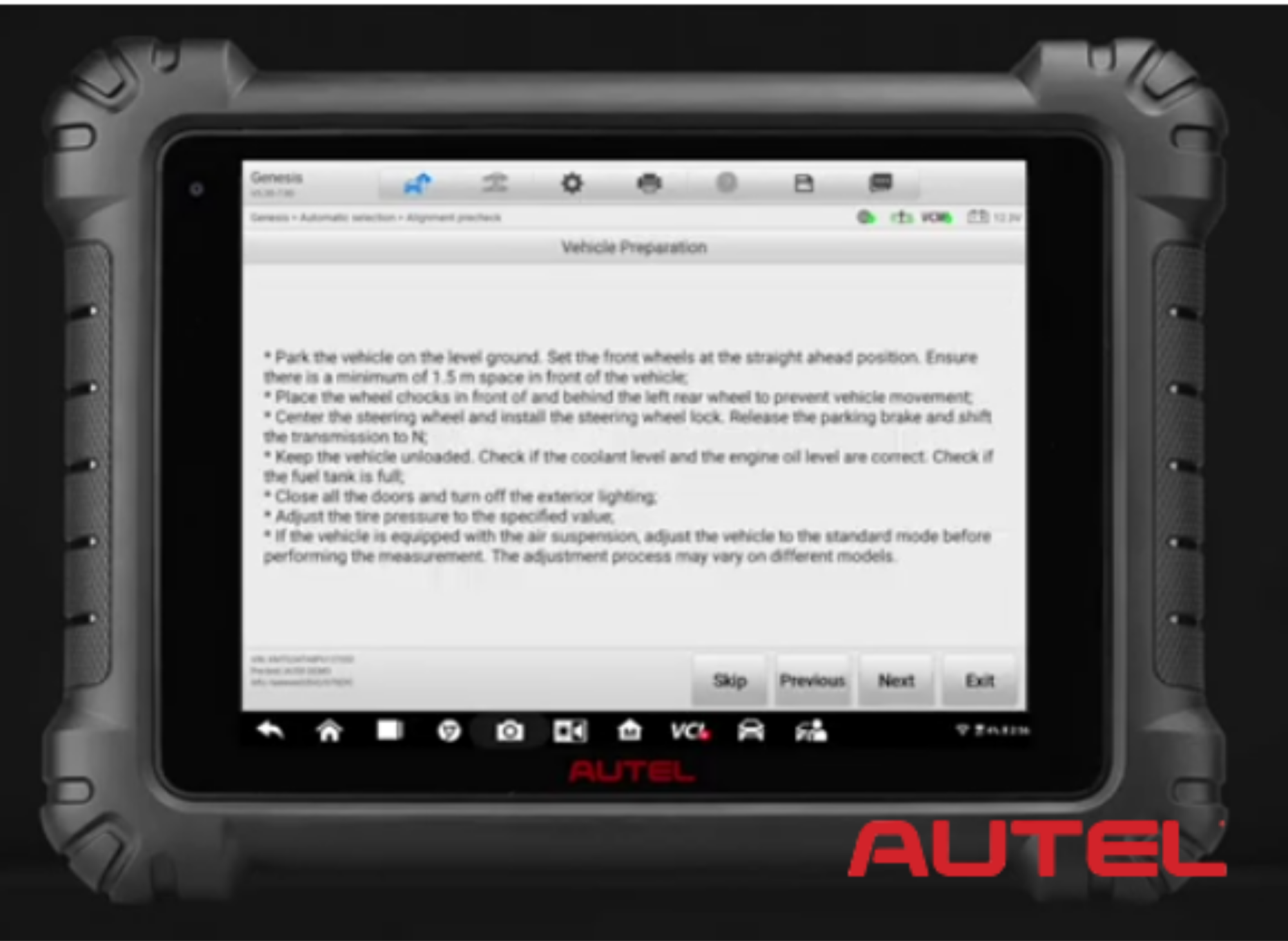

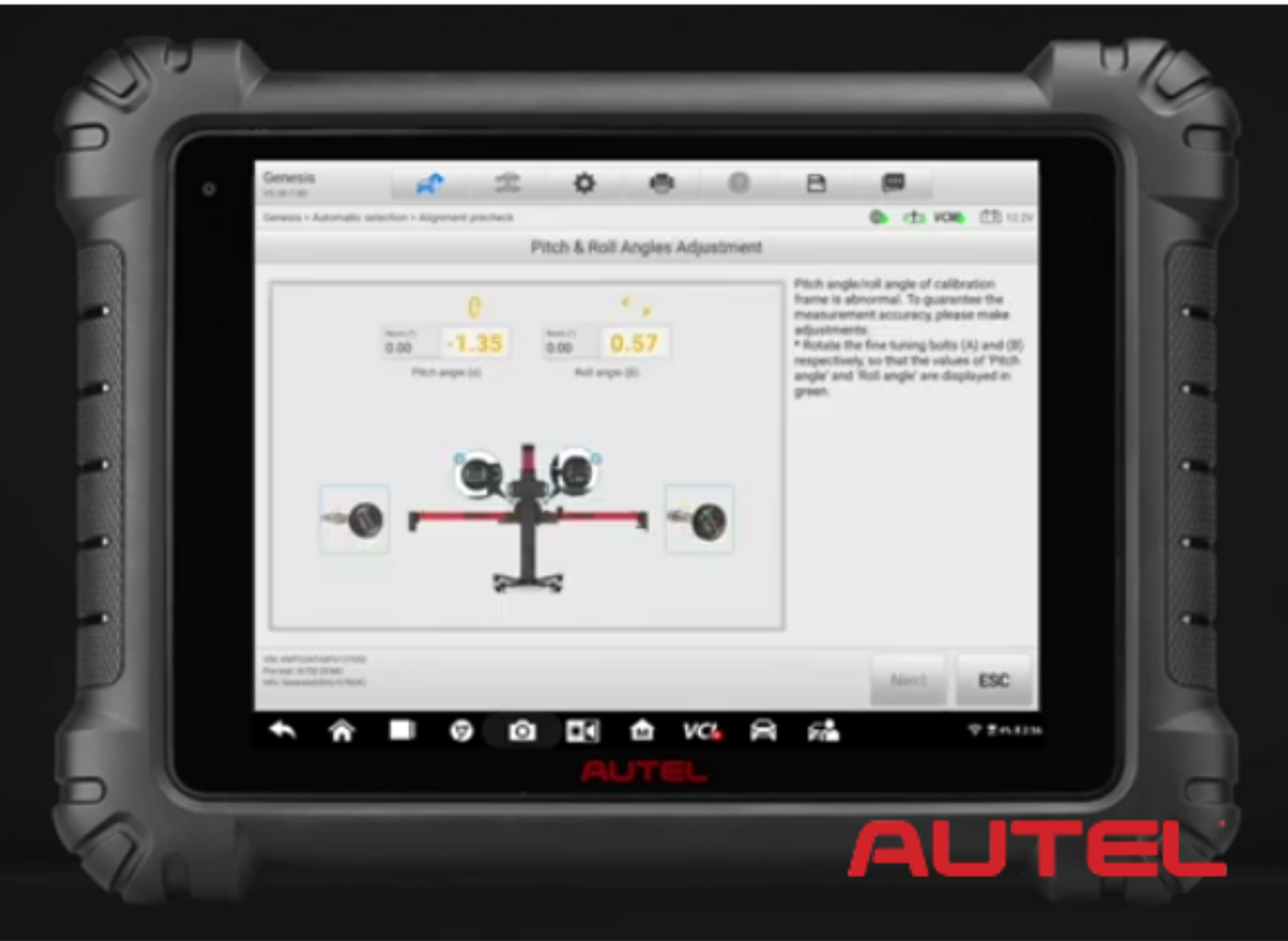

Navigating the software is intuitive. The system provides illustrated alignment instructions live , guiding the technician step-by-step. During the process, you receive alignment instructions and live readings, allowing you to monitor the vehicle's status in real-time.
The interface clearly displays instructions and live readings required to proceed. You will also see live readings, required tools, and prompts. The system maps out the required tools and adjustment steps clearly. Technicians can easily find tools and adjustment locations using the built-in adjustment locations display.
Seamless Integration with the IA700 Frame
The tablet and the framework work together flawlessly. The MS909 tablet communicates with the tracking cameras to automate the robotic frame movement. This integration removes human error from the equation. The tablet calculates the vehicle height, the distance to the targets, and the precise angle needed for the calibration, executing the adjustments automatically.
Compatibility and Versatility: Enhancing Existing Workflows
For business owners, investing in new equipment must yield a high return on investment. The Autel IA700 is designed to integrate smoothly with tools you might already own, expanding your service capabilities without rendering older equipment obsolete.
Compatibility with MA600 and IA900 Targets and Components
If your company currently uses the Autel MA600, the IA700 is fully compatible with your existing ADAS targets, patterns, and calibration components. This compatibility provides a massive benefit for existing Autel MA600 users. It allows them to upgrade to a mobile system with optical positioning speed without having to repurchase their entire target inventory.
Similarly, IA900 users who purchase an IA700 can double their shop's calibration capacity. By utilizing existing targets across multiple frames, owners can maximize their equipment value and service more vehicles simultaneously.
Expanding Service Offerings for Automotive Repair Shops
Adding wheel alignment and ADAS capabilities to your shop opens up new revenue streams. Customers increasingly prefer a one-stop shop for their repairs. If a vehicle requires suspension work, a wheel alignment, and a subsequent radar calibration, the IA700 allows you to handle the entire process in-house.
Relying on sublets to dealerships costs time and cuts into your profit margins. Bringing these solutions to your facility improves turnaround times and keeps revenue within your business.
Calibration on Uneven Floors
Performing ADAS calibrations on uneven floors can present significant challenges, as even minor variations in surface level can impact the accuracy of both wheel alignment and the ADAS calibration frame.
The Autel IA700 ADAS calibration system is engineered to address these challenges with advanced features such as robotic frame movement and six high-resolution positioning cameras. These technologies work together to compensate for slight floor irregularities, ensuring that the calibration frame and ADAS targets are positioned with pinpoint accuracy.
For optimal results, it remains essential to use wheel chocks and confirm that the vehicle is as level as possible before beginning any calibration. This is especially important when working with European vehicles, which often have stringent calibration requirements.
By combining the IA700’s high-resolution positioning capabilities with best practices, such as verifying a level surface and securing the vehicle, technicians can achieve accurate and reliable ADAS calibrations, even in less-than-ideal shop environments. This approach not only enhances the precision of the calibration system but also ensures consistent results across a wide range of vehicles and shop conditions.
Benefits for Automotive Professionals
The intended buyer for the Autel IA700 is any dedicated automotive professional looking to future-proof their business. The benefits of integrating this system into your daily operations are substantial.
Increased Accuracy and Reliability
Manual measurements introduce the risk of human error. A tape measure can sag, and a plumb bob can swing. The optical tracking cameras on the IA700 eliminate these variables. This increased accuracy drastically reduces the risk of miscalibration errors.
When you calibrate a vehicle correctly, you guarantee enhanced safety for your customers. They trust you to repair their cars so they can protect their families on the road. The precision of the Autel ADAS system allows you to honor that trust with absolute confidence.
Improved Efficiency and Time Savings
Time is money in the automotive repair industry. The IA700 delivers faster calibration processes compared to traditional methods. The optical positioning and robotic frame movement cut setup times in half.
The software's illustrated alignment instructions streamline workflows. Technicians do not need to spend hours searching OEM service manuals for adjustment locations. The tablet provides all the necessary access to data, allowing your team to complete jobs efficiently and move on to the next vehicle.
Broad Vehicle Coverage
The automotive market is diverse, and your equipment must be able to handle whatever rolls through the door. The MS909 tablet and Autel software provide the ability to service a wider range of vehicles. Whether you are working on domestic trucks or luxury European vehicles, the system provides the required data and target coverage.
Autel frequently updates its software to include the newest vehicle models. This ongoing support ensures your shop stays current with evolving ADAS technologies, preventing your equipment from becoming obsolete.
Investment Protection
Purchasing professional diagnostic equipment is a significant business decision. The price reflects the advanced technology housed within the tool. To protect this investment, Autel backs the hardware with a solid guarantee.
The system comes with a one-year limited warranty for the MaxiSYS IA700 frame. This warranty provides peace of mind, ensuring that your equipment will perform reliably under the heavy demands of a busy auto shop. For technicians seeking to maximize their knowledge, the Autel Academy offers extensive training resources to ensure you get the most out of your purchase.
Autel Academy Training and Resources
Autel Academy is dedicated to empowering automotive professionals with the knowledge and skills needed to master the Autel ADAS calibration system and related equipment.
Through comprehensive training programs, technicians can learn the intricacies of wheel alignment, ADAS calibrations, and the use of features like the adjustment locations display. The Academy offers a variety of resources, including step-by-step instructional videos, detailed user manuals, and troubleshooting guides, all designed to help users maximize the accuracy and efficiency of their calibrations.
By participating in Autel Academy training, technicians gain hands-on experience with the latest calibration system features and best practices. This investment in education not only boosts technician confidence and efficiency but also translates into higher-quality service for customers. With dedicated support and ongoing access to updated resources, Autel Academy ensures that automotive professionals stay at the forefront of ADAS technology and deliver accurate, reliable results with every calibration.
Common Issues and Troubleshooting
During ADAS calibrations, technicians may occasionally encounter issues such as difficulties with the steering wheel lock, improper attachment of wheel clamps, or incorrect frame placement.
The Autel ADAS calibration system is designed to make troubleshooting straightforward. The user manual provides clear guidance on resolving common problems, while Autel’s dedicated support team is always available to assist with more complex issues.
Additionally, the system’s software interface offers illustrated alignment instructions live readings required for making it easy to identify and address errors in real time.
These illustrated alignment instructions live on the tablet to help technicians quickly pinpoint the source of any misalignment or setup issue, ensuring that calibrations remain accurate and efficient. By leveraging these resources and following the recommended troubleshooting steps, automotive professionals can minimize downtime and maintain the highest standards of service.
Best Practices for Alignment and ADAS Calibration
To achieve the most accurate and efficient ADAS calibrations, automotive professionals should adhere to a set of proven best practices. Always begin by ensuring the vehicle is positioned on a level surface and securely stabilized with the appropriate tools. Use the correct adjustment locations as specified by the vehicle manufacturer, and follow all OEM calibration guidelines to account for model-specific requirements.
Regularly updating your Autel software and calibration equipment is also crucial, as it ensures access to the latest features, vehicle coverage, and adjustment locations. By consistently applying these best practices, technicians can deliver precise calibrations, enhance their shop’s reputation, and provide exceptional service to customers. Staying current with equipment and software updates not only improves efficiency but also positions your business as a trusted leader in ADAS calibrations and automotive diagnostics.
The Future of Automotive Diagnostics
The Autel IA700 ADAS Frame with MS909 Tablet represents a massive leap forward for automotive repair professionals. By combining high-resolution optical tracking with an advanced diagnostic interface, it removes the friction and uncertainty from complex sensor recalibration.
The key advantages of this system include its robotic precision, comprehensive accessory package, and broad compatibility with existing Autel targets. It allows shops to perform safe, accurate, and profitable ADAS calibrations in-house, regardless of minor environmental challenges like uneven floors.
As ADAS-equipped vehicles become the standard rather than the exception, having a dedicated, reliable calibration system is essential. The Autel IA700 empowers your technicians, protects your customers, and positions your business as a leader in modern automotive repair. Invest in the right equipment today, and ensure your shop is ready for the vehicles of tomorrow.
