Reach For A Brake Caliper Compressor Tool For Your Next Repairs

Discover the brake caliper press, and make your next brake pad replacement easier and faster.

Todd Bandel

08 Sep 2025 • 11 min read

Welcome to Mechanicaddicts. As an Amazon Associate, we earn from qualifying purchases (at no cost to you) from links found within these pages if you choose to buy something.

Performing your own brake maintenance is one of the most rewarding jobs for any DIY car enthusiast. Not only does it save you a significant amount of money, but it also gives you a deeper understanding of your vehicle’s mechanics. However, to do the job right, including checking the brake lines, you need the right tools.

One of the most crucial yet often overlooked items in a mechanic’s arsenal is the brake caliper compression tool. Some vehicles, especially those with rear calipers that have integrated parking brakes, require a rewind tool—a specific type of brake caliper compressor tool designed to rotate and retract the piston simultaneously. Many new rear brake calipers require a scan tool to initiate the self-retracting piston, which ratchets back into the caliper to accept new brake pads.

If you’ve ever tried to change brake pads using a C-clamp or a block of wood, you know the frustration of trying to retract a stubborn brake piston evenly. A dedicated brake caliper compression tool, which is one of many essential brake tools, also known as a caliper press or brake pad spreader, is designed specifically for this task. It makes the job quicker, easier, and safer by applying steady, even pressure to retract the piston into the caliper housing. This ensures the new, thicker brake pads will fit correctly.

This guide will cover everything you need to know about brake caliper compression tools. We’ll explore the different types available, detail the benefits of using one, provide a step-by-step guide on how to use it, and review some of the top products on the market. Whether you’re a seasoned mechanic or just starting your DIY journey, this article will help you understand why this tool is a must-have for your tool kit for brake pad replacement.

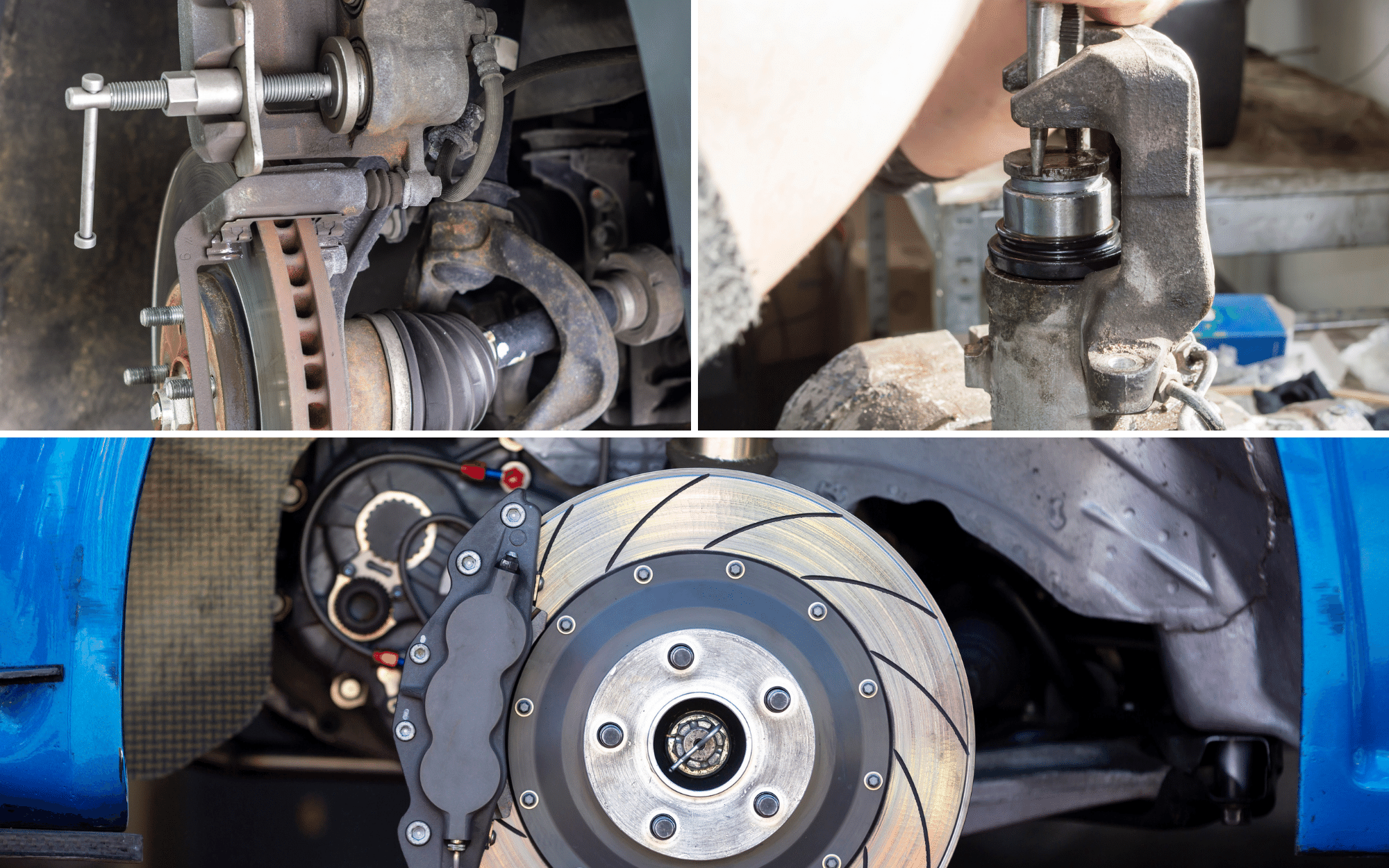

Types of Brake Caliper Compression Tools

Brake caliper compression tools come in several designs, each suited for different types of brake systems and user preferences. Understanding the variations among caliper tools will help you choose the right tool for your specific needs. Some tools are also referred to as a 'rewind tool', especially for rear calipers that require the piston to be rotated as it is compressed.

Single Piston Caliper Press Tools

This is the most common and straightforward type of caliper tool. It features a simple screw mechanism with a plate on one end and a handle or knob on the other. You place the plate against the piston and the back of the tool, along with other tools you might use, against the caliper housing. As you turn the handle, the screw pushes the plate forward, retracting the piston.

Best for: Most single-piston and some dual-piston floating calipers found on domestic and import cars and light trucks.
Pros: Simple, inexpensive, and easy to use.
Cons: May not work on more complex multi-piston or fixed calipers.

Ratcheting Caliper Spreader Tools

These tools offer more convenience and speed. Instead of a screw handle, they use a ratcheting mechanism, similar to a caulking gun. You squeeze the handle to apply pressure and retract the piston. This design allows for one-handed operation and provides excellent control over the compression speed.

Best for: Mechanics who perform frequent brake jobs and value efficiency.
Pros: Fast, easy one-handed operation, and provides consistent pressure.
Cons: Can be more expensive and bulkier than simple screw-type tools.

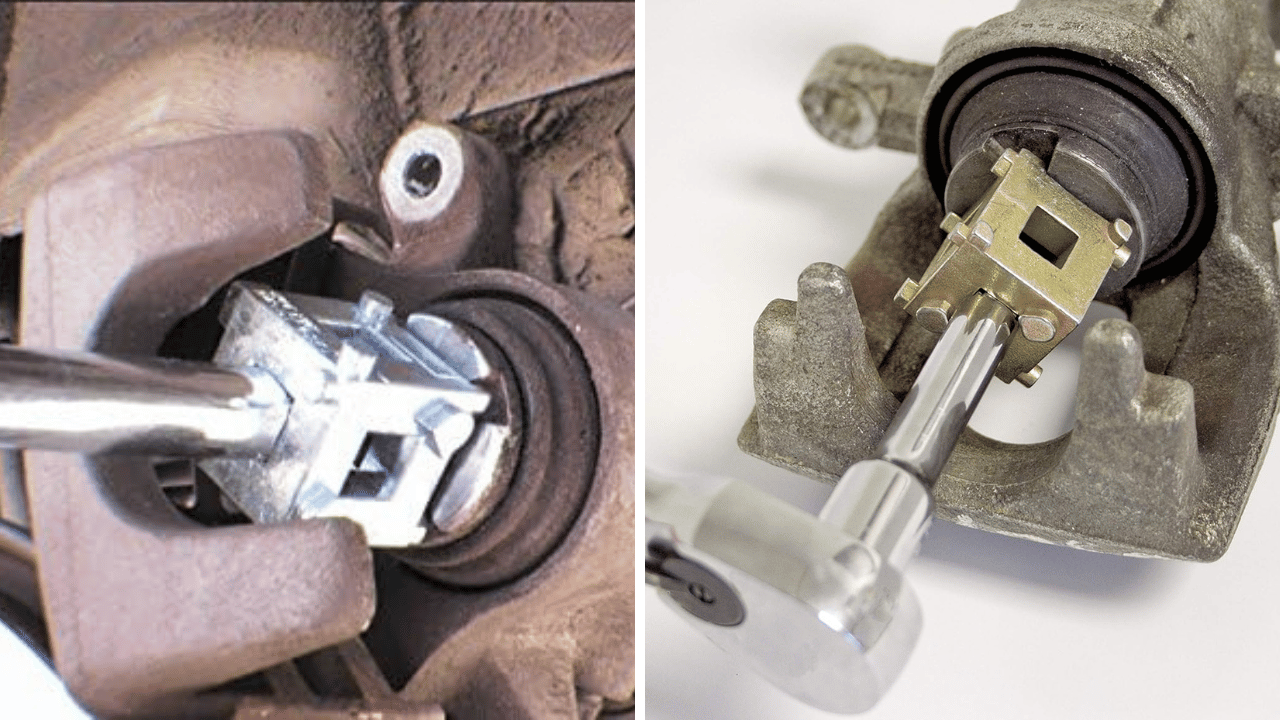

Disc Brake Caliper Wind-Back Tool Kits

Some rear brake calipers, particularly those with an integrated parking brake mechanism, require the piston to be rotated as it's being compressed. A standard press tool won't work on these. A wind-back tool kit is essential for a brake job and includes a threaded press bolt and a set of adapters that fit into the notches on the piston face. As you turn the tool, it simultaneously pushes and spins the piston back into the caliper.

Best for: Vehicles with screw-type rear calipers. These are common on many European, some Asian, and domestic models.
Pros: Essential for specific types of rear brakes; kits often come with adapters for a wide range of vehicles.
Cons: More complex than a simple press and requires the correct adapter for the job. An entire tool kit is often needed.

Heavy-Duty and Multi-Piston Tools

For larger trucks or high-performance vehicles with multi-piston fixed calipers (four or six pistons), a standard single-piston tool isn't sufficient. Heavy-duty spreaders are designed to compress multiple pistons in a brake caliper simultaneously and evenly. They often feature dual plates or a wider, more robust frame to handle the increased force required.

Best for: Professional mechanics, performance car enthusiasts, and owners of heavy-duty trucks.
Pros: Capable of handling complex, multi-piston brake systems.
Cons: More expensive and specialized.

Benefits of Using a Caliper Compression Tool

While it’s possible to retract a brake piston with other methods, using a dedicated caliper press for your brakes offers several distinct advantages that make the investment worthwhile.

Even Pressure Application: A caliper tool applies uniform force directly to the center of the piston. This prevents the piston from becoming crooked or binding in the caliper bore, which can damage the piston or the rubber boot surrounding it. A C-clamp, on the other hand, can easily apply pressure unevenly.
Increased Safety and Control: The controlled mechanism of a caliper tool reduces the risk of slippage. Prying with a screwdriver or using a clamp can lead to the tool slipping, potentially damaging the caliper, rotor, or injuring your hand.
Saves Time and Effort: What can be a frustrating, time-consuming struggle with improvised tools becomes a quick and straightforward task. A good caliper press makes brake jobs easier and more efficient, letting you complete the work in a fraction of the time.
Versatility: Many brake tools are designed to be universal, working on a wide variety of vehicle makes and models. More comprehensive kits offer adapters to fit nearly any caliper you might encounter. Some kits also include a rewind tool for cars with rear calipers that require the piston to be rotated as it is compressed.
Protects Brake Components: By ensuring a smooth and straight compression, the tool helps prevent damage to the delicate rubber piston boot and the internal seals of the caliper. Damaging these components can lead to fluid leaks and brake failure.

How to Use a Brake Caliper Compression Tool: A Step-by-Step Guide

Using a caliper press is straightforward. Here’s a general guide for a standard single-piston caliper. Always consult your vehicle’s service manual for specific instructions.

Prepare the Vehicle: Park on a level surface, engage the parking brake, and chock the wheels. Loosen the lug nuts on the wheel you’ll be working on, then raise the vehicle with a jack and secure it with a jack stand.

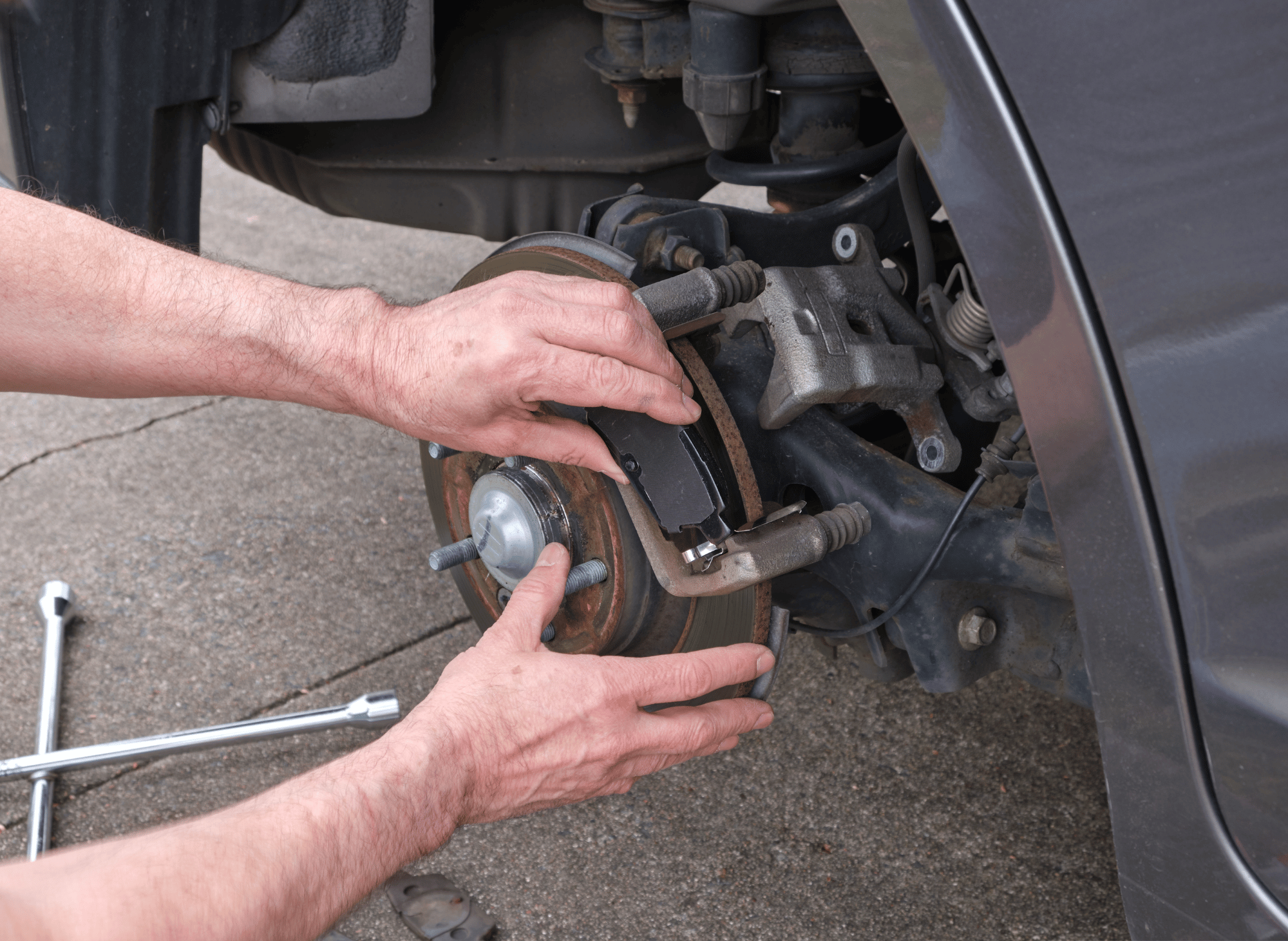

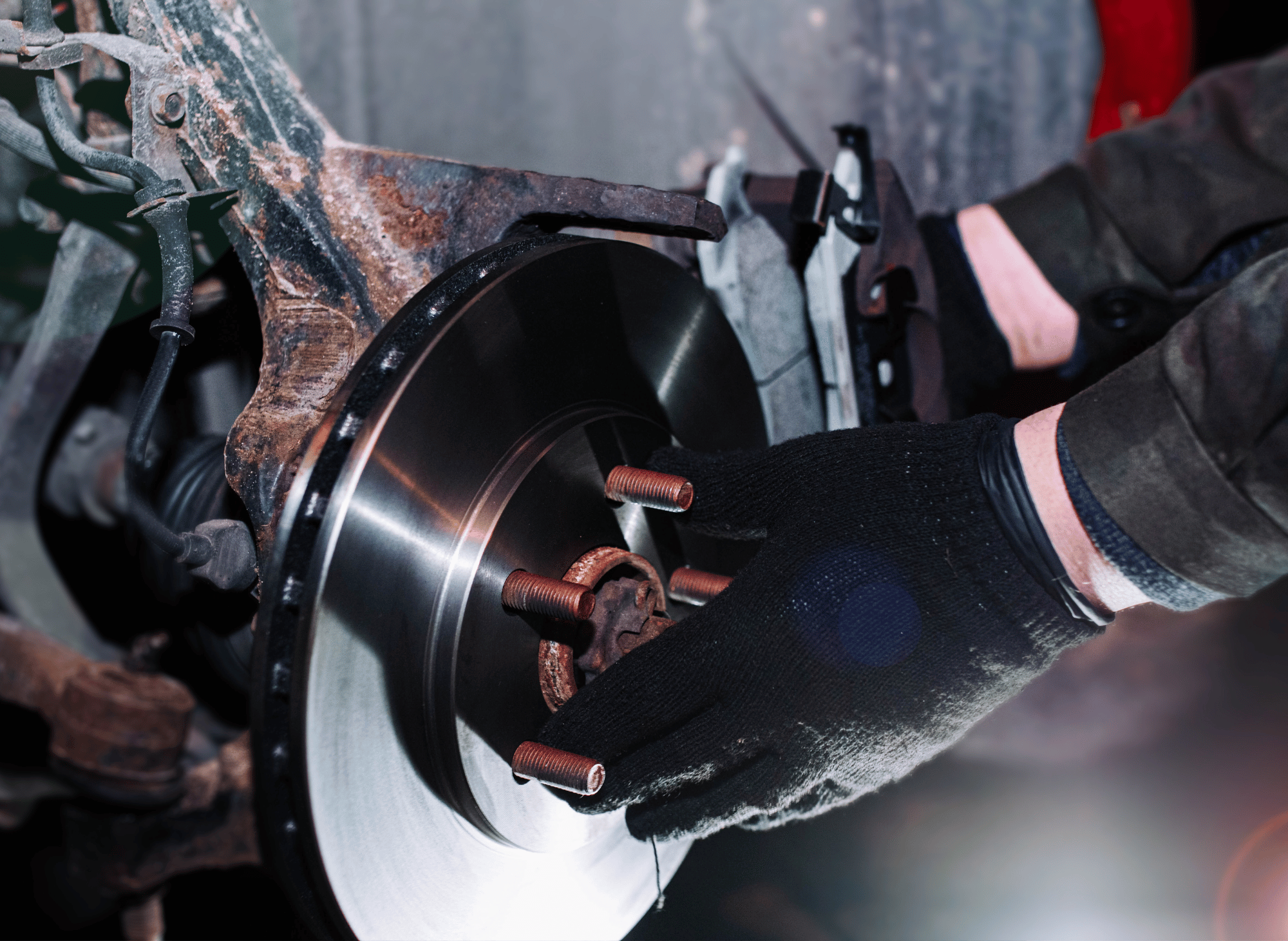

Remove the Wheel and Caliper: Remove the lug nuts and the wheel. Then, locate the caliper mounting bolts (often on the back of the caliper). Remove the lower bolt and loosen the upper one, allowing you to pivot the caliper upward. If you need to obliterate the caliper, remove both bolts.
Support the Caliper: Never let the caliper hang by its brake hose, as this can cause damage. Use a caliper hanger or a bungee cord to support its weight from the suspension.

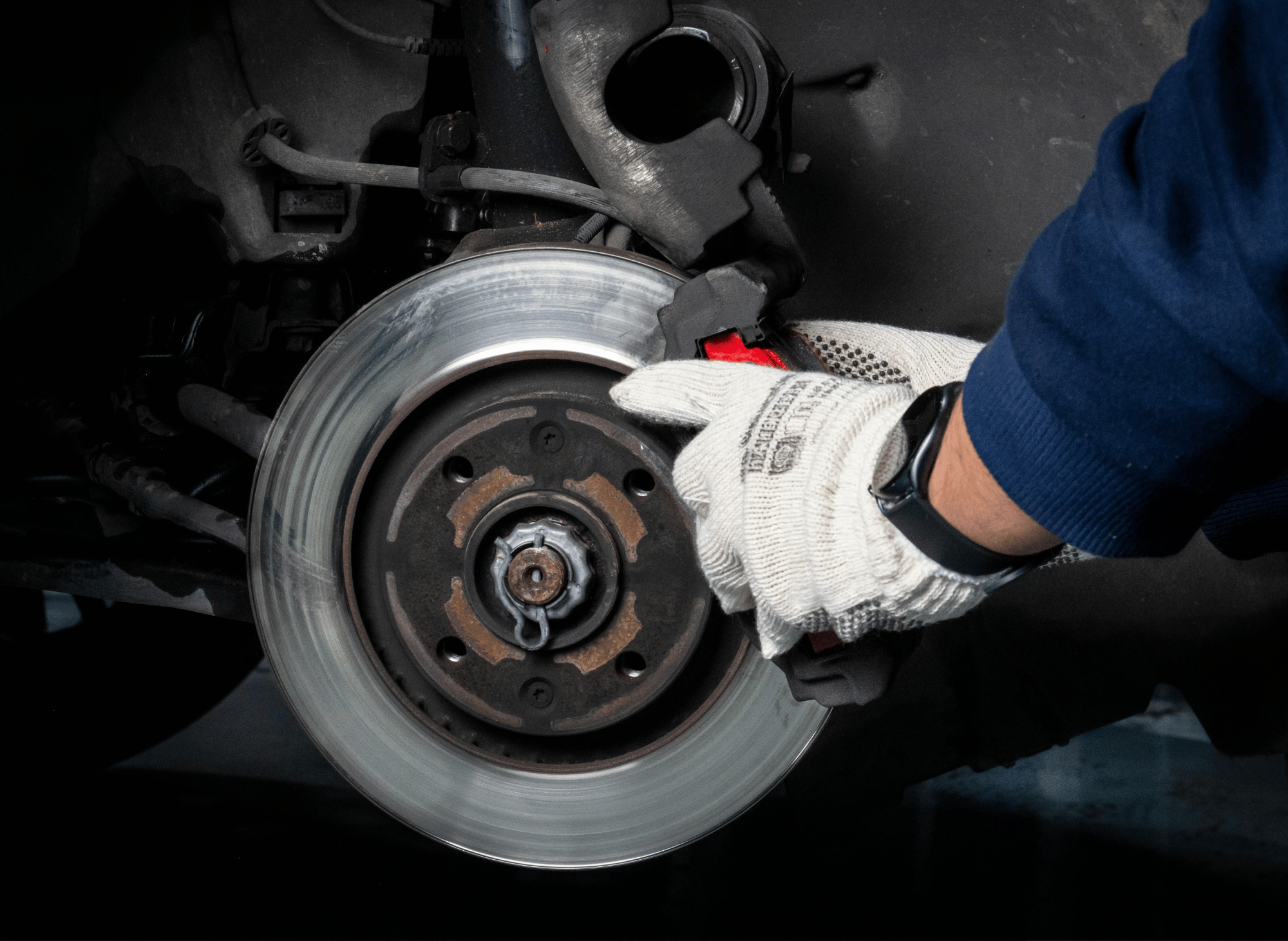

Remove Old Brake Pads: The old brake pads should slide out of the caliper bracket. Note their orientation.
Prepare for Compression: Open the brake fluid reservoir cap under the hood. This relieves pressure in the system as you push fluid back into it. Place a rag around the reservoir to catch any potential overflow.

Note: For some vehicles with rear calipers and integrated parking brakes, a rewind tool may be required to rotate and compress the piston simultaneously.

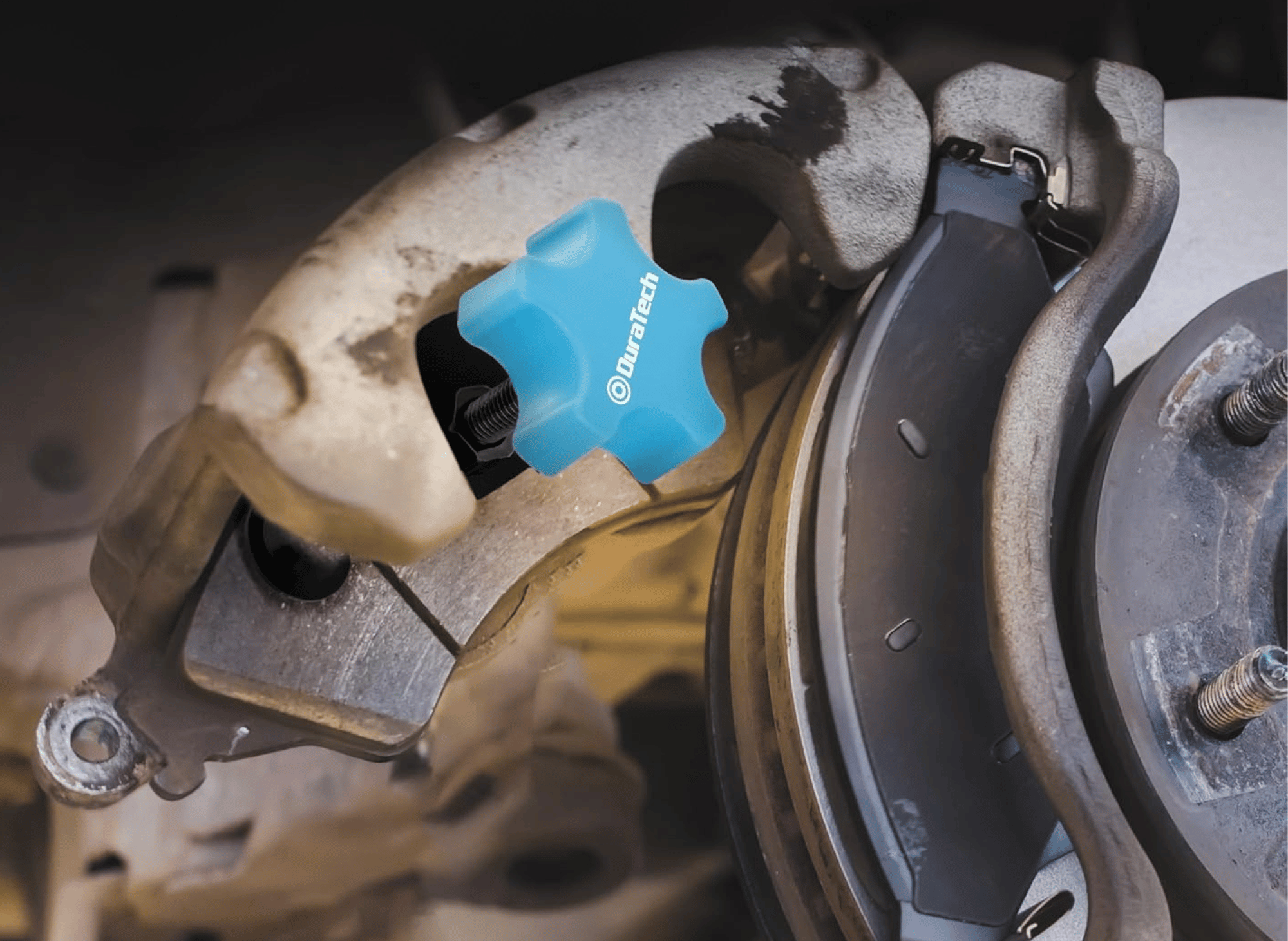

Position the Tool: Place one of the old brake pads against the piston face. Position the brake caliper compression tool so that its fixed plate rests against the back of the caliper and the screw plate rests against the old brake pad.
Compress the Piston: Slowly turn the handle or knob of the tool and maintain even pressure. You will see the piston retract smoothly back into the caliper housing with some resistance. Continue until it is fully seated.
Install New Pads and Reassemble: Remove the tool. Install the new brake pads, pivot the caliper back into place, and reinstall the mounting bolts, torquing them to the manufacturer’s specification.
Final Steps: Reinstall the wheel, lower the vehicle, and torque the lug nuts. Before driving, pump the brake pedal several times to seat the new pads and restore pressure. Check the brake fluid level and top off if necessary.

Top Brake Single Caliper Compression Tools

With so many options on the market, choosing the right tool can be daunting. Here are a few top-rated products we picked that offer great value and performance for DIY mechanics, considering their price.

BILITOOLS Brake Caliper Compression Tool

Heavy Duty Disc Brake Caliper Piston Pad Compressor Spreader Tool

Check Price

*BILITOOLS Brake Caliper Compression Tool*

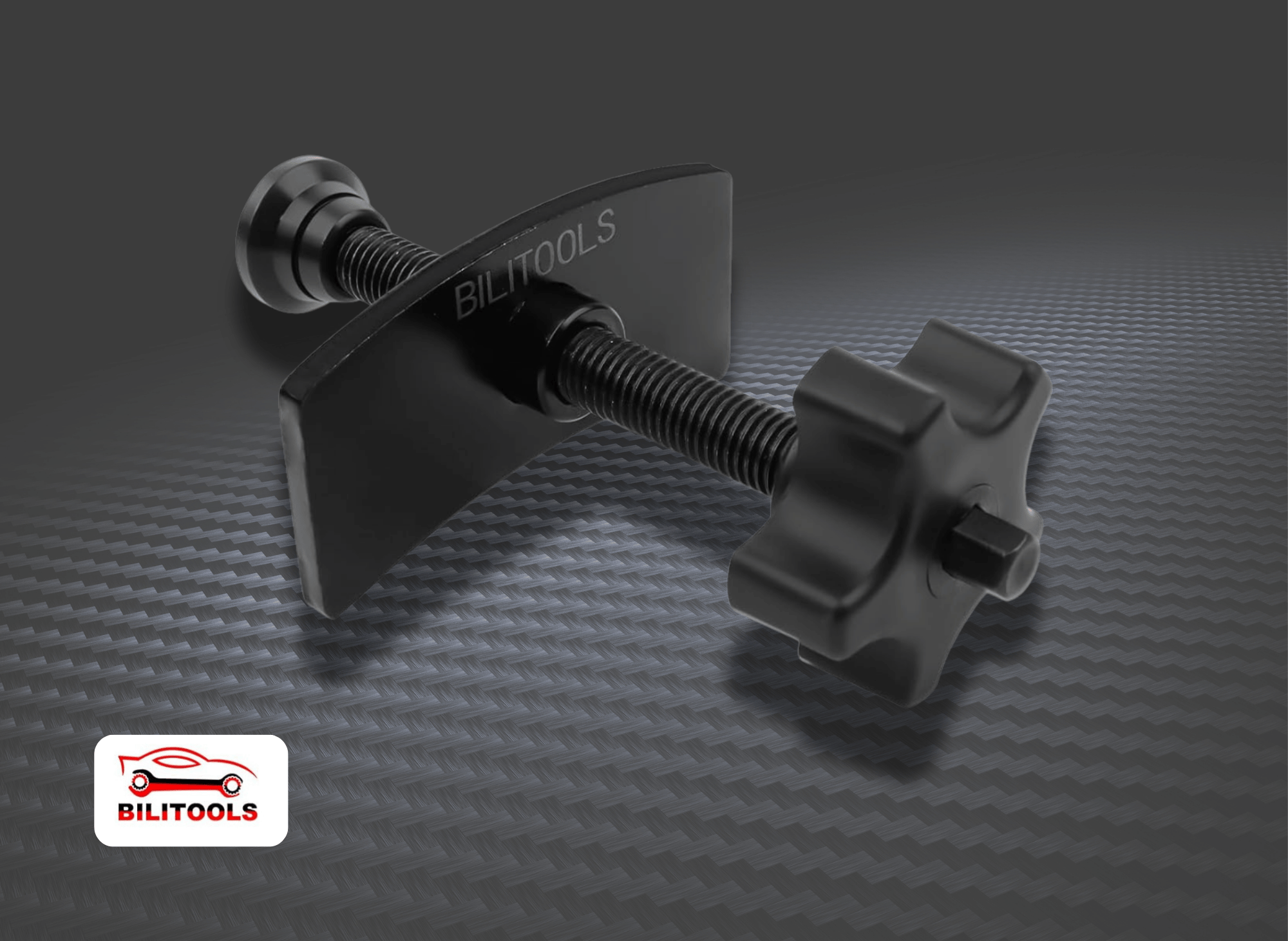

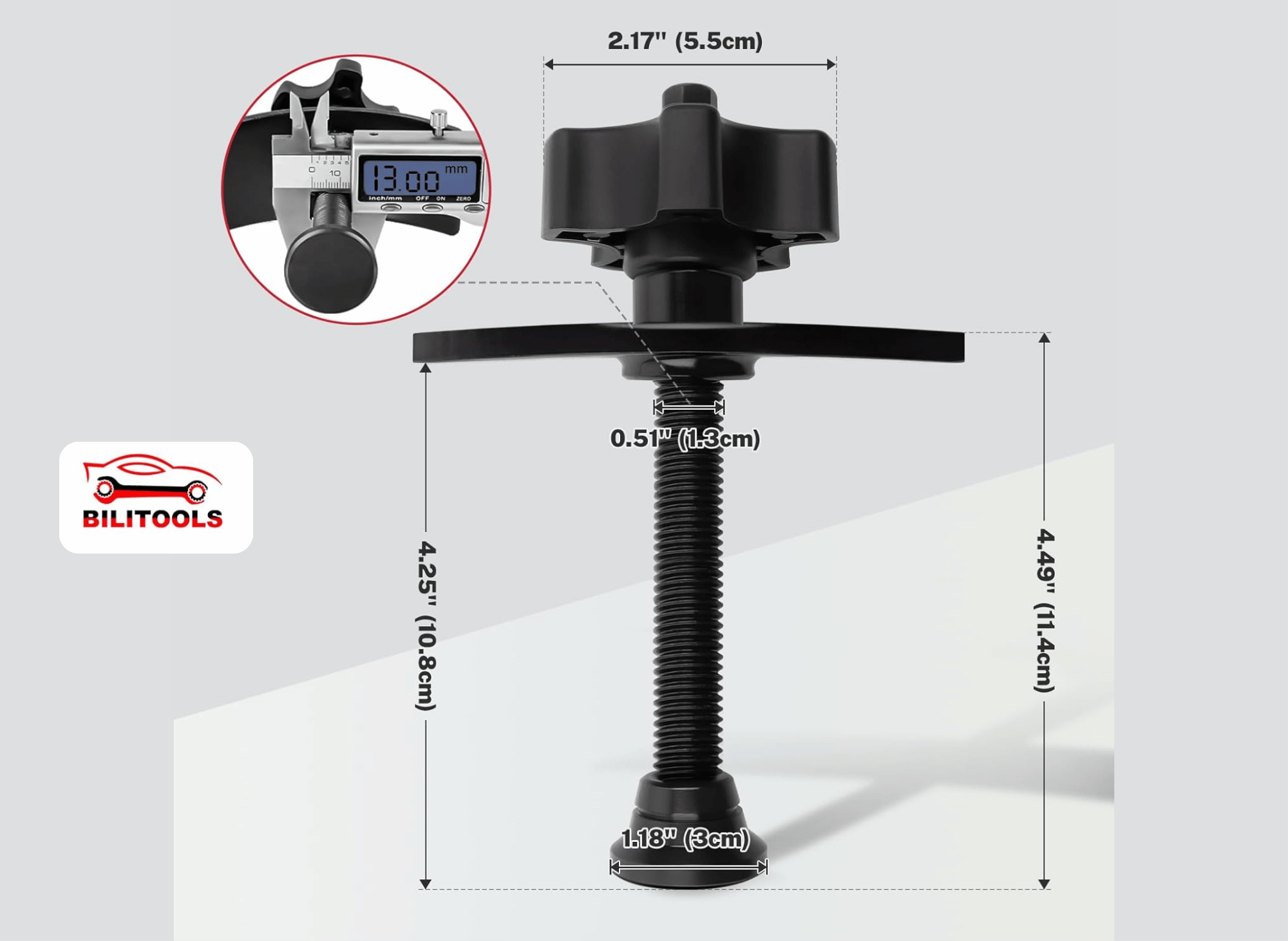

1. BILITOOLS Heavy Duty Brake Caliper Compression Tool

Type: Single Piston Caliper Press
Key Features: Made from high-quality 45# carbon steel, solid steel swivel joint, pentagonal knob that can be used with a 10mm wrench.
Customer Feedback: With a 4.6-star rating from nearly 1,500 reviews, users praise this tool for being solidly built, easy to use, and a great value. Many note that it makes the work much easier than using a C-clamp.
Pros: Durable and wear-resistant construction, smooth operation for quick compression, versatile for most cars and light trucks.
Cons: Some users noted that with excessively worn pads, the tool might not fit initially without first prying the piston back slightly.

Orion Motor Tech Heavy Duty Brake Pad Spreader

Disc Brake Pad Tool, Brake Piston Compressor Tool, Universal Brake Piston Tool with Solid Steel Swivel Joint for Car, Light Truck with Caliper Hangers

Check Price

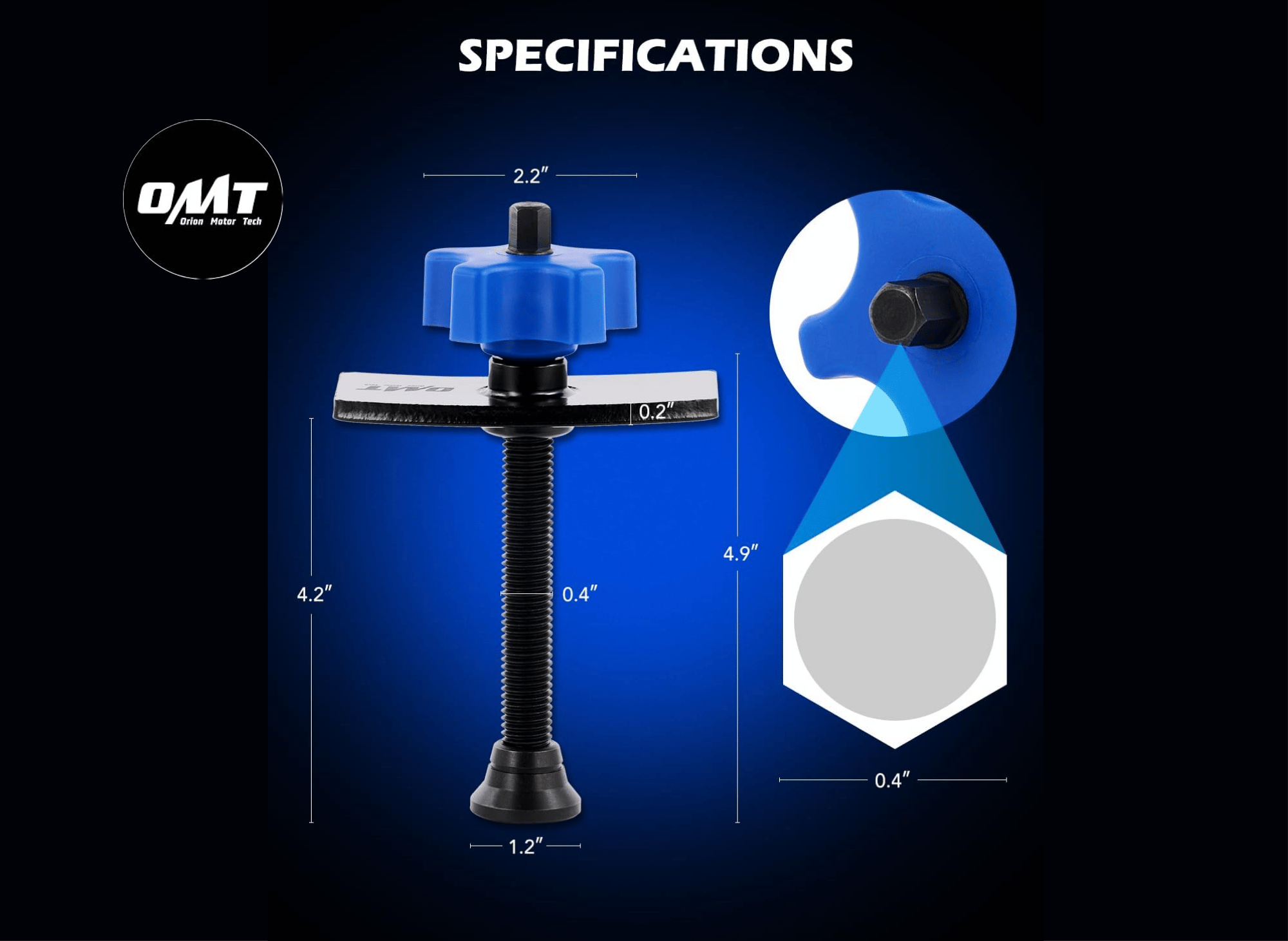

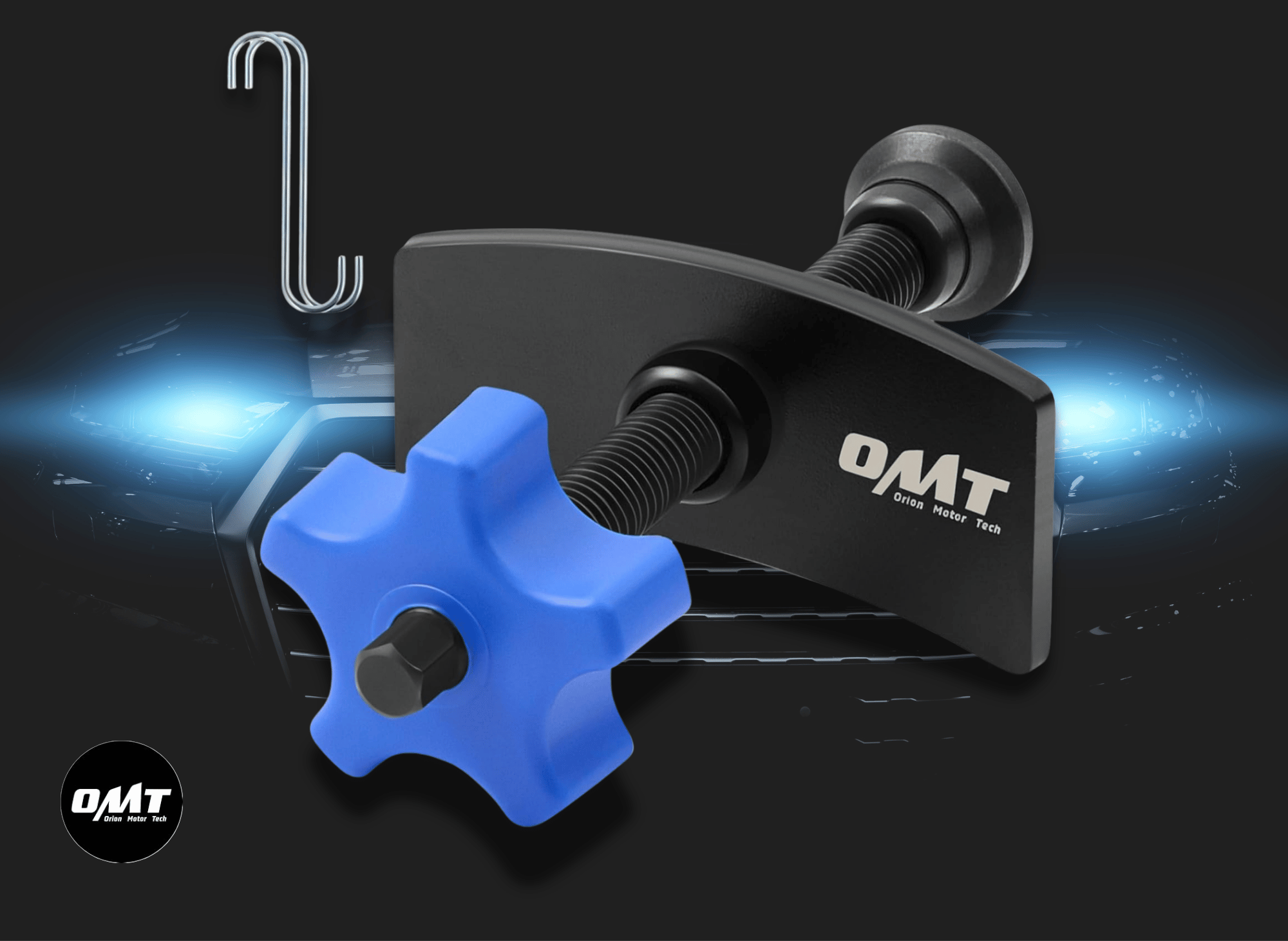

2. Orion Motor Tech Heavy Duty Brake Pad Spreader

Type: Single Piston Caliper Press Kit
Key Features: Made of durable 45# solid steel, this product features a 360-degree swiveling head for tight spaces, a non-slip handle, and comes as a kit with caliper hangers and gloves.
Customer Feedback: This tool boasts a 4.6-star rating from over 1,000 reviews. Customers find it well-made, simple to use, and a significant improvement over other methods. The included caliper hooks are a frequently praised bonus.
Pros: The comprehensive kit offers great value, the swivel design is excellent for accessibility, and durable materials ensure long service life.
Cons: A few users noted that the design may not be optimal for certain dual-piston calipers, but it can be made to work.

DURATECH Brake Caliper Compression Tool

Brake Pad Spreader for Compress Inner Brake Pads & Reset Pistons, Disc Brake Pad Spreader Tool for Most Cars and Light Trucks

Check Price

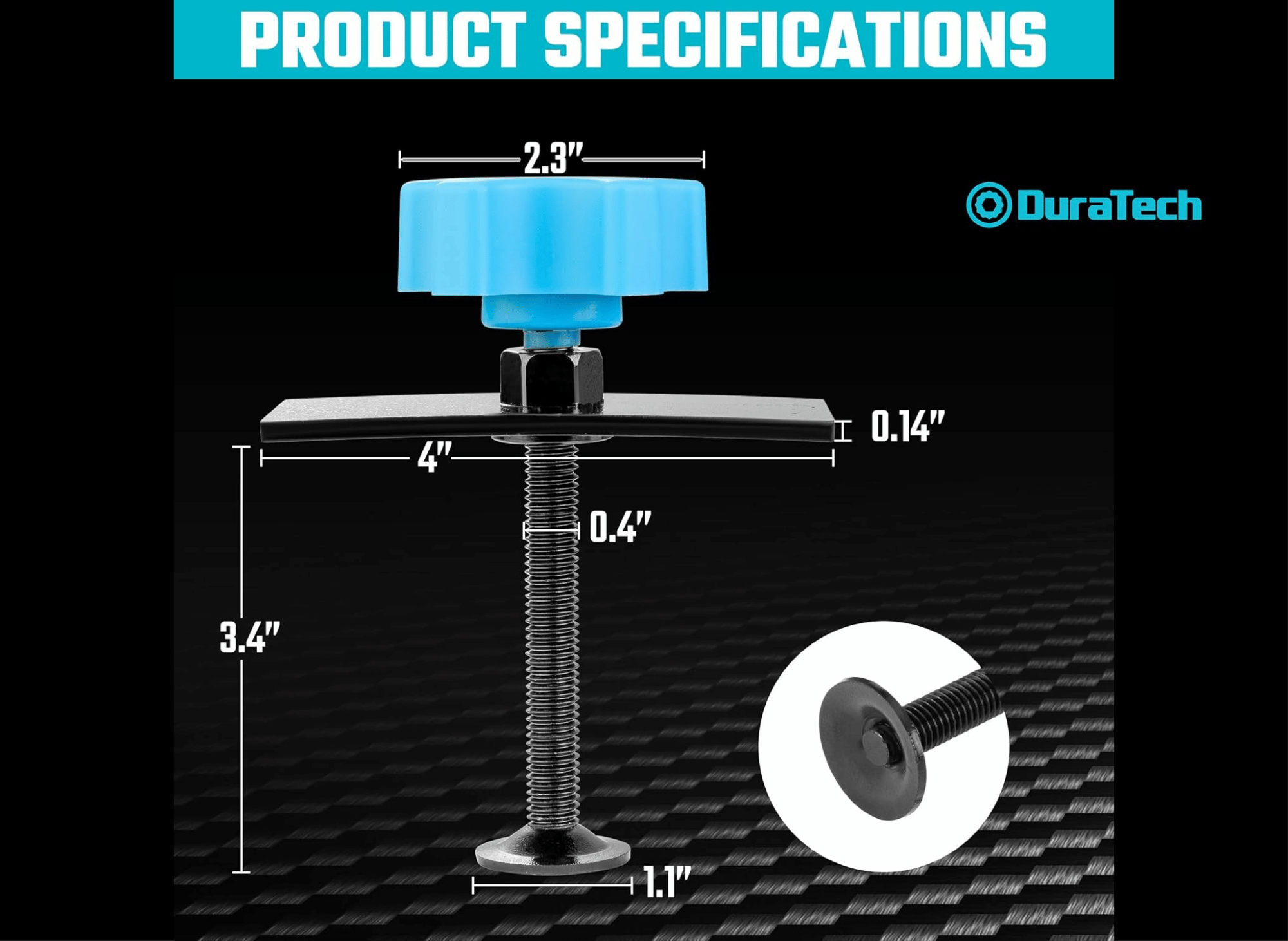

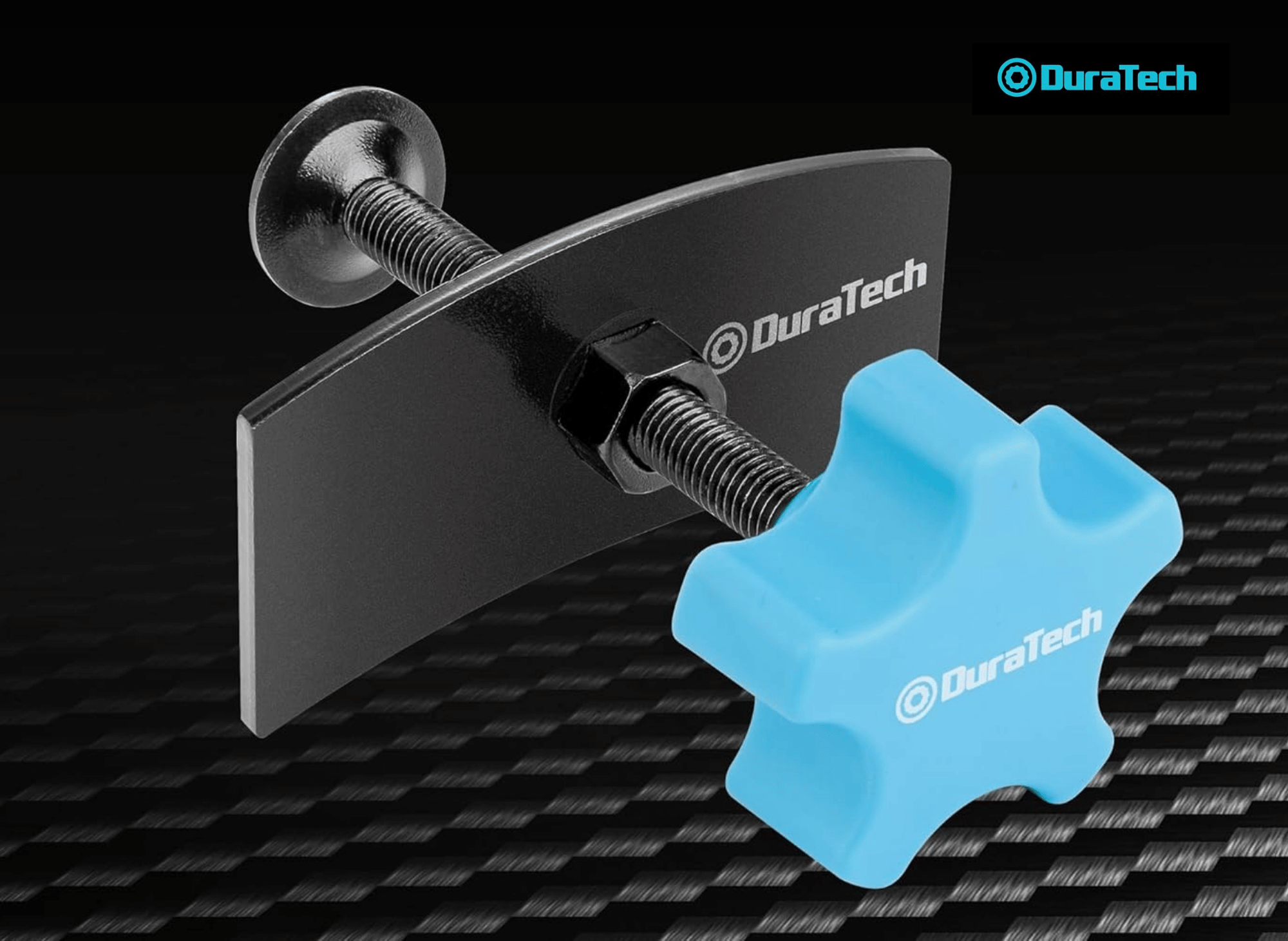

3. DURATECH Brake Caliper Compression Tool

Type: Single Piston Caliper Press
Key Features: High-carbon steel construction with corrosion-resistant black coating, ergonomic anti-slip knob for better leverage, smooth threads for easy operation.
Customer Feedback: Earning a 4.6-star rating, this tool is described as excellent, high-quality, and easy to use. It's often highlighted as a great value for the price.
Pros: Affordable, solid build quality, comfortable and efficient knob design, universal compatibility for most cars.
Cons: As a basic tool, it lacks the extra features of more expensive kits.

Maintenance and Care for Your Tool

To ensure your brake caliper compression tool lasts for many years, follow these simple maintenance tips:

Keep it Clean: After each use, wipe down the tool to remove brake dust, grease, and grime.
Lubricate the Threads: Apply a light coat of red grease or lubricating oil to the screw threads periodically. This ensures smooth operation and prevents rust.
Store it Properly: Keep the tool in a dry place to prevent corrosion. If it came with a case, use it. This protects the tool from damage and keeps all the pieces of a kit together.
Inspect Before Use: Check for any signs of damage, such as bent plates or stripped threads, before you start a job.

Your Next Essential Garage Tool

A brake caliper compression tool is a perfect example of how having the right compatible tool for the job can transform a complex task into a simple one. It not only makes brake maintenance faster and easier but also safer for both you and your vehicle.

The small investment in a quality caliper press pays for itself after just one use by saving you time and preventing costly damage to your brake system. For any DIY mechanic looking to take their skills to the next level, this tool is an absolute must-have for the toolkit. Add one to your checkout cart today to simplify your next brake pad replacement.

Thank you for reading!

Your friend,

Todd
