Dial Indicator: A Product Review

Are you looking for a way to measure accuracy to the highest degree? Look no further than our list of the five best dial indicators!

Dial indicators are precise instruments that provide accurate measurements with minimal effort. They're typically mounted on a stand or table for stability while taking measures.

Different types of dial indicators include mechanical, electronic, and digital readouts. With various application-specific features, choosing the right dial indicator for your needs is essential.

How Mechanicaddicts Chooses the Dial Indicator

We will review five different dial indicators for your needs. These dial indicators have been carefully selected for their quality and performance. We'll test them for their calibration accuracy, durability, and visibility. Check out our page on these high-quality tools.

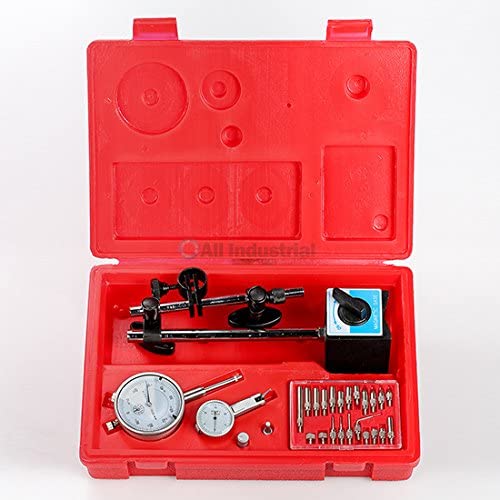

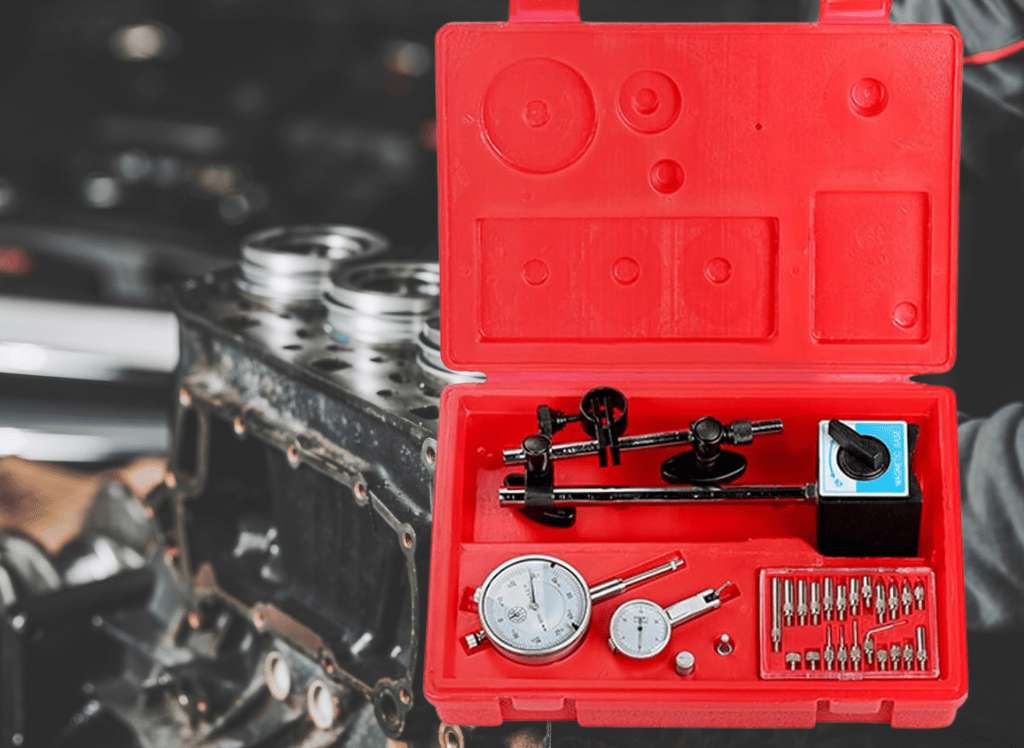

1. TFT Tools Indicator, Test Indicator, Magnetic Base & Point Set

Check Price on Amazon

What We Like About This Dial Indicator

A mechanical dial indicator is a tool to measure various objects precisely. One of the reasons why we like this particular dial indicator is that it is very accurate and easy to use. These dial indicators also come with many attachments that can measure different objects.

The point set attachment can be used to measure the depth of an object. The test indicator attachment can be used to take measurements of an object's surface texture. Overall, the dial indicator is a versatile and user-friendly tool that we highly recommend to anyone needing precise measurements.

What You Should Know About This Product

This TFT Tools 4 Pc. precision inspection set is a great way to start. The set includes a 0-1" .001" dial indicator, a .030" dial test indicator, and a magnetic base. These dial indicators have a 3/8" stem diameter and a 2" dial face.

In contrast, the .030" dial test indicator has a white look your and a 0-15-0 dial reading. The base is perfect for holding the indicators in place, and the dovetail mount allows easy attachment to the top, back, or front surfaces. With this set, you'll be able to confidently get started on your next project!

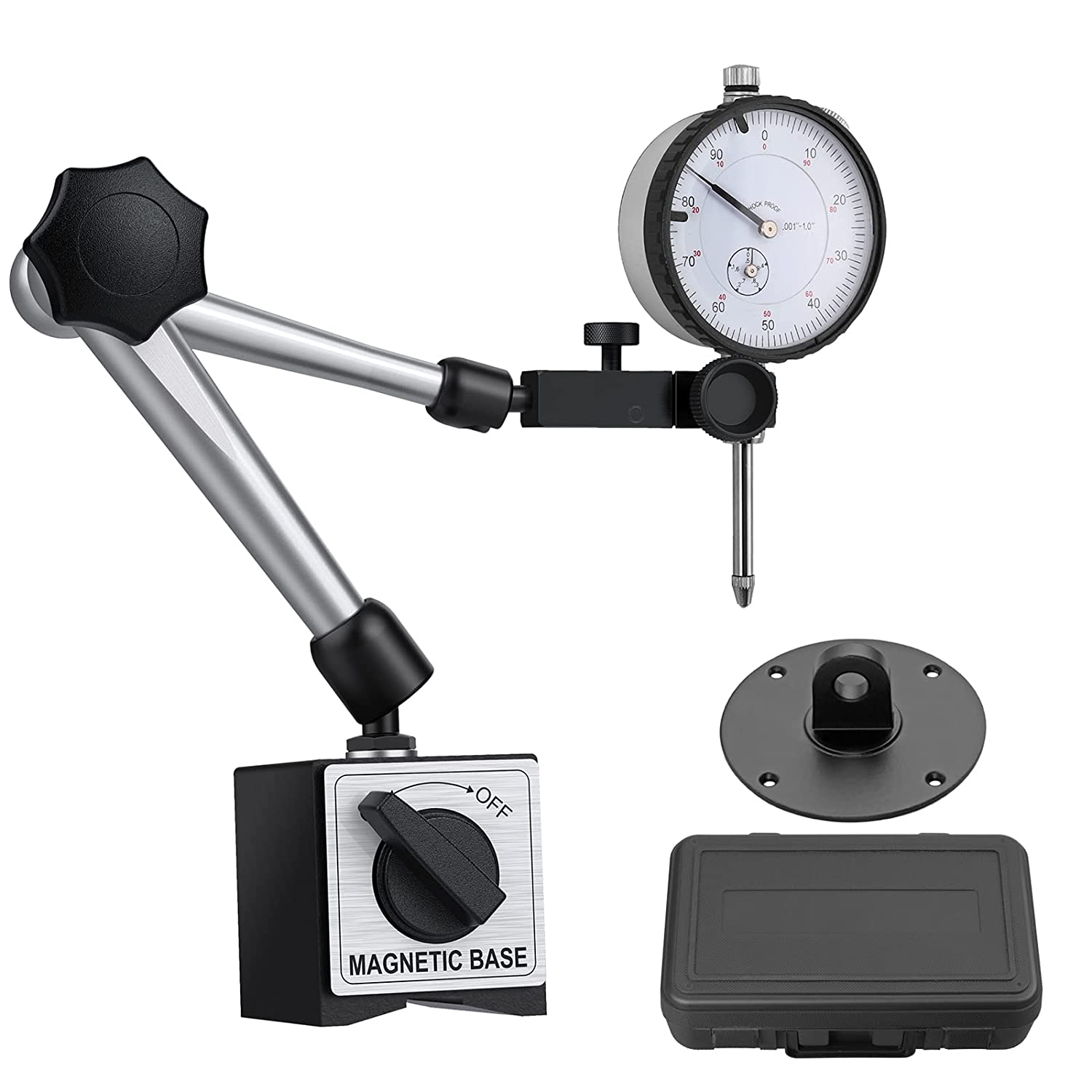

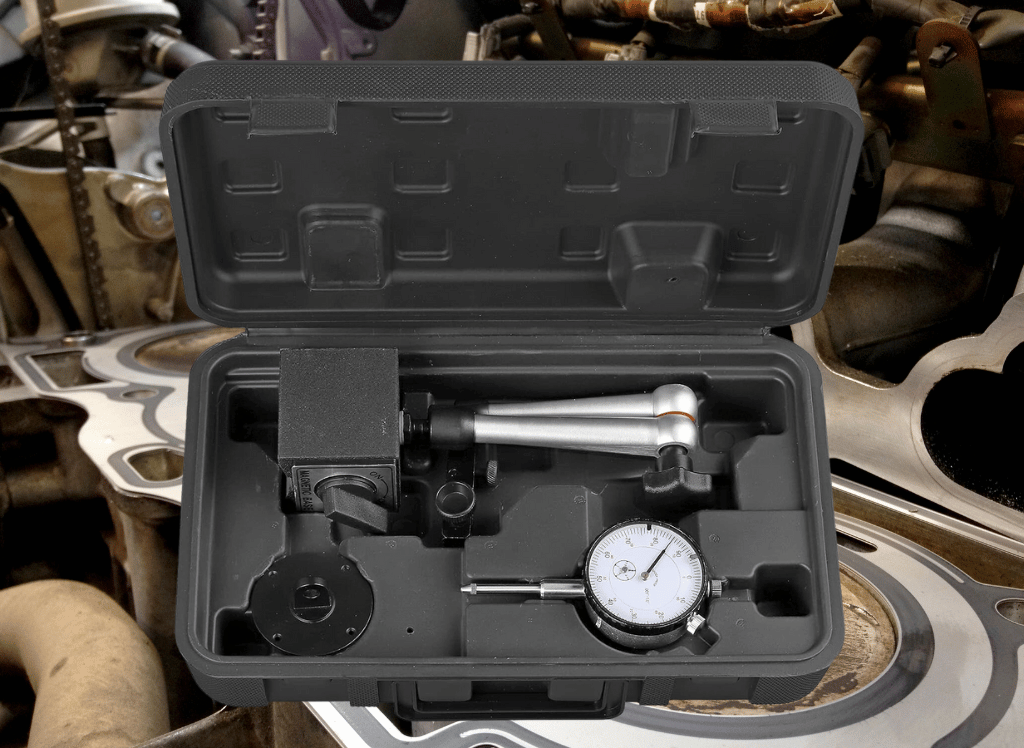

2. Neoteck 0-1 Inch Dial Indicator with Magnetic Base Holder

Check Price on Amazon

What We Like About This Dial Indicator

The Neoteck 0-1 Inch Dial Indicator with Magnetic Base Holder is a versatile and durable tool perfect for various measuring applications. These dial indicators feature a flexible, sturdy, and precise rotary joint that allows you to adjust the direction and position of the indicator for more accurate measurements.

The universal rotating shaft with fine-tuning knob lets you take more precise measurements, and the strong base holder keeps the indicator securely in place during use.

The dial indicator also includes two arms with dimensions of 4.5 inches (lower arm) and 4 inches (upper arm) and a total height of 14.1 inches. The clamping hole diameter is 3/8 inch (9.525mm).

What You Should Know About This Product

The Neoteck magnetic dial indicator holder set is a great way to get accurate measurements for your 3D printer, lathe, or CNC machine. These dial indicators have a measuring range of 0-1" and are accurate to within 0.001".

The rack and contact point are hardened stainless steel, and the unit is manufactured according to ASME/ANSI standards. The strong base is robust and can hold the gauge in place on metal surfaces up to 80 kg in weight. The set also comes with a plastic case for storage and protection.

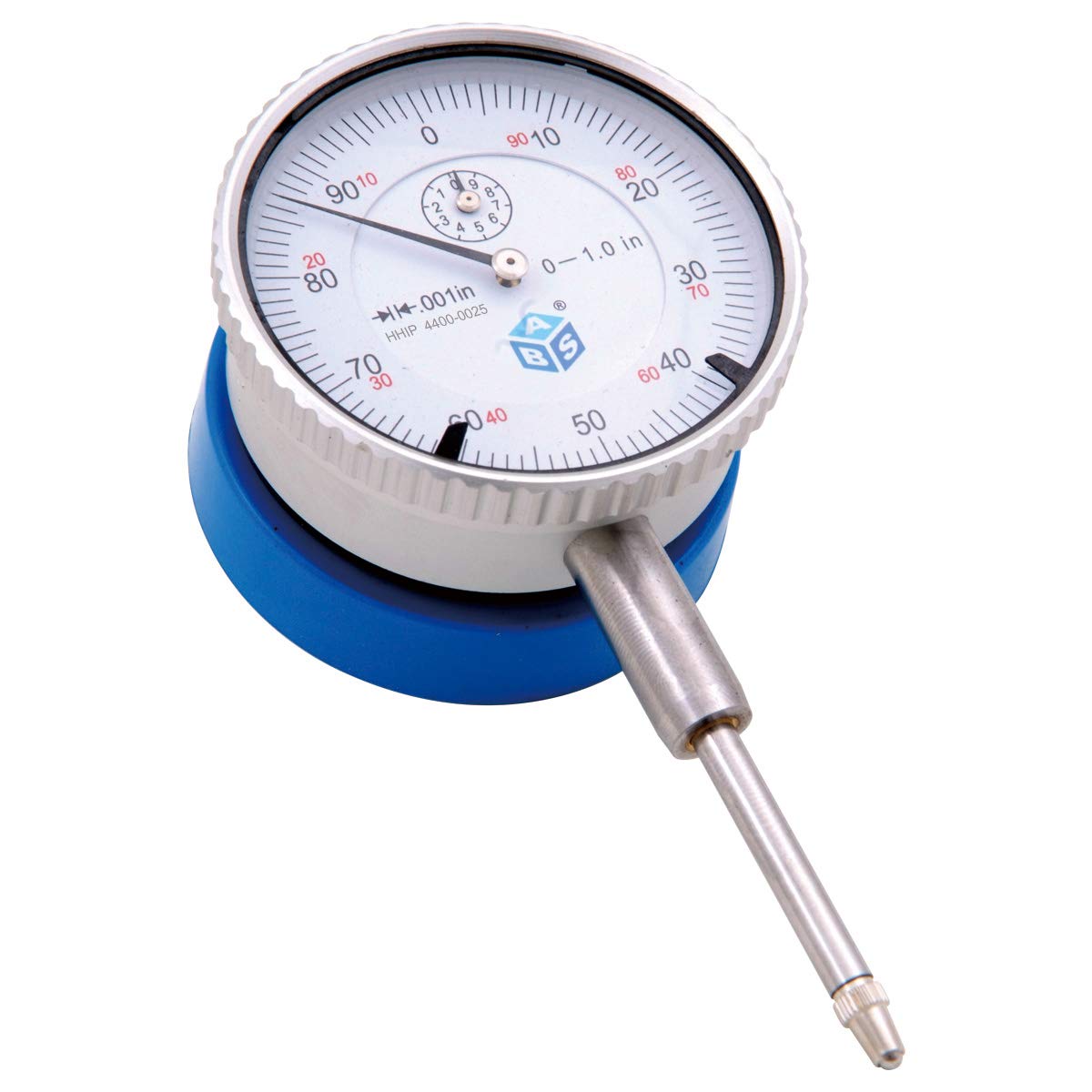

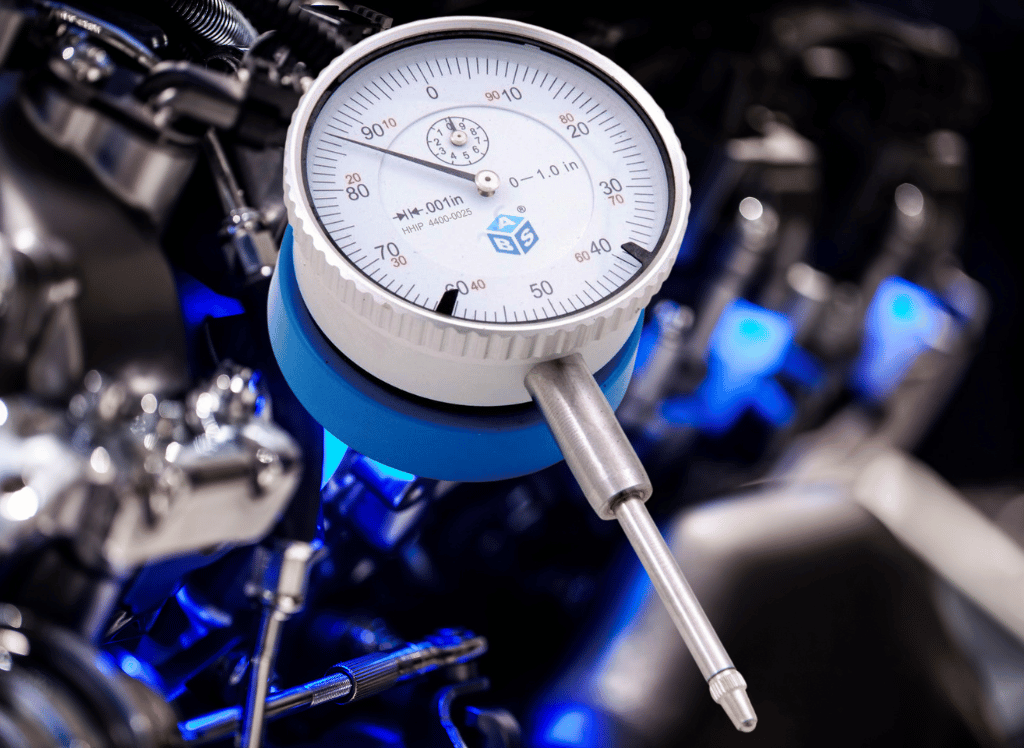

3. HHIP 4400-0025 1" Dial Indicator and Magnetic Back Set

Check Price on Amazon

What We Like About This Dial Indicator

The HHIP 1" Dial indicator and the magnetic back set are versatile and essential tools for any machinist or automotive technician. The interchangeable 4-48 thread contact point is made of hardened stainless steel, and the stem is 3/8" in diameter.

The smooth dial reading movement and 2" diameter indicator dial face make it easy to take precise measurements. The magnetic back is mounted on the indicator and comes with a screw-on/off on the back. The magnetic back has a protective coating.

The magnetic back diameter is 2-1/4". This versatile tool can be used on a lathe, milling machine, or drill press and is an essential part of any machinist's toolbox.

What You Should Know About This Product

The HHIP 4400-0025 1" Dial Indicator and Magnetic Back Set Indicator is a versatile and durable tool perfect for various applications. The interchangeable 4-48 thread contact point is made of hardened stainless steel, and the stem is 3/8" in diameter.

The dial reading movement ensures accuracy, and the magnetic back is mounted on the indicator for convenience. The screw on/off back allows easy attachment and removal, and the entire set is housed in a protective case. This indicator is an essential tool for any workshop or garage.

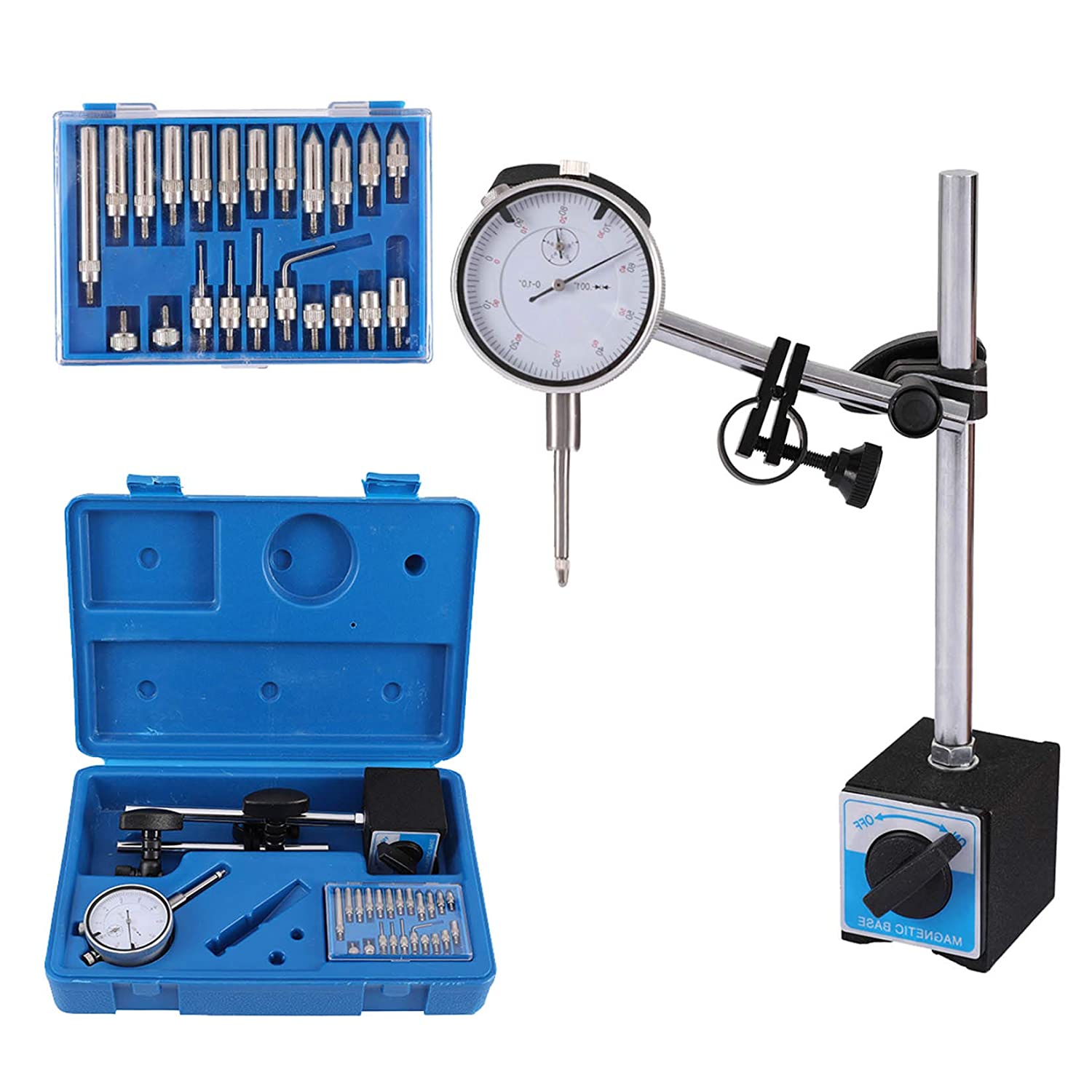

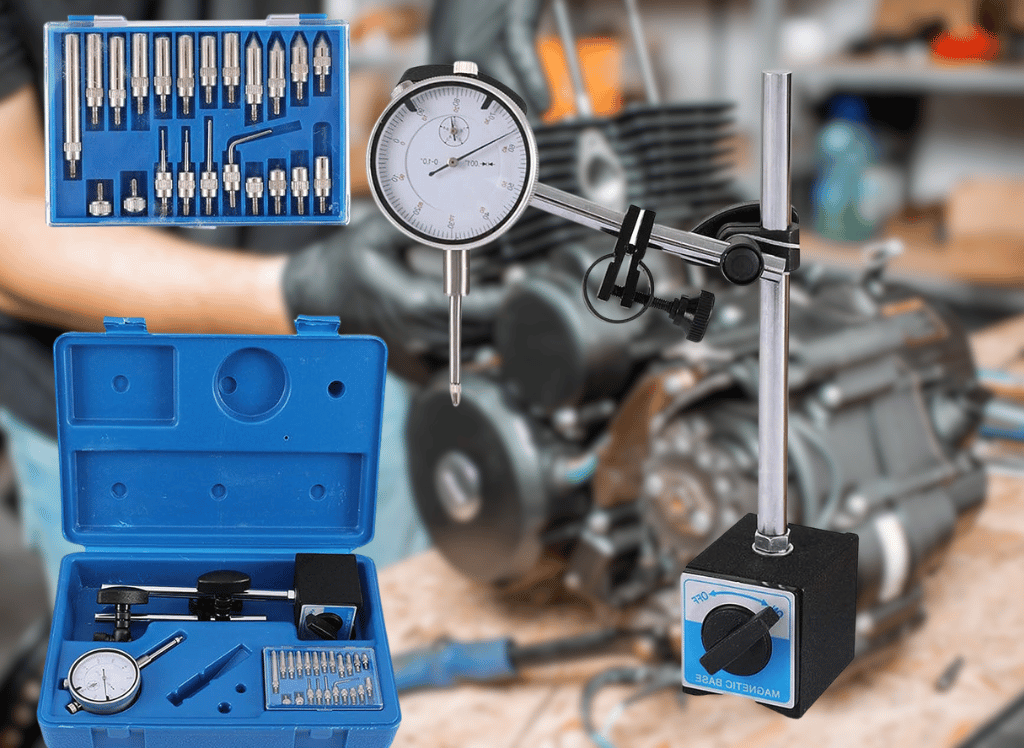

4. Qnkaa Dial Indicator with Magnetic Base Holder

Check Price on Amazon

What We Like About This Dial Indicator

These dial indicators are precision instruments to measure a workpiece's surface roughness. The dial face is marked with a scale divided into equal increments, and the dial needle points to the readings. These drop indicators can be clamped to the workpiece in any position, and the bezel can be rotated to set zero in any position.

The dial reading measures the surface roughness of the workpiece from the dial face. The dial reading can be affected by the amount of wear on the dial needle, the size of the contact area, and the direction of measurement.

These dial indicators include 22 Contact Points for different workpieces made from hardened stainless steel. The dial indicator is a precision instrument used to measure a workpiece's surface roughness. It is an essential tool for quality control in manufacturing industries.

What You Should Know About This Product

The Qnkaa Dial Indicator Gauge is a high-quality tool for various measuring applications. The gauge has a measuring range of 0-1", and the resolution is up to 0.001". With the fine adjustment knob, you can achieve precise positioning.

The firm two magnet surfaces with ON/OFF control support the gauge. The overall height of the meter is 9", and the magnetic stand base is included. You can also use the flat back or lug back (hole size 1/4”, 6.3mm). The 22 pieces of test tips are included in the storage case.

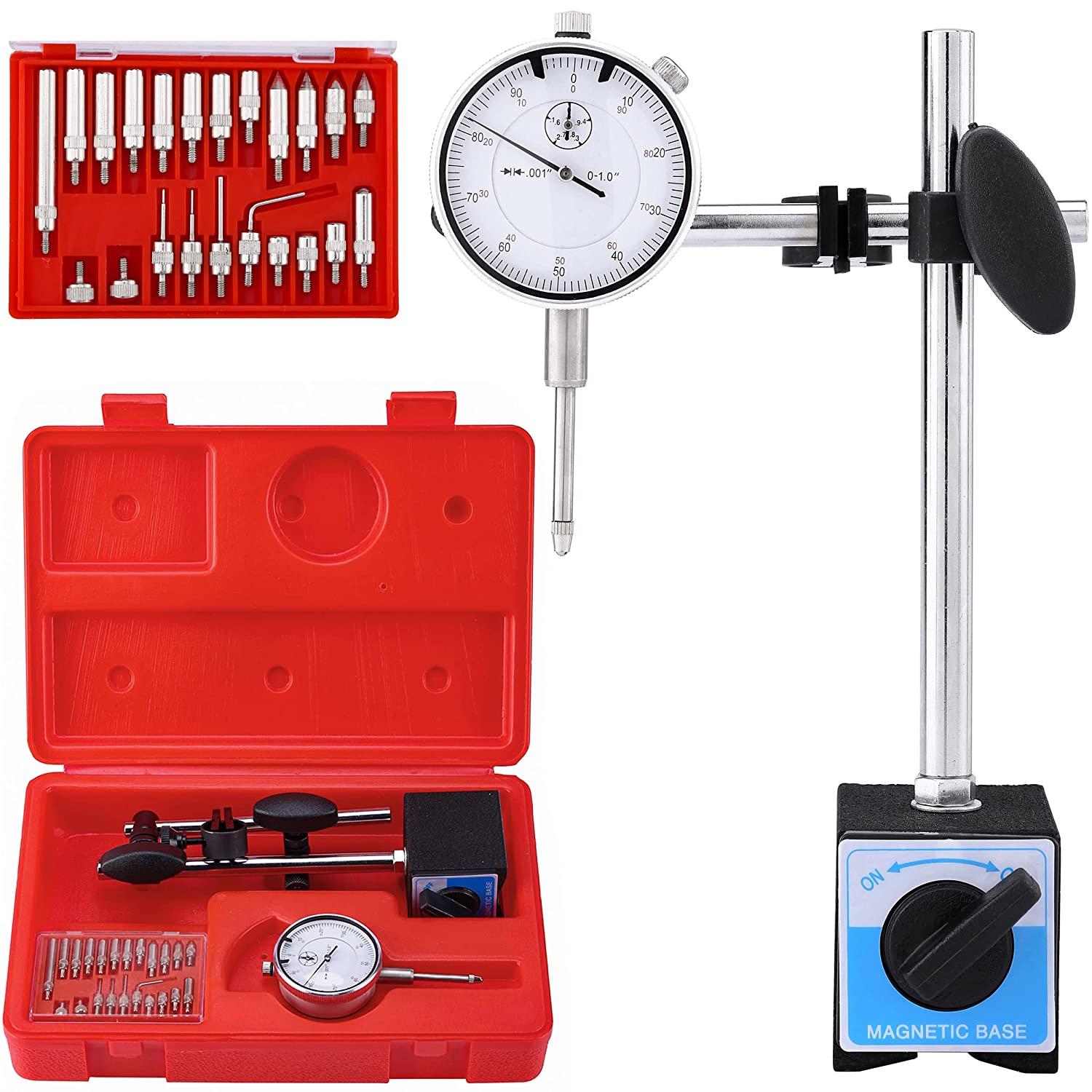

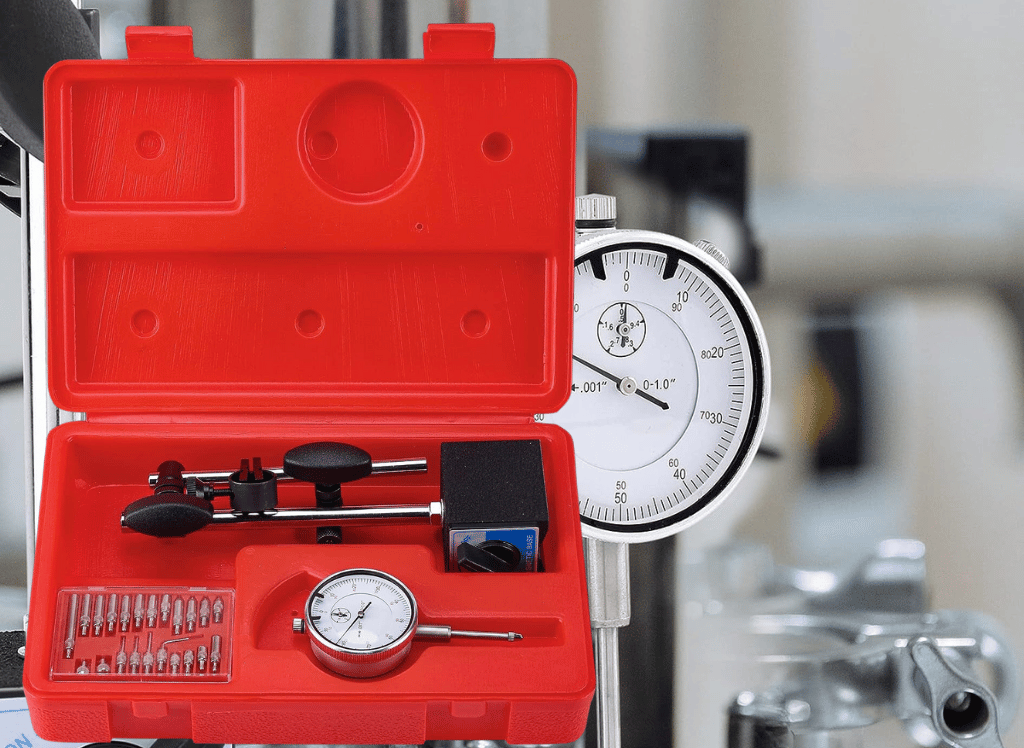

5. Mornajina Dial Indicator with Magnetic Base

Check Price on Amazon

What We Like About This Dial Indicator

Mornajina Dial Indicator with Magnetic Base is an excellent tool for any precision inspection set. The 1" dial graduation is perfect for checking small parts, and the 3/8" stem diameter ensures that the dial reading is accurate.

The 2" flat back or lug back option is included, so you can choose the best way to mount the indicator. The base is incredibly powerful, so you can be sure the needle will stay in place. The on/off switch makes it easy to turn the hand on and off, and the 2" width x 2-1/2" depth base measures ensure plenty of room to work.

What You Should Know About This Product

The Mornajina magnetic dial indicator set is a professional and durable measuring tool essential for any workshop or garage. The set includes a universal rotating shaft with a fine-tuning knob for more accurate measurement and a 0-1.0" dial test indicator graduation of 0.001". The base holder is incredibly strong, with two magnet surfaces that provide 140lb-160lbs of power pull.

Dial Indicator FAQs

1.Can Dial Indicators Be Used, Like Thickness Gauges, to Measure Depth?

Dial indicators are commonly used to measure the thickness of objects, but they can also be used to measure depth. Depth gauges are designed to take measurements from a specific point, such as the bottom of a hole, while dial indicators are designed to take measurements from any point along the length of an object.

As a result, dial indicators can be more versatile when taking depth measurements. Place the indicator on the object's surface and zero the dial to use a dial indicator like a depth gauge.

Then, carefully lower the indicator into the hole or recess until it reaches the bottom. The reading on the dial will give you the depth of the hole or recess. Dial indicators can also measure things like slot widths and stepped surfaces.

2.What is a dial indicator for?

A dial indicator is a measuring tool used to measure the displacement of an object. It is commonly used to measure the variation in a machined part's thickness and the surface's flatness.

Dial indicators measure the displacement of an object with a reference point, and the reading is displayed on the dial face. The dial indicator has a contact point that is connected to a plunger, which is used to measure the displacement.

3.How accurate is a dial indicator?

A dial indicator is very accurate. The accuracy of a dial indicator depends on the quality of the instrument, but it can typically be anywhere from 0.001" to 0.0001" (0.025 mm to 0.0025 mm).

This accuracy is achieved using a precise spindle and a finely graduated dial. The spindle is calibrated to a specific level of accuracy, and the dial is finely graduated so that a single rotation of the spindle produces a very small movement of the pointer.

Our Final Thoughts

There are many dial indicators to choose from. Hopefully, we helped you make an informed decision when purchasing a dial indicator; as always, we enjoyed compiling these well-informed reviewers.

Thanks for Stopping By

Your friend

Todd

Looking for the best products? We've got you covered! Our editors independently selected each item on this list. Mechanicaddicts may collect a share of sales or other compensation from links found within these pages if they choose to buy something (that's how we stay in business). Reviews have been edited for length and clarity; enjoy finding your next favorite thing today!
