Your Guide to Jcase Fuse Assortment Kits
Learn everything about Jcase fuses, differences between standard and low-profile types, key benefits, and how to choose the right one.
Welcome to Mechanicaddicts. As an Amazon Associate, we earn from qualifying purchases (at no cost to you) from links found within these pages if you choose to buy something.
In the complex electrical systems of modern vehicles, fuses, including jcase fuses, are the unsung heroes. They act as the first line of defense, protecting sensitive components from power surges and short circuits. Among the various types available, the JCASE™ is a cartridge-style fuse with a female terminal design, providing both increased time delay and low voltage drop to protect high current circuits and handle inrush currents.
These fuses are essential for a wide range of applications, from cars and trucks to RVs and boats. Understanding what they are, how they work, and the correct quantity you need is key to keeping your electrical systems running smoothly and safely. This guide will walk you through everything you need to know about Jcase fuses, helping you make an informed choice for your next project or repair.
What Is a Jcase Cartridge Style Fuse?
A J-case fuse is a type of patented cartridge fuse, easily recognized by its boxy, rectangular shape. As a cartridge-style fuse, it features a cartridge form factor with a protective housing and terminal connections, making installation and replacement easy.
These fuses are designed to protect wiring harnesses and other electrical components in higher-voltage source applications, offering more robust protection than standard blade fuses, thanks to their innovative female terminal design . Their design allows them to handle significant overcurrent without failing, making them ideal for modern vehicles packed with electronic features.
One of the key distinctions within this series is between standard (or tall) Jcase fuses and low-profile (LP) Jcase fuses.

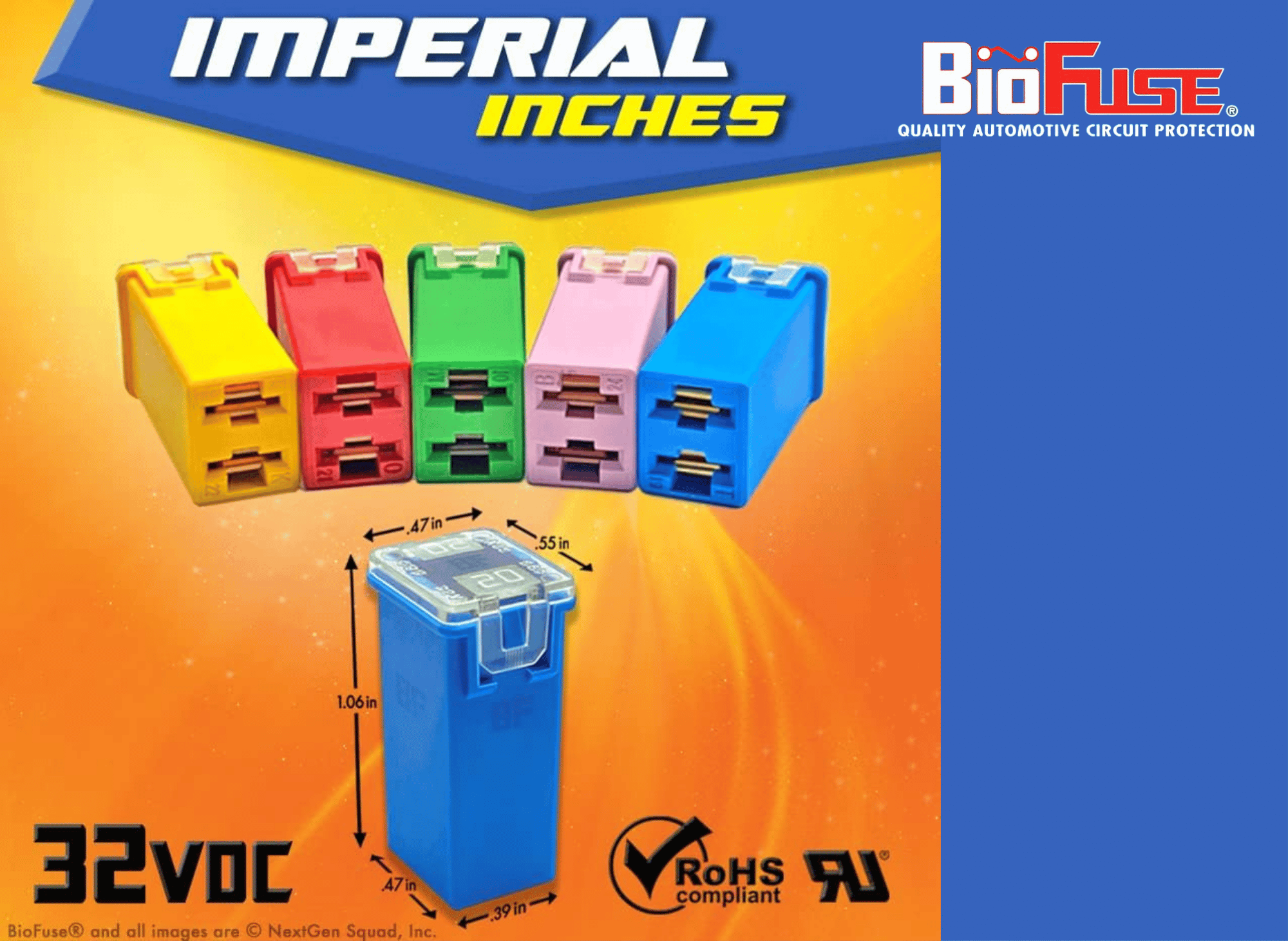

- Standard Jcase Fuses: These are the taller of the two, typically measuring about 27mm in height. They are rated for up to 32VDC and are commonly found in a wide variety of cars, trucks, and SUVs.
- Low-Profile Jcase Fuses: As the name suggests, these are shorter, measuring around 16mm in height. This compact size makes them perfect for tight spaces within modern fuse boxes. Despite their smaller size, they often have a higher voltage rating of up to 58VDC.
Both types share the same length and width (14mm x 12mm) and feature a female terminal design, but their differing heights and voltage ratings make it crucial to choose the correct type for your specific application.

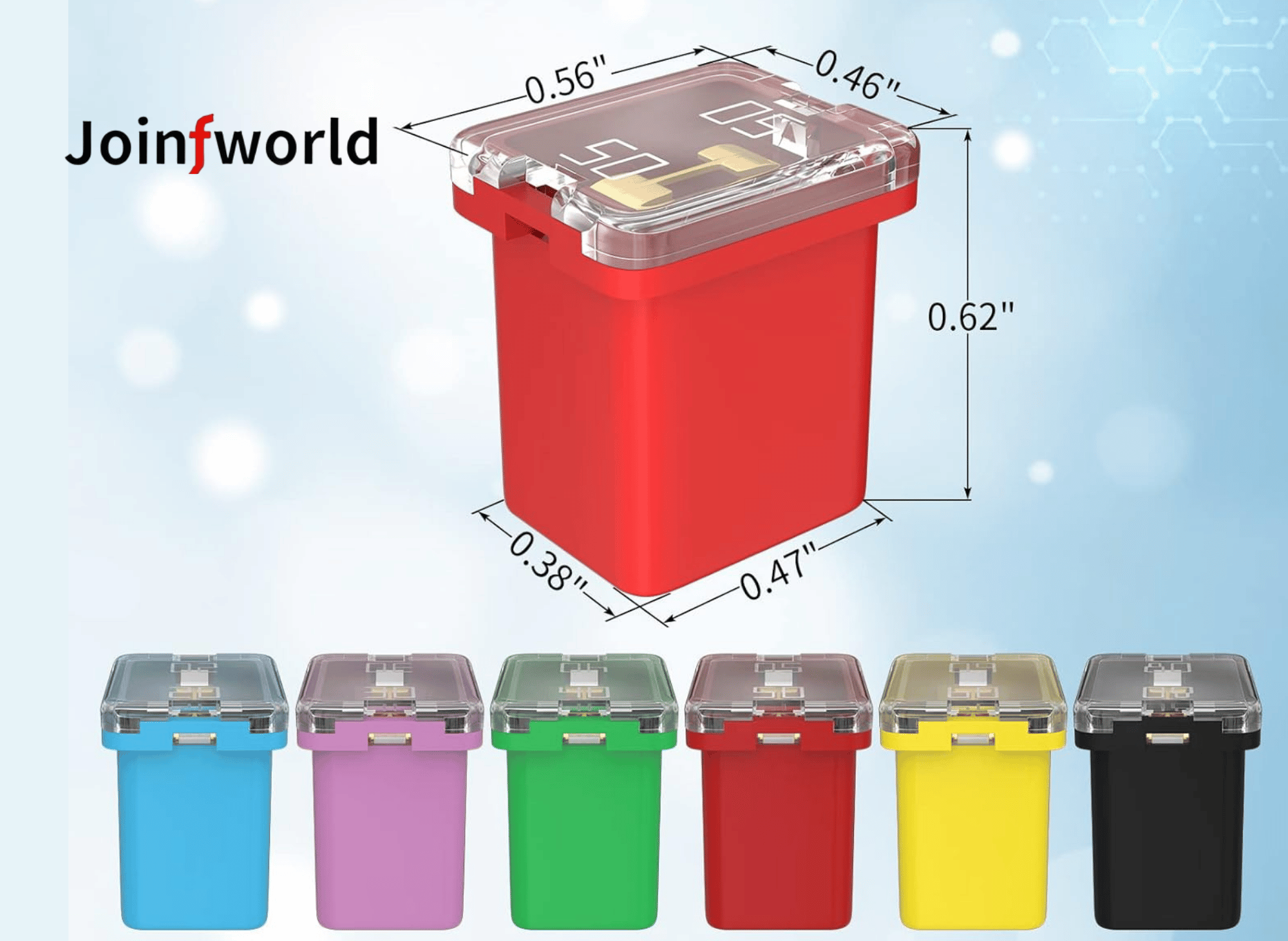

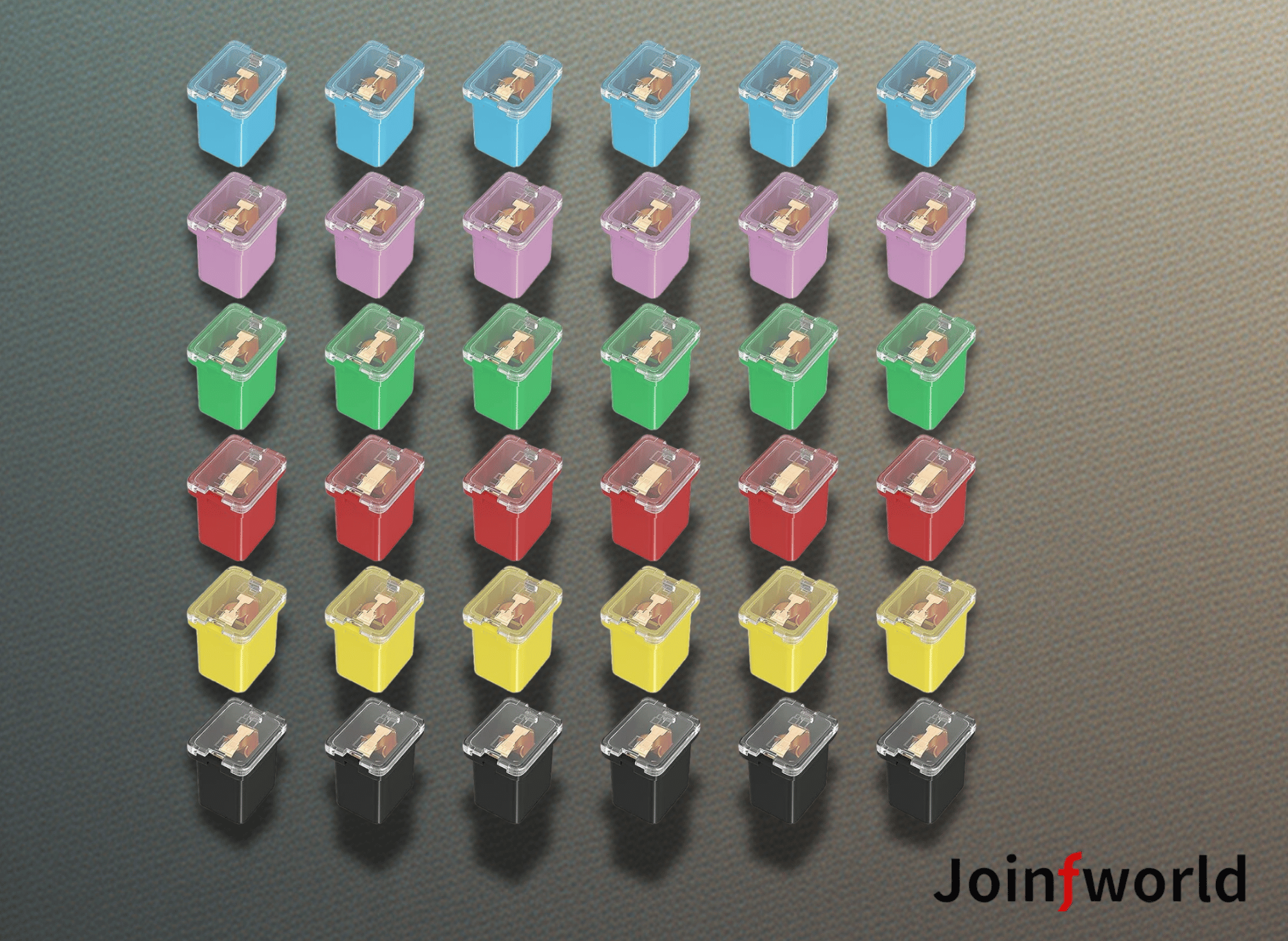

Joinfworld 36Pcs Jcase Fuse Assortment Kit
,Automotive Low Profile Box Shaped Micro Cartridge Fuses(20A, 30A, 40A, 50A, 60A, 80A) for Ford Chevy/GM Nissan and Toyota Pickup Trucks, Cars SUVs
Types of Jcase Fuses
Jcase fuses come in a variety of types, each engineered to meet the demanding needs of modern electrical systems. At their core, these are cartridge-style fuses with a robust female terminal design, ensuring a secure and reliable connection in your fuse box. This design not only makes installation straightforward but also helps keep the voltage drop across the fuse low, maximizing efficiency and minimizing energy loss in high-current circuits.
One of the standout features of the JCASE series is its patented construction, which provides increased time delay to protect high-current circuits from sudden surges better better. This increased time delay is especially valuable in applications where inrush currents, brief spikes in current that occur when a device is first powered on, are common. By handling inrush currents effectively, Jcase fuses help prevent unnecessary fuse blowouts and extend the lifespan of your electrical components.
Available in a wide range of amperage ratings, including 20A, 30A, 40A, 50A, and 60A, Jcase fuses are designed to cater to a wide spectrum of automotive and marine applications, ensuring that users have the right quantity on hand.
Their efficient circuit protection helps reduce wear on your vehicle’s electrical system, ensuring reliable performance over time. Each fuse is easily identifiable by its standard coloring and clearly stamped amperage rating, making it simple to select the right one for your needs.
With their high-quality materials and thoughtful engineering, Jcase fuses are the preferred choice for anyone looking to protect high-current circuits and handle the unique challenges of modern electrical systems. Whether you’re upgrading your vehicle or maintaining a fleet, these fuses provide the features and reliability you need in a final product.

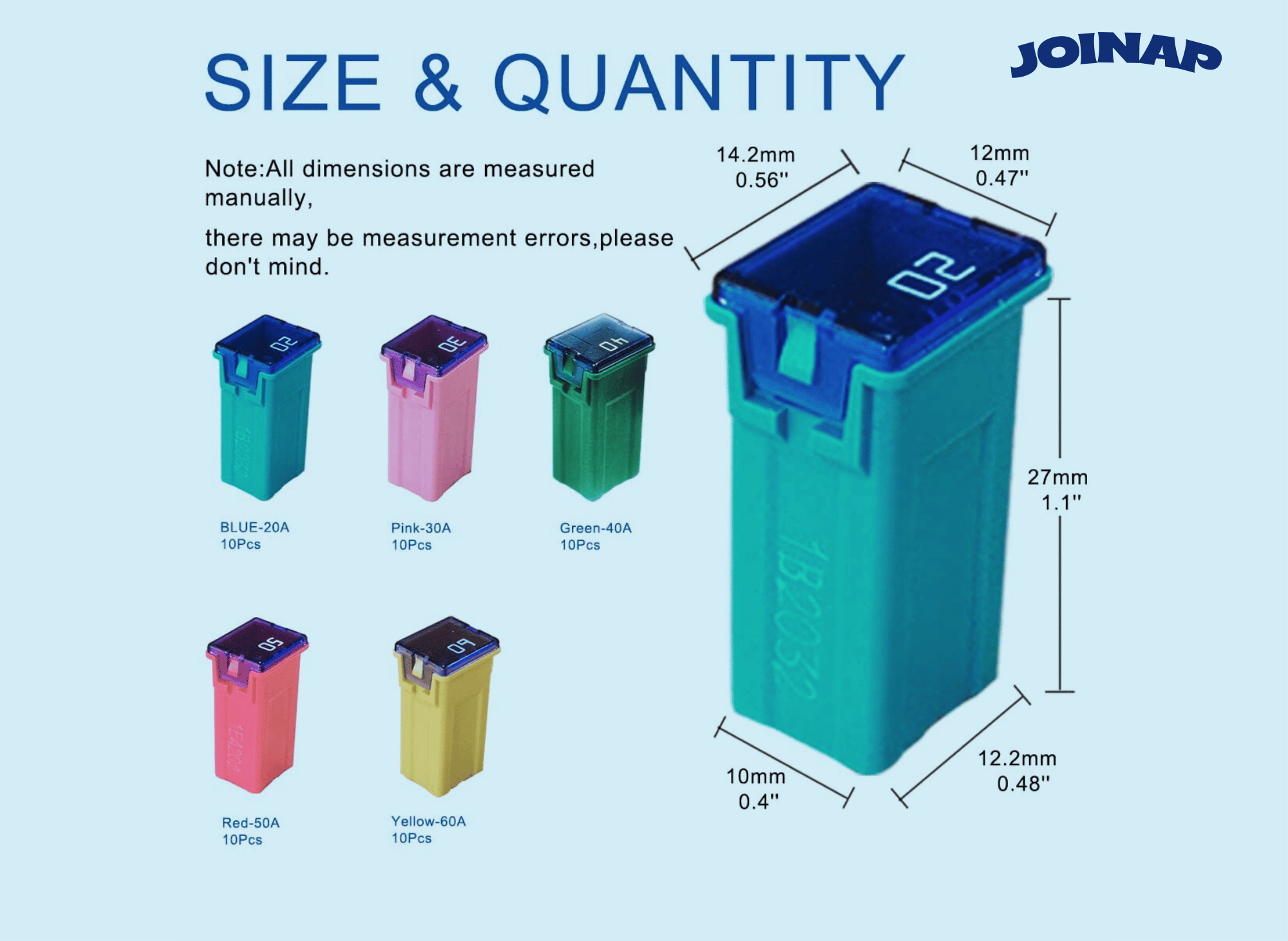

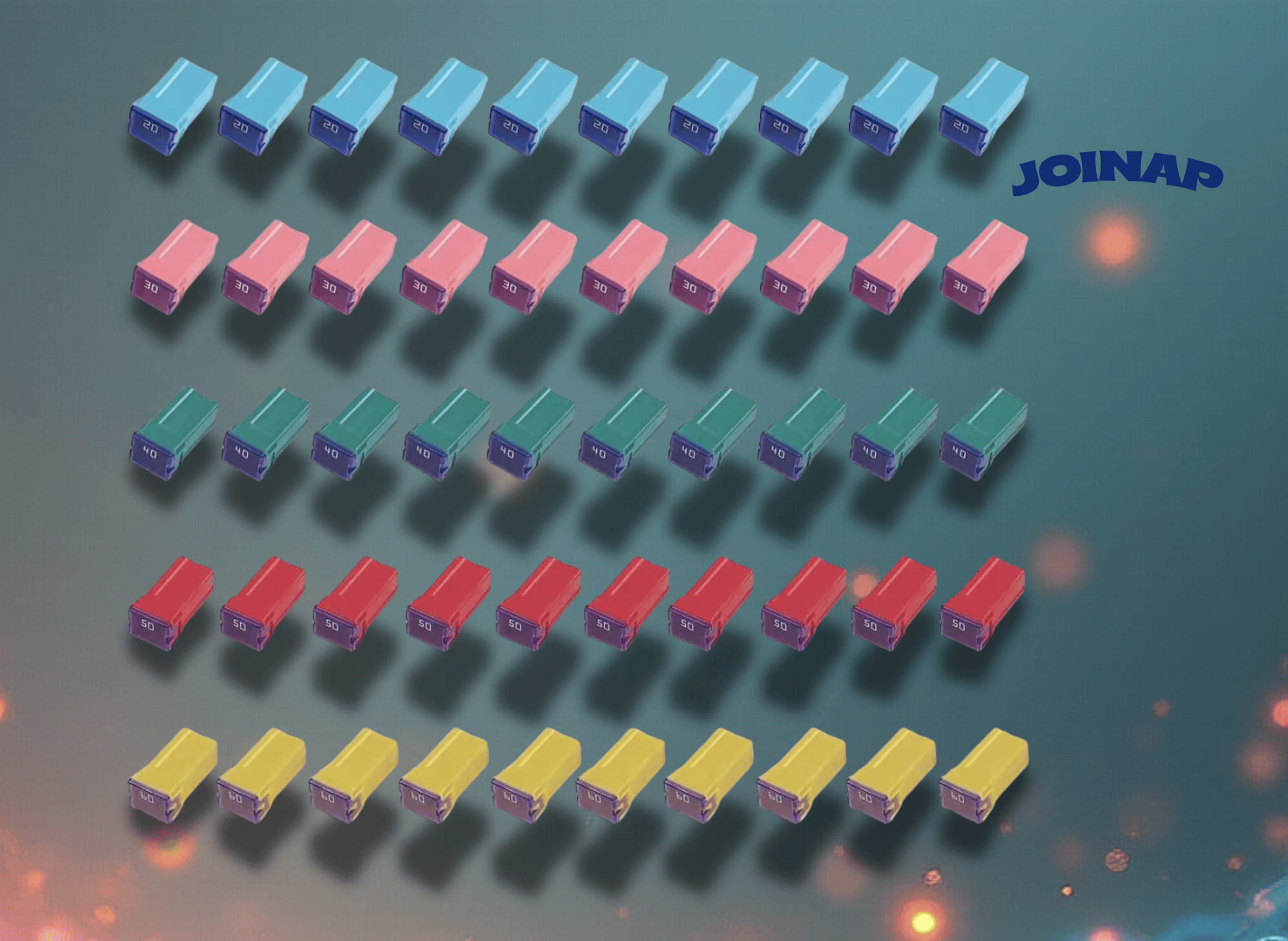

JOINAP 50 pc Automotive Tall/Standard Profile JCASE Box Shaped Fuse
Compatible for Ford, Chevy/GM, Nissan, and Toyota Pickup Trucks, Cars and SUVs
Key Features and Benefits
Jcase fuses are designed with reliability and user-friendliness in mind. Several features make them a superior choice for protecting your vehicle’s electrical system, contributing to a reliable final product . Jcase fuses are also engineered to handle inrush currents, providing reliable protection during sudden current surges.
Material and Durability
Quality is paramount when it comes to electrical safety. Reputable Jcase fuse kits, like those from Joinfworld inc. and BIOFUSE, use high-quality materials to ensure performance and longevity. The internal components are typically made of copper for excellent conductivity, while the housing is crafted from non-conductive, flame-retardant, and heat-resistant nylon. This construction ensures the fuse can withstand the high temperatures of an engine bay while providing optimal overcurrent protection.
Easy Identification with Color-Coding
When you're dealing with a blown fuse, the last thing you want is to struggle with identifying the correct replacement. Jcase fuses solve this problem with a standardized color-coding system. Each color corresponds to a specific amperage rating, allowing for quick and easy identification. For example:
- Blue: 20A
- Pink: 30A
- Green: 40A
- Red: 50A
- Yellow: 60A
- Black: 80A
In addition to the color, the amperage rating is often clearly carved or printed on the top of the fuse housing, eliminating any guesswork.
Simple Visual Inspection
A major advantage of many Jcase fuses is their transparent housing cover. This clever design feature allows you to visually inspect the fuse element. If the fuse is blown, the internal metal link will be broken and visible through the clear top. This makes troubleshooting electrical issues much faster, as you can often identify a failed fuse without needing to test each one individually.

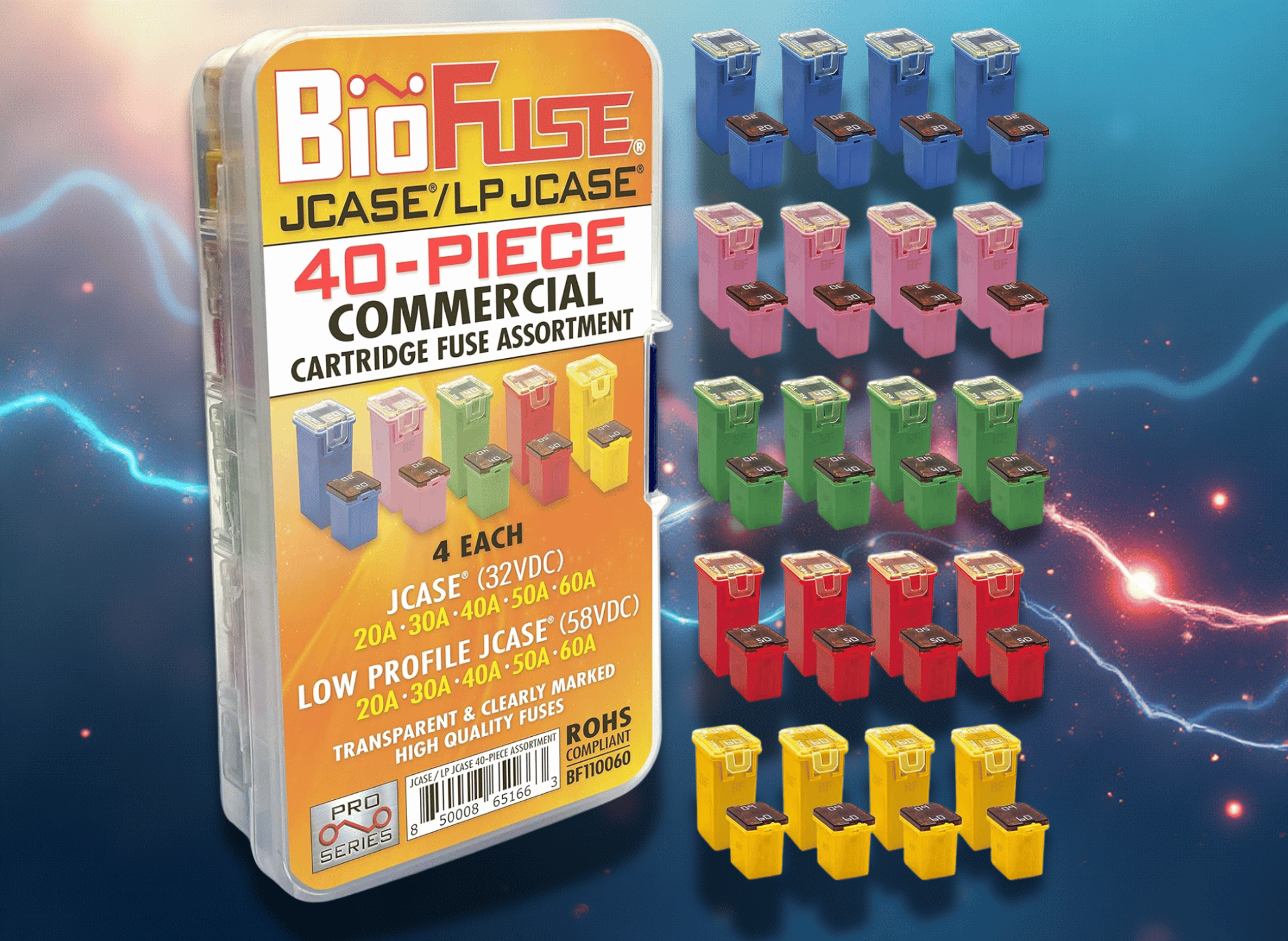

BIOFUSE JCASE & LP (Low Profile) JCASE 40-Piece Commercial Cartridge Fuse Assortment
20A 30A 40A 50A 60A (4 Each). Fits Most: Nissan, Toyota, Chrysler, Dodge, Chevy, GM, and Ford
Compliance with Industry Standards
When you purchase a quality Jcase fuse kit, you can be confident that you're getting a product that meets strict safety and performance requirements. Many top brands comply with standards such as SAE 2741 and ISO 8820-4, which govern the electrical and mechanical performance of automotive fuses. Furthermore, look for RoHS compliance, which certifies that the product is free from hazardous materials.
Jcase Fuse Assortment Kits
Jcase fuse assortment kits are designed to make your life easier by providing a comprehensive selection of essential fuses in one convenient package. These kits typically include a variety of Jcase fuses with different amperage ratings, such as 20A, 30A, 40A, 50A, and 60A, ensuring you can conveniently add the right fuse items to your cart for any situation. Many kits feature both tall/standard and low-profile Jcase box-shaped fuses, making them compatible with a wide range of vehicles, including Ford, Chevy/GM, Nissan, and Toyota pickup trucks, cars, and SUVs.
By stocking up with a Jcase fuse assortment kit, you can skip the hassle of searching for individual fuses when you need them most. These kits are designed to provide a ready-to-use solution, allowing you to quickly add the necessary items to your account or cart and keep your stock replenished. This not only reduces downtime during repairs but also improves overall efficiency, whether you’re a professional mechanic or a DIY enthusiast.
Jcase fuse assortment kits are available from authorized distributors and often come with added benefits like free 30-day returns and 24/7 technical support, giving you peace of mind with every purchase. Bulk pricing options make it cost-effective to maintain a steady supply, so you’re always prepared for unexpected electrical issues.
With their thoughtful design and comprehensive selection, Jcase fuse assortment kits are the smart choice for anyone looking to protect high-current circuits and ensure the reliability of their electrical systems. You can add a kit to your stock today and experience the convenience and confidence of having the right items that come with being prepared.

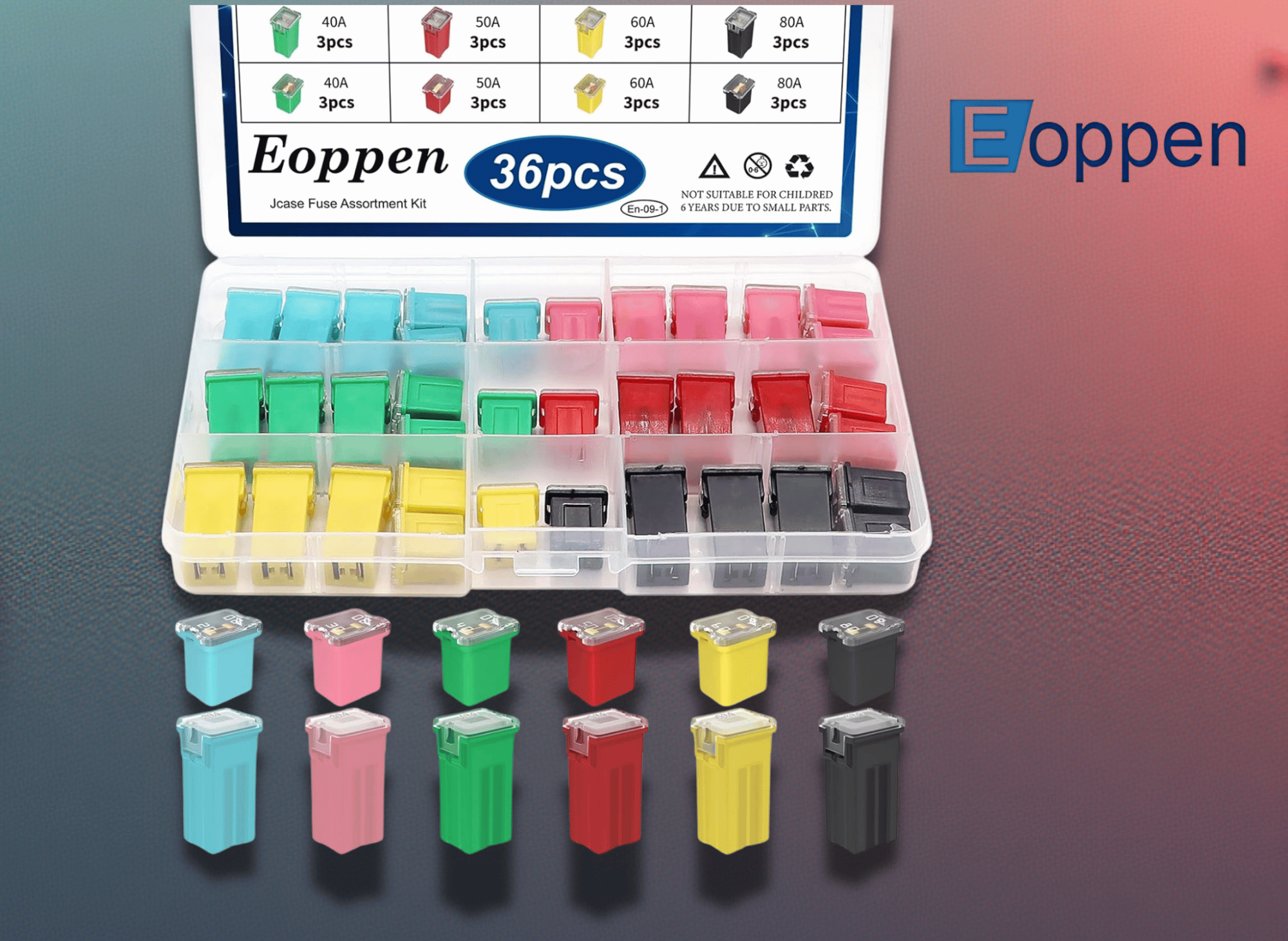

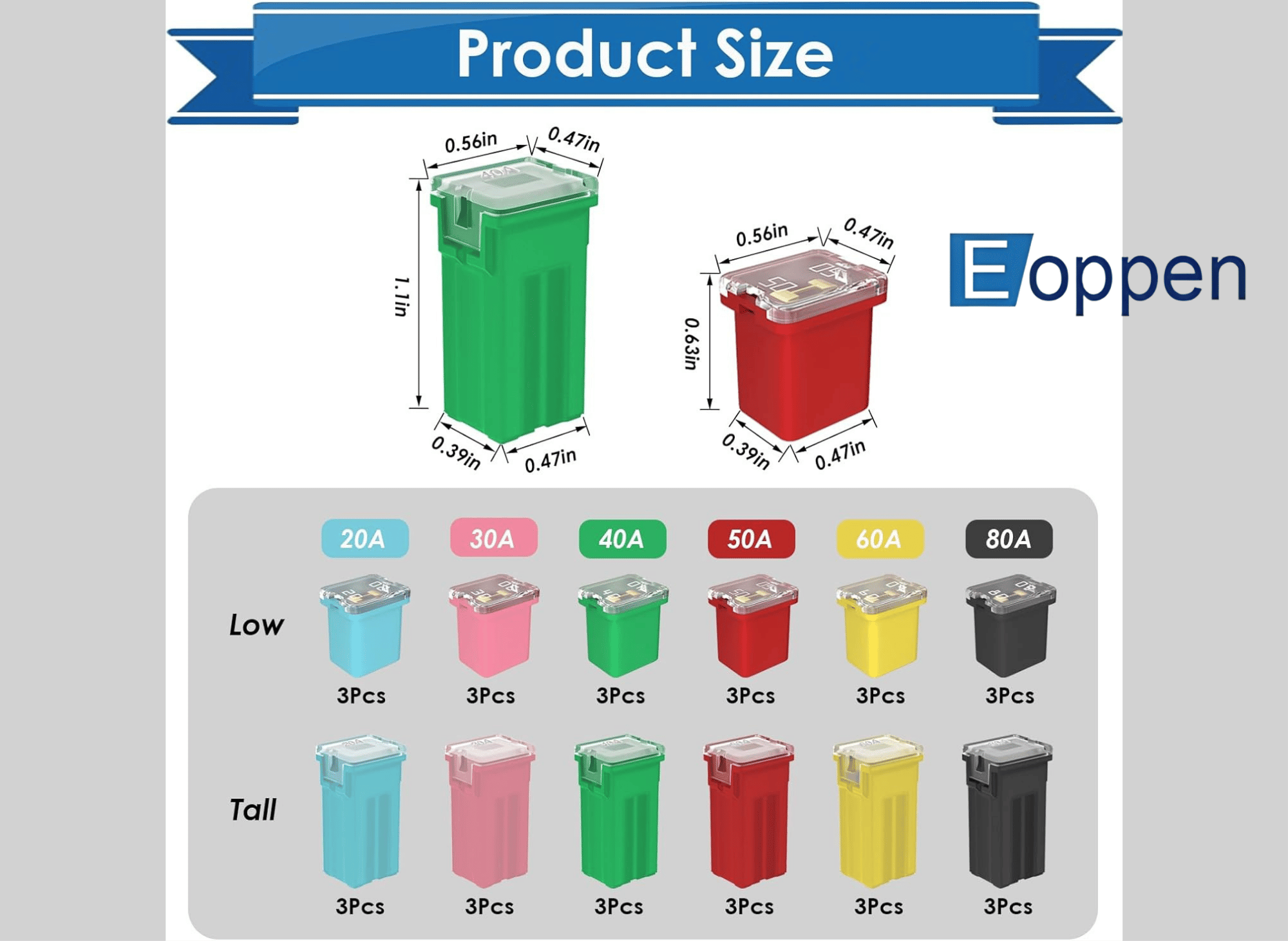

Eoppen 36Pcs Jcase Fuse Car Fuses Assortment Kit
,Automotive Tall/Standard and Low Profile Jcase Box Shaped Automotive Fuses for Trucks, Cars and SUVs (20A, 30A, 40A, 50A, 60A, 80A)
Applications for Jcase Fuses Include Providing Both Increased Time Delay and Low Voltage Drop to Protect High Current Circuits
The versatility of the Jcase series fuses makes them a reliable choice for a wide range of electrical systems. Their robust design is perfect for applications that demand reliable, high-current protection.
- Automotive Use: This is the most common application. You'll find Jcase fuses in cars, trucks, and SUVs from manufacturers like Ford, GM, Nissan, and Toyota, where they protect critical circuits such as cooling fans, fuel pumps, and ignition systems.
- Recreational Vehicles: The electrical systems in RVs, campers, and boats rely on fuses for protection against overloads. Jcase fuses are frequently used in these vehicles to safeguard everything from lighting to onboard electronics.
- Powersports and Utility Vehicles: ATVs, UTVs, golf carts, and even snowmobiles use Jcase fuses to protect their electrical systems in demanding outdoor environments.
Essentially, if a device requires high-current circuit protection, a Jcase fuse is often the right tool for the job.
Choosing the Right Fuse for the Job
Selecting the correct fuse and the right quantity is critical for safety and functionality. Installing the wrong fuse can lead to damaged components or, worse, create a fire hazard.
When purchasing fuses, it's important to consider the quantity needed for your application, whether for immediate replacement or to keep spares on hand for future use.
First, always check the voltage and amperage requirements for the circuit you are protecting. Your vehicle’s owner’s manual is the best resource for this information, helping you keep an accurate account of the required specifications . It will specify the exact fuse type (standard or low-profile) and the required amperage rating.
If you don’t have the manual, inspect the existing fuse or the fuse box diagram, which is often located on the inside of the fuse box cover. Never replace a blown fuse with one of a higher amperage rating. The fuse is designed to be the weak link; “upgrading” it only shifts the risk to more expensive electrical components and can be easily removed for replacement.
Your Essential Toolkit
Jcase fuses are more than just small plastic components; they are a critical product that safeguards your vehicle's complex electrical network. Their durable construction, user-friendly design, and ability to handle high currents make them an indispensable part of any modern automotive system.
Having a Jcase fuse assortment kit in your garage or vehicle provides peace of mind, ensuring you're prepared for any unexpected electrical issues. Kits from brands like JOINFWorld, JOINAP, and BIOFUSE offer a convenient and cost-effective way to stock up on a variety of amperages, so you'll always have the correct fuse on hand. You can find these kits at most automotive stores and online retailers like Amazon.
Thanks for stopping by
Your friend
Todd
