Tackling an engine swap brings plenty of mechanical challenges, but the electrical system often causes the biggest headaches. Connecting an older chassis to a modern fuel-injected powerplant requires precision. A single bad ground or frayed connection can stop your project entirely.
This is where a painless performance wiring harness completely changes the game. Upgrading your automotive wiring does not have to be a frustrating guessing game. With the right kit, you can eliminate electrical gremlins before they even appear. You save time, protect your investment, and ensure your engine fires up exactly as it should.
In this comprehensive guide, we will explore everything you need to know about LS and EFI harnesses. We will highlight what sets painless performance products apart from the competition. You will learn about key features, discover specific product recommendations, and gather practical installation tips for your custom build.
Understanding LS and EFI Harnesses
Automotive technology has evolved significantly over the past few decades. Knowing the basics of modern engine systems helps you make the right choices for your vehicle.
What is an LS Engine?
General Motors introduced the LS engine family series in the late 1990s. This V8 platform quickly became the gold standard for hot rodders and racers. A Chevy LS engine offers a compact size, massive power potential, and incredible reliability. Because of these traits, builders frequently drop these motors into classic muscle cars, trucks, and custom chassis.
What is EFI (Electronic Fuel Injection)?
Carburetors dominated the automotive landscape for years. Today, Electronic Fuel Injection (EFI) has taken over. EFI systems use sensors and a computer to control the fuel and air mixture entering the engine precisely. This results in better fuel economy, smoother idle, and consistent power across varying altitudes and temperatures.
The Critical Role of a Dedicated Wiring Harness
Integrating a modern EFI system into an older vehicle requires a dedicated wiring harness. The original factory wiring cannot support the complex sensor network and computer requirements of an LS motor. A specialized harness bridges the gap between your classic vehicle and the modern engine. It ensures the computer receives accurate sensor data and controls the fuel injectors perfectly.
Key Features and Benefits of Painless Performance LS and EFI Automotive Wiring Harnesses
When you evaluate different options on the market, you might look at brands like American Autowire. However, Painless Performance consistently stands out. Painless makes systems specifically designed for reliability and ease of use.
Quality of Materials and Construction
Every painless performance wiring harness features high-grade materials. The company uses durable wire that resists extreme under-hood temperatures. The harnesses come with rugged connectors that snap securely into place. Heat- and abrasion-protection sleeves wrap around sensitive bundles, ensuring long-lasting performance even in harsh conditions.
Ease of Installation
Builders love these products because they are ready to install straight out of the box. Many kits feature true plug-and-play designs. You do not have to guess which wire goes where. Clear instructions and printed labels on every wire make the process remarkably simple. You can easily connect your GM column, stock switches, headlights, and other interior accessories without confusion.
Optimized Performance
A reliable harness ensures precise sensor readings reach the computer. This efficient power delivery maximizes engine efficiency. You get a direct fit that enhances your overall engine reliability. High-quality relays and heavy-duty terminals maintain consistent voltage, keeping your electrical system stable under heavy loads.
Compatibility and Versatility
Painless offers a wide range of harnesses to match various configurations. Whether you have a Gen III or a Gen IV LS engine, you will find a matching kit. These systems support different transmission setups, including the 4L60e, 4L80e, and manual gearboxes. They also offer universal options that accommodate both throttle-by-wire and cable-driven throttle bodies.
Deep Dive into Specific Painless Performance Products
Selecting the right equipment is crucial for a smooth build. Let us review some specific products available for your project.
ECMs with VATS Removed
When you pull a motor from a donor vehicle, the factory computer still looks for the original key. This security system is called the Vehicle Anti-Theft System (VATS). If you do not remove the VATS, the engine will start and immediately shut off. Painless Performance offers pre-tuned Engine Control Modules (ECMs) with VATS completely removed.
- Part No 60717: This 12200411 ECM features a 2002 LS1 Camaro tune configured for a manual transmission.
- Part No 60711: This ECM uses a similar 2002 LS1 Camaro tune but is programmed for a 4L60e automatic transmission.
- Part No 60718: Designed for trucks, this ECM comes tuned for a 2002 Gen 3 GM Truck (6.0L) with a 4L80e transmission.
- Part No 60712: This unit supports a 2002 Gen 3 GM Truck (5.3L) with a 4L60e transmission.
These pre-tuned units save you the money and hassle of finding a local programmer.
Gen III LS1/LS6 EFI Harnesses
Gen III engines remain incredibly popular for swaps. Painless offers exceptional harnesses for these power plants.
- Part No 60508: This standard-length harness fits 1998-2004 GM LS1/LS6 engines. It provides a clean, factory-like appearance.
- Part No 60509: If you want to mount your ECM under the seat or in the center console, you need extra length. This extra-length version gives you the flexibility to hide the computer out of sight.
Gen IV LS EFI Harnesses
Newer Gen IV engines require different electrical connections, particularly for their throttle-by-wire systems.
- Part No 60520: This kit fits 2005-2006 GM LS2 engines.
- Part No 60522: This harness supports 1997-2004 GM LS1 engines utilizing a throttle-by-wire setup.
- Part No 60524: Built for 2008 and newer Gen IV LS3 engines, this harness perfectly manages modern electronic throttle bodies.
- Part No 60526: This unit covers 2007-2012 GM Gen IV 4.8-6.2L engines.
How to Choose the Right Harness
Choosing the correct product requires knowing exactly what engine and transmission you have. Take time to identify your engine generation, your throttle type, and your specific transmission. If you need help, you can search the official website page. Create an account, view the catalog, and sort the results by your specific engine type.

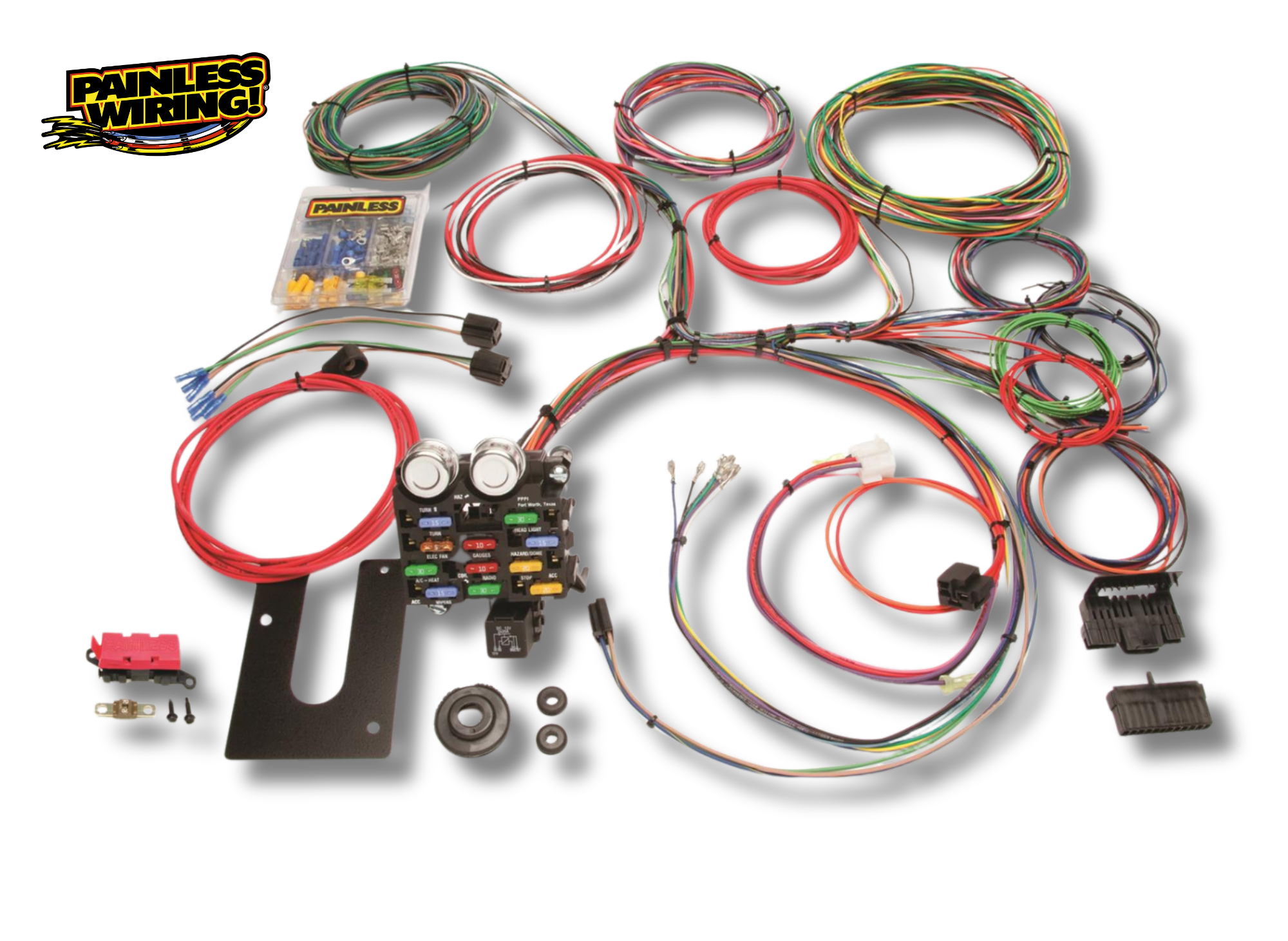

Painless Performance 21-Circuit Universal Harnesses 10101
Wiring Harness, 21-Circuit, GM Column, Front Fuse Block, Spade Fuse, Extra-Long Harness, Universal, Kit.

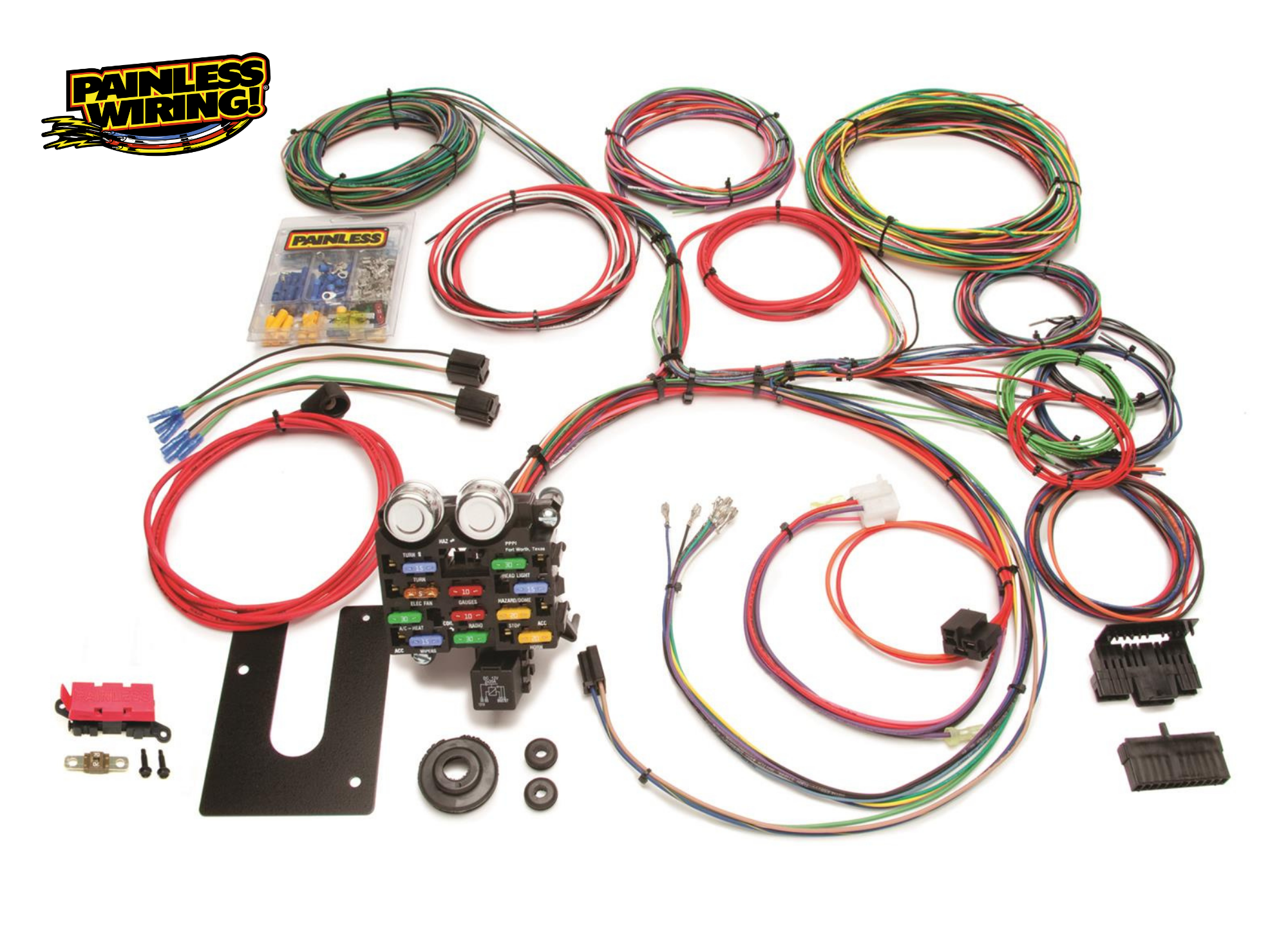

Painless Performance 21-Circuit Universal Harnesses 10102
Wiring Harness, 21-Circuit, Dash Ignition, Front Fuse Block, Spade Fuse, Extra Long Harness, Universal, Kit

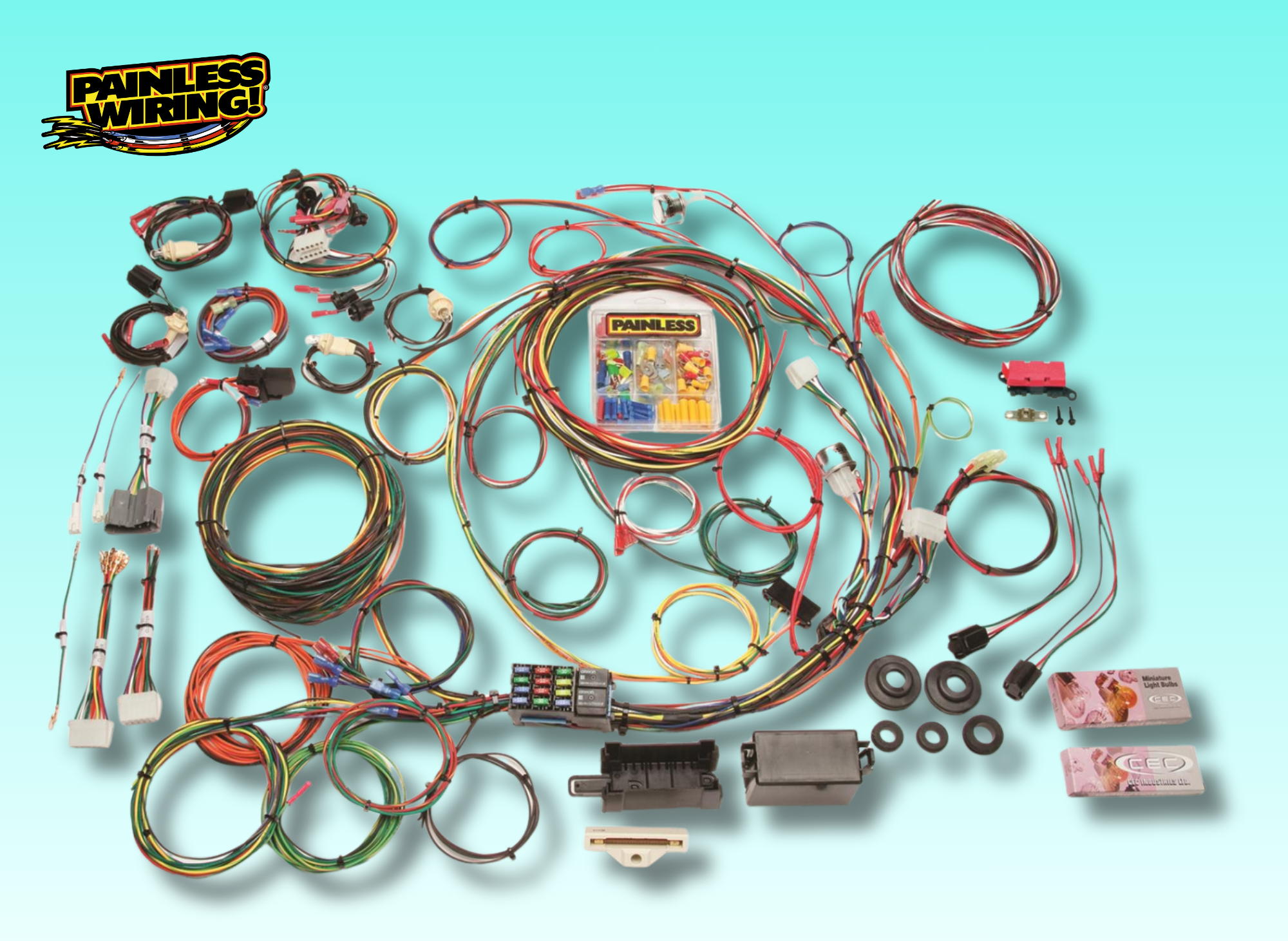

Painless Performance 21-Circuit 1967-77 Direct-Fit Ford F-Series Harnesses 10117
Wiring Harness, 21-Circuit, Dash Ignition, Front Fuse Block, Spade Fuse, Without Switches, Ford, F Series, Kit

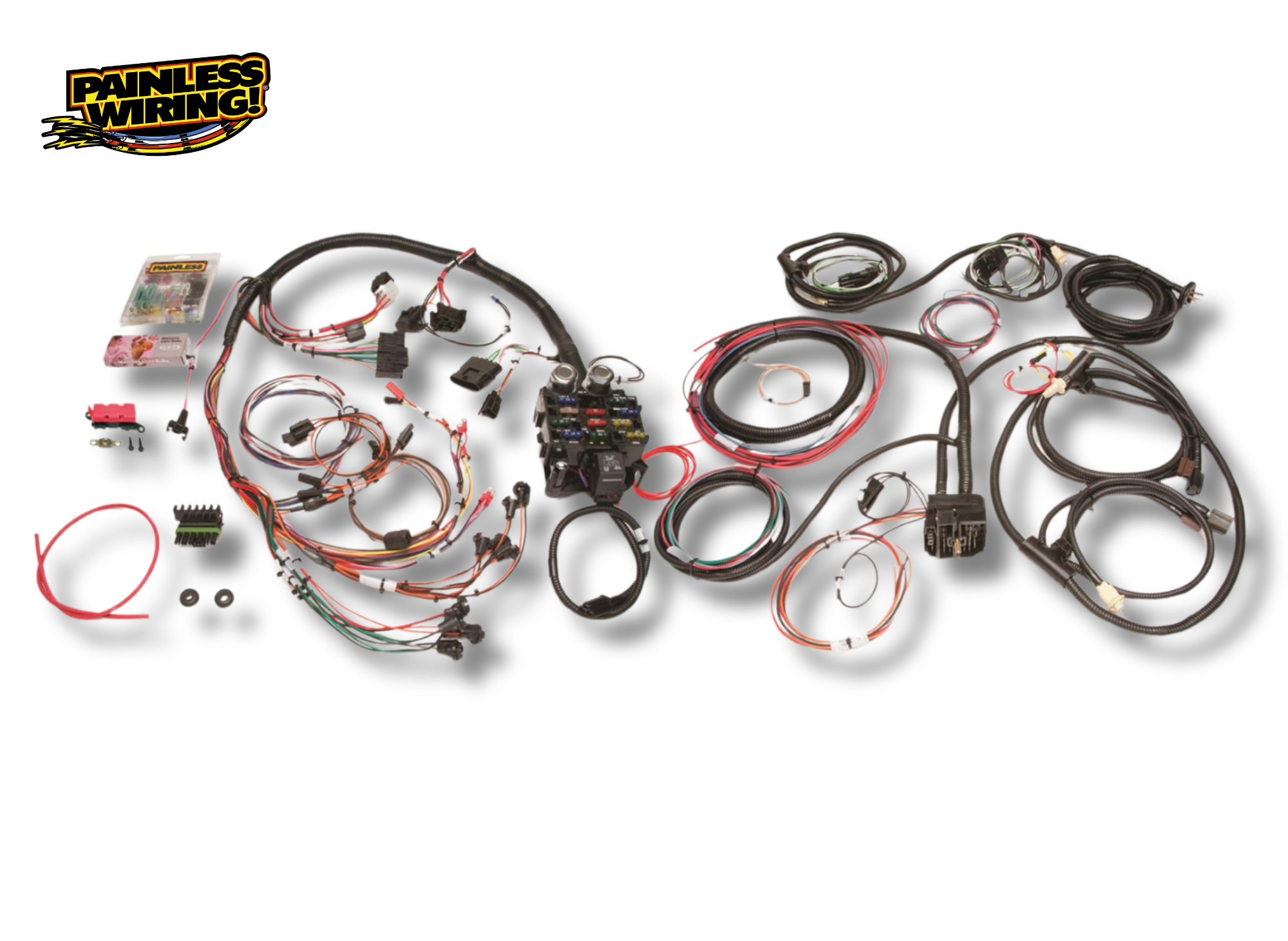

Painless Performance 21-Circuit Direct-Fit Jeep CJ Harnesses 10150
Wiring Harness, 21-Circuit, Direct Fit, Jeep, CJ, Kit

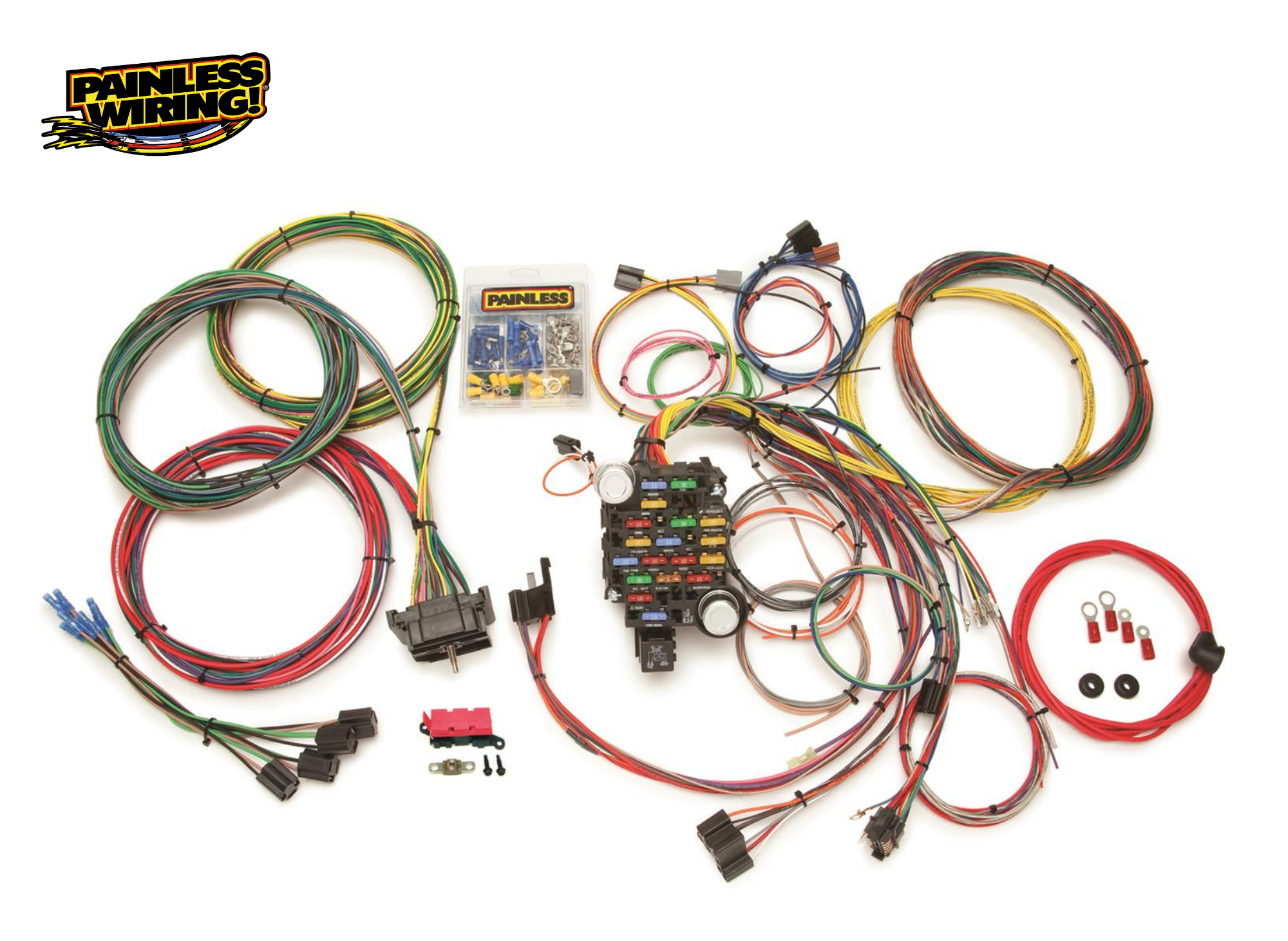

Painless Performance GMC/Chevy Truck Harnesses 10206
Wiring Harness, 28-Circuit, Front Mount Fuse Block, Spade Fuse, Chevrolet, GMC, Pickup, Kit
Installation Tips and Best Practices
Installing painless wiring harnesses is designed to be straightforward. Following basic guidelines will ensure a successful project.
Preparation Before Installation
Before you add anything to your cart, plan your layout. Lay the new harness out on the floor and familiarize yourself with the connectors. Clean all your engine ground locations thoroughly. Paint and rust will ruin a ground connection, causing erratic engine behavior.
Step-by-Step Guidance
Start at the engine computer and work your way out. Route the main trunk line along the firewall or intake manifold. Connect the fuel injectors and ignition coils first, as these dictate how the rest of the wires lay across the engine.
Then move on to smaller sensors, such as the mass airflow meter and coolant temperature sensor. Make sure the wiring stays clear of the exhaust headers and sharp metal edges.
Common Pitfalls to Avoid
Do not rush the process. Many people fail to secure their wiring properly with zip ties or clamps. Loose wires can chafe against vibrating engine parts. Another common mistake is poor battery connections. Ensure your main power feeds and grounds are perfectly tight.
The Importance of Professional Installation
While these kits are easy to install, complex custom builds sometimes require an expert. If you are integrating a modern harness into a heavily modified chassis with extensive aftermarket accessories, seeking professional help makes sense. A seasoned shop has the experience to ensure everything functions flawlessly.

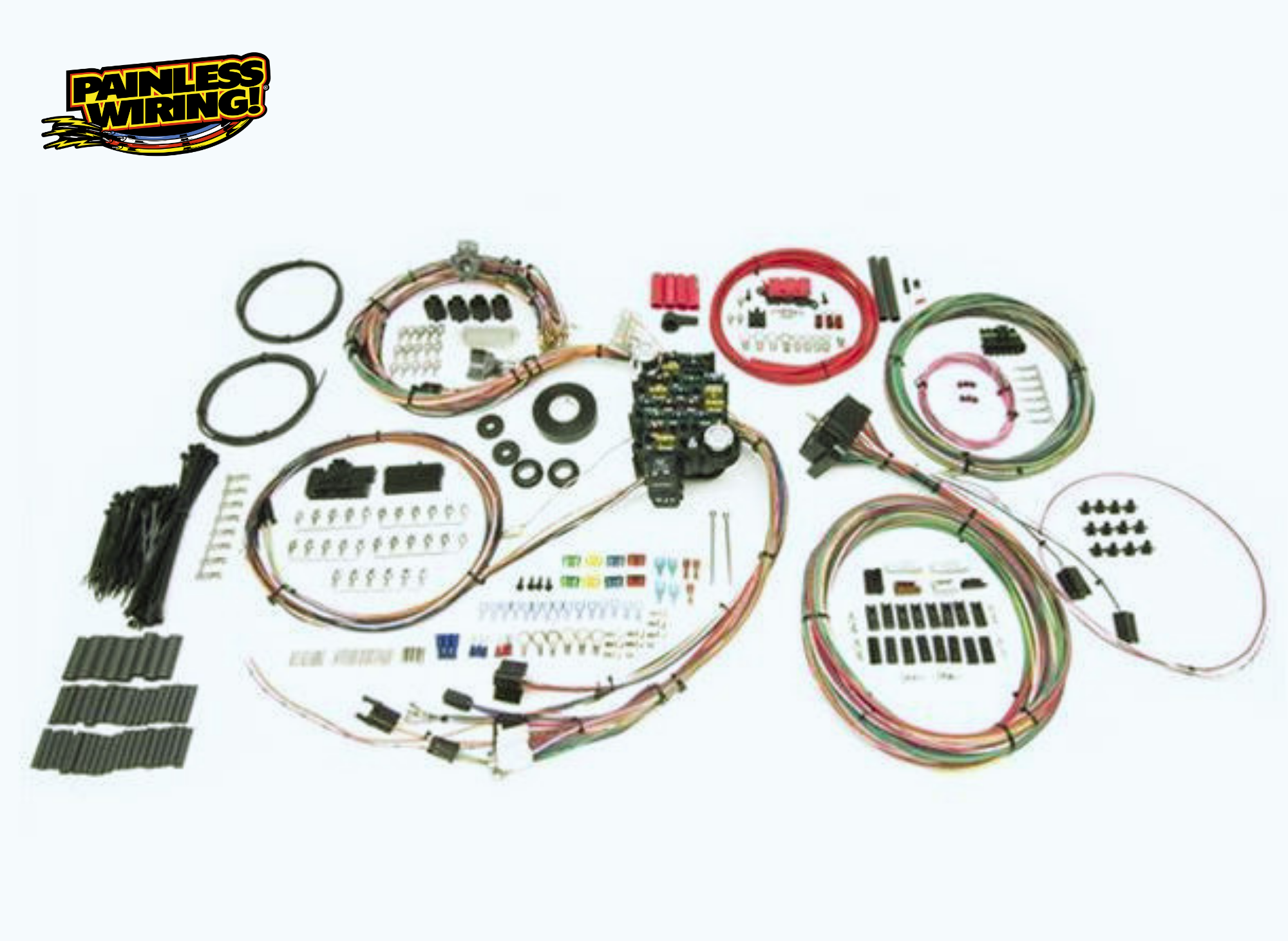

Painless Performance 27-Circuit Classic-Plus Customizable GM Truck Chassis Harnesses 20205
Wiring Harnesses, 27-Circuit Classic-Plus Customizable GM Truck Chassis Harnesses, ATO/ATC Fuse Style, Front Fuse Block, Chevy, GMC, Kit
Buying Guide and Customer Experience
When you decide to purchase your gear, the online shopping experience matters. When you visit the site, you can easily find the right category and select your parts. Simply add them to your cart.
Many customers post reviews after they have bought a kit. Reading these thoughts helps you learn about real-world performance. You will often see reviews stating, "I agree with the hype, this quality is unmatched." People appreciate the straightforward way the website allows you to view different options. Some buyers even note they heard about the brand through prestigious product SEMA awards.
If you are worried about the budget, you can sometimes find financing options with a low APR. This allows you to build your dream car without draining your bank account immediately. The consensus among builders is clear: paying for premium painless wiring is money well spent.

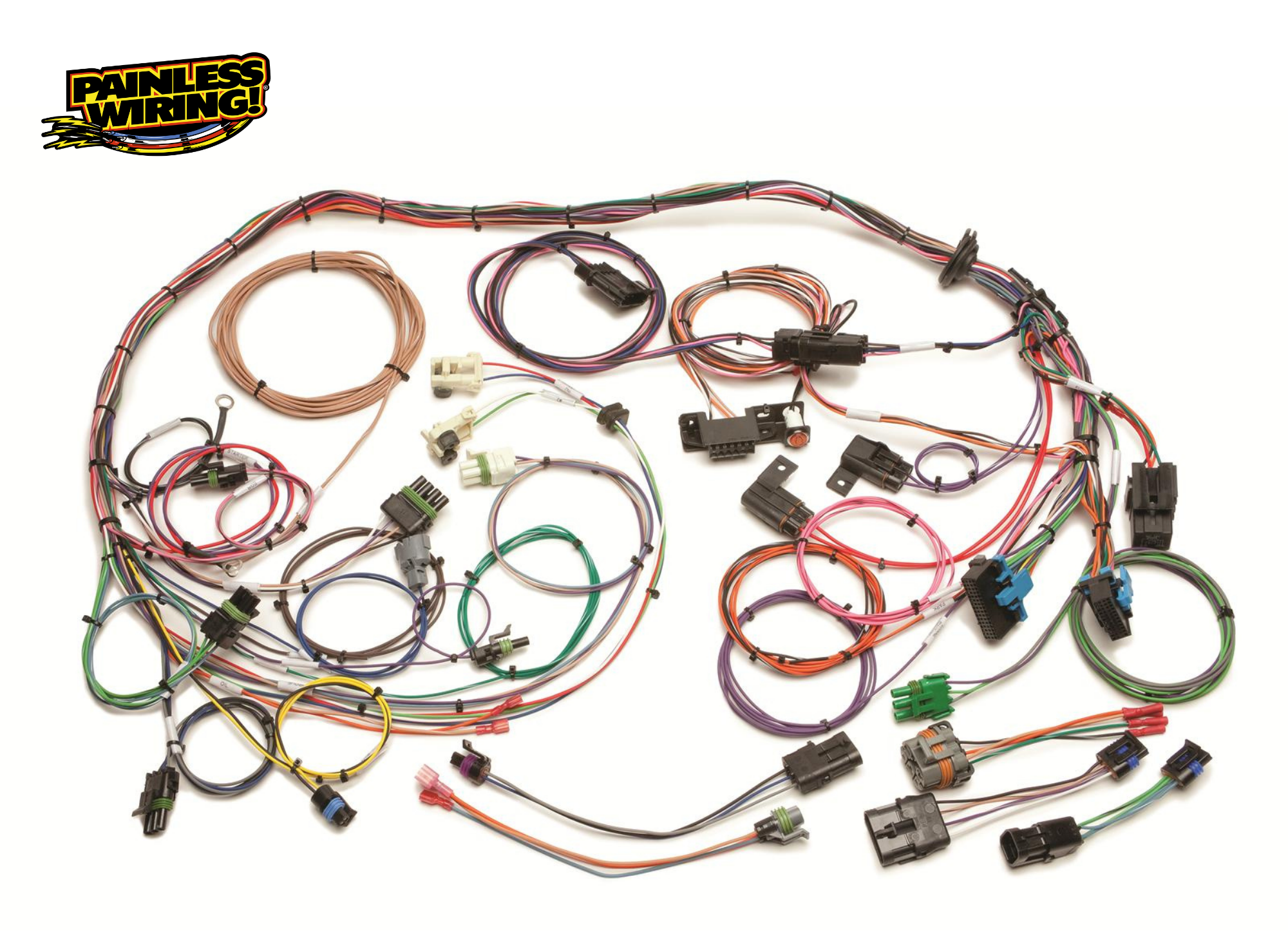

Painless Performance Fuel Injection Harnesses 60101
Fuel Injection System Wiring Harness, Stand-Alone, Engine Swap, CFI/TBI, TH200-4R/TH700-R4, Universal, Chevy Small Block Gen I, Kit

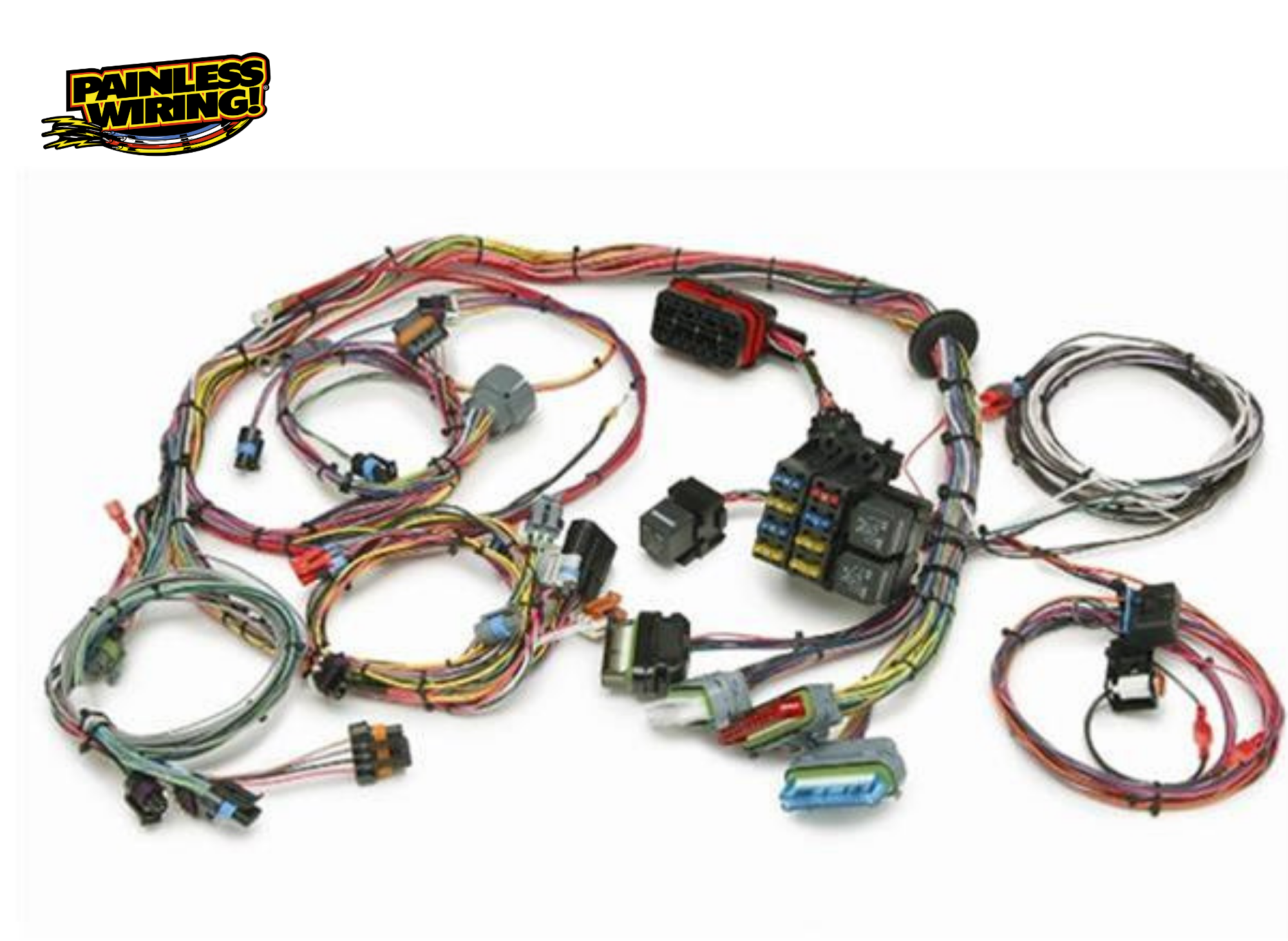

Painless Performance Fuel Injection Harnesses 60211
Engine Wiring Harness, Engine Swap, Front Fuse Block, Standard Length, Chevy, 454, Kit

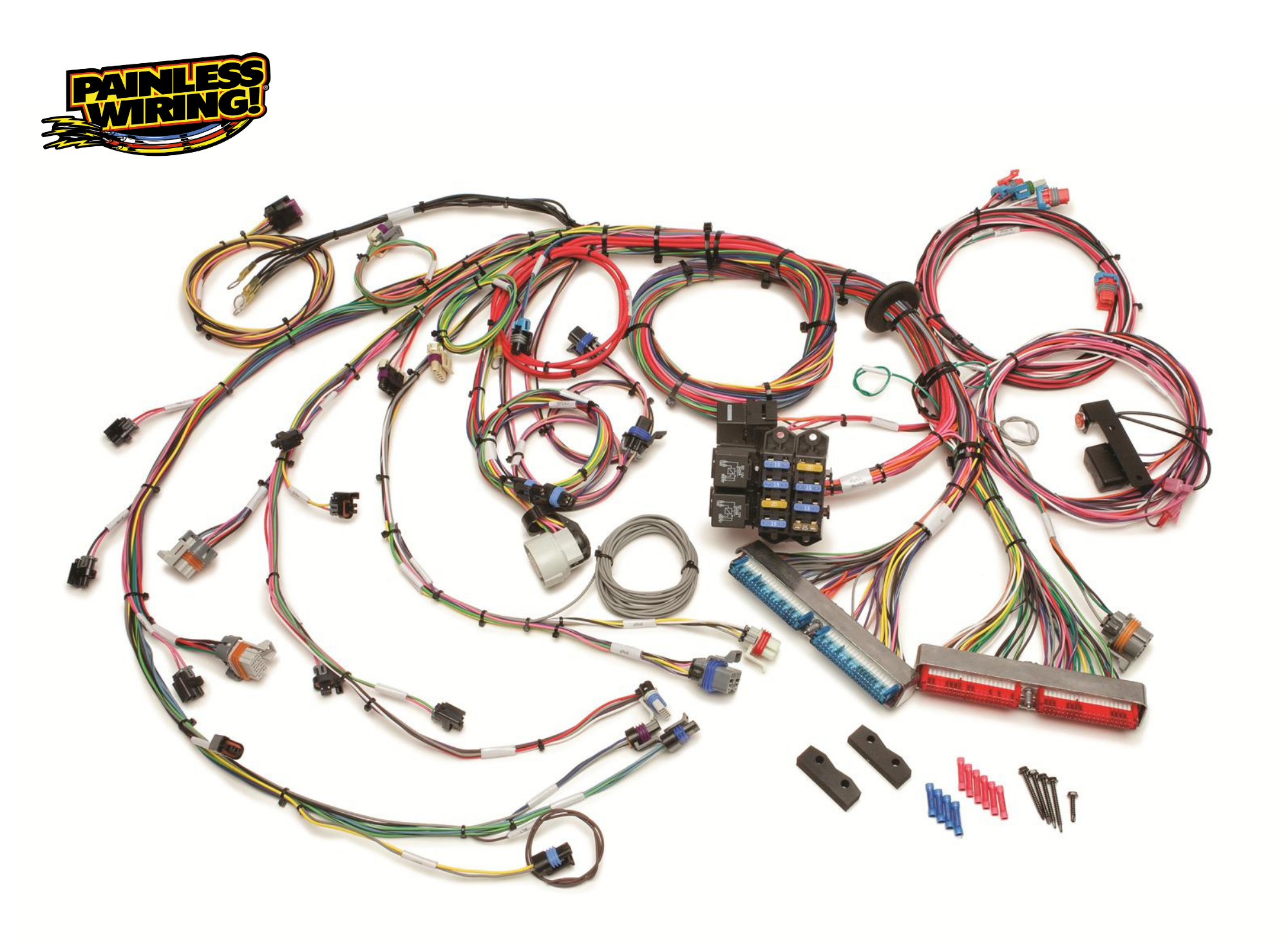

Painless Performance Fuel Injection Harnesses 60217
Wiring Harness, Fuel Injection, for Engine Swaps, Multi-Port, Mass Airflow, with 10 Circuit Fuse Block/GM Colors, Chevy, LS 4.8, 5.3, 6.0L, Each

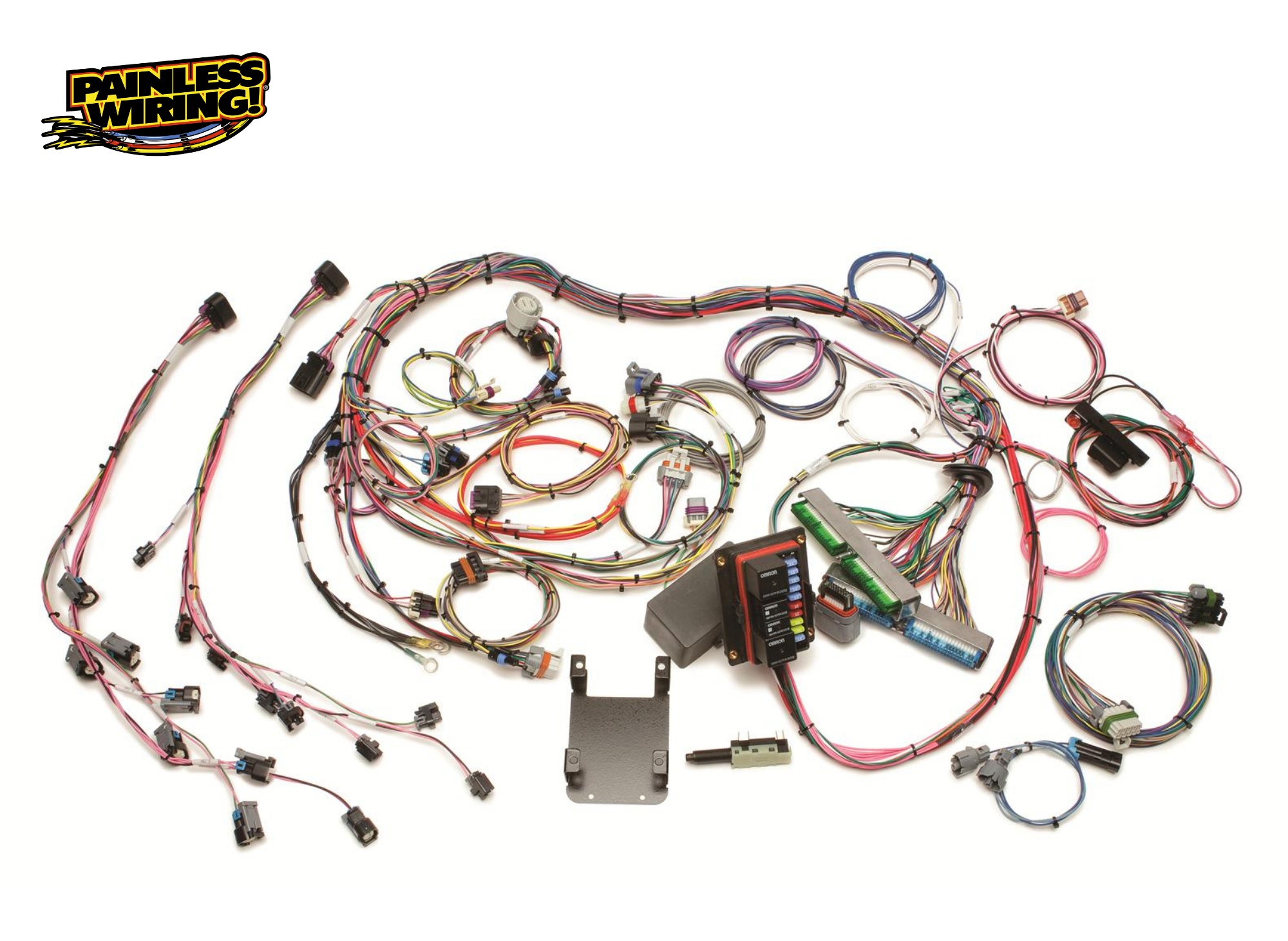

Painless Performance Fuel Injection Harnesses 60221
Wiring Harness, Fuel Injection, Multi-Port, Mass Airflow, Chevy, 4.8/5.3/6.0L, Kit

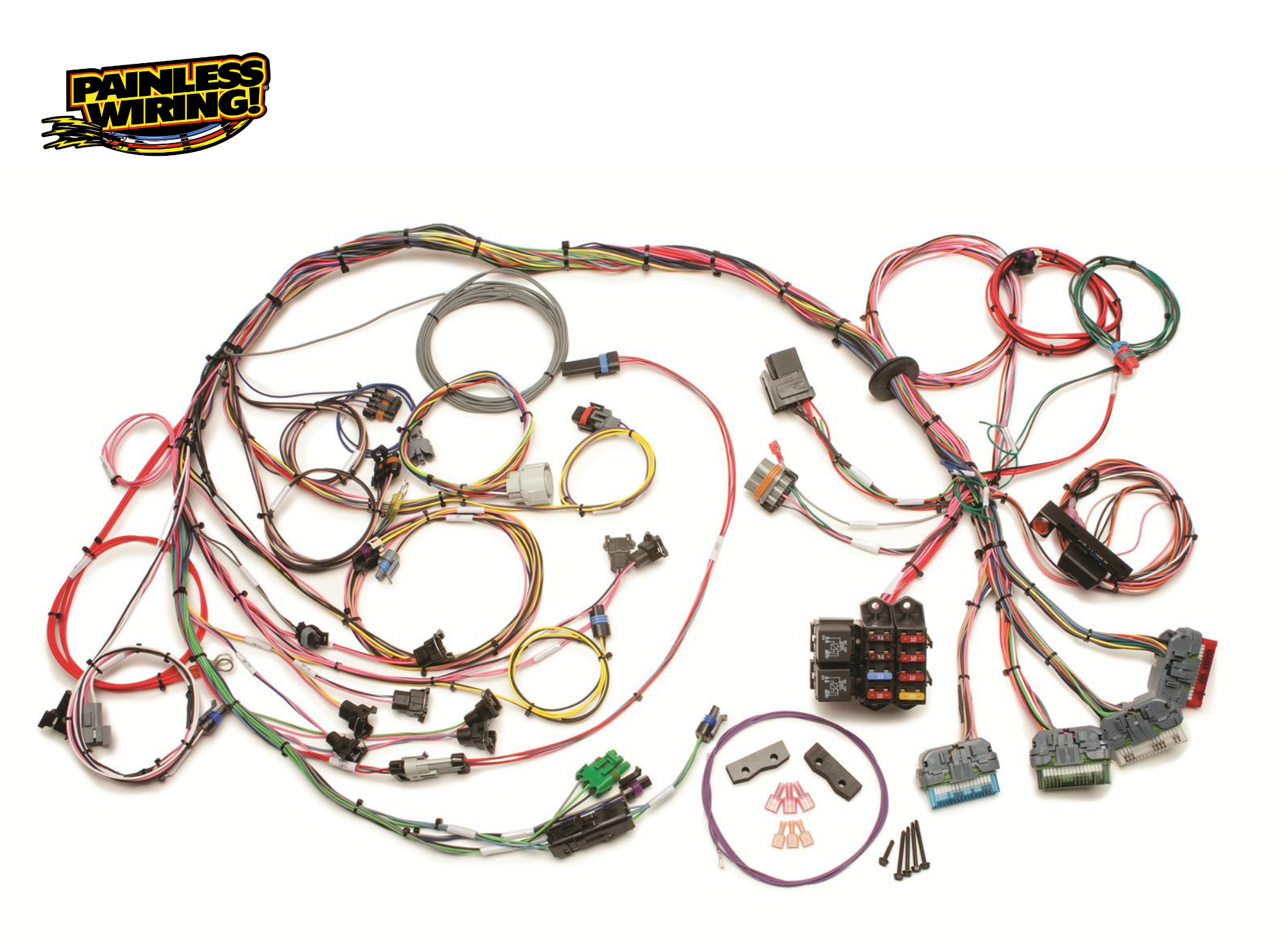

Painless Performance Fuel Injection Harnesses 60502
Wiring Harness, Fuel Injection, GM, MFI, Front Mount Fuse Block, Spade Fuse, 4L60E Trans, Universal, Kit

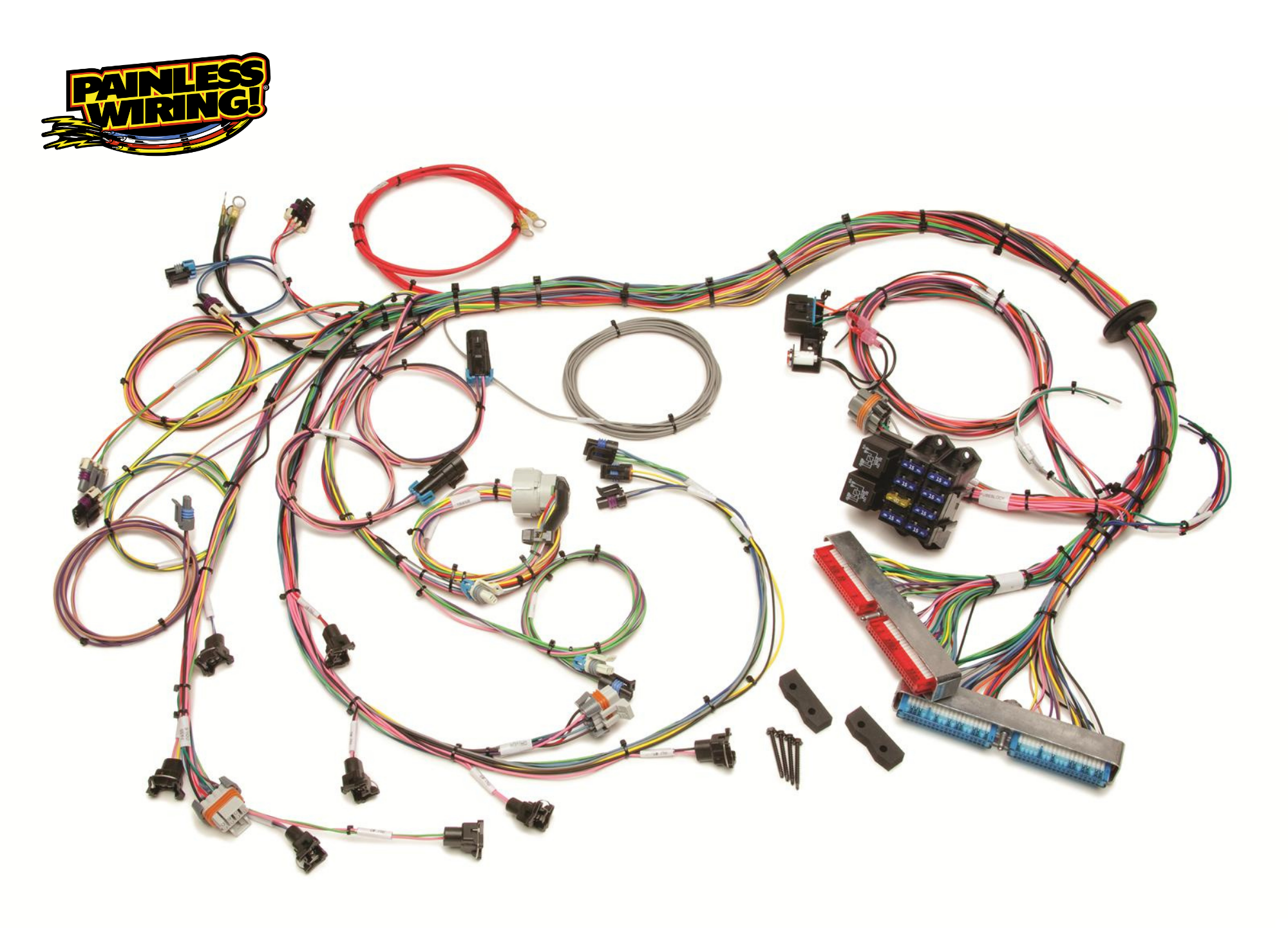

Painless Performance Fuel Injection Harnesses 60508
Wiring Harness, Fuel Injection, GM, SFI, LS1, Engine Swap, Front Mount Fuse Block, Standard Length, Universal

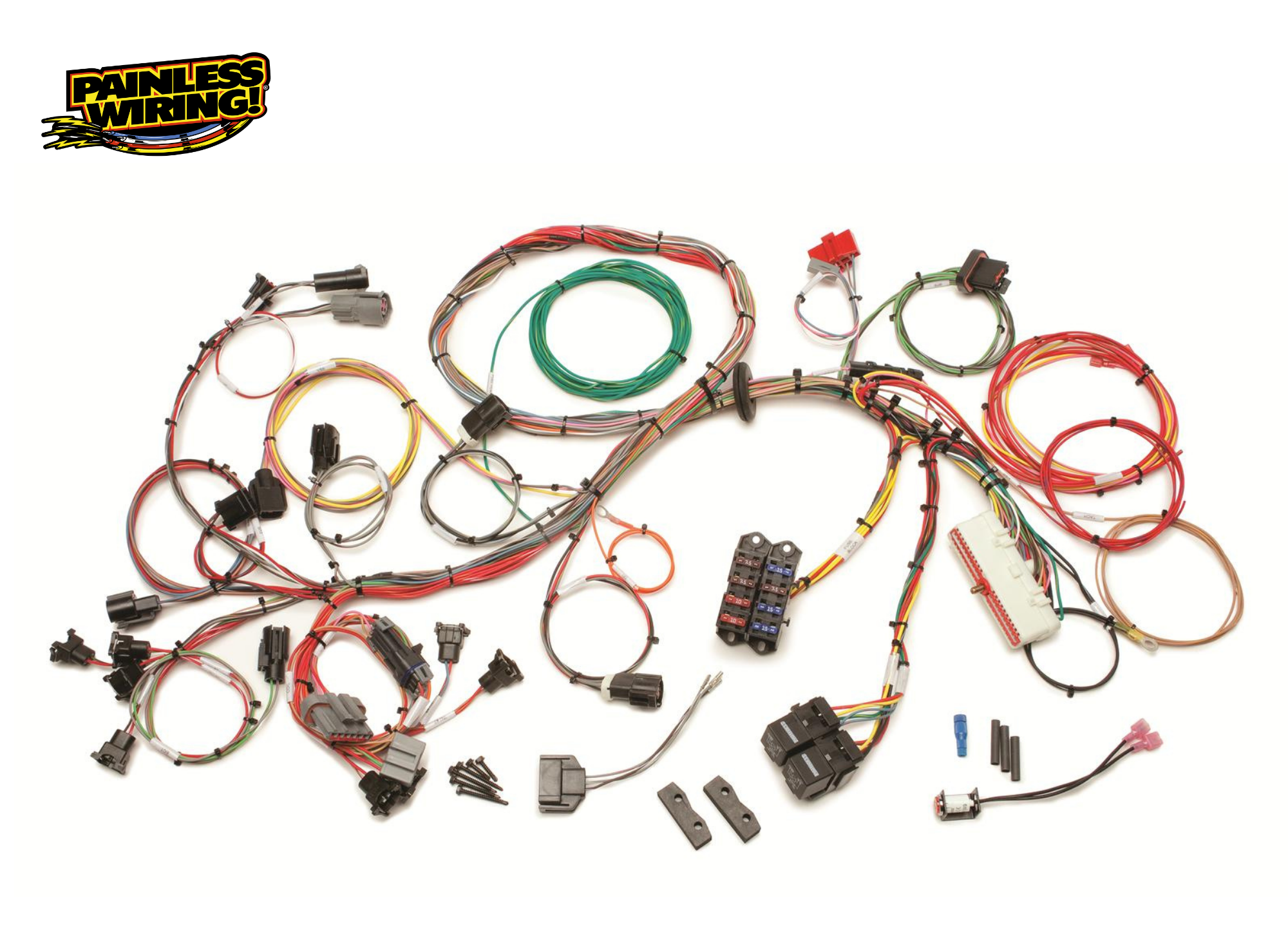

Painless Performance Fuel Injection Harnesses for 1986-1995 MUSTANG - 60510
Wiring Harness, EFI Transplant, Multi-Port, Mass Airflow, Standard Length, Ford, Small Block, Each
Real-World Applications and Success Stories
Builders across the country trust these systems for a variety of demanding applications.
Street Rods and Classic Car Restorations
Restoring a classic car requires blending old-school style with new-school reliability. Builders frequently use a painless performance wiring harness to hide the electrical components. This keeps the engine bay looking incredibly clean while providing modern EFI drivability.
Off-Road Vehicles
Off-road trucks and rock crawlers endure brutal conditions. Extreme vibrations, mud, and water destroy cheap wiring. The durable construction of these harnesses ensures the engine keeps running, even when miles away from civilization.
Performance Racing
In racing, a single electrical failure means losing the race. Track cars rely on precise fuel delivery and ignition timing. Racers trust these products because they eliminate the weak links found in factory electrical systems.
Final Thoughts on Your Custom Build
An engine swap is a massive undertaking. You will face plenty of mechanical hurdles along the way. However, wiring your new power plant does not have to be a nightmare.
Using a painless performance wiring harness guarantees a cleaner, safer, and much more reliable vehicle. You eliminate the frustration of tracing factory diagrams. You get a direct fit that saves countless hours in the garage. With high-quality terminals, secure relays, and clearly labeled wires, your engine will perform exactly as designed.
Do not let complicated electrical things stall your project. It is time to experience the ease of premium automotive wiring. Search for the perfect fit for your chassis, secure your purchase, and get your engine running right. Explore the full catalog of painless performance products today and take the next big step in your build.
