SCT X4 Performance Programmer & Power Flash Tuners

Your vehicle leaves valuable horsepower and torque hidden inside the factory ECU. The SCT X4 performance programmer is a handheld OBD-II flashing and diagnostic device that plugs into your vehicle's OBD-II port to reprogram the ECU, unlocking more horsepower, torque, and drivability from your engine.

This guide covers five specific Summit Racing part numbers: SCL-7015 (Ford), SCL-7416 (GM), SCL-7015PEO (50-state legal tool), SCL-7015PG-B (2011–2014 Mustang GT), and SCL-7215 (Dodge/Chrysler/Ram/Jeep).

Quick Overview: What the SCT X4 Tuner Does

The SCT X4 tuner transforms a mediocre driving experience into something genuinely responsive. Each unit comes preloaded with dyno-proven tune files for stock or mildly modified vehicles and can store up to ten custom tunes from a local SCT custom tuning dealer. The SCT X4 increases horsepower and torque significantly across supported platforms, and it features preloaded dyno-proven tunes calibrated for different octane levels and driving profiles.

• Big power, small package - a compact handheld that delivers dyno-proven power
• Plug-and-play design: no wiring, no cutting, no modules
• Load custom tunes for bolt-on and forced-induction builds
• Read and clear diagnostic trouble codes right from the device
• Emission-compliant preloaded tunes available (SCL-7015PEO variant)

SCT X4 Platform Basics: Big Power in a Small Package

Every X4 unit shares the same compact handheld form factor. The SCT X4 is marketed as an entry-to-intermediate handheld programmer that puts serious capability in a small package, making it approachable for the average driver yet powerful enough for the serious performance enthusiast.

The SCT X4 is known for fast flashing speeds over the OBD-II port and features a compact, button-navigated LCD screen. Here is what the hardware includes across all models:

• A huge backlit display - the SCT X4 features a color LCD display for clear navigation and gauges
• Four-button navigation for simple menu control
• Detachable OBD-II cable for quick connection
• USB port for firmware and tune transfers via a laptop computer
• The device features built-in WiFi for easy updates and over-the-air tune delivery
• Dual analog inputs for external sensors (wideband O₂, EGT, air-fuel ratio probes)

Unlike an in-line piggyback module that only modifies sensor signals, the SCT X4 power flash directly overwrites the factory PCM calibration. This means changes to fueling, ignition timing, shift scheduling, and more are embedded in the vehicle's computer rather than intercepted downstream.

Model Lineup: Ford, GM, and Mopar X4 Part Numbers

SCT assigns different X4 SKUs to cover specific OEM families. The SCT X4 supports Ford, Chevrolet, Dodge, and Jeep platforms, though compatibility varies by year, make, model, and engine. While the hardware is nearly identical, the internal firmware and preloaded calibrations are specific to each brand and engine family.

SCT X4 Power Flash Programmers 7015

Computer Programmer, X4, Handheld, Ford, Lincoln, Mercury, Each

Summit Racing Equipment

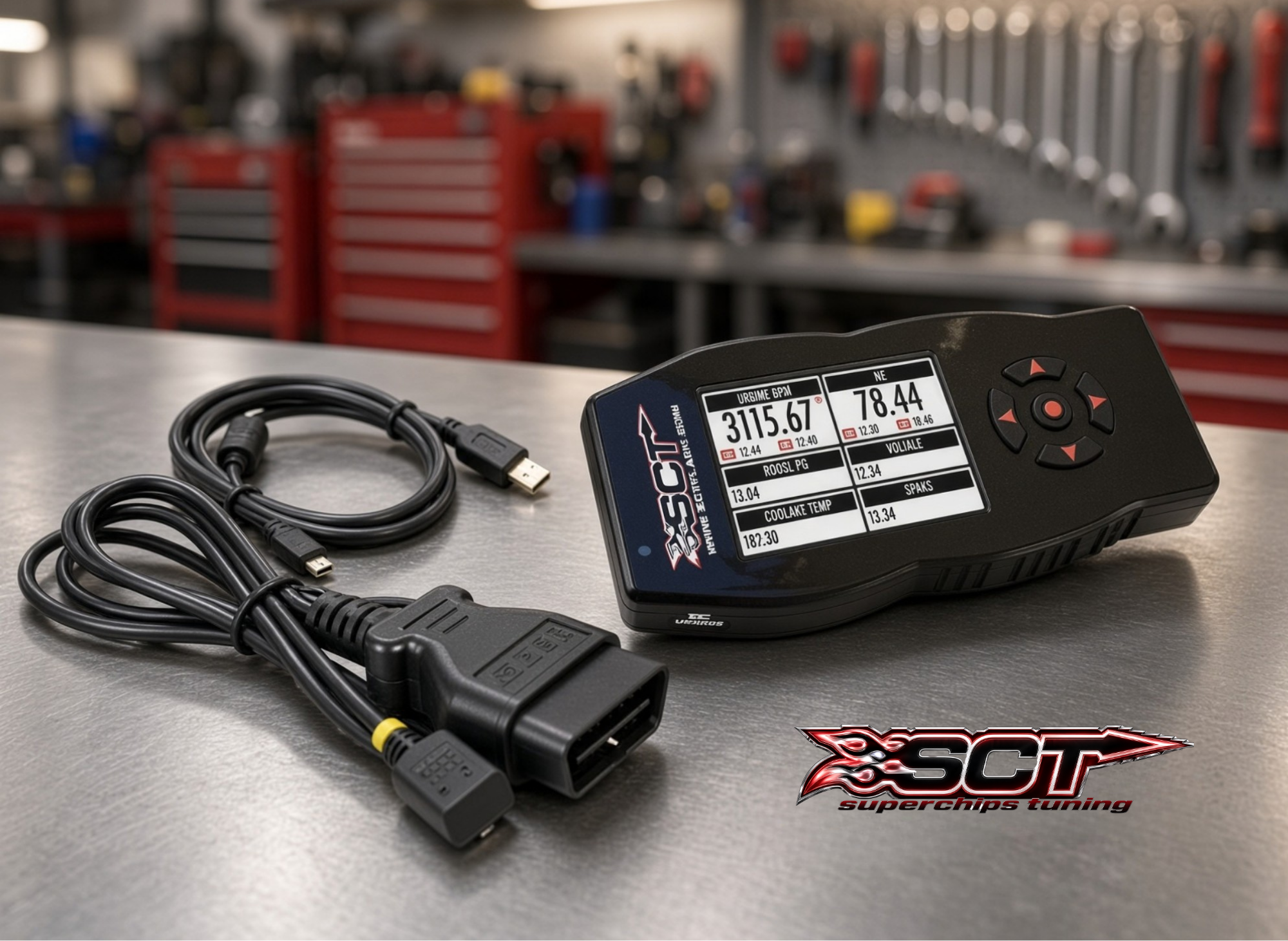

SCL-7015: SCT 7015 X4 Power Flash Programmer for Ford

The 7015 X4 is the core SCT X4 power flash tuner for Ford, covering gas and diesel applications from approximately 1996 through 2016. For Ford owners, this is the device that unlocks the vehicle's hidden performance; the factory stock setting leaves valuable horsepower on the table, and the X4 power flash makes reclaiming it straightforward.

Key performance benefits include:

• Increase horsepower and torque across the powerband (example: the 2015 Mustang GT gained approximately 23 hp and 19 lb-ft at the rear wheels on a 93-octane preloaded tune)
• Increased throttle response on daily-driven trucks and cars
• Even increased fuel mileage on highway and tow profiles for diesel applications
• Ability to correct the speedometer with an axle ratio when swapping ring-and-pinion gears and tire size correction for oversized tires

The device supports preloaded tunes tailored for stock or mildly modified Fords, plus storage for up to ten custom tune files created by an SCT custom tuning dealer. Adjustable options vary by PCM strategy and may include rev limiter, speed limiter, tire size, axle ratio, fan temperatures, and shift firmness.

SCT X4 Power Flash Programmers 7416

Computer Programmer, X4 Power Flash, Buick, Cadillac, Chevy, GMC, Hummer, Pontiac, Saab, Each

Summit Racing Equipment

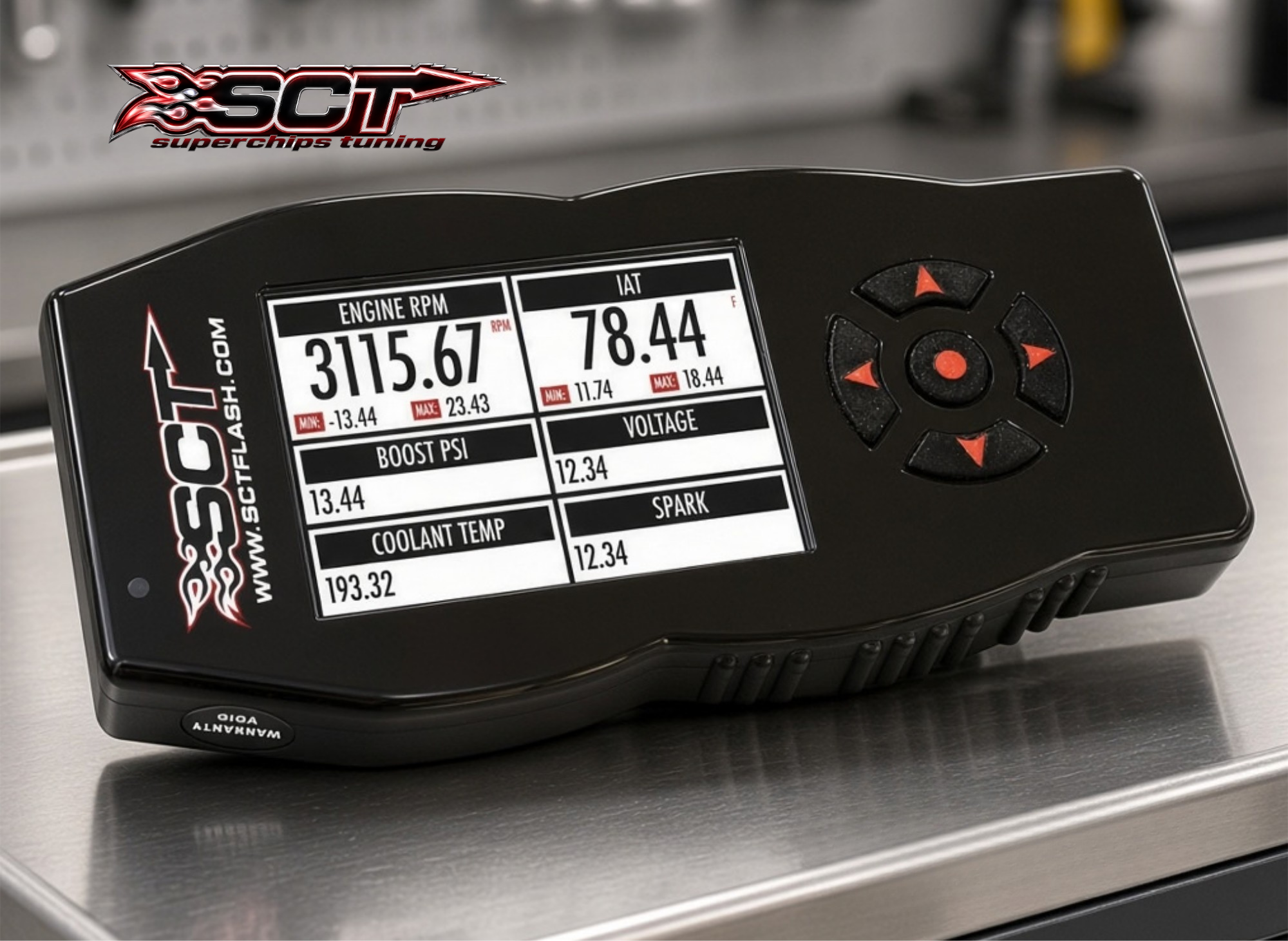

SCL-7416: SCT 7416 X4 GM Performance Programmer

The SCL-7416 is the SCT X4 tuner built for popular GM platforms including Silverado, Sierra, Camaro, Corvette, and select SUVs. It shares the same small, handheld package design and delivers the same core feature set, tuned specifically for GM ECU strategies.

The 7416 GM X4 provides:

• Preloaded performance, tow, and economy tunes for select GM gas engines
• Support for custom tunes to accommodate heads/cam swaps, forced induction, or larger injectors
• Ability to fine-tune shift points and firmer shifts on many GM automatics, plus torque management adjustments
• High-speed data logging and DTC read/clear functions, turning it into a diagnostic and tuning tool in one

Typical adjustable options for GM coverage include rev limiter, speed limiter, fan control, global spark, axle ratio, tire size, and fuel injector scaling, though features vary by ECU strategy and model year. You can view popular sensor data and data log critical parameters in real time.

SCT X4 Power Flash Programmers 7215

Computer Programmer, X4, Handheld, Chrysler, Dodge, Jeep, Each

Summit Racing Equipment

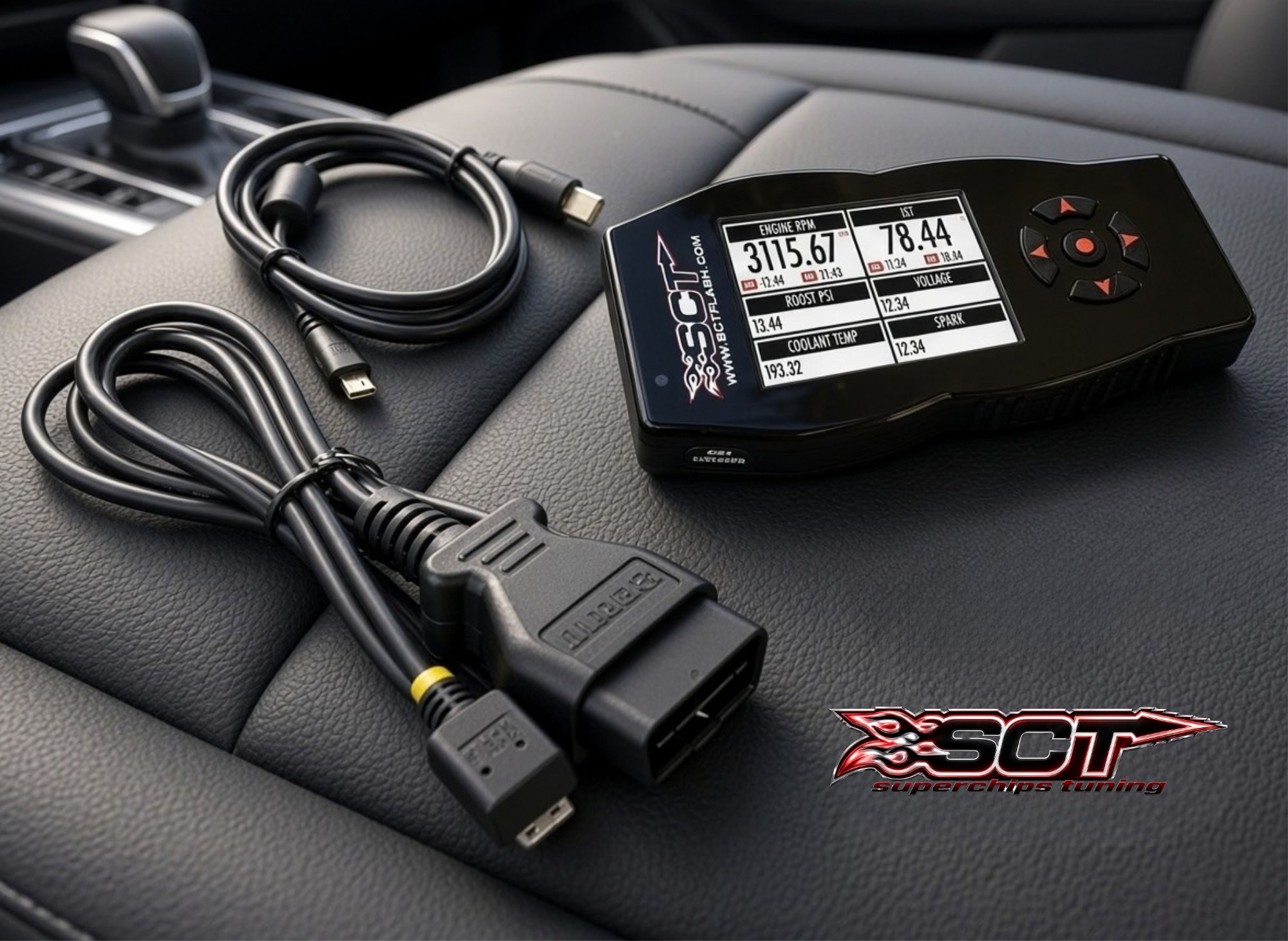

SCL-7215: SCT 7215 X4 for Dodge, Ram, Chrysler & Jeep

The SCL-7215 is the Mopar-focused SCT X4 tuner covering late-model Dodge, Ram, Chrysler, and Jeep vehicles, primarily Hemi-powered trucks, muscle cars, and select Jeep SUVs. It targets gas-only applications, typically spanning 2008 through 2014 model years.

On Hemi engines (5.7L, 6.1L, 6.4L), owners can expect enhanced horsepower and torque curves, better part-throttle drivability, more aggressive throttle mapping, and the ability to tailor vehicle performance for towing, daily driving, or track use. Claims on potential gains include up to 20–40 hp and 25–50 lb-ft depending on engine displacement and tune type.

Representative adjustable parameters on Mopar applications include:

• Axle ratio and tire size corrections for the vehicle speedometer
• Rev limiter and speed limiter adjustments
• Multiple Displacement System (MDS) on/off control
• Fan temperature settings
• Transmission shift firmness and shift points on automatic transmissions

Note that some security-locked Mopar ECUs may require PCM unlock procedures. Confirm compatibility before purchase.

SCT X4 Power Flash Programmers for 2021-2023 F-150 - 7015PG-B

Computer Programmer, X4, Handheld, Ford, Each

Summit Racing Equipment

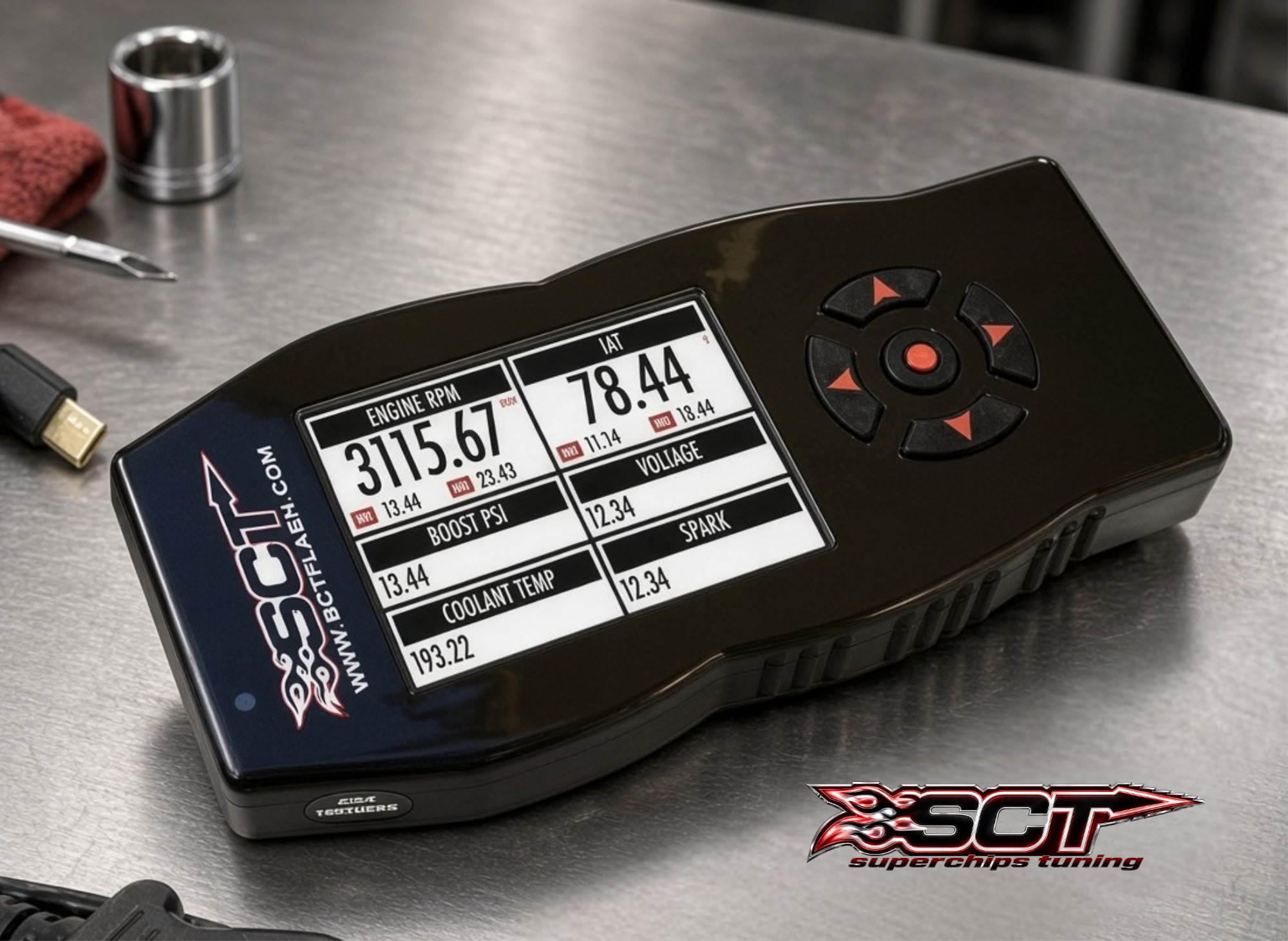

SCL-7015PG-B: SCT X4 Power Flash Tuner for 2011–2014 Mustang GT

The SCL-7015PG-B is a focused SCT X4 power flash package built specifically around the 2011–2014 Mustang GT 5.0L Coyote engine. It ships with performance calibrations tailored for this platform, targeting the enthusiast who wants maximum horsepower from their Coyote without a full custom tuning session on day one.

Tuning goals for this variant include:

• Sharpened throttle response and mid-range torque for more horsepower across the curve
• Improved horsepower and torque curves on 91–93 octane tunes
• Optimized automatic transmission shift strategy where applicable

Dyno testing on 2011 Mustang GTs with basic bolt-ons (intake, exhaust) has shown gains of approximately 22 RWHP and 38 lb-ft of torque over the stock program. The device still functions as a full SCT X4 tuner with support for custom tuners to build tailored files for headers, superchargers, and other modifications.

User-adjustable parameters for the 2011–2014 Mustang GT typically include rev limiter, speed limiter, gear ratio corrections, tire size, global spark, fan temps, and idle speed—depending on PCM strategy and emissions rules.

SCT X4 Power Flash Programmers 7015PEO

Computer Programmer, X4, Handheld, Ford, Each

Summit Racing Equipment

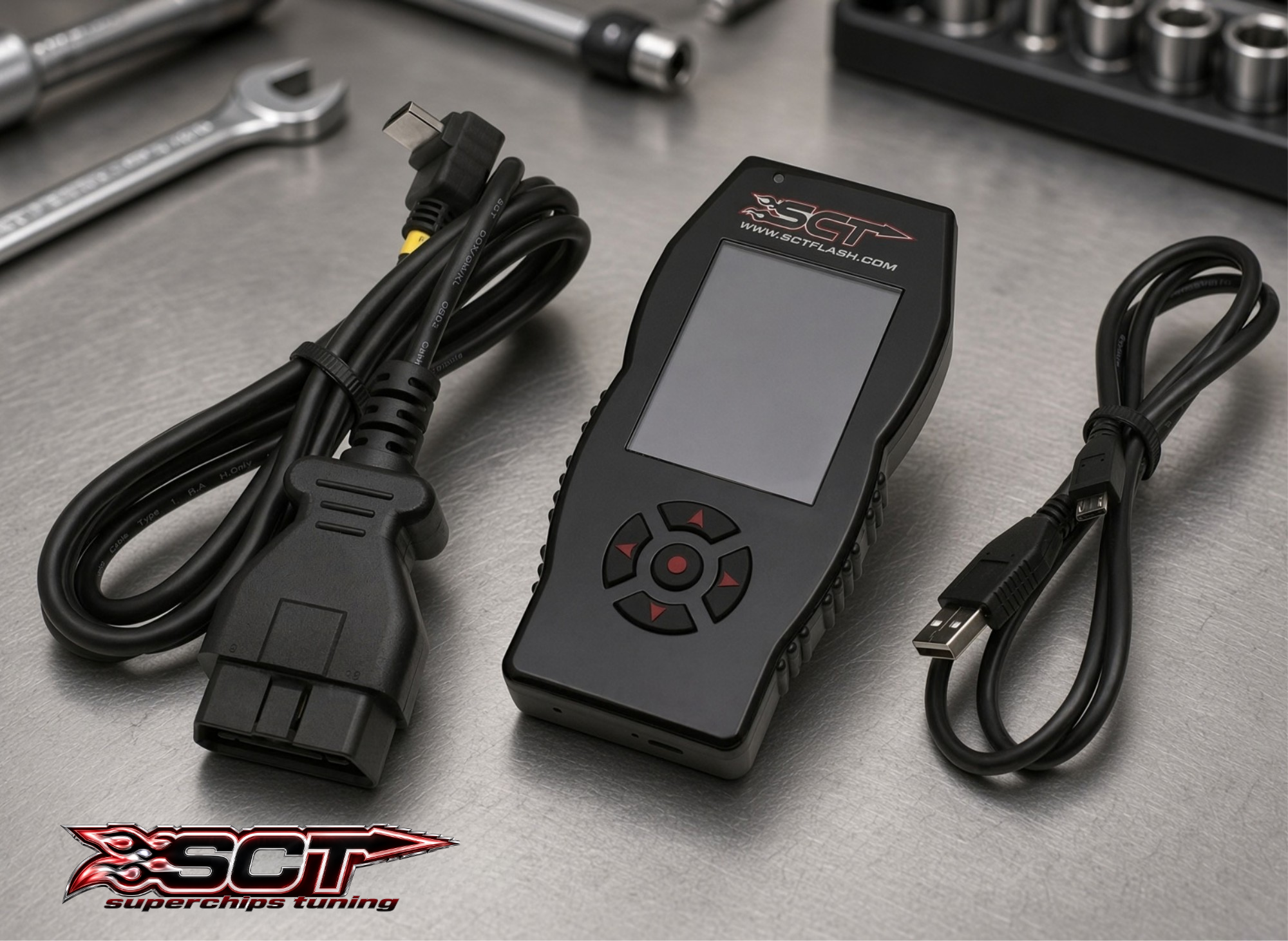

SCL-7015PEO: SCT X4 Programmer Tool 7015PEO (High-Performance Scan & Tune)

The SCL-7015PEO is a 50-state legal SCT X4 programmer tool that emphasizes both performance tuning and high-performance scan-tool functions. Its preloaded tunes do not disable or delete emissions equipment, making it a strong choice where CARB compliance matters.

The SCT X4 tuner costs $419, down from $519 on SCT's own site. Amazon lists the SCT X4 for EUR 334.09, and No Limit Fabrication sells the SCT X4 for $309.00. SCT X4 offers financing options as low as $28/month. Actual Summit Racing pricing should be verified on the product page.

The 7015PEO serves a dual role:

• Performance programmer: loading preloaded and custom tunes, with storage for up to ten custom tunes
• Diagnostic tool: data logging, viewing live PIDs, and the ability to read and clear diagnostic trouble codes via SCT's LiveLink software

It is designed for user-friendly operation as a plug-and-play device while still delivering the depth that custom tuners need.

Core X4 Features: From Custom Tunes to Data Logging

All X4 units share a common SCT X4 performance programmer feature set that keeps drawing the performance enthusiast crowd. The backlit display the SCT X4 uses makes it easy to navigate every function, from flashing tunes to monitoring real-time vehicle data. Here is what each feature delivers:

• Preloaded Tunes: Each unit comes preloaded with proven calibrations for different octane levels and driving profiles (tow, street, performance). These are loaded with dyno-proven files and designed for stock or mildly modified vehicles. The SCT X4 optimizes fuel efficiency and throttle response right out of the box.
• Custom Tunes: Work with an SCT custom tuning dealer to create custom tune files for specific modifications — larger throttle bodies, supercharger pulleys, intercoolers, aftermarket MAFs. The device stores torque custom tunes alongside preloaded ones. The SCT X4 can adjust fuel injection timing and air-fuel ratio to match your build.
• Data Logging: The SCT X4 supports high-speed data logging for vehicle parameters. View popular sensor data like EGT, air-fuel ratio, boost, knock, and transmission temps. Popular sensor data can be recorded in real time for tuner review. The SCT X4 allows for real-time engine data monitoring through the device or LiveLink on a PC.
• Diagnostics: The SCT X4 includes a diagnostic trouble code reader. It can clear diagnostic trouble codes and turn off a check engine light caused by modifications. Dual analog inputs accept wideband O₂ and EGT probes for deeper monitoring. The app lets you track fuel efficiency calculations and tire pressure monitoring system data where supported by the vehicle's PCM data.

Note that features and tune types vary by vehicle and strategy — not all vehicles have the same adjustable options or preloaded choices. Avoid vehicle data overload by selecting only the PIDs relevant to your build.

What You Can Adjust: Axle Ratio, Tire Size, Rev Limiter & More

User-adjustable parameters are one of the SCT X4's strongest selling points. The SCT X4 can adjust parameters like rev limits and shift points, and the SCT X4 allows for calibration adjustments based on tire sizes or gear ratios. However, adjustable options vary by vehicle, PCM strategy, and regulations.

• Axle Ratio: Correct speedometer and shift schedule after gear ratio modifications (common ratios: 3.31, 3.55, 3.73, 4.10). Proper gear ratio calibration protects drivability and accurate fuel economy readings.
• Tire Size: Tire size corrects the vehicle speedometer for larger off-road tires or smaller drag radials (e.g., stock 31" to 35"). This also ensures accurate fuel economy calculations.
• Rev Limiter: Safely raise or lower the RPM limit. Aggressive increases should be race-only and within engine hardware limits.
• Speed Limiter: Adjust the top-speed cutoff to match tire and driveshaft capability.
• Fan Control: Lower fan-on temperatures to improve cooling during towing or in hot climates.
• Idle Speed: Raise idle for big cams or heavy electrical loads.
• Transmission Settings: Firmer shifts, adjusted shift points, and reduced torque reduction for crisper gear changes on automatics.
• Spark and Fuel: Global spark adjustments and injector scaling — best handled via custom tuning rather than guessing. TPMS adjust options may also be available on select strategies.

Using SCT Software: LiveLink & Device Updater

SCT's software ecosystem expands X4 capabilities well beyond the handheld unit. Keep in mind that SCT X4 is not compatible with Mac systems — you will need a Windows PC (Windows 10/11 recommended).

SCT LiveLink enables live data logging, recording, and playback of the vehicle's PCM data. Select specific PIDs for engine, transmission, and emissions sensors, then export logs for a tuner to review and refine your custom tunes. This is how you get the most out of high-speed data logging.

SCT Device Updater handles the device's firmware and tune revision updates via USB. It is required to load custom tune files sent by an SCT custom tuning dealer onto the device. When tuner prompts appear during the update process, follow them carefully.

Setup workflow:

1. Connect the X4 to your laptop computer via USB
2. Open Device Updater and check for the latest firmware
3. Back up the stock program (the X4 automatically saves it; never delete this file)
4. Load custom tunes or updated preloaded files
5. Safely eject the device

Built-in WiFi on current X4 units also allows over-the-air firmware and tune updates without a PC for many users.

Specs & Comparison Charts for SCT X4 Models

The following combined chart provides an at-a-glance comparison of all five SCT X4 part numbers discussed in this article.

Practical Buying & Setup Tips for SCT X4 Users

Choosing the right SCT X4 tuner and getting the most from it comes down to preparation. The X4 is designed for user-friendly operation as a plug-and-play device, but a few steps will save you headaches.

Before you buy:

• Confirm vehicle fit using Summit Racing's fitment checker with your exact year, make, model, and engine. The SCT X4 can back up a factory stock program, but only if the device supports your PCM strategy in the first place.
• Plan your build first. Decide on mods (intake, exhaust, axle ratio, tire size, forced induction) to determine whether preloaded tunes suffice or custom tunes are needed. Preloaded tunes are designed for stock or lightly modified vehicles — heavily modified builds need custom tuning for safety and maximum horsepower.
• Consider add-ons like window-mount pedestals for in-cab monitoring and EGT probe kits that feed the X4's analog inputs.

After it arrives:

• Back up the stock tune immediately. The X4 does this automatically during the first flash — protect that stock setting file.
• Keep battery voltage stable during flashing (a battery charger is recommended on longer flashes). Follow on-screen tuner prompts exactly and avoid key cycling during the process.
• Test drive and data log after loading a tune. Monitor knock, air-fuel ratio, and temps before any aggressive driving. This is where increased fuel mileage or increased throttle response becomes measurable and verifiable.
• Stay current with firmware updates through Device Updater, but always review release notes — especially on older diesel platforms where emissions-related features have changed.

Whether you are chasing maximum horsepower on the track or better fuel economy on the highway, the right SCT X4 variant puts dyno-proven power in the palm of your hand. Match the correct unit — 7015, 7416, 7015PEO, 7015PG-B, or 7215 — to your vehicle and performance goals, and use Summit Racing's product pages and support resources to verify fitment before you order.

Thank you for reading!

Your friend,

Todd
