Electrical short finders are devices used in electrical systems to locate and identify any electrical shorts that may be present. Electrical shorts occur when there is an unintentional connection between two conductors, causing electricity to flow through an unintended path. This can result in malfunctioning or damaged equipment, as well as potential hazards such as fires.
There are different types of electrical short finders available, such as handheld devices and circuit testers. These devices work by sending a small amount of current through the electrical system and detecting any changes in resistance or voltage that could indicate the presence of a short.
Some electrical short finders also come equipped with audible and visual alarms to alert the user when a short is found. This makes it easier for technicians to quickly locate and fix the issue.
In addition to locating shorts, some electrical short finders can also identify other types of electrical problems, such as open circuits and faulty wiring. This makes them versatile tools for troubleshooting and maintaining electrical systems.
How Mechanicaddicts Chooses the Electrical Short Finder
Finding the right Electrical Short Finder can be a daunting task for any mechanic. With so many options available on the market, it can be difficult to determine which one is truly the best fit for your needs.
That's where Mechanicaddicts comes in. Our team of expert reviewers has researched for you, providing a comprehensive guide to help you choose the perfect Electrical Short Finder. You can trust our unbiased and thorough reviews to help you make an informed decision.

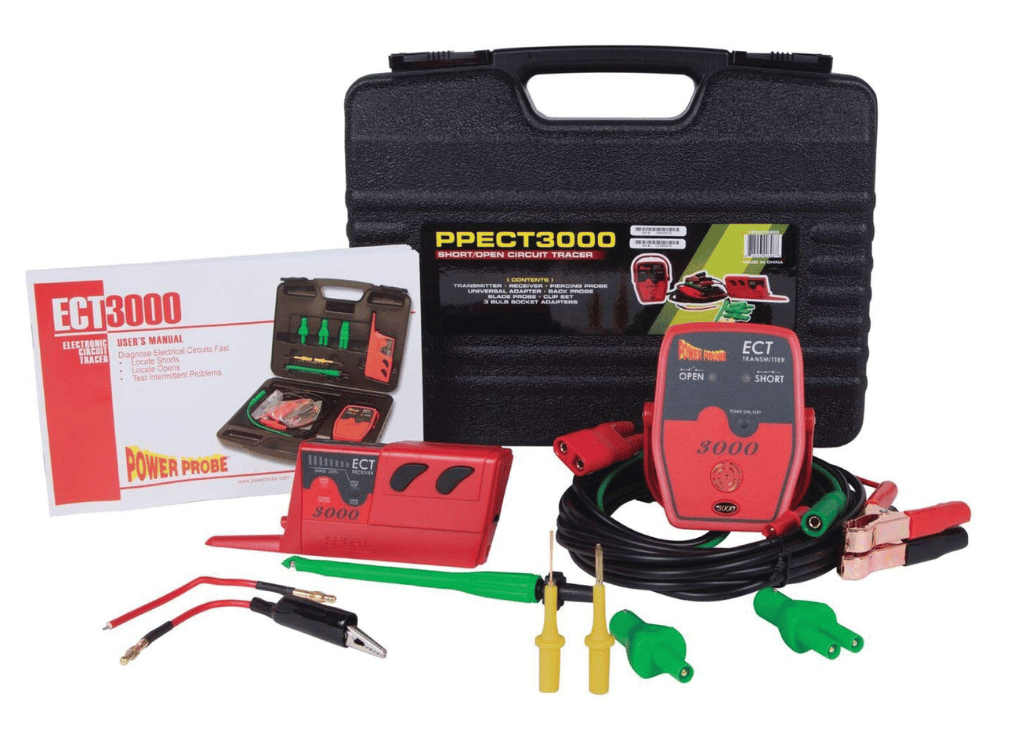

Power Probe Pwp-PPECT3000 - ECT3000 Short/Open Electrical Circuit Tester
Why We Like This Short Circuit Finder
The Power Probe ECT3000 Electrical Circuit Tracer is a state-of-the-art tool for quickly and accurately locating short and open circuits in electrical systems. With its intelligent design, this circuit tester can easily determine if a circuit has an open or is shorted, saving you valuable time and effort in troubleshooting.
Equipped with a transmitter and receiver, the ECT3000 can easily detect signals emitted through a vehicle's wiring, providing distance and directional indications with adjustable sensitivity. Its innovative features also include an auto-locking signal distance indication, a directional indication to the short, and an integrated flashlight in the receiver for added convenience.
Designed for ease of use, this circuit tracer has an automatic shut-off after 10 minutes of inactivity and provides clear indications for both short and open circuits. It runs on easily replaceable AA batteries, making it a cost-effective and reliable choice for any electrical professional.
About This Tool:
- Intelligent Design: Quickly and accurately locates short and open circuits.
- Transmitter and Receiver: Detects signals emitted through a vehicle's wiring, providing distance and directional indications.
- Adjustable Sensitivity: Allows for fine-tuning to suit the specific requirements of each job.
- Auto-Locking Signal Distance Indication: Provides accurate distance measurements from the source wire.
- Directional Indication to the Short: Guides the user on the exact location of the circuit fault.
- Integrated Flashlight: Enhances visibility in low-light working conditions.
- Auto-Shutoff: Automatically turns off after 10 minutes of inactivity to conserve battery.
- Shorted/Open Circuit Indication: Indicates the status of the circuit.
- Battery-Powered: Runs on easily replaceable AA batteries.

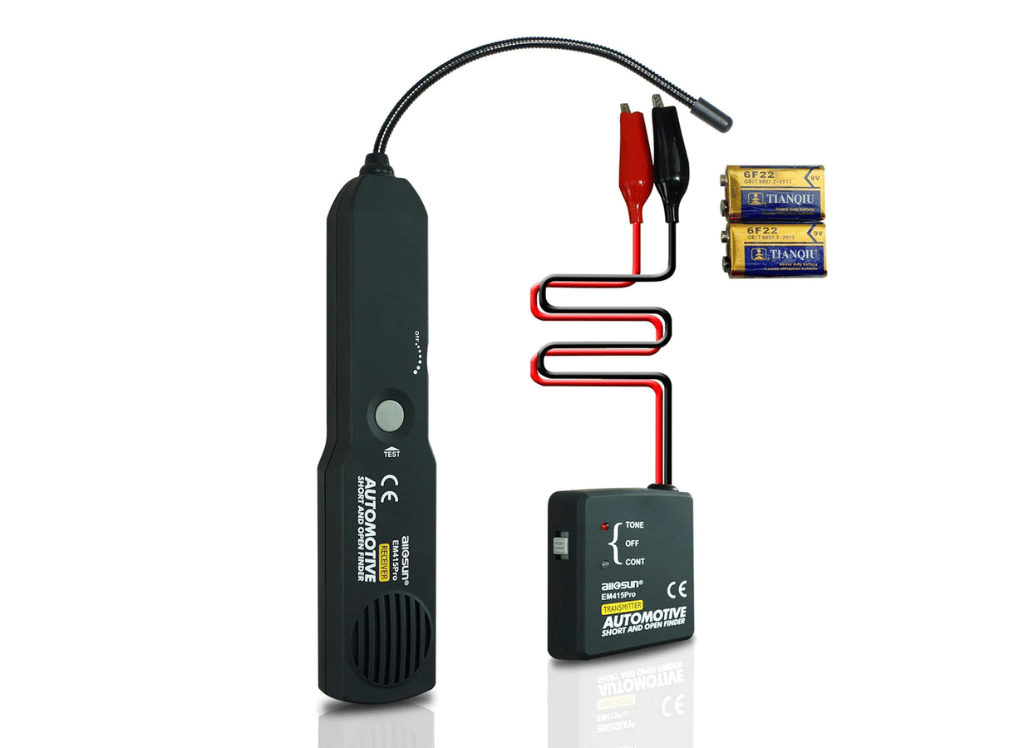

Allsun em415pro Automotive Electrical Open&Short Finder
Why We Like This Short Circuit Finder
The Allsun em415pro Automotive Electrical Open&Short Finder is your go-to tool for detecting and troubleshooting circuit issues with ease. This powerful device, powered by 2pcs*9V batteries, allows you to quickly locate open circuits, broken wires, current leaks, and more.
Equipped with a 7-inch flexible probe and transmitter and receiver LEDs, this short circuit finder makes it easy to reach and identify problematic areas in congested spaces. It is suitable for a wide range of circuits with voltages between 6 and 42 volts DC, making it perfect for use in automobiles, trucks, tractors, boats, RVs, and more.
But that's not all - our Automotive Short Circuit Tester also comes with an internally protected design to withstand power surges and overloads. And for added convenience, it even includes a storage bag for easy portability.
Save time and effort with our quick and easy diagnostic tool. Perfect for checking the continuity of cables or wires and pinpointing the breakpoint, this device is a must-have for any mechanic or DIY enthusiast.
About This Tool:
- Open Circuit Locator: Quickly and easily detects where a circuit is open.
- Short Circuit Finder: Ideal for finding intermittent circuit problems.
- Wide Voltage Range: Suitable for DC 6~42 Volt circuit power, making it versatile for different vehicle types.
- Ease of Use: Comes with a 7-inch flexible probe for reaching wires in congested places.
- Internally Protected: Built to withstand power surges and overloads.
- Convenient: Includes a storage bag for easy portability.
- Efficient Diagnostic Tool: Allows for quick and easy diagnosis of cable continuity and breakpoints in upholstery and floor coverings throughout the vehicle.

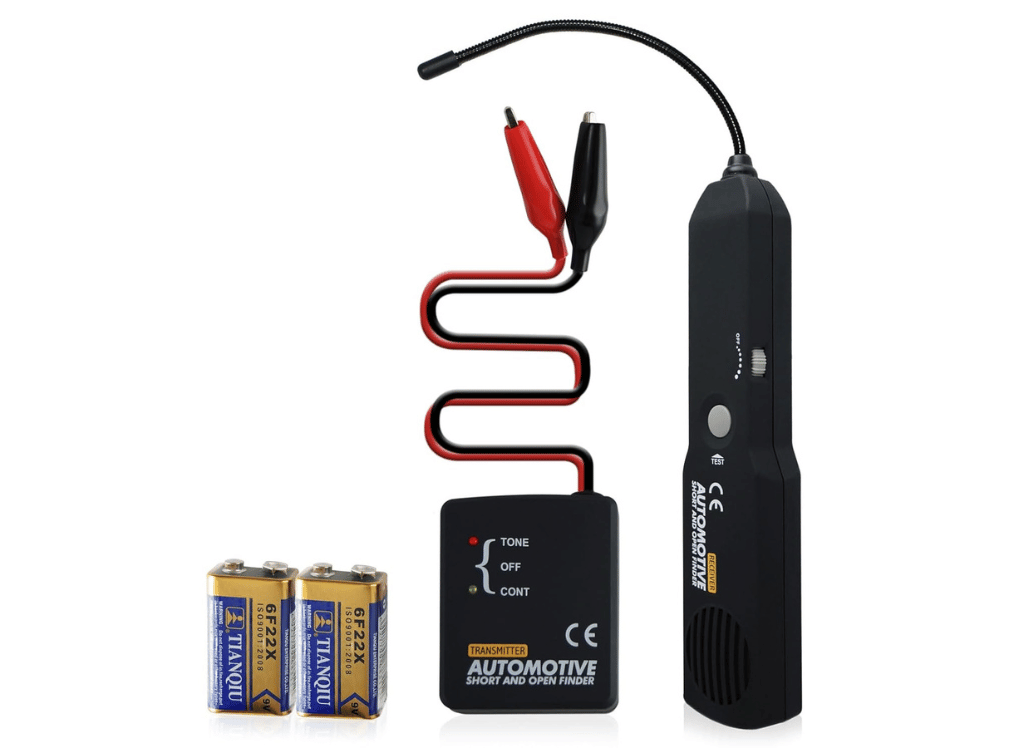

Gain Express Automotive Electrical Open&Short Finder
Why We Like This Short Circuit Finder
The Gain Express Automotive Electrical Open&Short Finder is a powerful tool designed to streamline your automotive diagnostic processes. This battery-powered device boasts a versatile working voltage range of 6-42 volts DC, making it compatible with a wide range of circuits found in automobiles, trucks, tractors, boats, and RVs.
Designed for ease and efficiency, the Open Wire Detector feature instantly alerts you to open circuits, broken wires, and current leaks. The 7-inch flexible probe allows for easy access to congested areas, while the Tone/Off/Cont switch and LEDs provide quick and accurate diagnostics.
With the Automotive Short Circuit Finder, you can also identify intermittent circuit problems by flexing wires or connectors and listening for changes in the receiver tone. Its compact design and lightweight of 10.6 ounces make it a convenient tool to have on hand for any automotive electrical troubleshooting.
Constructed with durability in mind, this circuit tester features red and black test leads that measure 61cm in length, perfect for reaching wires in tight spaces. Don't let short circuits slow you down; invest in the Gain Express Automotive Electrical Open&Short Finder for quick and easy diagnostics. Incorporate it into your toolkit, and experience efficient automotive electrical troubleshooting like never before. Whether it's locating shorts quickly before removing upholstery or metal parts, this circuit tester has got you covered. Don't let faulty circuits impede your progress, trust the Gain Express Automotive Electrical Open&Short Finder to get the job done.
About This Tool:
- Versatility: Compatible with a wide range of circuits, including automobiles, trucks, tractors, boats, RVs, and more.
- Efficiency: Instantly detects and alerts you to open circuits, broken wires, and current leaks.
- Precision: Comes with a 7-inch flexible probe for reaching wires in congested areas.
- Convenience: Lightweight and compact, perfect for on-the-go diagnostics.
- Reliability: Constructed for durability, featuring red and black test lead cables measuring 61cm in length.
- Fast Diagnostics: Allows for rapid and accurate identification of short circuits and intermittent circuit problems.
Frequently Asked Questions About an Electrical Short Finder
What Is an Electrical Short Finder?
An Electrical Short Finder is a tool used by electricians to quickly identify short circuits in electrical systems. It helps save time and effort when troubleshooting circuit issues.
How Does an Electrical Short Finder Work?
Electrical Short Finders use advanced technology to send out signals through the electrical circuit. When a short circuit is detected, the signals change and indicate the location of the short. The tool also has visual and audible alerts to make it easier for the user to pinpoint the exact location.
Is an Electrical Short Finder Easy To Use?
Yes, most Electrical Short Finders are designed with simplicity in mind. They typically have intuitive controls and come with clear instructions on how to use them. However, it is important to have some knowledge about electrical systems before using one.
Can Electrical Short Finders Be Used for All Types of Short Circuits?
While most Electrical Short Finders are versatile and can detect various types of short circuits, it is important to check the specifications of a particular model before purchasing. Some may be designed for specific types of circuits or have limitations on the voltage they can detect. Smaller-style testers will use AAA batteries to operate
Are There Any Safety Precautions To Consider When Using an Electrical Short Finder?
As with any electrical equipment, it is important to follow proper safety protocols when using an Electrical Short Finder. This includes wearing appropriate personal protective gear, ensuring the tool is properly calibrated and not touching live wires while testing for short circuits. It is also recommended to have a qualified electrician supervise or assist when using the tool for the first time.
Final Thoughts About Electrical Short Finder
In conclusion, the Electrical Short Finder is an essential tool for any electrician or mechanic. It provides a fast and efficient way to locate electrical shorts, saving both time and money in repairs. With its advanced technology and user-friendly design, it offers accurate results without the need for complex procedures.
Furthermore, this tool also ensures the safety of individuals working with electricity by quickly identifying potential hazards. Its compact and portable nature makes it a convenient choice for on-site jobs.
As technology continues to evolve, the Electrical Short Finder is constantly being updated with new features and capabilities, making it an indispensable tool for any professional in the electrical field.
Check the current price and tap the cart buy button for your next favorite tool that can locate shorts quickly without the need to remove upholstery or panels.
