Measure With Precision: Sleeve Height and Counter Bore Gauge
Ensure accurate measurements in your diesel engine with Sleeve Height and Counter Bore Gauge. They are designed for precision and durability.
Welcome to Mechanicaddicts. As an Amazon Associate, we earn from qualifying purchases (at no cost to you) from links found within these pages if you choose to buy something. Amazon and the Amazon logo are trademarks of Amazon.com, Inc. or its affiliates.
A sleeve height and counterbore gauge is a precision tool that measures the height and depth of sleeves, bores, and counterbores in engines. This gauge type allows mechanics to accurately determine the distance between two points within an engine, providing necessary measurements for proper assembly and maintenance.
How Mechanicaddicts Chooses the Sleeve Height and Counter Bore Gauge
The right tools are essential for precision measurements in engine assembly and maintenance. That's why at Mechanicaddicts, we understand the importance of choosing the best Sleeve Height and Counter Bore Gauge on the market. Our team of expert reviewers has spent time researching various gauges to provide you with reliable and accurate recommendations for your specific needs.
Why We Like It

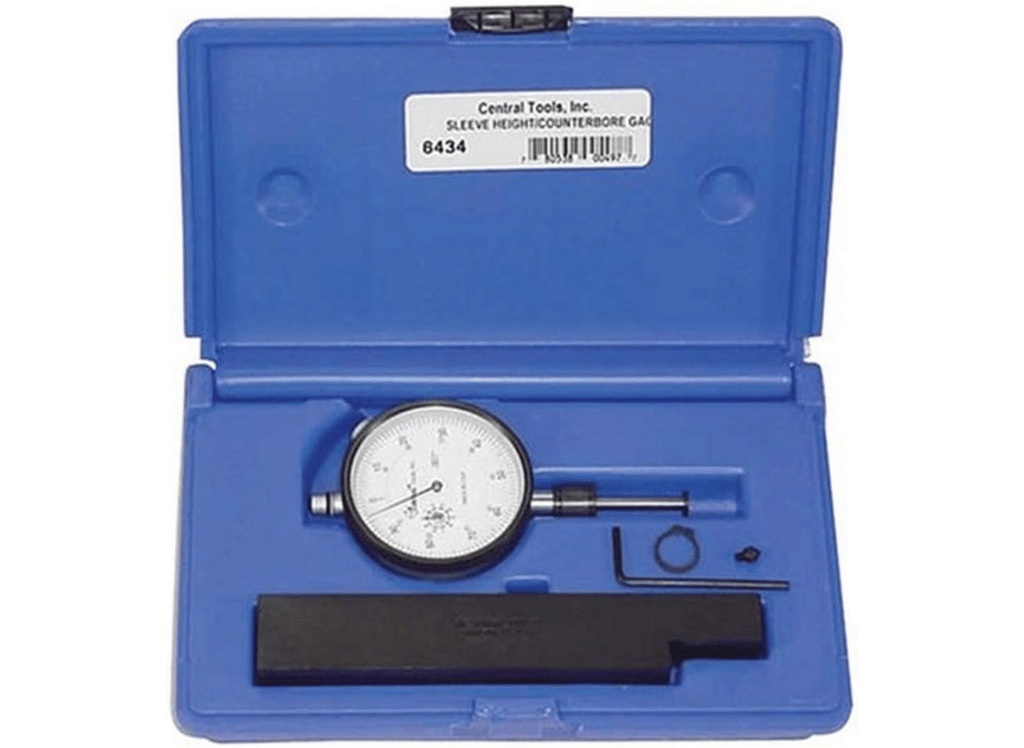

Central Tools 6434 Sleeve Height and Counter Bore Gauge is your go-to tool for precise measurements in many diesel engines (range capacities). This versatile gauge is designed to fit all diesel engines, making it a must-have for any professional mechanic or DIY enthusiast.
With a range of 1.00", graduation of .001", and reading from 0-100, this versatile gauge quickly measures and provides accurate readings for various engine measurements such as sleeve height and counterbore, cylinder sleeve height, flat end contact, piston to deck height, valve protrusion, and more. Its pointed contact ensures precise measurement every time.
Crafted by the renowned brand Central Tools, this 1.5-pound gauge boasts excellent quality and durability, making it a reliable tool for all your engine measurement needs. Its compact size, measuring 8 x 2.2 x 4.9 inches, makes it easy to store and carry around.
This versatile gauge is designed to make precise measurements of cylinder sleeve height, counterbore depth, top dead center, piston-to-deck height, and valve protrusion with ease and efficiency.
About This Tool:
- Versatile Functionality: Fits all diesel engines for comprehensive engine measurement.
- Precise Measurements: Range of 1.00" with .001" graduation for accurate sleeve height and counterbore readings.
- Wide Application: Suitable for measuring cylinder sleeve height, piston to deck height, valve protrusion, and more.
- Pointed Contact Design: Ensures precise measurement for critical engine parameters.
- Renowned Quality: Crafted by Central Tools, known for good quality and reliability.
- User-Friendly: Provides easy readings and comes in a portable size (8 x 2.2 x 4.9 inches) for convenience.
- Professional Grade: Ideal tool for both professional mechanics and DIY enthusiasts.
Why We Like It

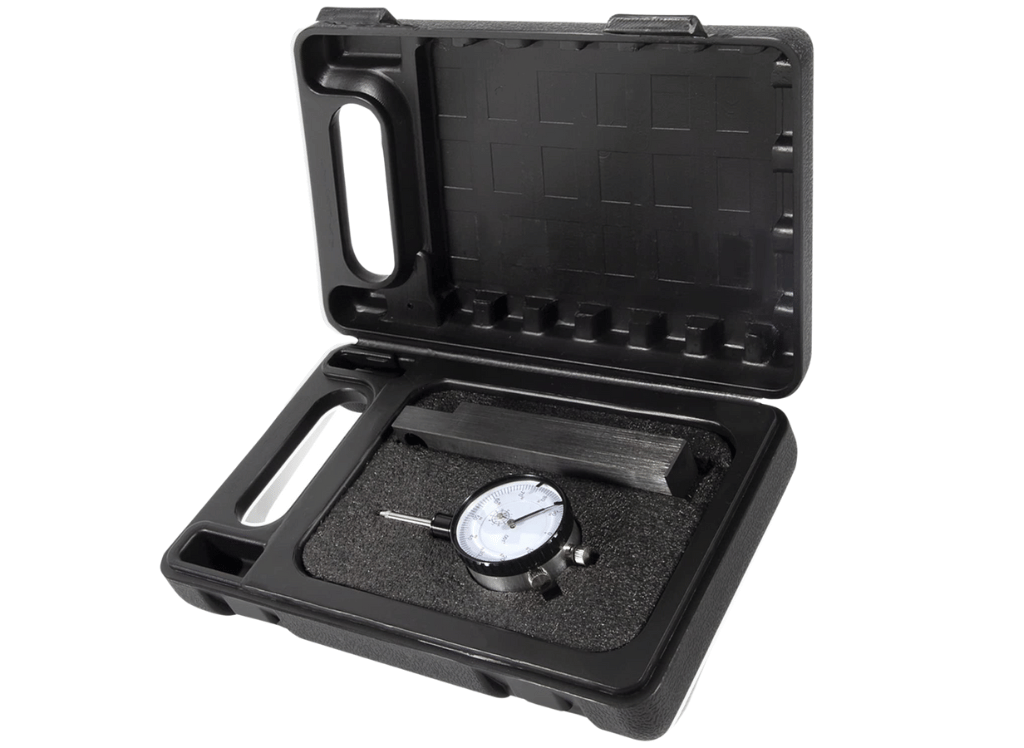

Sixcow 6434 Sleeve Height & Counter Bore Gauge is the ultimate tool for all diesel engine enthusiasts and professionals. This versatile gauge is designed to make precise measurements of cylinder sleeve height, counterbore depth, top dead center, piston-to-deck height, and valve protrusion with ease and efficiency.
Equipped with a 1-inch dial indicator, this gauge has a wide range of 0-1.00" and a graduation of 0.001", ensuring accurate readings throughout the bore. The sturdy construction of real steel makes it durable, shock-proof, and perfect for industrial use.
The pointed contact allows for precise measurement of cylinder sleeve height, while the sleeve height flat contact measures counter-bore depth effortlessly. It can also measure top dead center, piston-to-deck height, and valve protrusion, making it a versatile tool for all your engine needs.
Compatible with all diesel engines, this gauge is a must-have for any mechanic or enthusiast. Its compact design and easy-to-use features make it the perfect addition to any tool collection. Don't just take our word for it. Try the Sixcow 6434 Sleeve Height & Counter Bore Gauge and see the results. Available at a good price, this gauge will exceed your expectations and become an essential tool in your arsenal.
About This Tool:
- Broad Compatibility: Suitable for all diesel engines.
- Versatile Measurements: Measures cylinder sleeve height, counter bore depth, top dead center, piston-to-deck height, and valve protrusion.
- High Precision: Features a range of 0-1.00" with a graduation of 0.001" for accurate readings.
- Durable Construction: Made from hardened real steel for longevity and shock resistance.
- User-Friendly Design: Compact and easy to use, ensuring seamless operation.
- Professional Quality: Engineered for industrial use, offering reliability and durability.
Why We Like It

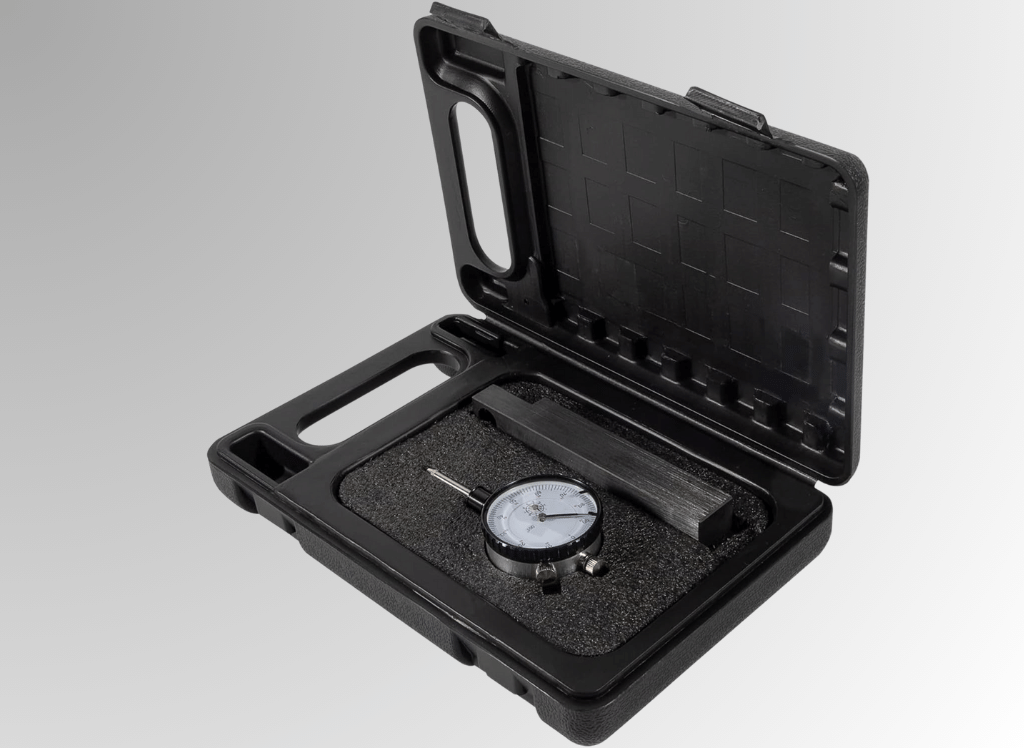

The E-Cowlboy 6434 Sleeve Height and Counter Bore Gauge is a versatile and professional measurement tool designed to ensure accuracy in your work. This gauge is crafted explicitly for diesel engines, making it compatible with many vehicles. With its pointed contact for cylinder sleeve height and flat end contact for counterbore depth, this gauge provides precise measurements for all your engine needs.
Featuring a rotatable bezel with a clamp for easy zero set and interchangeable markers for reference points, this gauge offers convenience and ease of use. The limit markers can be easily moved without interfering with the clamp, making it a hassle-free experience. The lug back with a 1/4 hole also allows for secure attachment to any surface.
Crafted with a premium-grade rugged stainless steel rack, stem, spindle, contact point, and jeweled bearings for high sensitivity and accuracy, this gauge guarantees durability and reliability. The hard-coated crystal dial face is scratch-resistant with an anti-glare finish, ensuring precise readings even in bright light conditions. Furthermore, it is waterproof, dustproof, and shockproof to withstand any working environment.
About This Tool:
- Excellentranging from Compatibility: Fits all diesel engines perfectly.
- Precision Measurement: Offers detailed readings ranging from 0-1" and graduations of 0.001".
- Easy to Use: Features a rotatable bezel with clamp for simple zero setting; interchangeable and limit markers enhance measurement reference and flexibility.
- Durability and Reliability: Constructed from premium grade hard stainless steel with jeweled bearings for increased sensitivity and accuracy.
- Enhanced Visibility: The coated crystal dial face provides scratch resistance and an anti-glare finish for precise readings.
- Environmental Resilience: Waterproof, dustproof, and shockproof design ensures long-lasting performance in any condition.
- Complete Kit: Includes dial indicator, base, flat and pointed contacts, hex wrench, and a carrying case for mobility and storage.
Why We Like It

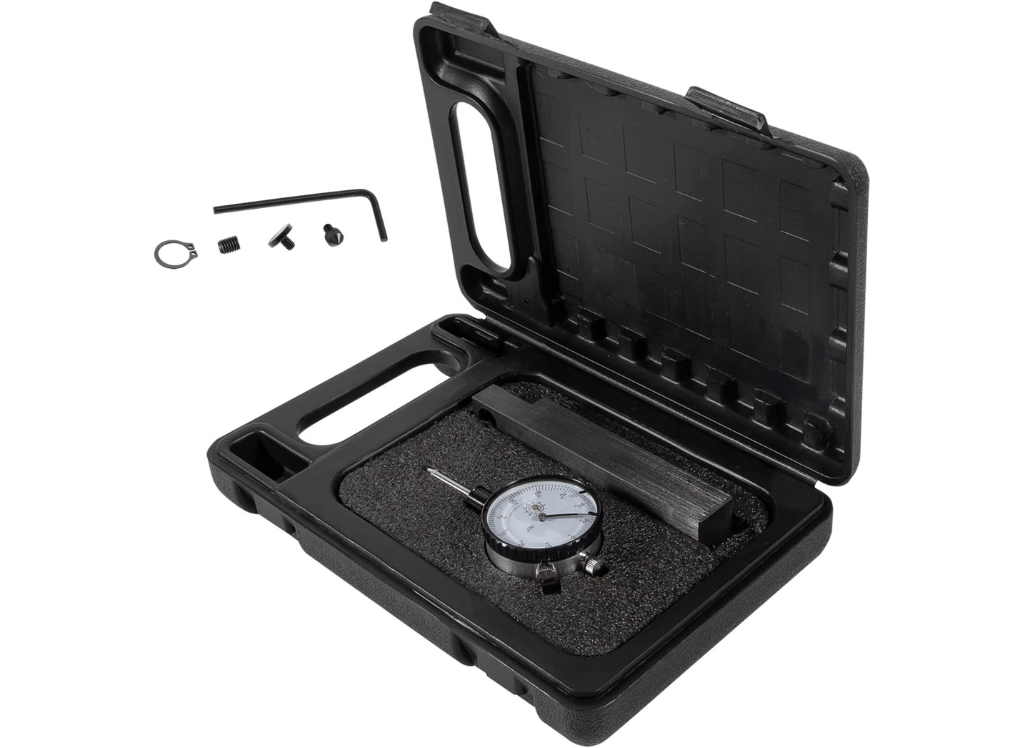

The Besttruck 6434 Sleeve Height and Counter Bore Gauge are perfect for all your diesel engine measurement needs. Crafted with precision, this gauge is made from high-quality, hardened steel and aluminum alloy to ensure durability and accuracy in every use.
With a range of up to 1.00 inch, this universal kit fits all diesel engines and boasts a measurement graduation of .001 inch, providing precise readings from 0-100. The hard-coated crystal dial face adds to the gauge's durability and reduces the risk of scratches and corrosion.
The quick measurement steps make it easy for various purposes, such as measuring cylinder sleeve height using pointed contact, counter bore depth using flat end contact, top dead center, piston-to-deck height, and valve protrusion. The easy-to-read dial indicator allows quick and accurate measurements around the entire bore. This kit includes a 4374-Dial Indicator, 4375-Base, 4377-Flat Contact Point, 4378-Pointed Contact Point, retaining ring, hex wrench & carrying case.
About This Tool:
- Universal Compatibility: Fits all diesel engines with a range of up to 1.00 inches.
- Precision Measurement: Graduations of .001 inch for readings from 0-100.
- High-Quality Materials: Made from hardened steel and aluminum alloy for durability and accuracy.
- Scratch and Corrosion Resistant: Hard-coated crystal dial face protects against wear.
- Easy to Use: Quick measurement steps for a variety of engine measurements.
- Comprehensive Kit: Includes dial indicator, base, contact points, retaining ring, hex wrench, and carrying case.
- Versatile Applications: Suitable for measuring cylinder sleeve height, counter bore depth, top dead center, and more.
Sleeve Height and Counter Bore Gauge FAQs:
What Is a Sleeve Height and Counter Bore Gauge?
Sleeve Height and Counter Bore Gauge is a precision tool used in machining to measure the height of sleeves and counter bores accurately. It consists of a main body with an adjustable sleeve, which enables it to fit different sizes of sleeves or counterbores.
How Does a Why We Like This Cylinder Sleeve Height and Counterbore Tool Work?
The adjustable sleeve of the gauge is inserted into the sleeve or counterbore to be measured. The gauge is then adjusted until it fits snugly, and the measurement can be read from the scale on the main body of the gauge.
What Are the Benefits of Using a Sleeve Height and Counter Bore Gauge?
Using a Sleeve Height and Counter Bore Gauge ensures accurate and precise measurements, which is crucial in machining. It also saves time and effort compared to manual measurement methods.
What Are the Types of Sleeve Height and Counter Bore Gauges Available?
Two main types of Sleeve Height and counterbore gauges are internal and external. Internal gauges are used to measure the inside diameter of components, while external gauges are used to measure the outside diameter.
Final Thoughts About Sleeve Height and Counter Bore Gauge
In conclusion, sleeve height and counterbore gauges are essential in various manufacturing, automotive, and aerospace industries. These gauges provide accurate measurements for hole depths, ensuring precision in producing parts and components.
Moreover, these gauges are versatile tools that measure internal and external dimensions, making them valuable for quality control processes. They are also user-friendly and portable, allowing easy use in different work environments. Always complete your (own review) and confidently pick up the tool you want.
