Proform Pinion Depth Tool 66516: The Complete Guide
Use the Proform Pinion Setting Tools 66516 to measure pinion depth accurately. with a step-by-step setup guide, reviews, and where to buy.
The Proform Pinion Setting Tools 66516 (part number PRO-66516) is a universal pinion depth tool kit designed for most cars and trucks. It includes a 0–1.000 inch dial indicator, extensions, a red anodized aluminum fixture, and a storage case, everything needed to measure pinion gear depth and protect drivetrain components accurately.
Getting pinion depth wrong is one of the most expensive mistakes you can make when rebuilding a rear end. The gears wear faster, the bearings take on unnecessary stress, and the whining noise that follows is a constant reminder that something went wrong during installation. That's why having the right pinion setting tool isn't optional; it's essential.
The Proform Pinion Setting Tools 66516 is a universal pinion depth gauge kit designed to work on the rear axles of most automobiles. Whether you're working on a GM truck, a Dana axle, or a performance build that demands precision, this tool helps you get the measurement right the first time. Priced at $109.99 and available through Summit Racing, it sits in the sweet spot between budget options and professional-grade equipment.
This guide covers everything you need to know, how pinion depth works, why it matters, how to use the Proform 66516 step by step, common mistakes to avoid, and what real customers say about it. By the end, you'll know exactly whether this is the right tool for your build.

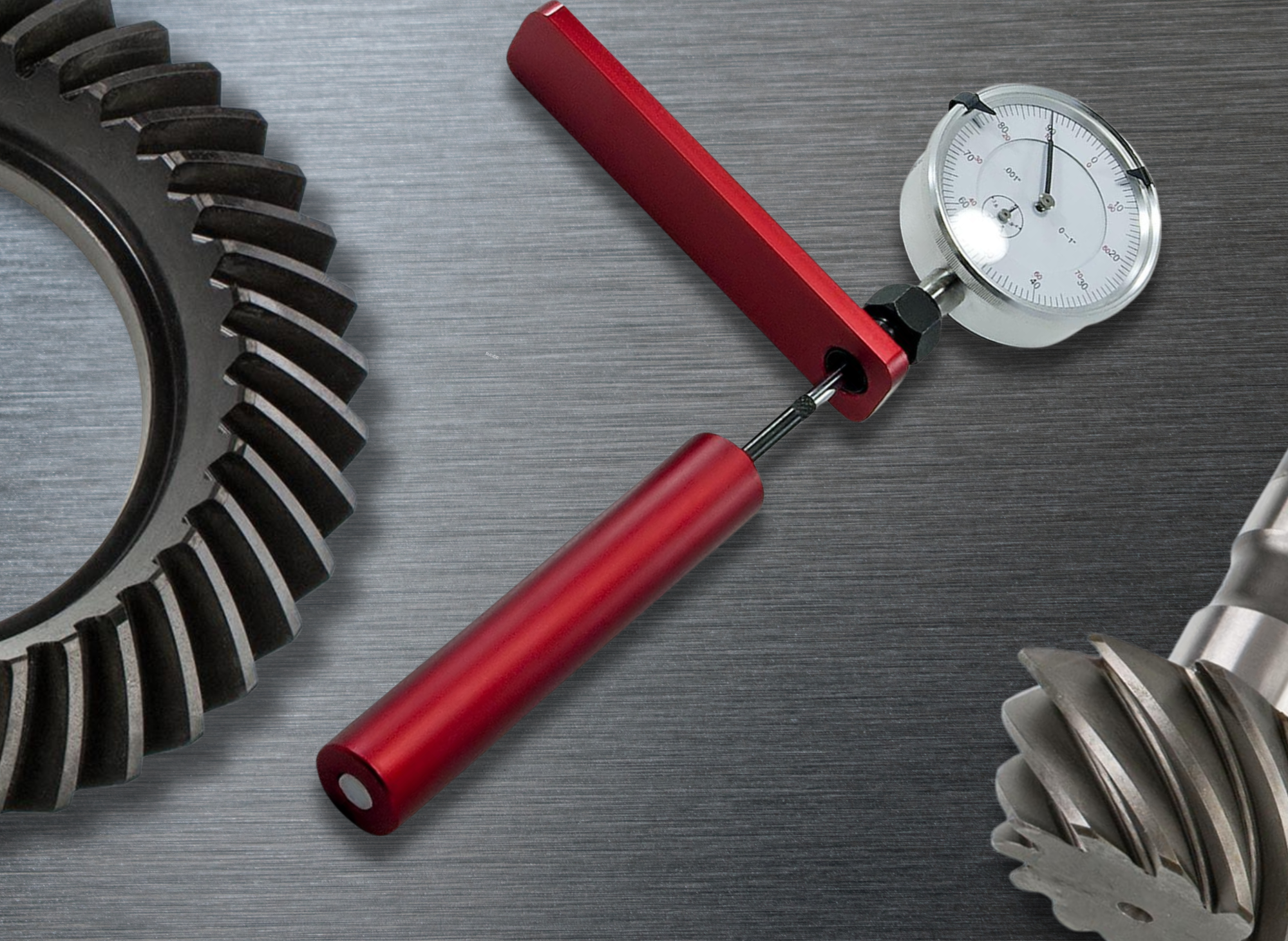

Proform Pinion Setting Tools 66516
Pinion Depth Gauge, Dial Indicator, 0-1.000 in., Extensions, Red Anodized Aluminum Fixture, Storage Case, Kit
Why Does Pinion Angle and Pinion Depth Matter for Performance?
Pinion depth refers to the distance between the pinion gear and the centerline of the ring gear. It controls how the ring and pinion gears mesh together inside the differential housing. Set it correctly, and the gears transfer power smoothly and quietly. Set it even slightly off, and the contact pattern shifts, leading to premature wear, excess heat, and gear failure.
Pinion angle, while related, refers to the angle of the driveshaft relative to the axle. Both settings affect how loads are distributed across the drivetrain. In performance applications, drag racing, off-road trucks, or high-horsepower street builds, these tolerances become even more critical. A stock replacement gear set might forgive minor errors. A high-performance ring-and-pinion setup will not.
The bottom line: accurate pinion depth is the foundation of a reliable, long-lasting rear end.
How Pinion Depth Affects Gear Longevity and Drivetrain Efficiency
Every ring-and-pinion gear set ships with a recommended pinion depth specification, typically etched or stamped on the pinion gear itself. The goal is to achieve the correct contact pattern, confirmed using gear marking compound and a paint pattern check, so the load is spread evenly across the gear teeth.
When the pinion depth is too shallow or too deep, several problems follow:
- Accelerated gear wear from concentrated contact at the tip or root of the gear teeth
- Increased heat buildup, which degrades gear oil and damages bearings faster
- Noise and vibration, including whining, howling, or clunking under load
- Bearing failure, since improper depth also affects preload distribution on the pinion nut and bearings
Setting depth correctly also reduces the number of shim adjustments required, saving time and money on parts. The right universal pinion setting tool takes the guesswork out of this process entirely.
Introducing the Proform Pinion Setting Tools 66516: Features and Benefits
The Proform 66516 is a complete pinion depth gauge kit built for do-it-yourself mechanics and professional builders alike. It's designed to work across most automobiles, cars, and trucks, making it a genuinely versatile tool for any shop.
What's Included in the Proform 66516 Kit?

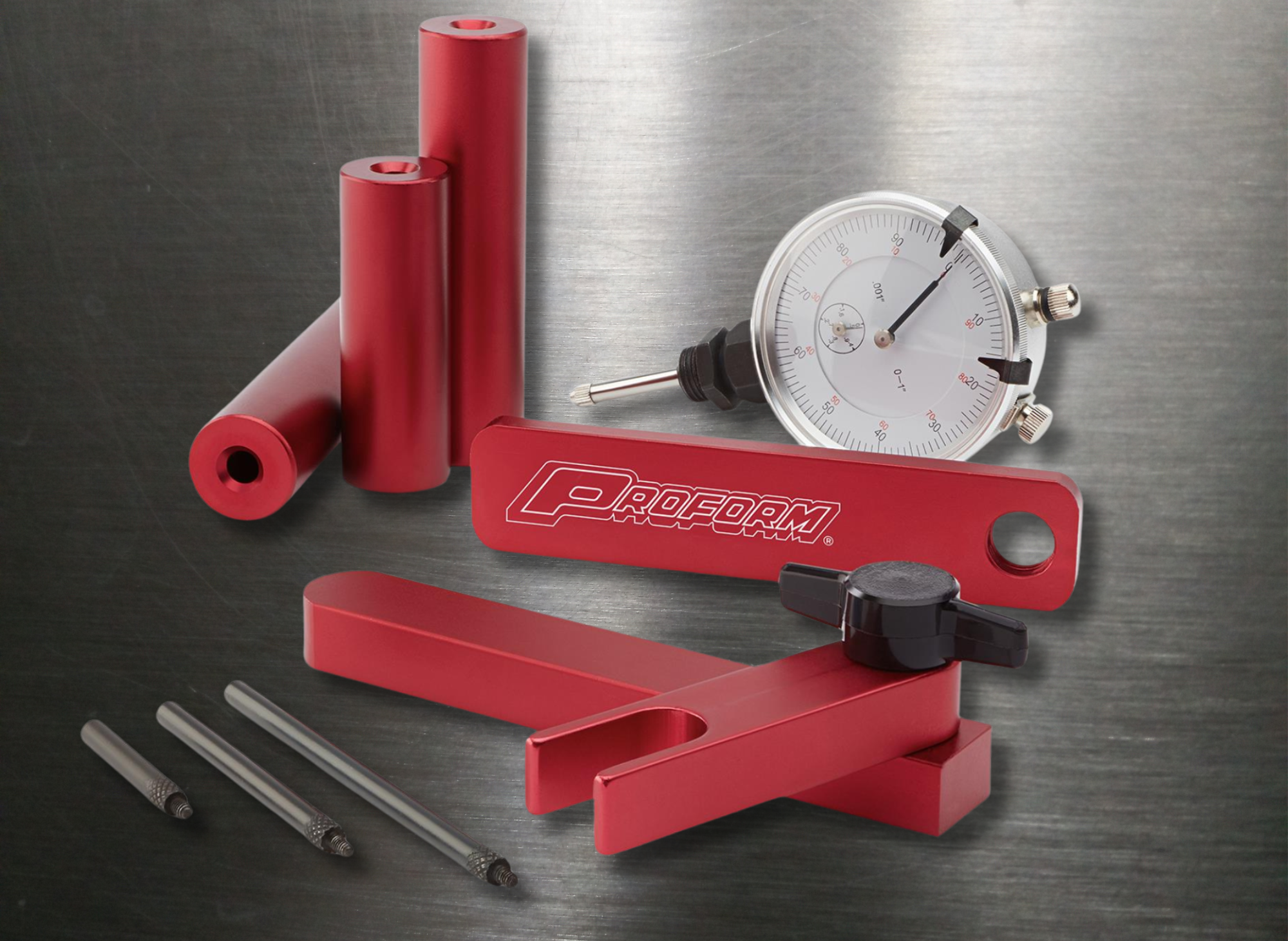

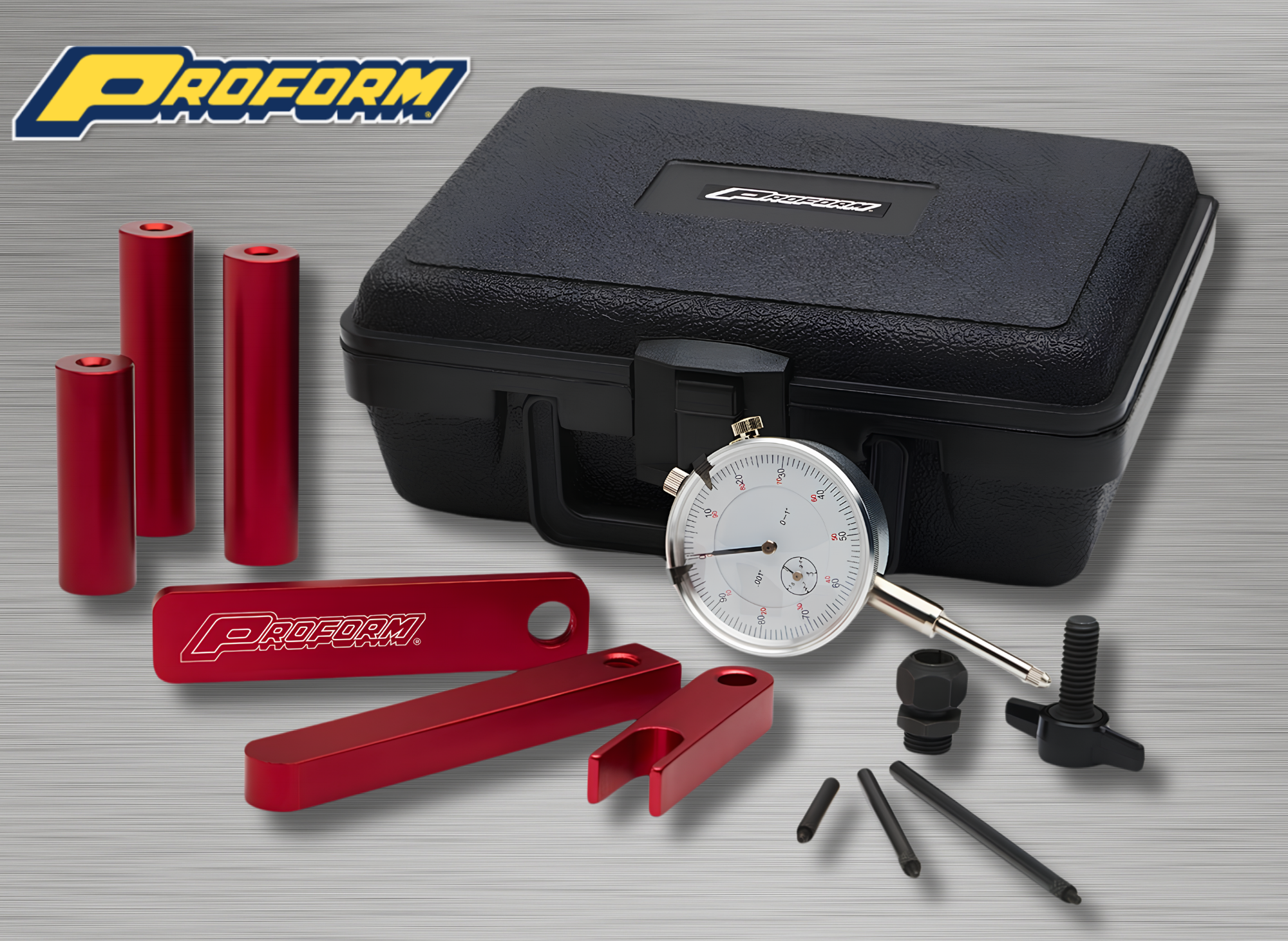

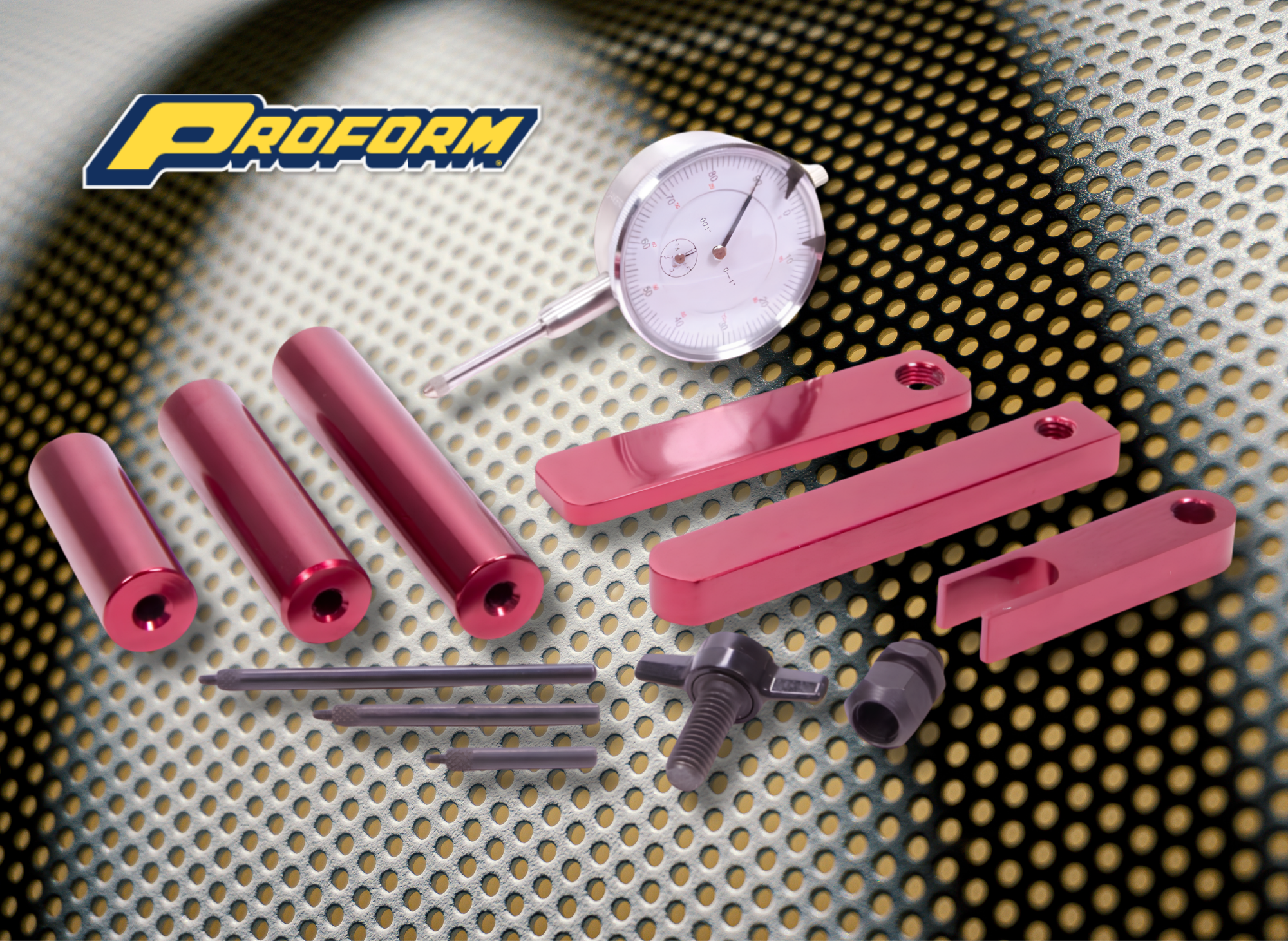

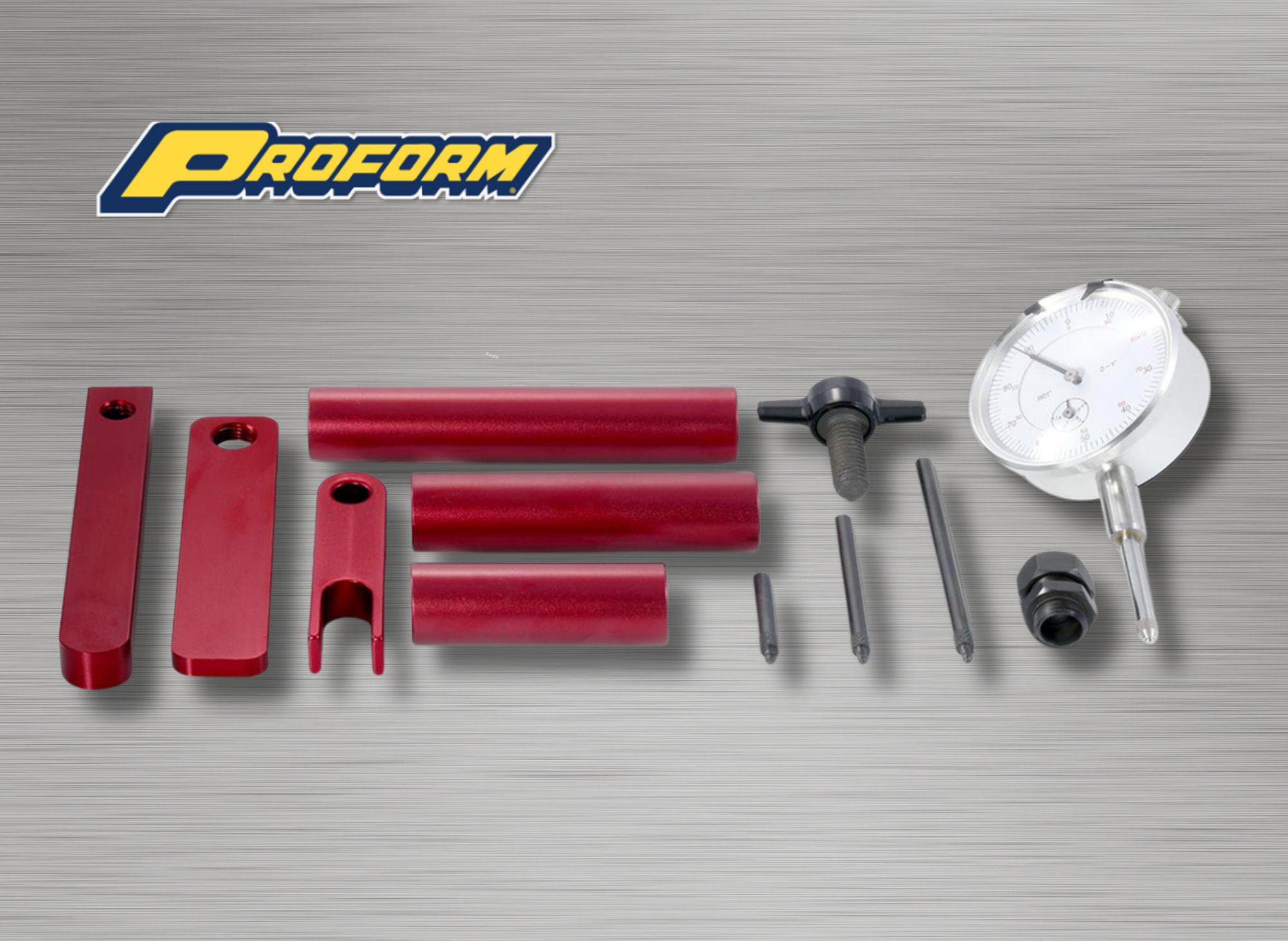

The Proform Pinion Setting Tools 66516 ships as a complete kit with the following components:
- Dial indicator with a 0–1.000 inch measurement range and 0.001 inch increments
- Extensions for reaching into different axle configurations
- Red anodized aluminum fixture for mounting and stabilizing the gauge during use
- Storage case to keep all components organized and protected between jobs
Every item needed to measure pinion depth is included in the box; no separate purchases are required.
Precision Measurement: Understanding the 0–1.000 Inch Dial Indicator Range
The included dial indicator measures in 0.001-inch increments across a 0–1.000-inch range. This level of precision is critical when working with gear sets, where even small errors can push the contact pattern outside the acceptable range.
For reference, most pinion depth specifications call for accuracy within a few thousandths of an inch, so a dial indicator that reads in 0.001-inch increments gives you the resolution you need to hit that target.
Durable Construction: Aluminum Gauge Material with Red Finish
The fixture is machined from aluminum and finished in red anodized coating. Aluminum offers a good balance of strength and weight, and the anodized finish resists corrosion and wear over time. The red finish also makes it easy to spot in a busy shop environment.
User-Friendly Design for Accurate Readings
The kit is designed with a straightforward setup in mind. The fixture threads into the pinion bore, the extensions adjust for different axle depths, and the dial indicator threads into the fixture for a stable, repeatable read. This approach reduces measurement error caused by tool movement during the reading process.
How to Use the Proform Pinion Setting Tools 66516: Step-by-Step Guide
Step 1: Preparation, Safety First, and Gathering Necessary Tools
Before starting, make sure the vehicle is securely supported on jack stands and the rear end is drained if necessary. You'll need the Proform 66516 kit, gear marking compound, a clean rag, and the manufacturer's pinion depth specification for your specific ring and pinion set. Have your shims and pinion nut ready as well.
Step 2: Installing the Pinion
Install the pinion bearing races into the housing if not already done. Dry-fit the pinion with the appropriate bearings, without seals or crush sleeve, at this stage, so you can measure and adjust depth before final assembly. Install the pinion nut to the correct preload specification to get an accurate reading from the stand.
Step 3: Using the Proform Gauge as a Pinion Depth Setting Tool
Thread the red anodized aluminum fixture into the pinion bore. Attach the appropriate extension for your axle configuration, then mount the dial indicator. Zero the indicator on a known reference surface, then measure the distance from the pinion head to the centerline of the ring gear bore. Compare this reading to the specification stamped on your pinion gear.
Step 4: Interpreting Readings and Making Adjustments
If your measurement differs from the specification, adjust your shim stack accordingly. Adding shims moves the pinion deeper into the housing; removing shims brings it closer to the ring gear. Each 0.001-inch change in shim thickness moves the contact pattern noticeably, so work in small increments.
After adjusting, apply gear marking compound to several ring gear teeth, rotate the pinion through a full load cycle, and check the contact pattern. A correctly set pinion will show a centered pattern on the ring gear tooth.
Step 5: Double-Checking Your Work
Repeat the measurement with the Proform 66516 after each shim adjustment. Don't rely solely on the contact pattern; confirm the depth reading matches the specification before moving to final assembly. This double-check step is where having a reliable, accurate pinion depth tool pays off most.
Common Mistakes to Avoid When Setting Pinion Depth
Even experienced builders run into problems during pinion setup. Here are the most common errors and how to avoid them:
- Skipping the dry-fit stage: Always measure depth before final assembly. Setting the pinion nut to final torque before confirming depth wastes a crush sleeve and costs time.
- Ignoring the variance etched on the pinion: Most pinion gears have a +/- variance stamped on the head. This is the actual measured deviation from nominal for that specific gear; always account for it.
- Using a worn or poorly zeroed dial indicator: A dial indicator that doesn't zero consistently will introduce error into every reading. Check calibration before you start.
- Not rechecking after adjustments: Each shim change requires a new measurement. One adjustment rarely puts you exactly on target.
- Confusing pinion depth with pinion preload: These are two separate adjustments. Setting depth with the Proform 66516 comes first; preload via the pinion nut and bearings comes after.
Why the Proform 66516 Universal Pinion Setting Tool Stands Out from the Competition
At $109.99, the Proform Pinion Setting Tools 66516 occupies a practical middle ground. Professional pinion depth gauge sets from machinist-grade suppliers can cost several hundred dollars. Cheap alternatives often lack the measurement precision or compatibility needed for accurate work.
The Proform 66516 distinguishes itself in a few key areas:
- Universal compatibility: Works on the rear axles of most cars and trucks, including GM, Dana, and other common configurations, making it a single purchase that covers a wide range of builds
- Complete kit: No need to source extensions or fixtures separately; everything ships together in one storage case
- Dial indicator precision: 0.001-inch increments meet the accuracy requirements of most ring and pinion gear specifications
- Aluminum construction: More durable than plastic-bodied alternatives, with a finish that holds up to repeated shop use
For a DIY builder or a small shop that doesn't want to invest in top-tier professional tooling, the Proform 66516 offers a strong value proposition.
What Customers Say: Proform 66516 Reviews
The Proform Pinion Setting Tools 66516 holds a 3.25 out of 5 stars rating based on 52 customer reviews on Summit Racing. That average reflects a split in customer experience worth understanding before you buy.
Customers who report positive results consistently note that the tool works great when used correctly and that some users report the ProForm tool provides accurate pinion position, with measurement accuracy sufficient for most rear-end rebuilds.
A lot of positive reviewers felt the complete kit delivered solid value or usable accuracy for typical rebuilds, with a dial indicator, extensions, and a storage case for under $110. Several customers mention using it successfully on GM trucks and Dana axles without issue.
Critical reviews tend to focus on two areas: setup difficulty and fitment. Some customers report that the fixture didn't thread correctly into their specific axle without modification, while others noted confusion during the setup process due to limited instructions. A handful of reviewers flagged errors in the included instruction sheet, which caused frustration during first-time use.
The takeaway: the Proform 66516 works well for its intended purpose, but success often depends on familiarity with pinion depth procedures. First-time builders may want to supplement the included instructions with additional resources before starting.
Where to Buy the Proform Pinion Setting Tool 66516
The Proform Pinion Setting Tools 66516 (part number PRO-66516) is available through Summit Racing Equipment at a retail price of $109.99. Summit Racing lists the item as in stock at all locations, with an estimated ship date of today on qualifying orders.
Free shipping is available on orders of $125 or more, which makes bundling the Proform 66516 with shims, bearings, or other rear-end parts a smart way to save on delivery costs. Summit Racing also offers a Beat-A-Price Guarantee, so if you find an identical product advertised for less at a domestic competitor, they'll beat that price upon verification.
A Summit Racing Equipment Protection Plan is available at checkout, ranging from $5.99 for one year of coverage to $10.99 for three years, a worthwhile add-on for a precision measurement tool you'll use across multiple builds.
Frequently Asked Questions About the Proform Pinion Setting Tools 66516
What axles are the Proform 66516 compatible with?
The Proform Pinion Setting Tools 66516 is designed to work on the rear axles of most cars and trucks, including common GM and Dana axle configurations. The kit includes extensions to accommodate different axle depths.
Does the Proform 66516 include a dial indicator?
Yes. The kit includes a dial indicator with a 0–1.000 inch range and 0.001-inch increments, along with extensions, a red anodized aluminum fixture, and a storage case.
How accurate is the Proform 66516 dial indicator?
The dial indicator measures in 0.001-inch increments, which meets the precision requirements for most ring and pinion gear depth specifications.
Is the Proform 66516 suitable for first-time builders?
The Proform 66516 can be used by first-time builders, but some customers have noted that the included instructions have errors and that beginners may need more information beyond what comes in the box. Supplementing with a ring and pinion installation guide or video resource is recommended before starting.
What is the price of the Proform Pinion Setting Tools 66516?
The Proform 66516 is priced at $109.99 at Summit Racing Equipment. Free shipping applies to qualifying orders of $125 or more.
Can the Proform 66516 be used for high-pinion axle configurations?
The kit includes extensions designed to accommodate different axle depths, including high-pinion configurations. Check the fitment guide on Summit Racing's product page to confirm compatibility with your specific axle.
Get Your Pinion Depth Right the First Time
A ring and pinion gear set is a significant investment. The cost of a quality gear set, fresh bearings, and the labor involved in rear-end assembly adds up fast, making a precise pinion depth measurement one of the highest-value steps in the entire process.
The Proform Pinion Setting Tools 66516 gives most builders what they need: a complete dial indicator kit, aluminum construction, 0.001-inch measurement precision, and universal compatibility with the rear axles of most automobiles. At $109.99, the tool pays for itself the first time it saves a bit of trial-and-error during setup and helps prevent a costly gear failure.
If you're ready to finally measure pinion depth accurately and protect your drivetrain investment, the Proform 66516 is on sale now at Summit Racing, in stock, and ready to ship today. Place your order request and get the right tool for the job today.
