Automotive relay testers are diagnostic tools used to test the functionality and health of automotive relays, which are electrical switches that control various components in a vehicle's electrical system. These testers can help mechanics quickly identify faulty relays and ensure the proper functioning of vehicle systems. So, they play a crucial role in efficiently diagnosing and repairing automotive issues.
How Mechanicaddicts Chooses the Automotive Relay Tester
Are you searching for the most efficient and reliable automotive relay tester? Look no further than Mechanicaddicts. Our expert reviewers have spent countless hours carefully analyzing various products to provide a comprehensive guide to the best options available. Our recommendations will make diagnosing and repairing automotive issues easier and more efficient.

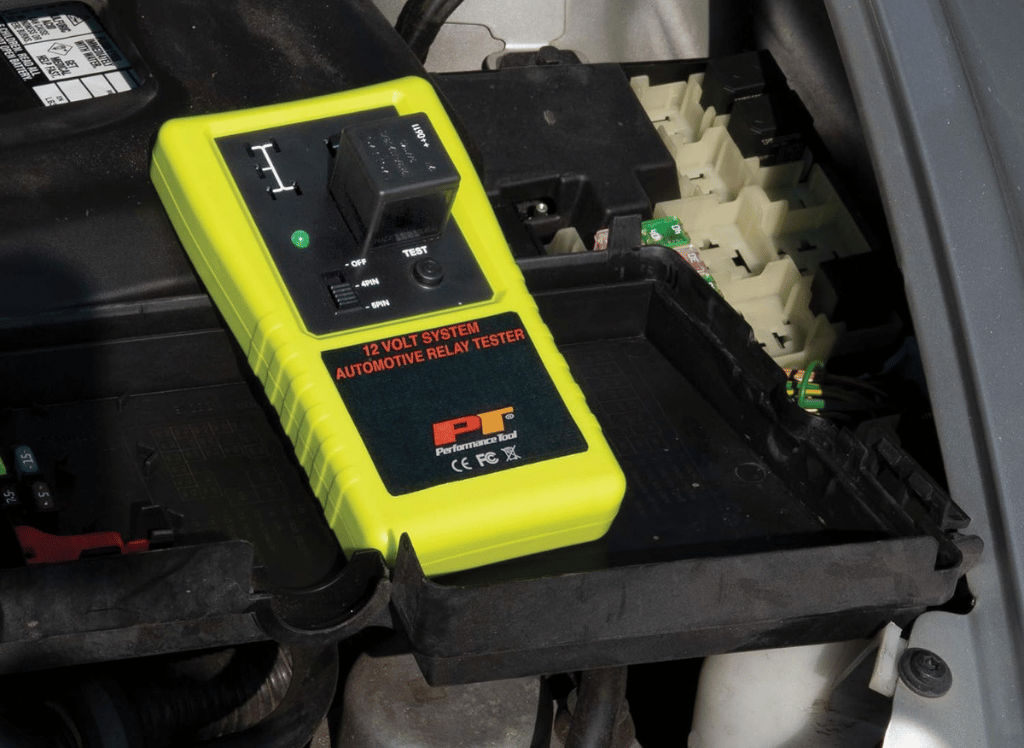

Performance Tool 3009 Compact Cordless Automotive Relay Tester
Why We Like This Tool
The Performance Tool 3009 Compact Cordless Automotive Relay Tester is a highly efficient and reliable diagnostic tool designed for testing the functionality of automotive relays. With its compact design and cordless feature, this tester allows for quick and easy testing of relays without clamping cables onto the vehicle's battery.
Its test results indicate the relay's condition, with a green light indicating a pass and a red LED indicating a fail. This tester can accurately check the relay coil for circuit breaks and switch contacts, making it suitable for testing the most common 12-volt four and 5-pin relays in today's vehicles.
The Performance Tool 3009 Compact Cordless Automotive Relay Tester is powered by four AA batteries, which are included with the purchase. With its user-friendly design and reliable performance, this relay tester is a must-have for any automotive mechanic looking to efficiently diagnose and repair vehicle issues related to relays.
About This Tool:
- Compact and Cordless Design: This makes the tester easy to handle and allows quick and easy testing without clamping cables onto the vehicle's battery.
- LED Indicators: A green LED indicates a pass and a red LED indicates a fail, providing clear and easy-to-understand test results.
- Versatile Testing Capability: Can accurately check the relay coil for circuit breaks and switch contacts, suitable for testing the most common 12-volt four and 5-pin relays.
- Battery Included: The tester is powered by four AA batteries, which are included with the purchase.
- Efficiency: With its user-friendly design and reliable performance, this tester is a must-have for any automotive mechanic looking to efficiently diagnose and repair vehicle issues related to relays.

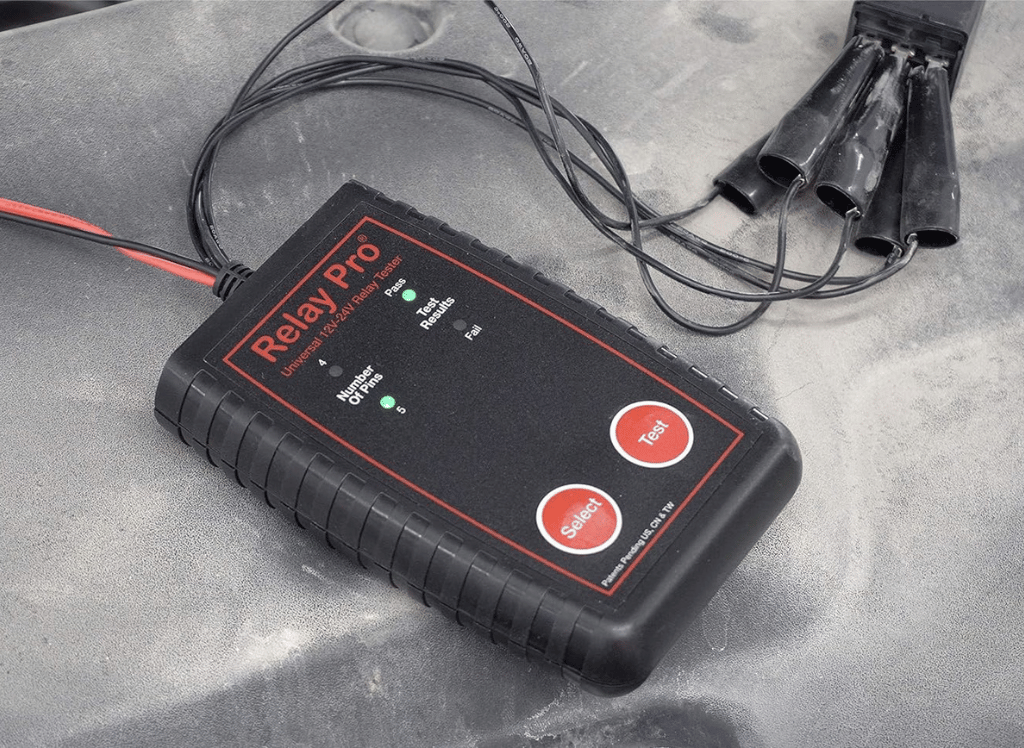

Lisle 60150 Relay Pro 12V and 24V Relay Tester
Why We Like This Tool
The Lisle 60150 Relay Pro 12V and 24V Relay Tester is a highly efficient and reliable diagnostic tool designed to test most 12- and 24-volt DC automotive relays easily. This user-friendly tester simplifies the testing process by allowing for quick and easy connection of test leads onto the relay terminal pins using a 12 or 24V DC power source.
It automatically determines the configuration of the relay coil and relay contacts, eliminating the need for specific tester footprints or adapters. With its intuitive design and precise testing capabilities, the Lisle 60150 Relay Pro is a valuable tool for any automotive mechanic looking to diagnose and repair vehicle issues related to relays efficiently.
Trust in this reliable tester to streamline your diagnostic process and ensure the proper functioning of automotive relays. So, invest in the Lisle 60150 Relay Pro for a hassle-free relay testing experience.
About This Tool:
- Lisle 60150 Relay Pro 12V and 24V Relay Tester: A reliable and efficient relay tester that simplifies the diagnostic process.
- Flexible Voltage Requirements: Can test most 12 and 24-volt DC automotive relays, catering to many vehicles.
- Ease of Use: Facilitates simple test lead connection onto relay terminal pins using a 12 or 24V DC power source.
- Automatic Configuration Detection: Automatically determines the configuration of the relay coil and contacts, eliminating the need for specific tester footprints or adapters.
- Efficiency: Streamlines the diagnostic process and ensures the proper functioning of automotive relays, reducing time and potential errors.
- Professional Recommendation: Highly recommended for automotive mechanics looking for a hassle-free relay testing experience.

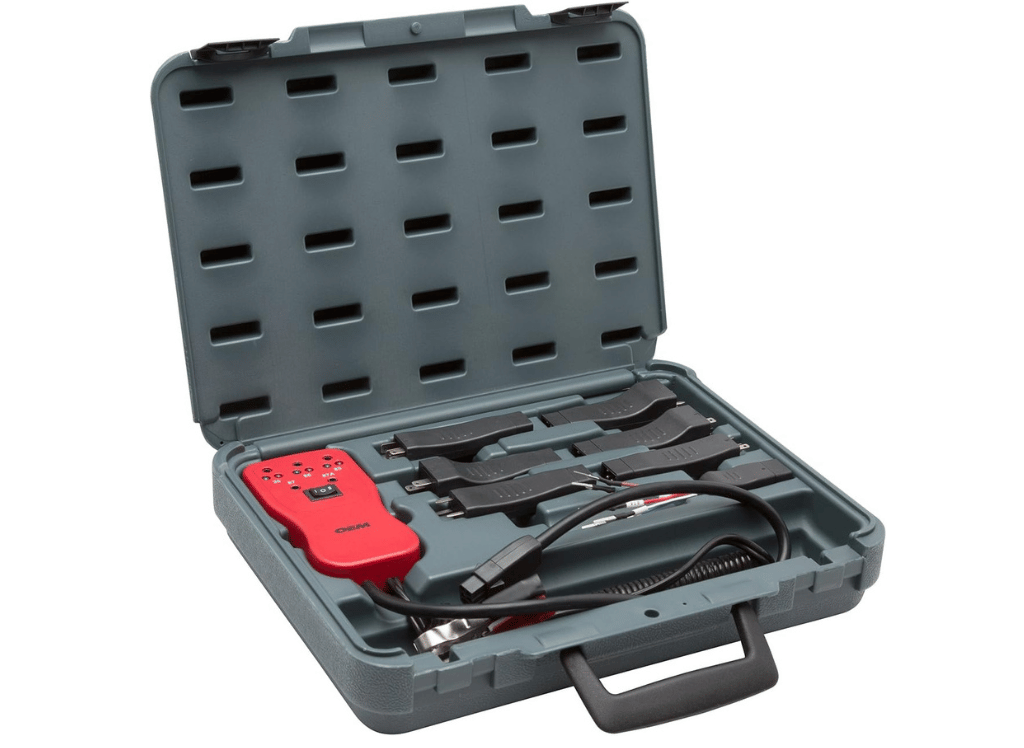

OEMtools 27211 Relay Circuit Tester Automotive Relay Tester
Why We Like This Tool
Oemtools 27211 Relay Circuit Tester Automotive Relay Tester is a must-have diagnostic tool for automotive mechanics. This reliable tester simplifies the process of testing the most common 12-volt automotive relays, ensuring efficient and accurate results every time.
Equipped with six popular auto relays and a universal relay tester lead, this kit caters to a wide range of makes and models, making it a versatile tool for any mechanic. Its easy operation allows quick testing by simply plugging the dummy relay into the fused relay block and connecting the tester to the vehicle's battery.
With its ability to test an entire circuit from the battery to the component, this tester is perfect for troubleshooting various electrical issues in vehicles. It also allows for bypassing relays, making it useful for pressure testing, distributor or camshaft adjustments, and A/C filling.
The Oemtools 27211 Relay Circuit Tester Automotive Relay Tester delivers efficient and effective results with just the push of a button, reducing relay-related diagnosis time by up to 75%. This well-designed kit comes in a convenient carrying case, keeping all necessary tools organized and ready for use.
- Near-Universal Compatibility: Equipped with six popular auto relays and a universal relay tester lead, the kit supports various vehicle makes and models.
- Easy Operation: The tester allows for quick setup and testing, reducing the time and effort involved in diagnosing electrical issues.
- Comprehensive Troubleshooting: The tool can test an entire circuit from the battery to the component, thoroughly diagnosing potential electrical problems.
- Efficient Diagnosis: With just the push of a button, this tool can identify defective wires, parts, or relays, cutting relay-related diagnosis time by 75%.
- Organized and Portable: The kit comes in a compact carrying case, making it easy to store and carry, keeping all necessary tools organized and ready for use.

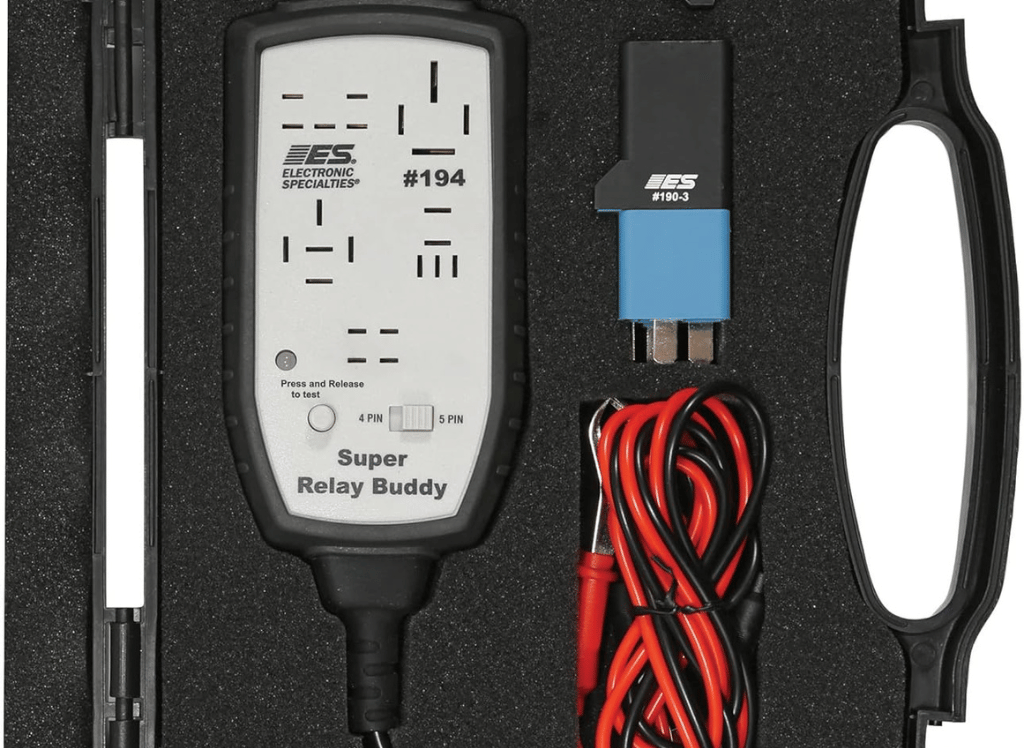

Electronic Specialties Relay Buddy Super Pro Kit
Why We Like This Tool
The Relay Buddy Super Pro Kit is an essential diagnostic tool for automotive mechanics seeking to efficiently and effectively diagnose faulty vehicle relays. With its improved testing capabilities, this kit can accurately identify bad relays, even when they show intermittent failures.
One of the standout features of this product is its ability to flag intermittently failing relays with a full 7+ amp load, providing a comprehensive testing experience. The tester also offers three test results - Green/Pass, Red/Fail, and Yellow/Pass with caution - allowing for easy interpretation of the relay's condition.
With its included adapters, this kit provides wider test coverage by checking ten different 12-volt relays commonly found in today's vehicles. Its fully automated 10-cycle test verifies the relay's condition, ensuring reliable and accurate results.
Relay buddy operates relay switch contacts through the control side and checks relay coil operation. The relay will need replacement if the relay cycles proves unsuccessful operations functions are compatible with most common automotive relays when using the automatic test session.
- Improved Testing Capabilities: The kit can accurately identify bad relays and intermittent failures, providing a comprehensive testing experience.
- Three Test Results: Offers easy interpretation of the relay's condition with three test results - Green/Pass, Red/Fail, and Yellow/Pass with Caution.
- Wide Test Coverage: Includes adapters that check ten different 12-volt relays commonly found in vehicles.
- Automated Testing: Features a fully automated 10-cycle test for verifying the relay's condition.
- Standard SAE Wiring: This product can only test relays with standard SAE wiring, as displayed on the listing.
- Efficiency and Accuracy: Known for its efficiency and ability to detect excessive resistance, making it a valuable tool for maintaining the general health of vehicles.
Automotive Relay Tester FAQs:
What Is an Automotive Relay Tester, and How Does It Work When Testing Relay Switch Contacts?
An automotive relay tester is a diagnostic tool used to test the functionality of relays in vehicles. It works by sending a small current through the relay coil and checking for continuity in the switch contacts, indicating whether the relay works properly.
Why Should I Invest in an Automotive Relay Tester?
An automotive relay tester is a valuable tool for any mechanic, as it allows for quick and accurate diagnosis of vehicle relay-related issues. This saves time and effort in troubleshooting, leading to efficient repairs and improved customer satisfaction.
How Do I Use an Automotive Relay Tester?
Typically, an automotive relay tester will receive instructions on properly using it. However, the general process involves connecting the tester to a power source and attaching the test leads to the relay's terminal pins. The tester will then indicate whether the relay is functioning correctly or not.
Can an Automotive Relay Tester Be Used for All Types of Relays?
Not necessarily. It is essential to check the product specifications and compatibility before purchasing an automotive relay tester. Some testers may only work with specific types of relays, so it is crucial to ensure compatibility for accurate and efficient testing. Ultimately, investing in an automotive relay tester can greatly benefit any mechanic, providing a quicker and more accurate diagnosis of vehicle relay issues.
Final Thoughts About the Automotive Relay Tester
In today's fast-paced automotive industry, time is of the essence for mechanics. Any tools that can help save time and improve efficiency are highly sought after. This is where an automotive relay tester comes in - a reliable and essential tool for any mechanic seeking to quickly diagnose and repair vehicle issues related to relays.
From cordless designs to automatic configuration detection, many different types of automotive relay testers are available on the market. Each one offers unique features and capabilities, making choosing the right one for your needs essential. This is a must-have tool for testing relays.
