If you run XS Power batteries in a competition car audio build, a drag car, or a weekend show vehicle, you already know that battery performance depends heavily on how you charge. The XS Power IntelliCharger 1005 is built to solve that problem. Here's everything you need to know about this battery charger-what it does, how it works, and how to use it correctly.

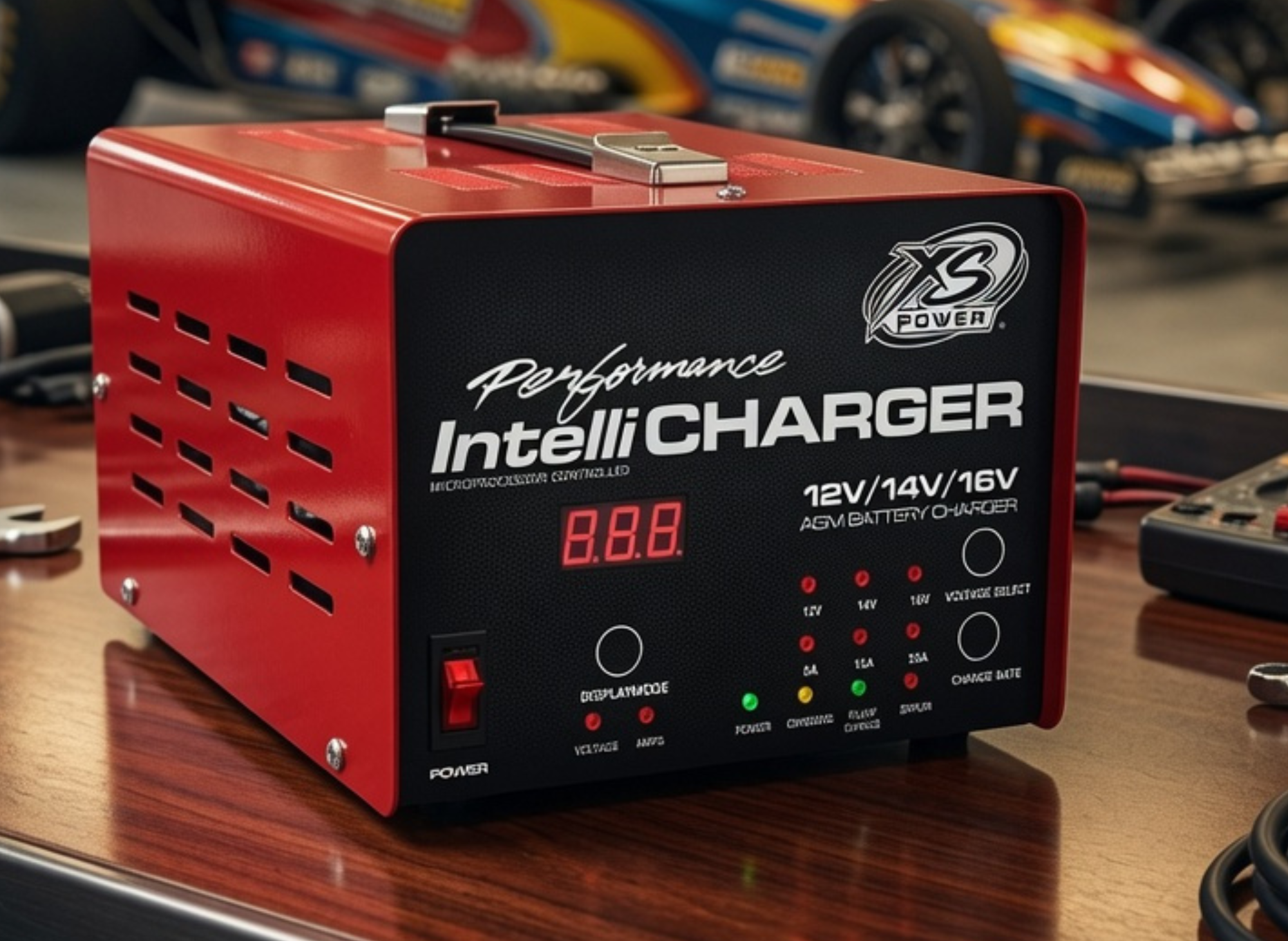

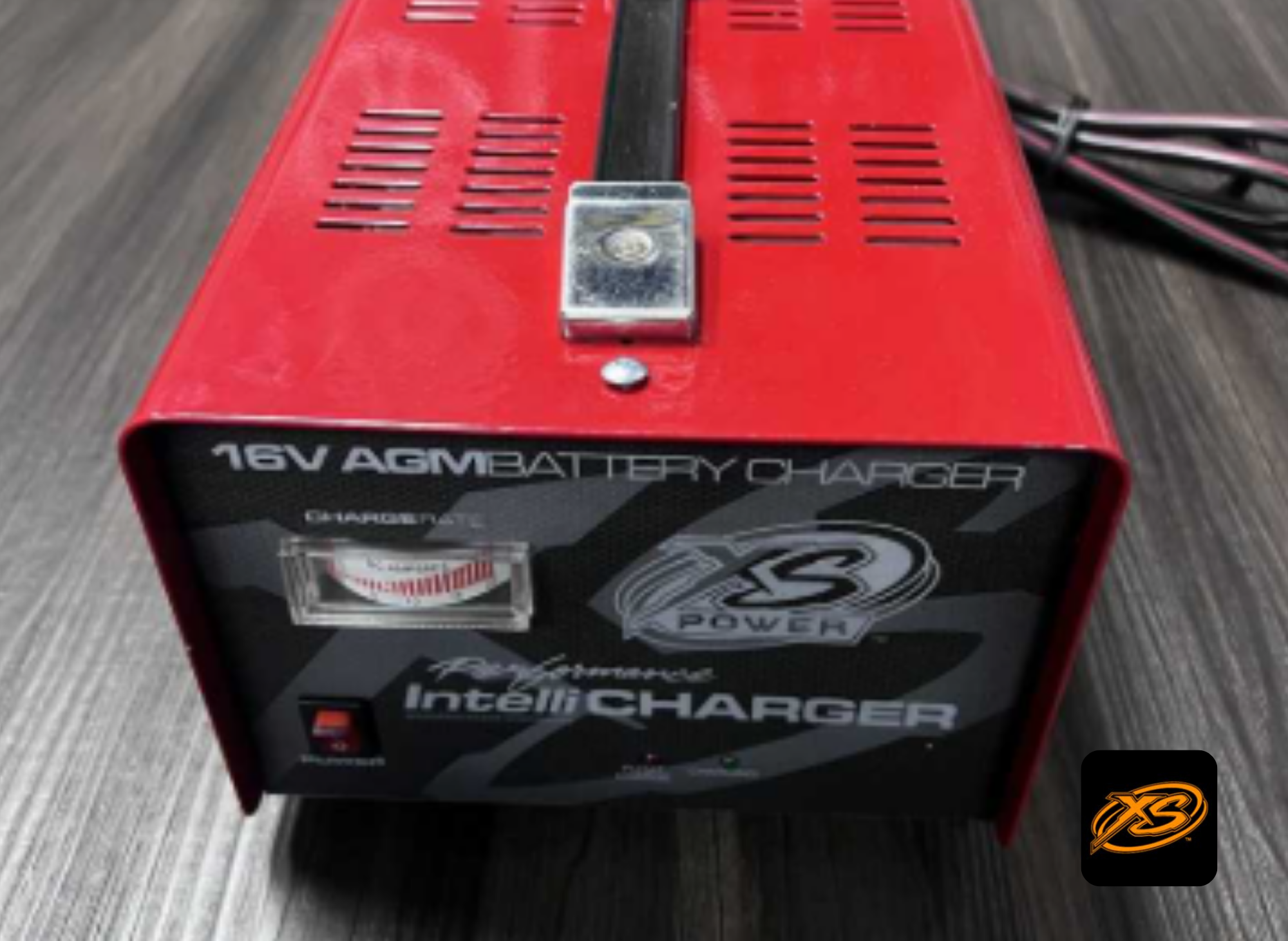

XS Power 16 V Battery Chargers 1005
Multiple voltage levels. Compatible with all lead-acid battery types (AGM/gel, deep cycle, and maintenance-free). Three charging levels: 5 amp, 15 amp, and 25 amp. LED indicators and amp gauge. 6 ft. heavy-duty cables.

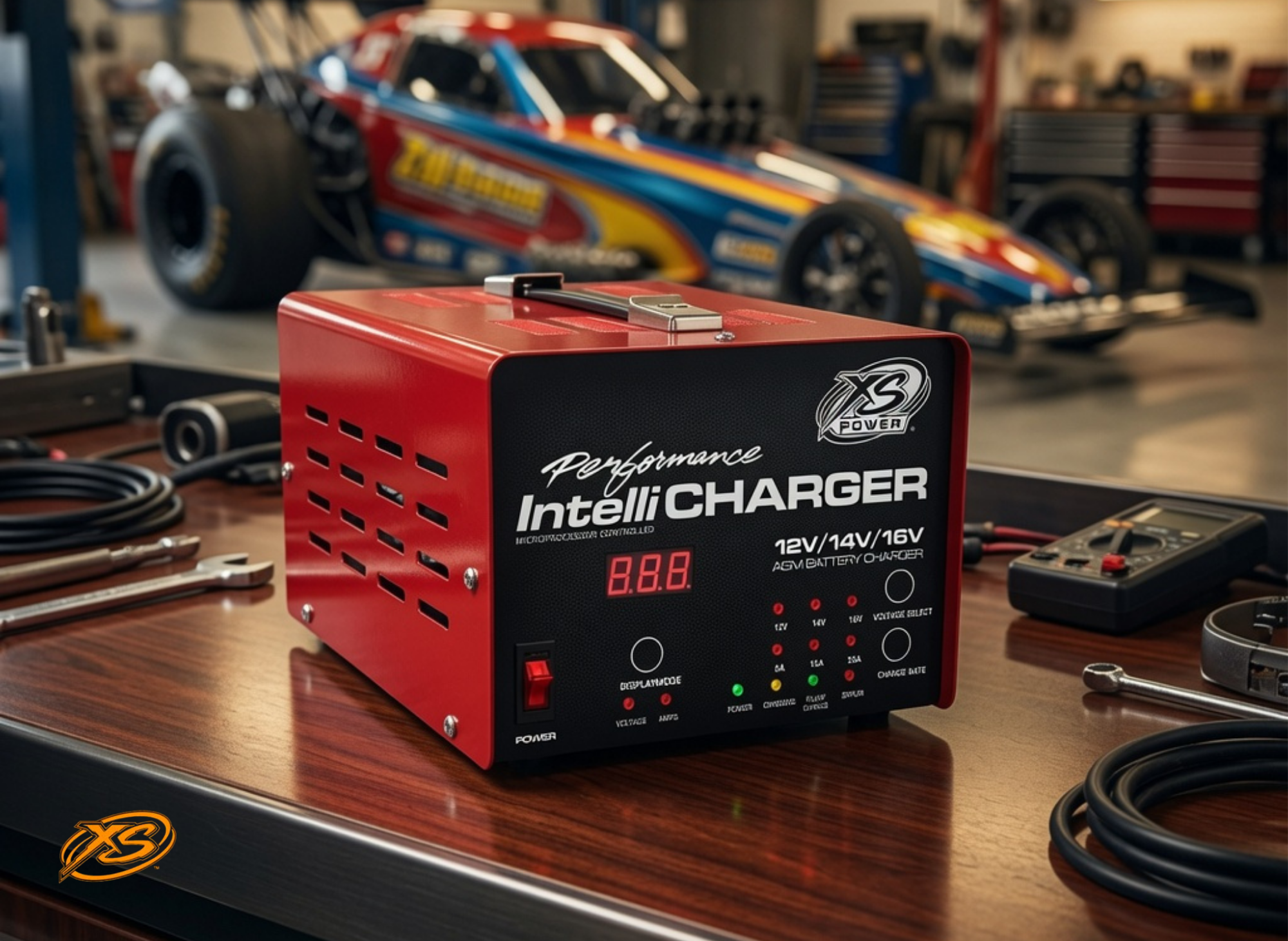

XS Power IntelliCharger Overview
The XS Power IntelliCharger 1005 is a high-frequency, microprocessor-controlled battery charger designed to quickly and safely recharge XS Power batteries and get maximum performance and life from every cell. It uses an advanced microprocessor to quickly analyze connected batteries and deliver precision charging across three stages.
This battery intellicharger supports multi-voltage operation for 12V, 14V, and 16V lead-acid batteries- including AGM deep cycle, starting, and flooded types. Multi-voltage support is available for 12V, 14V, and 16V systems utilized in racing and car audio, making it one of the more versatile chargers in its class. XS Power battery chargers are smart high-frequency chargers designed for high-performance AGM, gel-cell, and lithium-ion batteries. However, this particular unit is purpose-built for lead-acid chemistry.
Users can select between 5, 15, or 25 amp charging modes. This range lets you scale from gentle maintenance charging on a stored vehicle to aggressive recovery of heavily discharged battery banks between competition rounds.
The charger operates with constant current and constant voltage (CC/CV) charging logic. High-frequency algorithms deliver optimal constant current constant voltage flow to restore energy density efficiently. Microprocessor control adjusts current and voltage to match the specific battery state throughout the entire charge cycle.
Built-in protection logic adds a critical safety layer. The charger shuts off if voltage is below 4V, indicating a severely damaged or frozen battery. The charger shuts off if voltage is below 4V after ten hours of attempting to charge, and charging should occur within ten hours to avoid triggering the auto-shutdown. This protects both the charger and the battery from damage.
The IntelliCHARGER charges 12V, 14V, and 16V lead-acid batteries, positioning it as the go-to charger for high-performance car audio builds, racing applications, and any setup where you need to get the fastest charge possible without overcharging your investment. It delivers the fastest charge possible without overcharging expensive AGM cells.
Key Features and Technical Details of the XS Power Battery Charger
Understanding the details of what you're buying matters-especially at this price point. Here's a breakdown of the features that separate the XS Power 1005 from generic alternatives.
Supported Battery Types: Including Lead Acid Batteries
The charger is compatible with 12V, 14V, and 16V lead acid batteries:
- AGM (absorbed glass mat) - the primary chemistry used in XS Power batteries
- Flooded lead-acid
- Gel-cell (within voltage spec)
AGM battery chargers are designed for lead-acid batteries, and this unit is optimized for XS Power's lineup. It handles both starting and deep cycle batteries commonly found in car audio, drag racing, and marine setups. Proper charging voltage for most 12V AGM batteries should not exceed 14.4V, and the IntelliCharger is calibrated precisely to this threshold, with an absorption voltage of 14.40V in 12V mode.
Microprocessor-Controlled Charging
The amp IntelliCharger is equipped with a custom control board that manages every phase of charging. The charger analyzes the battery when connected, then the charger automatically measures progress throughout the session.
It measures progress to optimize charging rate, and its progress-based charging decisions happen in real time. They feature a microprocessor for constant current/constant voltage control, ensuring microprocessor-optimized charging from start to finish.
Three-stage charging uses bulk, absorption, and float stages to restore battery capacity quickly:
This approach allows the charger to optimize charging performance across different battery conditions and sizes.
Selectable Output: 5A / 15A / 25A
Choosing the right amperage setting matters:
- 5A - ideal for small XS Power batteries or long-term maintenance on stored vehicles
- 15A - the sweet spot for regular overnight charging of mid-size batteries
- 25A - built for fast recovery between race rounds, demo sessions, or when charging large AGM banks in competition car audio systems
The unit is equipped with an advanced current selection system that makes switching between modes straightforward.
Safety and Protections
Safety protections include reverse polarity, short-circuit, and overload protection. These aren't optional extras-they're essential when working around expensive electronics and high-amperage battery banks.
Integrated cooling fans are essential for maintaining safe operating temperatures during high-current charging. Thermal management includes integrated cooling fans to prevent overheating during extended charging sessions, particularly when running at 25A for hours. The integrated multicolor LEDs tell you exactly which stage the charger is in and whether any fault conditions exist.
Physical Specs:
The VAC 47 63 Hz compatibility on the 1005E model makes it suitable for international use. The unit ships in XS Power's signature branding, and stock availability can vary-check your preferred retailer for shipping time and current availability. Shipping typically runs standard ground from most retailers.
Why Pair XS Power Batteries with the XS Power Battery IntelliCharger
Many universal chargers exist, but the XS Power IntelliCharger is specifically tuned for XS Power batteries and their high-performance AGM and deep cycle cells. When your batteries see extreme loads from big amplifiers producing sound or racing electronics, a generic charger simply won't cut it.
Chemistry-Specific Charging
XS Power batteries prefer precise charging voltages to reach 100% state of charge. Using a charger designed for AGM batteries reduces the risk of damage compared to older chargers that lack voltage regulation. The IntelliCharger's calibrated CC/CV profile matches XS Power's recommended absorption and float thresholds exactly, helping maximize capacity, cranking power, and cycle life.
Precision multi-stage charging prevents overcharging and sulfation breakdown, extending battery lifespan considerably. Without this protection, overcharging the battery becomes a real concern, and sulfation sets in-especially on batteries sitting between events.
Performance and Longevity
A generic trickle charger can leave a high-performance battery undercharged or overcharged, and both outcomes shorten its life. Leaving an AGM battery in a discharged state for extended periods can significantly reduce its lifespan. Regular supplemental off-vehicle charging is often needed for batteries used in heavy audio and racing applications, and the IntelliCharger makes this routine simple.
Pairing charger and battery from the same brand simplifies support and warranty discussions, since both are engineered to work together.
With only a handful of user reviews available-the Amazon listing shows about 2 reviews and mixed feedback-it's worth noting that many complaints in online reviews stem from improper charging practices rather than hardware defects. The charger delivers consistent results when used correctly.
Real-World Use Cases

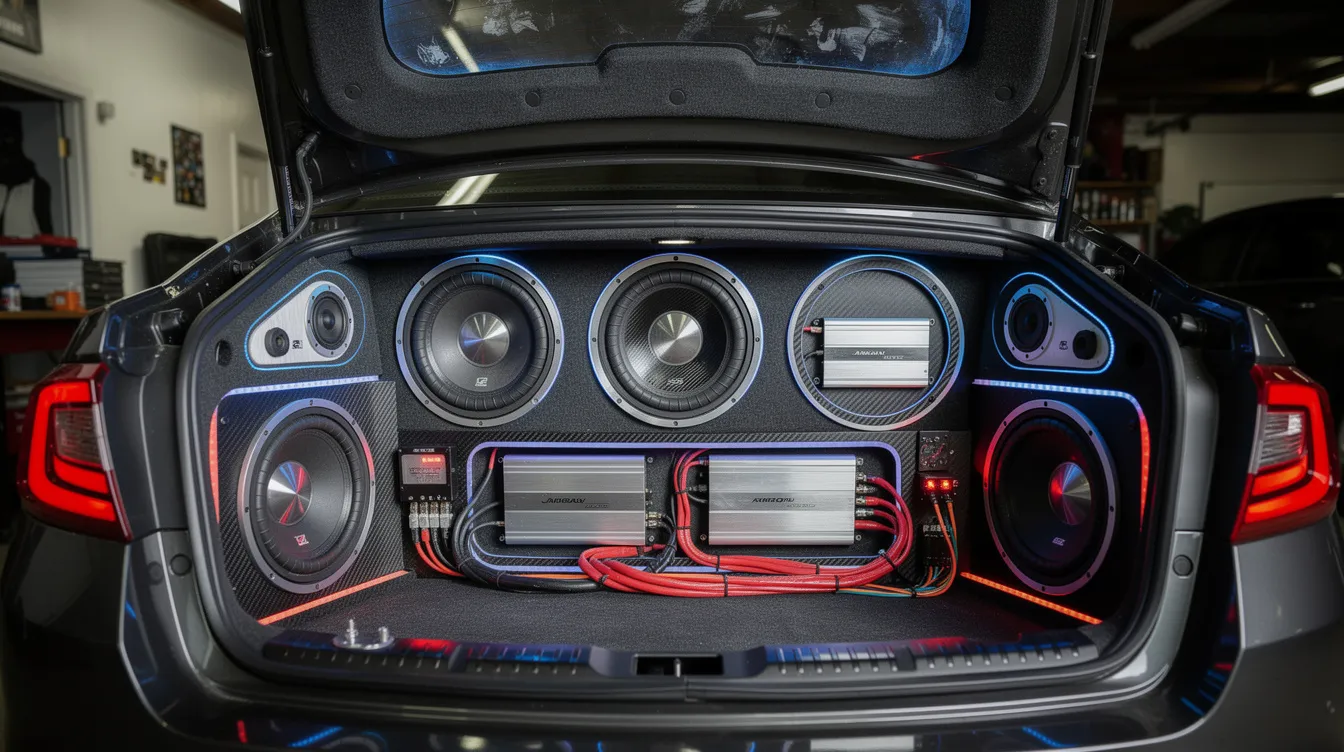

- Car audio: Competitors use XS Power batteries with the 1005 charger to top off banks before demos. When your system needs to produce deep bass and clean music at competition volumes, fully charged cells make the difference between winning and dimming.
- Motorsports: Racers pre-charge 14V or 16V batteries-like those in the pwr s7 line-in the pits to ensure voltage is ready to go at the starting line.
- Show cars and weekend vehicles: Park for weeks, then use the IntelliCharger to bring the battery back to full safely.
Many XS Power chargers serve as power supplies for stable DC power during diagnostic sessions as well, adding versatility beyond simple charging.
The charger's microprocessor does the "thinking" for you-no guessing about voltage or time required. For multi-battery banks, you can charge individual batteries one at a time or consult XS Power's recommendations for safe parallel charging.
Best Practices for Using the XS Power IntelliCharger Safely and Effectively
Correct use protects both expensive XS Power batteries and the IntelliCharger itself. This is especially critical when dealing with 14V and 16V systems where voltage selection errors can destroy a battery in minutes.
Step-by-Step Usage
- Confirm the battery's nominal voltage (12V, 14V, or 16V) and select the matching charger setting before connecting
- Connect clamps to the battery first-positive to positive, negative to negative-in that order.
- Plug the charger into the wall outlet.
- Choose 5A, 15A, or 25A based on battery size and how quickly you need charging completed.
Monitoring While Your Battery Is Charging
Periodically check charger indicators while the battery is charging. The integrated multicolor LEDs tell you the current stage, voltage, and amperage readings. When the charger indicates full, it transitions to float mode or shuts off according to its program, preventing overcharge.
Storage and Maintenance Charging
For vehicles in storage, a charger with float mode can stay connected during long storage periods without overcharging. Use the 5A setting as a maintenance charge rather than leaving a low-quality trickle charger connected for months. If you prefer not to leave it connected, charge the battery fully before storage and reconnect the IntelliCharger every 30–60 days.
AGM batteries charge best in moderate temperatures between 32°F and 104°F. Avoid charging in extreme heat or cold to ensure optimal results.
Safety Reminders
- Charge in a dry, well-ventilated area away from fuel vapors or open flames
- Never attempt to recover swollen, frozen, or visibly damaged lead-acid batteries
- If the charger's low-voltage shutoff triggers, treat it as a signal to replace the battery rather than a problem to override
- Use properly rated extension cords if needed-undersized wiring creates fire risk
If you have questions about charging multi-battery setups or unusual configurations, reach out to XS Power support via email before experimenting.
Following these practices lets you get the most from your XS Power batteries and the XS Power IntelliCharger. Protect your investment in high-performance power, and your batteries will deliver consistent voltage and longer service life-whether you're chasing trophies at a sound competition or shaving tenths at the track.
