Set Pinion Depth Right Every Time: Yukon Pinion Depth Tool
Dial in the exact pinion depth using the Yukon Deluxe YT D02, guided by simple step-by-step setup tips.
This site contains affiliate links, and we may earn a commission at no extra cost to you. All recommended products are thoroughly vetted.
The Yukon Deluxe Pinion Depth Setting Tool (YT D02) is a professional-grade kit designed to help mechanics and enthusiasts set precise pinion depth across most popular differentials. Accurate pinion depth is critical to gear longevity and drivetrain performance, and this tool makes it faster, easier, and more reliable to get right.
Setting up a differential is one of the most technically demanding jobs in axle and drivetrain work. Get it right, and you'll enjoy smooth, quiet performance for years. Get it wrong, and you're looking at accelerated gear wear, noise, and costly rebuilds. The difference often comes down to one measurement: pinion depth.
That's where the Yukon Deluxe Pinion Depth Setting Tool comes in. Built for both professional shop environments and serious home builders, this kit takes the guesswork out of one of the most critical steps in differential setup. If you're working on a Ford 8.8, a Dana 44, or any number of other popular differentials, this tool is worth adding to your cart before your next build.
This post walks through what the Yukon Deluxe Pinion Depth Setting Tool is, why pinion depth matters, how to use the kit, and the common mistakes you'll want to avoid along the way.
Why Does Accurate Pinion Depth Matter So Much?
Pinion depth refers to the distance between the pinion gear and the centerline of the ring gear. It sounds simple, but even a small error in this measurement can have serious consequences.
When pinion depth is off, the contact pattern between the ring and pinion gears shifts. Too deep or too shallow, and the gears make contact in the wrong place. This creates excess heat, noise, vibration, and wear. Over time, incorrect pinion depth can destroy a ring and pinion set that might otherwise last the life of the vehicle.
For performance builds, tow rigs, or off-road vehicles that put real stress on the drivetrain, the stakes are even higher. Precise pinion depth settings aren't optional; they're essential. And achieving them consistently requires the right tooling.

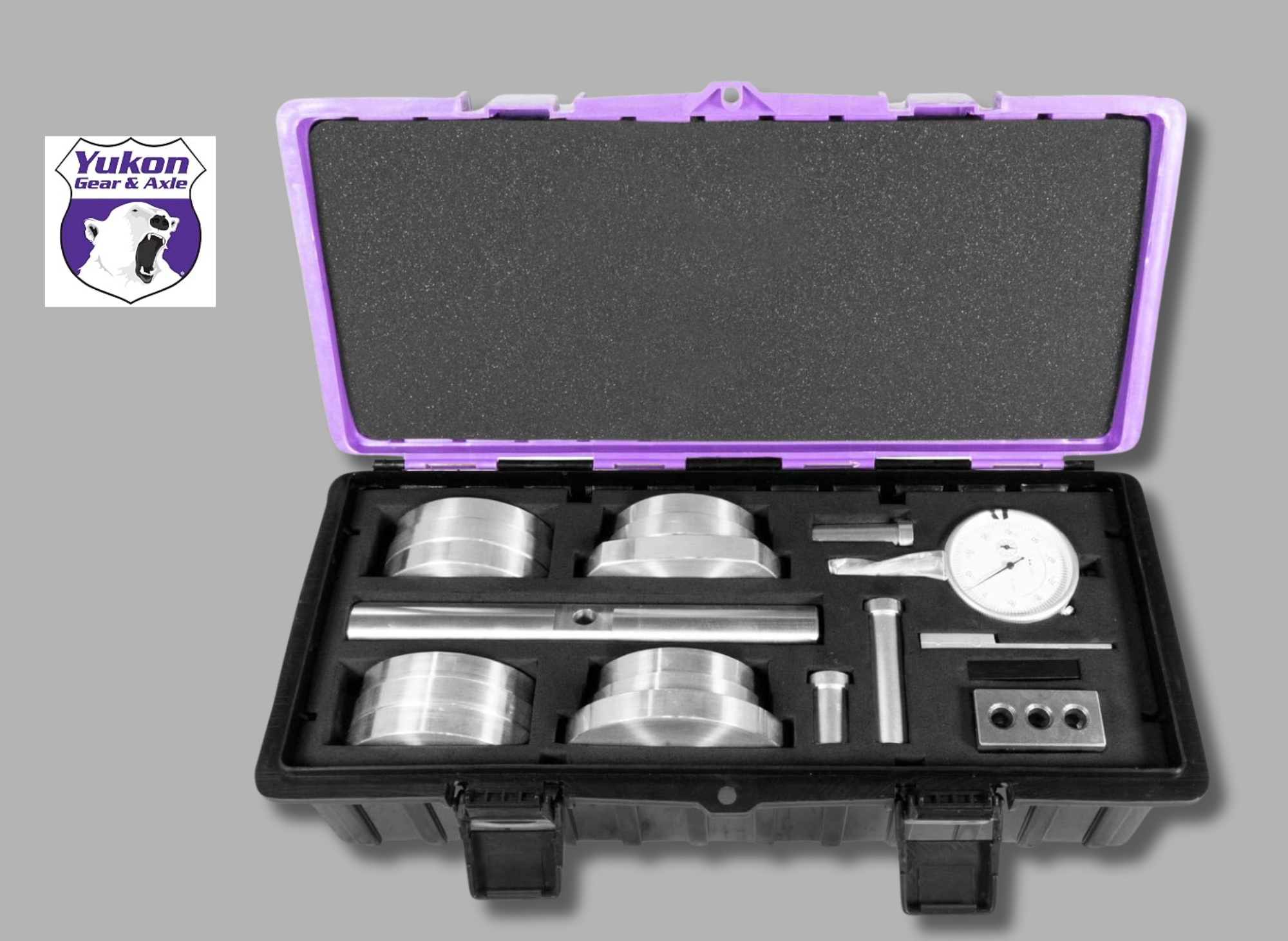

Yukon Gear & Axle Pinion Depth Setting Tools YT D02
Pinion Depth Gauge, Universal Design, Aluminum, Natural, Includes Case, Kit
What Is the Yukon Deluxe Pinion Depth Setting Tool?
The Yukon Deluxe Pinion Depth Setting Tool (part number YT D02) is a comprehensive depth setting tool gauge kit from Yukon Gear. Yukon Gear is a well-respected name in the axle and differential parts space, known for supplying high-quality components to enthusiasts and professional shops alike.
The YT D02 kit is designed to accommodate most popular differentials on the market across a range of vehicle setups and state conditions, making it a versatile addition to any shop. One important exception is that it does not accommodate Dana 70/80 or Ford 9.75”.
Rather than relying on shim stacking by feel or referencing fitment application data alone, the Yukon Deluxe tool gives you a physical, measurable reference point for setting the pinion to the correct depth before final assembly. This product includes clear information for buyers, and key product details include a $694.89 price, 99 units in stock at Yukon Gear, and 113 units in stock at Randy's Worldwide.
What Does the Yukon Deluxe Pinion Depth Setting Tool Include?

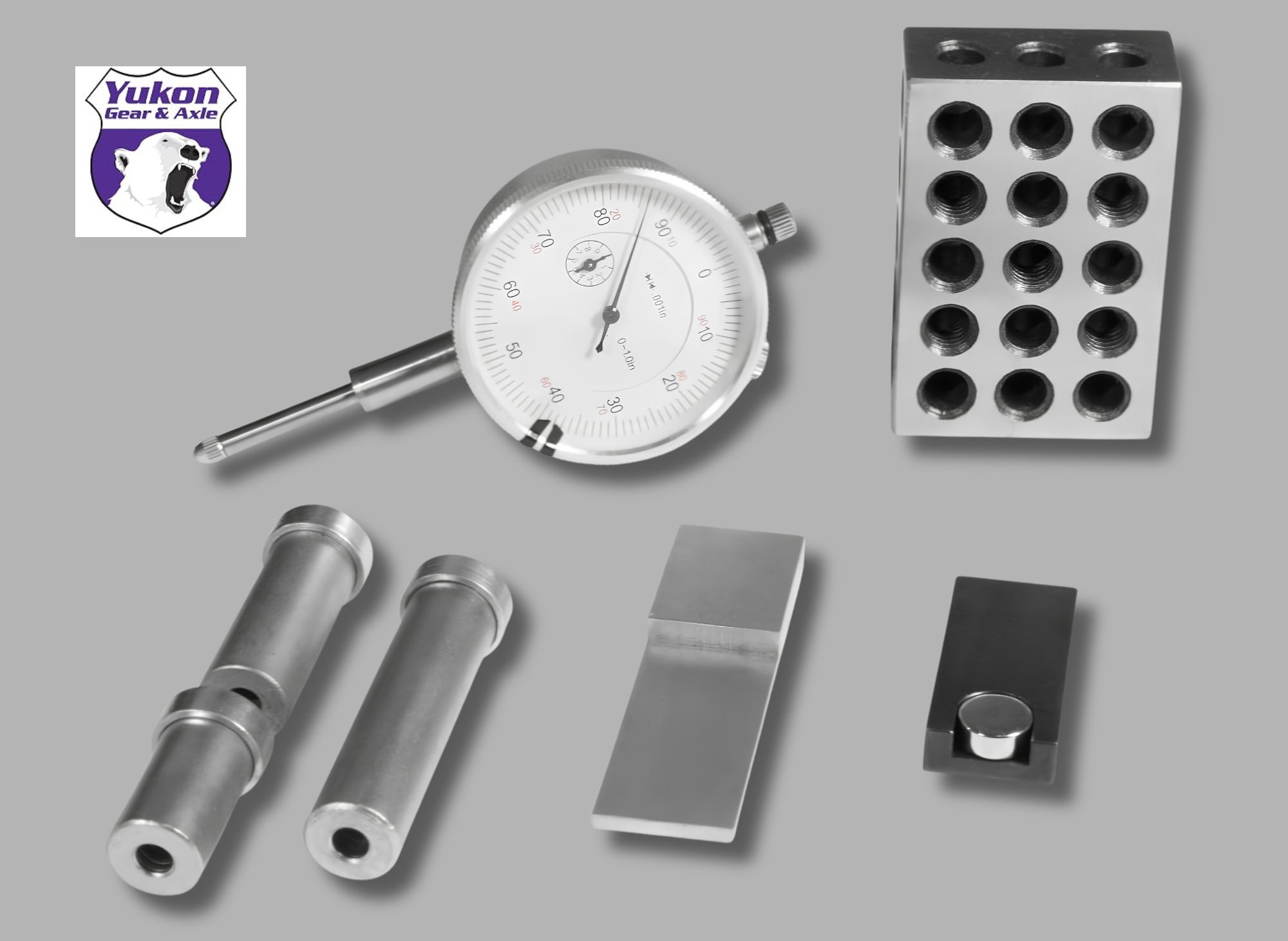

The product details include the core tools required to perform accurate pinion depth measurements across a wide range of axle configurations. Key components include:
- A high-quality micrometer for taking precise pinion depth readings

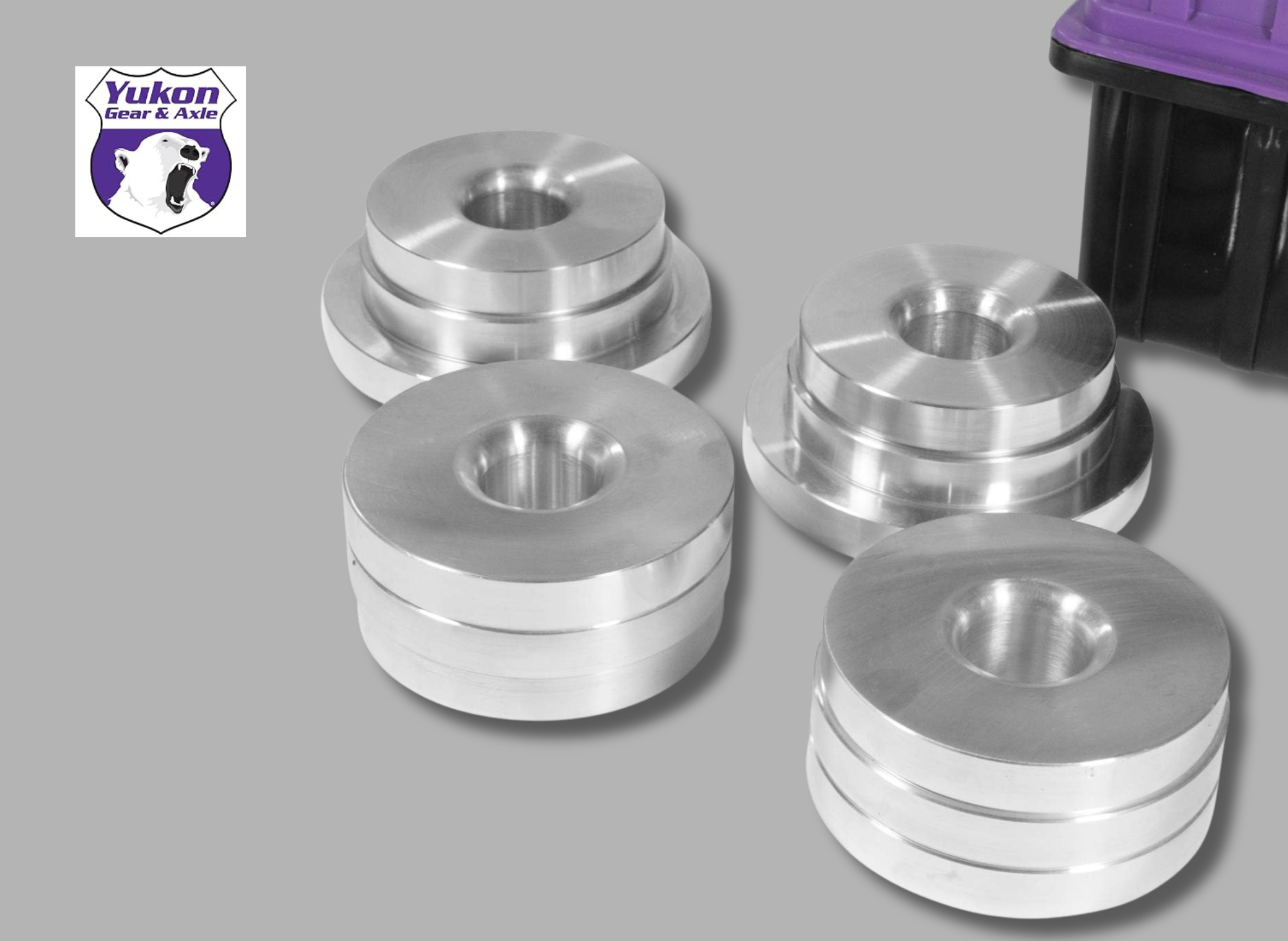

- Assorted arbors and discs to accommodate different differential housings
- A depth gauge for translating measurements into actionable shim selection; calibration establishes a zero baseline for accurate measurement of pinion depth
- Fitment data to guide application-specific setup
The inclusion of fitment application data is a standout feature; it means you're not left guessing which arbor goes where or how to interpret your readings. That said, Yukon always recommends that customers verify fitment manually before beginning work, since vehicle configurations can vary. In practical terms, the kit has all the tooling needed for most popular differentials.
How to Use the Yukon Deluxe Pinion Depth Setting Tool
Here's a step-by-step guide to using the tool effectively:
Step 1: Confirm Fitment
Before you begin, cross-reference the fitment data included in the kit with your specific axle and vehicle. Verify fitment manually if you have any doubts; chassis variations and aftermarket components can affect which arbors and discs apply to your build. One key fitment exception: it does not accommodate Dana 70/80 or Ford 9.75”.
Step 2: Install the Arbor
Select the correct arbor for your differential and install it into the carrier bearing bores. The arbor simulates the position of the ring gear centerline, giving you a reference point for your measurement.
Step 3: Install the Pinion Without Bearings
Install the pinion gear into the housing without the pinion bearings seated (or with a setup bearing, depending on the method). This allows you to move the pinion in and out as needed during measurement.
Step 4: Take Your Measurement
Use the depth gauge from the kit to measure the distance from the arbor to the end of the pinion. Compare this reading against the pinion's etched depth marking (the number stamped on the pinion head) using the high-quality micrometer. This tells you how much shim material you need to add or remove.
Step 5: Select and Install Shims
Based on your reading, select the appropriate shim or shim stack to bring the pinion to the correct depth. Install shims, reassemble the differential, and verify your contact pattern using gear marking compound.
Step 6: Verify the Contact Pattern
Even with precise pinion depth settings, always verify the contact pattern before finalizing assembly. The pattern should be centered on the drive face of the ring gear teeth. Adjust as needed.
Expert Tips for Getting Differential Setup Right
Getting pinion depth right is the foundation, but a clean differential build involves a few more considerations:
- Work clean. Contamination is one of the most common sources of error in differential setup. Keep all components clean and free of debris before assembly.
- Use setup bearings. Reusable setup bearings make it easier to trial-fit and adjust without damaging your final bearings during measurement.
- Take multiple readings. Don't rely on a single micrometer reading. Take at least two or three measurements and average them to account for any minor variation.
- Reference Yukon's video resources. Yukon Gear provides installation video content that walks through differential setup procedures in detail, a useful supplement to the fitment data included with the tool.
- Don't rush shim selection. Take the time to get your shims right the first time. Pulling a differential back apart to correct pinion depth is time-consuming work that a few extra minutes of careful measurement can prevent.
Common Mistakes to Avoid When Setting Pinion Depth
Even experienced builders make mistakes. Here are the most common ones to watch for:
Skipping the contact pattern check. Precise pinion depth settings are a starting point, not a substitute for verifying the gear contact pattern. Always use marking compound to confirm before final assembly.
Using worn or incorrect tooling. A depth setting tool gauge kit is only as accurate as its components. Worn arbors or a low-quality micrometer introduce error. The Yukon Deluxe tool's high-quality micrometer is built to maintain accuracy over repeated use.
Ignoring the pinion depth marking. The number etched on the pinion head is your baseline. Overlooking it or misreading it leads to incorrect shim selection and a poor setup.
Not verifying fitment manually. The fitment application data in the kit covers most popular differentials, but always verify fitment manually for your specific application. Assuming compatibility without checking is a shortcut that can cause problems mid-build.
Rushing the process. Differential setup rewards patience. Rushing any step, from measuring to shim selection to pattern verification, increases the risk of error and the chance you'll need to pull everything apart again. At $694.89, the Yukon Deluxe kit still delivers strong value if you set up gears regularly. Expedited shipping options are available at checkout.
Frequently Asked Questions
What differentials is the Yukon Deluxe Pinion Depth Setting Tool compatible with?
The Yukon Deluxe Pinion Depth Setting Tool (YT D02) is designed to accommodate most popular differentials, including Ford 8.8, Dana 44, Dana 60, GM 10/12-bolt, and others. Fitment application data is included with the kit, but Yukon recommends that customers verify fitment manually for their specific axle and vehicle configuration.
What does the Yukon Deluxe Pinion Depth Setting Tool kit include?
The YT D02 kit includes a high-quality micrometer, assorted arbors and discs for different differential housings, a depth gauge, and fitment application data. For full product details and additional information about the kit contents, refer to the included application data. It provides all the tooling needed for accurate pinion depth measurement across a wide range of applications.
Why is pinion depth important in differential setup?
Pinion depth determines how the pinion gear contacts the ring gear. Incorrect pinion depth causes improper gear contact patterns, leading to noise, heat, accelerated wear, and potential drivetrain failure. Precise pinion depth settings are critical to the longevity and performance of the ring and pinion.
Can I use the Yukon pinion depth tool at home, or is it only for professional shops?
The Yukon Deluxe Pinion Depth Setting Tool is suitable for both professional shop use and experienced home builders. It simplifies the measurement process and provides the accuracy needed for a successful differential setup, regardless of the setting.
Do I still need to check the contact pattern after using the Yukon pinion depth tool?
Yes. Even with precise pinion depth settings achieved using the Yukon Deluxe tool, always verify the gear contact pattern with marking compound before finalizing assembly to find out whether the setup is correct. The contact pattern is the ultimate confirmation that the setup is correct. Expedited shipping options are available at checkout when purchasing the tool.
Is the Yukon Deluxe Pinion Depth Setting Tool Worth It?
For anyone building or rebuilding differentials with any regularity, the answer is a confident yes. If you've landed on this page while researching your next differential job, let me save you some scrolling. The Yukon Deluxe Pinion Depth Setting Tool delivers professional-grade accuracy in a comprehensive kit that covers most popular differentials.
Here's what makes it shine. The kit packs a high-quality micrometer, relevant fitment data, and all the tooling you need for an accurate setup. That combination turns a nerve-wracking task into something you can actually enjoy. Whether you're running a professional shop or building your own rig at home, this tool earns its keep.
Why Getting Pinion Depth Right Matters
Picture this. You've got the ring and pinion set spread across your bench, sunlight pouring through the garage window, and you're ready to dive in. Then you set the depth wrong. Suddenly you're staring at an expensive mistake and a whine you can't unhear.
Buying a ring and pinion set is a real chunk of money. Getting the depth wrong means you may have to pull it all apart and start over. That's lost time, lost parts, and a headache nobody wants.
The good news? This tool takes the guesswork out of the equation and will cancel out any error during setup. The micrometer gives you clear, repeatable measurements, so you're not eyeballing critical tolerances or hoping for the best.
What You Get in the YT D02 Kit
If you're interested in the details, here's the rundown of what's showing up in the box:
- A precision micrometer for accurate depth readings
- Fitment data covering most popular differential setups
- All the tooling needed for a clean, confident install
These are the things that separate a professional-grade job from a frustrating afternoon. No scattered parts. No missing pieces. Just a tidy, complete setup ready to work.
I'll be honest with you. When I first opened the case, I half-expected to spend an hour making sense of it all. Instead, everything clicked into place fast. That kind of thoughtful design is rare.
The Money Math
Let's talk numbers, because that's usually the deciding factor. The YT D02 kit costs a fraction of what a single ring and pinion replacement runs. Do the math and the value is obvious.
It pays for itself the first time it saves you from a rebuild. After that? Every clean setup is pure savings. You don't need to wait for a sale to justify the purchase; the price already makes sense.
And here's the part people miss. A tool this accurate doesn't just save money on parts. It saves you from the return trips, the redos, and the second-guessing that eat away at your weekend.
A Smart Investment for Any Builder
Keep your computer bookmarks handy for comparison shopping if you like, but you'll find this kit sits comfortably near the top. It's built for people who take their work seriously, whether that's your livelihood or your passion project.
Stock up, set it up right, and your differential will thank you. Close that browser tab, grab the tool, and get to work with confidence.
Final Takeaway
If you build or rebuild differentials with any regularity, the Yukon Deluxe Pinion Depth Setting Tool is an easy call. It delivers accuracy, saves you money, and turns a stressful job into a straightforward one.
Your next step is simple. Add the YT D02 kit to your bench essentials before your next project. Then set your pinion depth right the first time, no wasted parts, no do-overs, no regrets.
One common mistake to avoid: don't skip the micrometer step to save a few minutes. That shortcut is exactly what leads to the expensive rebuild you're trying to dodge.
Measure carefully, trust the tool, and enjoy the quiet, smooth ride you worked so hard for. The Yukon name is a trusted worldwide name in the performance business, for rings and pinions, hubs, axles, and related parts!
Thank you for reading!
Your friend,
Todd
