Upgrade Your Engine: The Ultimate MSD Ignition System Guide
Boost engine power with an MSD ignition system. Compare the Digital 6AL, 6A, and 6-BTM to find the right ignition boxes for your performance goals.
This site contains affiliate links, and we may earn a commission at no extra cost to you. All recommended products are thoroughly vetted.
For over four decades, mechanics and racing enthusiasts have searched for ways to gain more power. When your engine cranks, it needs a reliable spark to ignite the air-fuel mixture efficiently. MSD has been innovating ignition technology for over four decades. Standard factory setups often fall short under heavy loads. That is exactly why upgrading to an MSD ignition system makes a massive difference.
As the first company to develop and deliver multiple sparking CD ignition, MSD helped shape modern ignition technology. Over the course of 40-plus years, MSD Performance has driven the development of innovative components that have helped shape how our cars race and perform.
They realized early on that a single spark was not always enough. By using capacitive discharge ignition, they achieved a breakthrough that enabled engines to burn fuel more completely. Today, MSD remains a dominant force in the automotive world. Their revolutionary products provide performance for nearly anything. You can bolt their upgrades onto a traditional hot rod, a dedicated track truck, or even the fastest fuel dragsters.
The company spent significant time developing electronics that push boundaries. In the early days, MSD focused squarely on maximizing spark energy. Early on, MSD focused squarely on ignition systems, with revolutionary products such as the multiple-sparking CD ignition, timing and rev controls, billet-aluminum distributors, and the Pro-Mag. Now, they invent components that support the entire powertrain. You will see their race-proven performance dominate on road courses, superspeedways, and in the extreme environment of land-speed racing.
MSD continues to innovate, inventing components and technologies that deliver performance and reliability in products that are easy to use and install. Professional MSD racers rely heavily on this multiple-sparking technology to cross the finish line first. MSD ignition products have earned a well-deserved reputation for quality, performance, and reliability over four decades. Instead of settling for weak factory sparks, you can stop experimenting and install reliable MSD ignition boxes for both race and street vehicles.
A Legacy of Innovative Components
It takes constant development to build a brand that enthusiasts trust. Over the years, the company expanded far beyond basic discharge ignition. They deliver components designed to work together perfectly. For example, their billet aluminum distributors and atomic EFI systems modernize older engines. If you are building a high-horsepower LS engine platform, you might also utilize their custom plug wires, Dynaforce starters, and Pro Mag setups.
They even manufacture an advanced transmission controller to help manage shifting in high-powered builds. Their high-output alternators ensure your vehicle has the electrical stability to perform consistently. When cars race at high speeds, reliability is non-negotiable. MSD products deliver performance you can count on, mile after mile, outperforming many other ignition systems on the market.

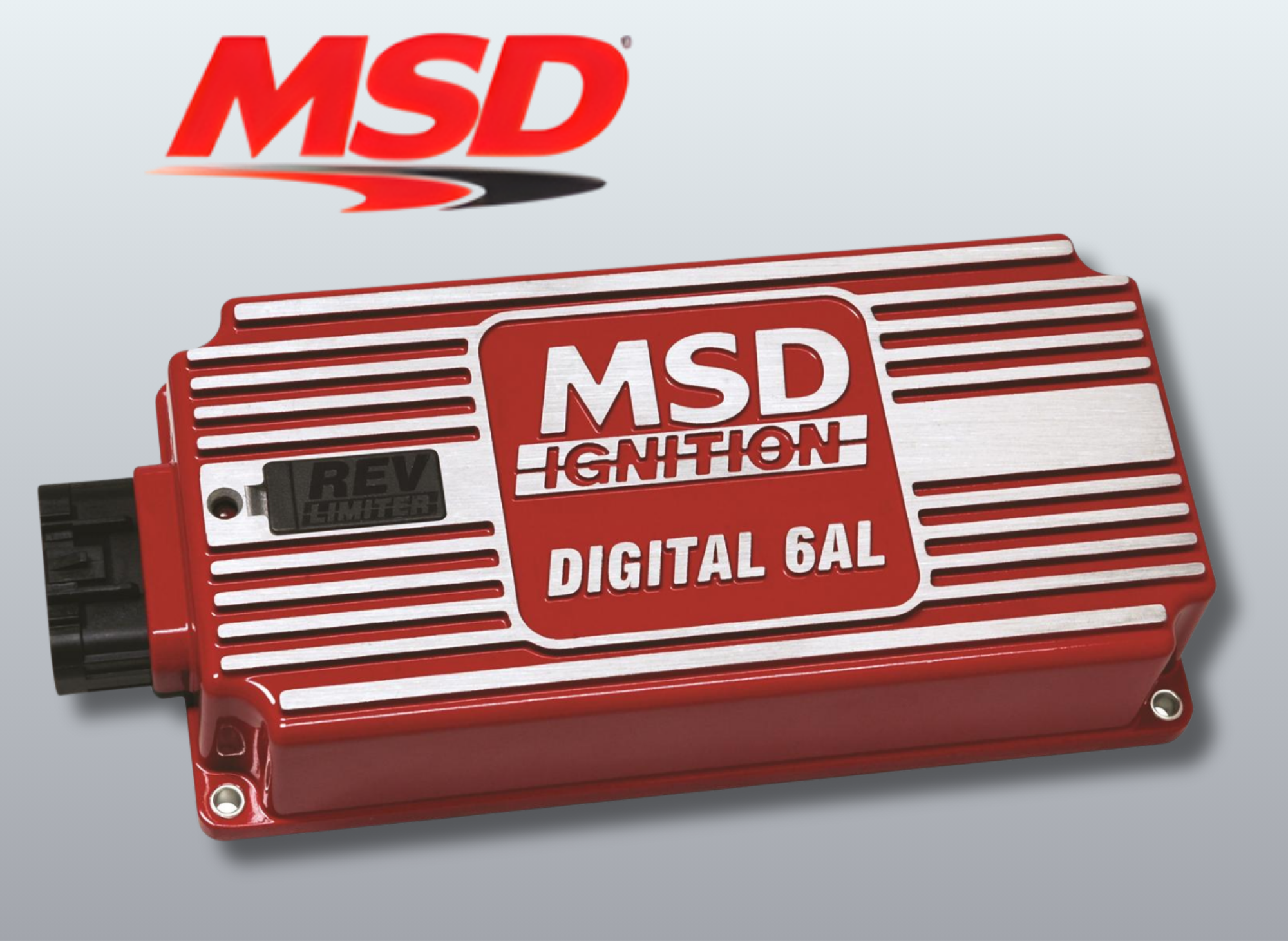

MSD Digital 6AL Ignition Controllers 6425
Ignition Box, MSD 6AL, Digital CD, with Rev Limiter, Red, Each

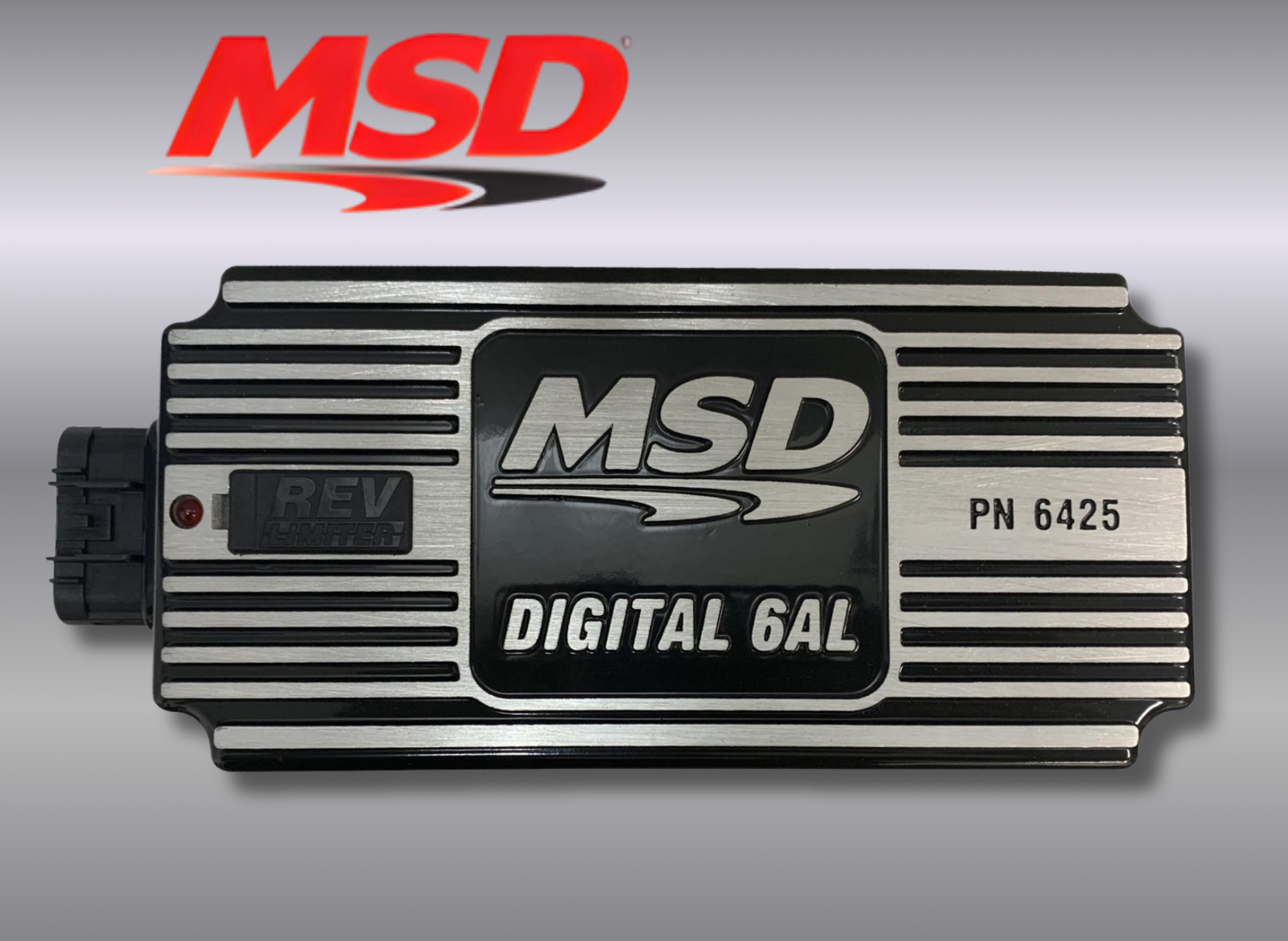

MSD Digital 6AL Ignition Controllers 64253
Ignition Box, MSD 6AL, Digital CD, with Rev Limiter, Black, Each

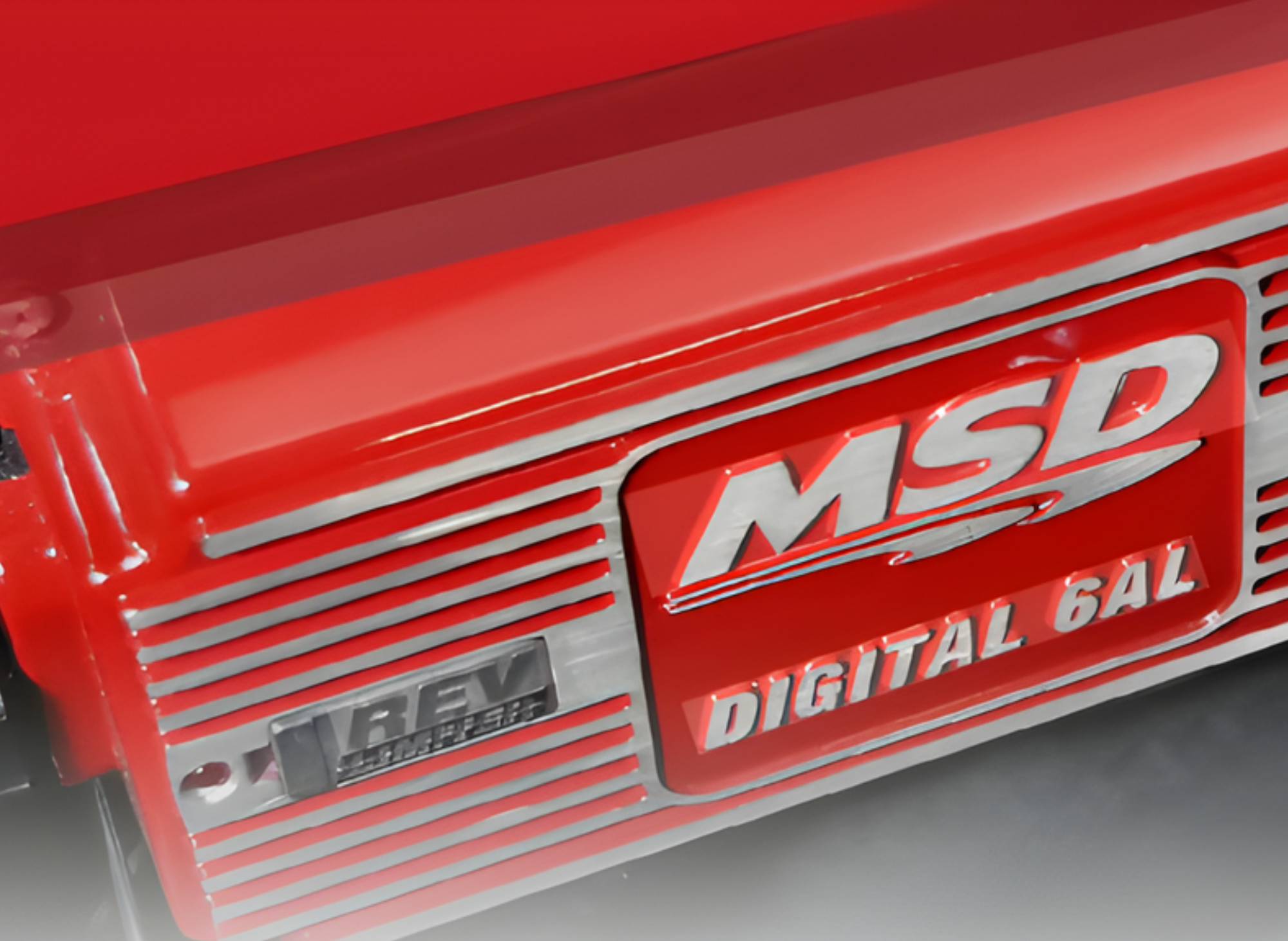

Deep Dive into the MSD Digital 6AL (6425 & 64253)
When drivers discuss the most popular aftermarket ignitions, the MSD Digital 6AL always comes up. Available in classic red (part number 6425) or sleek black (part number 64253), these digital ignition boxes use advanced microprocessors to control every firing.
The 6AL delivers an impressive 135 to 145 millijoules of spark output. It delivers up to 540 volts directly to the ignition coils, drawing just 1.1 amps at 1,000 rpm. This high-energy capacitive discharge guarantees maximum combustion efficiency.
A major highlight of the 6AL is its built-in rev controls. Two easy-to-reach rotary dials sit atop the unit, allowing you to set a precise rev limiter. This protects your engine from catastrophic damage caused by over-revving. These smart features make the 6AL an ideal choice for handling performance upgrades on aggressive street machines and top fuel dragsters alike.

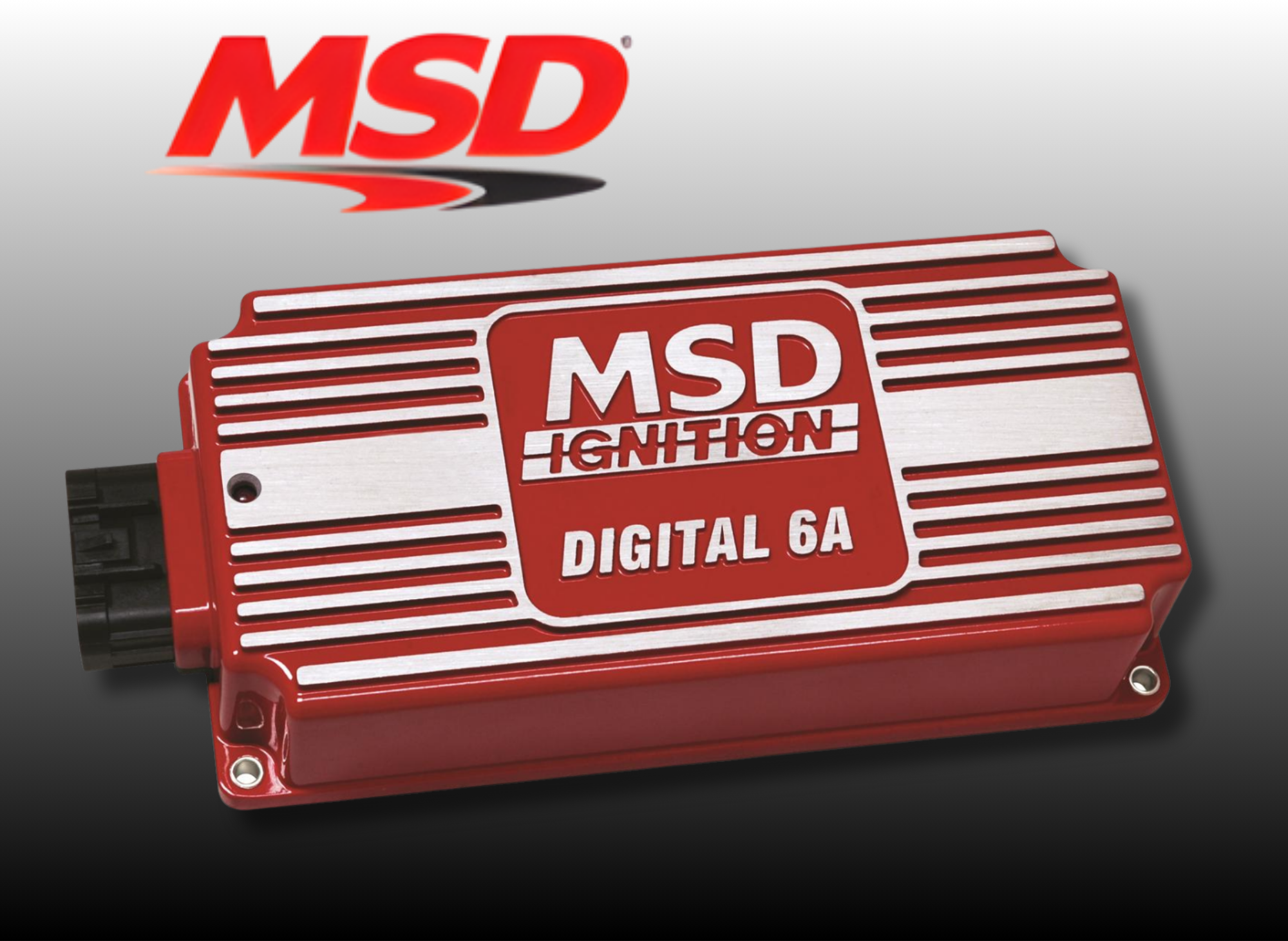

MSD Digital 6A Ignition Controllers 6201
Ignition Box, MSD 6A, Digital, Capacitive Discharge, Universal, Points, Electronic, Each
Analysis of the MSD Digital 6A (6201)
Not every driver needs advanced rev limiters. If you want true MSD performance at a lower price, the MSD Digital 6A (6201) serves as an outstanding entry-level digital CD ignition controller.
This unit offers the exact same 135-145 mJ spark output and 520-540 CD voltage as the 6AL. It uses the same digital circuitry to deliver a hotter spark and a snappier throttle-body response. The primary difference is the lack of a built-in rev limiter.
The 6A is highly recommended for a standard daily driver. It provides the core benefits of capacitive discharge technology without forcing you to pay for features you do not require. The unit features a sleek profile, with wiring routed out one side through a sealed connector. This design creates a very clean, neat appearance under the hood of your vehicle.

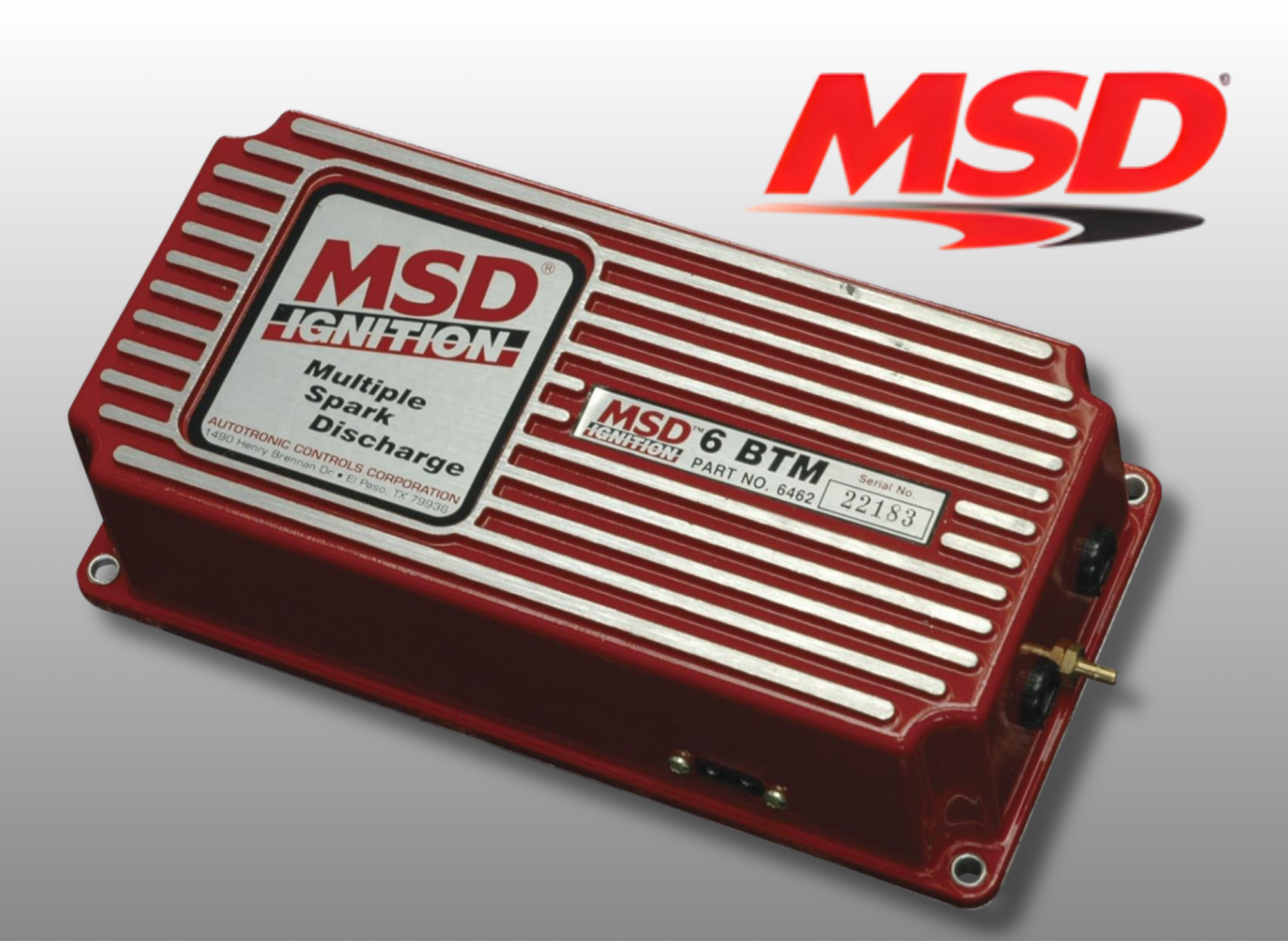

MSD 6-BTM CD Ignitions 6462
Ignition Box, 6-BTM, Analog, Capacitive Discharge, Universal, Points, Electronic, Turbo, Supercharger, Each
MSD 6462 6-BTM Boost Timing Master
The MSD 6-BTM (6462) for Boosted Applications
Forced induction engines require highly specialized ignition systems. As manifold pressure increases, the risk of engine-damaging detonation skyrockets. The MSD 6-BTM (6462) uses specialized analog circuitry designed specifically for turbochargers and superchargers.
This unit features a dash-mounted control knob that provides adjustable timing retard. You can easily adjust the retard from 0 to 3 degrees per pound of boost pressure. By retarding the timing in direct relation to the boost, you keep your engine right on the threshold of detonation. This allows you to safely extract maximum power and efficiency from your supercharged setup.
The 6-BTM draws 1 amp per 1,000 rpm and offers a spark output of 115 millijoules. It still provides the intense multiple-sparking power needed to ignite the dense air-fuel mixtures found in boosted engines.
Technical Specifications Comparison
Before you finalize your purchase, you must match the technical specifications to your specific engine setup. Comparing these popular aftermarket ignitions side by side helps clarify the best option.
Spark Energy and Voltage
The Digital 6AL and 6A deliver a massive 135-145 mJ of spark energy. The 6-BTM offers slightly less at 115 mJ, but makes up for it with its critical boost-timing management. All three units deliver between 520 and 540 volts to the coil.
Operating Voltage Ranges
The digital 6AL and 6A boxes operate between 12 and 15 volts smoothly. In contrast, the analog 6-BTM operates across a wider range of 10 to 18 volts.
Engine Compatibility
All three units work flawlessly with 4, 6, and 8-cylinder engines that use a standard distributor. However, if you are installing the 6-BTM on a V6, you must ensure it is an even-fire engine.
To complete the installation properly, you will need the correct wires and a compatible distributor. Proper routing of your wiring is essential to avoid interference with other engine bay electronics.
Does MSD make Ignition Coils?
Yes, MSD does manufacture ignition coils. They are known for producing high-performance ignition coils designed for various applications, including racing and high-performance vehicles.
Choosing the Right MSD Ignition Boxes
Selecting the best MSD ignition depends entirely on your performance goals and your budget.
If you run a naturally aspirated engine and plan to push it hard on the track, the Digital 6AL gives you the rev protection you need. If you simply want a basic, high-quality spark upgrade for your daily commuter, the Digital 6A provides excellent value. Finally, if you are bolting a supercharger or turbo onto your block, the 6-BTM is absolutely essential for engine safety.
Upgrading your ignition technology is one of the most effective ways to wake up a tired engine. By choosing the right setup, you ensure your engine runs cleaner, stronger, and much more reliably.
Thank you for reading!
Your friend,
Todd
